4. Touch “BCM”.
If “BCM” is not indicated, refer to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “RETAINED PWR”.
6. Select diagnosis mode.
“ACTIVE TEST”, “WORK SUPPORT” and "DATA MONITOR"
are available.
ACTIVE TEST
WORK SUPPORT
DATA MONITOR
BCIA0030E
LIIA0163E
BCIA0031E
Test Item Description
RETAINED PWRThis test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-II screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-II might be stuck if
“RETAINED PWR” is turned “ON” or “OFF” on CONSULT-II screen when ignition switch is OFF.
Work item Description
RETAINED PWRRAP signal’s power supply period can be changed by mode setting. Selects RAP signal’s power
supply period between three steps
MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).
Work item Description
IGN ON SW Indicates (ON / OFF) condition of ignition switch
Page 2170 of 3371
POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
DOOR SW–DR Indicates (ON / OFF) condition of front door switch driver side
DOOR SW–AS Indicates (ON / OFF) condition of front door switch passenger side
Page 2171 of 3371

GW-36
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
Trouble Diagnoses Symptom ChartEIS0 02 UW
Check that other systems using the signal of the following systems operate normally.
Symptom Repair order Refer to page
None of the power windows can be operated using any switch1. BCM power supply and ground circuit checkGW-38
2. Main power window and door lock/unlock
power supply and ground circuit checkGW-39
3. Power window serial link check front LH and
RHGW-40
Front power window LH alone does not operate1. Main power window and door lock/unlock
power supply and ground circuit checkGW-392. Front power window motor LH circuit checkGW-41
3. Replace main power window and door lock/
unlock switchEI-31
Front power window RH alone does not operate1. Power window and door lock/unlock switch
RH power supply and ground circuit checkGW-402. Power window serial link check front LH and
RHGW-54
3. Front power window motor RH circuit checkGW-42
4. Replace BCMBCS-19
Rear power window LH alone does not operate1. Rear power window control unit LH or RH
power supply and ground circuit checkGW-56
2. Rear power window switch LH or RH power
supply and ground circuit checkGW-58
3. Rear power window motor LH circuit checkGW-58
4. Power window serial link check rear LH and
RHGW-64
5. Replace BCMBCS-19
Rear power window RH alone does not operate1. Rear power window control unit LH or RH
power supply and ground circuit checkGW-56
2. Rear power window switch LH or RH power
supply and ground circuit checkGW-58
3. Rear power window motor RH circuit checkGW-59
4. Power window serial link check rear LH and
RHGW-64
5. Replace BCMBCS-19
Rear power vent windows do not operate 1. Rear power vent window switch circuit checkGW-65
Rear power vent window LH alone does not operate1. Rear power vent window motor LH circuit
checkGW-65
Rear power vent window RH alone does not operate1. Rear power vent window motor RH circuit
checkGW-66
Rear power vent windows do not open1. Rear power vent window relay (OPEN)
checkGW-65
Rear power vent windows do not close1. Rear power vent window relay (CLOSE)
checkGW-65
Page 2172 of 3371

POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
Anti-pinch system does not operate normally (Front LH)1. Door window sliding part malfunction
A foreign material adheres to window glass
or glass run rubber.
Glass run rubber wear or deformation.
Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-71
3. Limit switch circuit check front LHGW-43
4. Encoder circuit check front LHGW-46
Anti-pinch system does not operate normally (Front RH)1. Door window sliding part malfunction
A foreign material adheres to window glass
or glass run rubber.
Glass run rubber wear or deformation.
Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-71
3. Limit switch circuit check front RHGW-44
4. Encoder circuit check front RHGW-48
Anti-pinch system does not operate normally (Rear LH)1. Door window sliding part malfunction
A foreign material adheres to window glass
or glass run rubber.
Glass run rubber wear or deformation.
Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-72
3. Limit switch circuit check rear LH or RHGW-60
4. Encoder circuit check rear LH or RHGW-62
Anti-pinch system does not operate normally (Rear RH)1. Door window sliding part malfunction
A foreign material adheres to window glass
or glass run rubber.
Glass run rubber wear or deformation.
Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-72
3. Limit switch circuit check rear LH or RHGW-60
4. Encoder circuit check rear LH or RHGW-62
Power window retained power operation does not operate properly1. Check the retained power operation mode
setting.GW-342. Door switch checkGW-50
3. Replace BCM.BCS-19
Power windows do not operate by key cylinder switch LH1. Door key cylinder switch LH checkGW-522. Replace main power window and door lock/
unlock switchEI-31
Power window lock switch does not function 1. Power window lock switch circuit checkGW-54
Symptom Repair order Refer to page
Page 2173 of 3371

GW-38
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
BCM Power Supply and Ground Circuit CheckEIS002UX
1. CHECK FUSE AND FUSIBLE LINK
Check 50A fusible link (letter f located in the fuse and fusible link box).
Check 10A fuse (No. 59, located in the fuse and relay box).
NOTE:
Refer to GW-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "PRECAUTIONS" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M18, M20 terminals 11, 38, 70 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M20 terminal 67 and ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Repair or replace harness.11 (O) - Ground : Battery voltage
38 (W/L) - Ground : Battery voltage
70 (W/B) - Ground : Battery voltage
WIIA0504E
67 (B) - Ground : Continuity should exist.
LIIA0915E
Page 2174 of 3371

POWER WINDOW SYSTEM
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
Main Power Window and Door Lock/Unlock Switch Power Supply and Ground
Circuit Check
EIS002UY
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/unlock switch connector D7 terminal 10, D8
terminal 19 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between main power window and door lock/unlock switch connector D8 terminal 17 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace harness.
3. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M20 terminals 68, 69 and main power window and door lock/
unlock switch connector D7 terminal 10 and D8 terminal 19.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.10 (W/L) - Ground : Battery voltage
19 (W/R) - Ground : Battery voltage
LIIA2297E
17 (B) - Ground : Continuity should exist.
LIIA0392E
68 (W/L) - 10 (W/L) : Continuity should exist.
69 (W/R) - 19 (W/R) : Continuity should exist.
WIIA0506E
Page 2175 of 3371

GW-40
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M20 terminals 68, 69 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace BCM.
Power Window and Door Lock/Unlock Switch RH Power Supply and Ground
Circuit Check
EIS002UZ
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between power window and door lock/unlock switch RH connector D105 terminal 10 and
ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 11 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace harness.68 (W/L) - Ground : Battery voltage
69 (W/R) - Ground : Battery voltage
LIIA0917E
10 (W/R) - Ground : Battery voltage
LIIA1257E
11 (B) - Ground : Continuity should exist.
LIIA1258E
Page 2176 of 3371

POWER WINDOW SYSTEM
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56

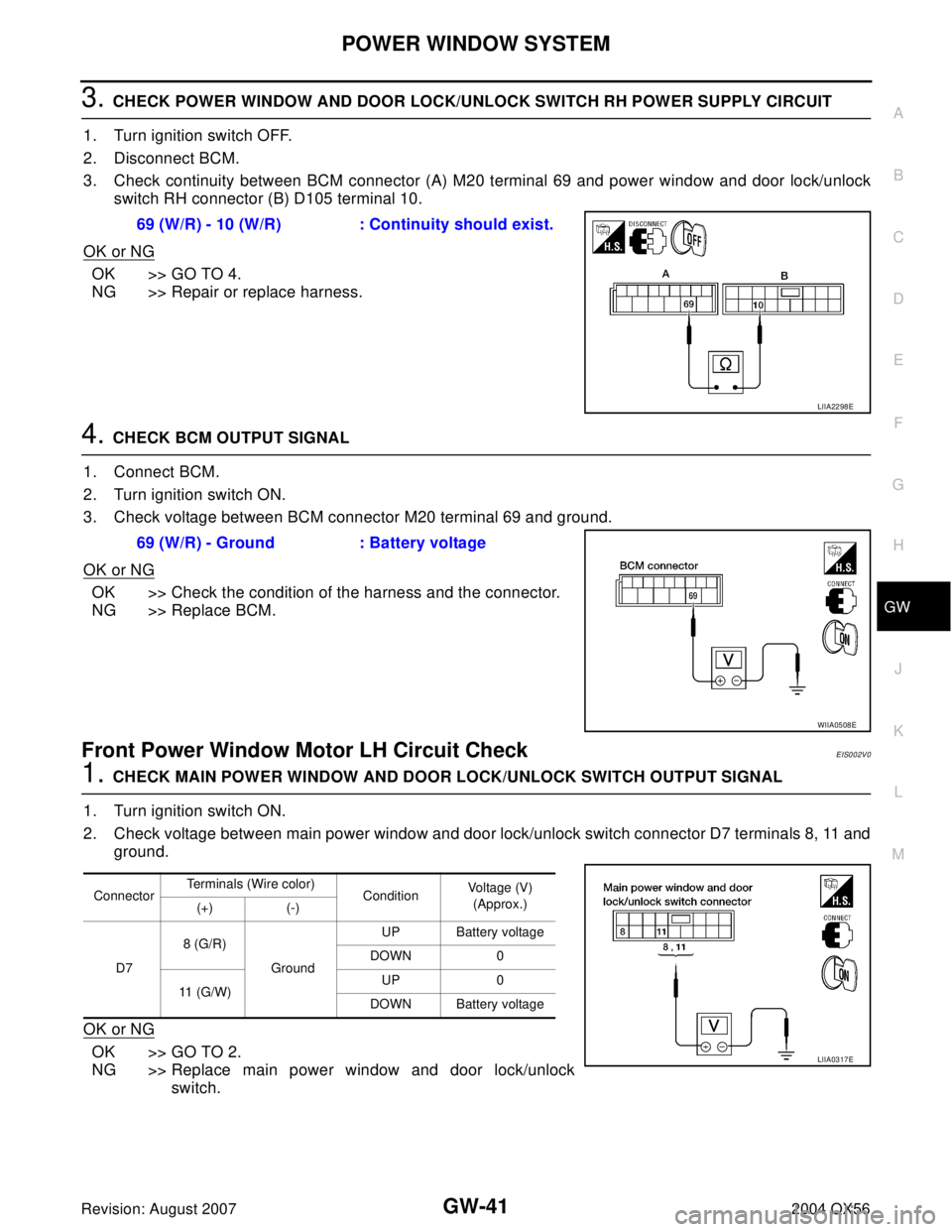

3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector (A) M20 terminal 69 and power window and door lock/unlock
switch RH connector (B) D105 terminal 10.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M20 terminal 69 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace BCM.
Front Power Window Motor LH Circuit CheckEIS002V0
1. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/unlock switch connector D7 terminals 8, 11 and
ground.
OK or NG
OK >> GO TO 2.
NG >> Replace main power window and door lock/unlock
switch. 69 (W/R) - 10 (W/R) : Continuity should exist.
LIIA2298E
69 (W/R) - Ground : Battery voltage
WIIA0508E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D78 (G/R)
GroundUP Battery voltage
DOWN 0
11 (G/W)UP 0
DOWN Battery voltage
LIIA0317E
