Page 1 of 3371

-1QUICK REFERENCE INDEX AGENERAL INFORMATIONGIGeneral InformationBENGINEEMEngine MechanicalLUEngine Lubrication SystemCOEngine Cooling SystemECEngine Control SystemFLFuel SystemEXExhaust SystemACCAccelerator Control SystemCTRANSMISSION/
TRANSAXLEATAutomatic TransmissionDDRIVELINE/AXLETFTransferPRPropeller ShaftFFDFront Final DriveRFDRear Final DriveFAXFront AxleRAXRear AxleESUSPENSIONFSUFront SuspensionRSURear SuspensionWTRoad Wheels & TiresFBRAKESBRBrake SystemPBParking Brake SystemBRCBrake Control SystemGSTEERINGPSPower Steering SystemHRESTRAINTSSBSeat BeltsSRSSupplemental Restraint System (SRS)IBODYBLBody, Lock & Security SystemGWGlasses, Window System & MirrorsRFRoofEIExterior & InteriorIPInstrument PanelSESeatAPAdjustable PedalsJAIR CONDITIONERATCAutomatic Air ConditionerKELECTRICALSCStarting & Charging SystemLTLighting SystemDIDriver Information SystemWWWiper, Washer & HornBCSBody Control SystemLANLAN SystemAVAudio Visual, Navigation & Telephone SystemACSAuto Cruise Control SystemPGPower Supply, Ground & Circuit ElementsLMAINTENANCEMAMaintenanceMINDEXIDXAlphabetical IndexEdition: February 2004
Revision: August 2007BDACEFGHIJKLM
Page 2 of 3371
QUICK REFERENCE CHART: QX562004
QUICK REFERENCE CHART: QX56PFP:00000
Engine Tune-Up DataELS000YK
Cylinder arrangementV- 8
Displacement 5,552 cm
3 (338.80 in3 )
Bore and stroke 98 x 92 mm (3.86 x 3.62 in)
Valve arrangement DOHC
Firing order 1-8-7-3-6-5-4-2
Number of piston rings Compression 2
Oil 1
Number of main bearings 5
Compression ratio 9.8:1
Compression pressure Standard
1,520 kPa (15.5 kg/cm
2 , 220 psi) / 200 rpm
Minimum 1,324 kPa (13.5 kg/cm
2 , 192 psi) / 200 rpm
Differential limit between cylinders 98 kPa (1.0 kg/cm
2 , 14 psi) / 200 rpm
Cylinder number
Valve timing Unit: degree
abcde f
232 ° 230° 2° 48° 3° 49°
SEM957C
PBIC0187E
Page 3 of 3371

2004
QUICK REFERENCE CHART: QX56
Drive Belt Deflection and Tension
Spark Plugs (Double Platinum Tipped)
Front Wheel Alignment (Unladen*1 )ELS00112
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Target value 37° 31 ′ (37.52 °)
*3: Target value 33 ° 59 ′ (33.98 °)
*4: Target value 37 ° 44 ′ (37.73 °)
*5: Target value 33 ° 29 ′ (33.48 °)
Tension of drive belts Auto adjustment by auto tensioner
Make NGK
Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Gap (nominal) 1.1 mm (0.043 in)
Drive type2WD 4WD
Camber
Degree minute (decimal degree) Minimum -0
° 51 ′ (-0.85 °)-0 ° 33 ′ (-0.55 °)
Nominal -0 ° 6 ′ (-0.10 °)0 ° 12 ′ (0.20 °)
Maximum 0 ° 39 ′ (0.65 °)0 ° 57 ′ (0.95 °)
Cross camber 0 ° 45 ′ (0.75 °) or less 0 ° 45 ′ (0.75 °) or less
Caster
Degree minute (decimal degree) Minimum 3
° 15 ′ (3.25 °)2 °45 ′ (2.75 °)
Nominal 4 ° 0 ′ (4.00 °)3 ° 30 ′ (3.50 °)
Maximum 4 ° 45 ′ (4.75 °)4 ° 15 ′ (4.25 °)
Cross caster 0 ° 45 ′ (0.75 °) or less 0 ° 45 ′ (0.75 °) or less
Kingpin inclination
Degree minute (decimal degree) 13
° 32 ′ (13.53 °)13 °13 ′ (13.22 °)
Total toe-in Distance (A
− B) Minimum 1.8 mm (0.07 in) 1.8 mm (0.07 in)
Nominal 2.8 mm (0.11 in) 2.8 mm (0.11 in)
Maximum 3.8 mm (0.15 in) 3.8 mm (0.15 in)
Angle (left side and right side)
Degree minute (decimal degree) Minimum 0
° 3 ′ (0.05 °)0 ° 3 ′ (0.05 °)
Nominal 0 ° 5 ′ (0.08 °)0 ° 5 ′ (0.08 °)
Maximum 0 ° 7 ′ (0.12 °)0 ° 7 ′ (0.12 °)
Wheel turning angle
(full turn) Inside
Degree minute (decimal degree)
34
° 31 ′ – 38 ° 31 ′ *2
(34.52 ° – 38.52 °) 34
° 44 ′ – 38 ° 44 ′ *4
(34.73 ° – 38.73 °)
Outside
Degree minute (decimal degree) 30
° 59 ′ – 34 ° 59 ′ *3
(30.98 ° – 34.98 °) 30
° 29 ′ – 34 ° 29 ′ *5
(30.48 ° – 34.48 °)
SFA234AC
Page 4 of 3371

QUICK REFERENCE CHART: QX56
2004
Rear Wheel AlignmentELS0014M
BrakeELS000ZT
Unit: mm (in)
Camber
Degree minute (decimal degree)
Minimum 0
° 0 ′ (0 °)
Nominal - 0 ° 30 ′ (-0.5 °)
Maximum - 1 ° 0 ′ (-1.0 °)
Cross camber 0 ° 45 ′ (0.75 °)
Toe-in Distance (A - B)
Minimum 0 mm (0 in)
Nominal 3.3 mm (0.130 in)
Maximum 6.6 mm (0.260 in)
Cross toe 2 mm (0.079 in)
Angle (left and right)
Degree minute (decimal degree) Minimum 0
° 0 ′ (0 °)
Nominal 0 ° 7 ′ (0.11 °)
Maximum 0 ° 14 ′ (0.22 °)
Cross toe 0 ° 8 ′ (0.14 °)
SFA234AC
Front brake Brake model CLZ31VC
Rotor outer diameter × thickness 320 × 26 (12.60 × 1.02)
Pad Length × width × thickness 111.0 × 73.5 × 9.5 (4.73 × 2.894 × 0.374)
Cylinder bore diameter 51 (2.01)
Rear brake Brake model AD14VE Rotor outer diameter × thickness 320 × 14 (12.60 × 0.55)
Pad Length × width × thickness 83.0 × 33.0 × 8.5 (3.268 × 1.299 × 0.335)
Cylinder bore diameter 48 (1.89)
Control valve Valve model Electric brake force distribution
Brake booster Booster model C215T
Diaphragm diameter 215 (8.46)
Recommended brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent,
DOT 3 (US FMVSS No. 116)
Page 5 of 3371

2004
QUICK REFERENCE CHART: QX56
Disc Brake - Repair LimitsELS000ZU
Unit: mm (in)
Brake PedalELS000ZV
Unit: mm (in)
Refill CapacitiesELS000YO
Brake model CLZ31VC (Front) AD14VE (Rear)
Brake PadStandard thickness (new) 11.88 (0.468) 12.13 (0.478)
Repair limit thickness 1.0 (0.039) 1.0 (0.039)
Disc rotor Standard thickness (new) 26.0 (1.024) 14.0 (0.551)
Repair limit thickness 24.5 (0.965) 12.0 (0.472)
Maximum uneven wear (measured at 8 positions) 0.015 (0.0006) 0.015 (0.0006)
Runout limit (with it attached to the vehicle) 0.04 (0.0016) 0.05 (0.0020)
Brake pedal height (from dash lower panel top surface) 182.3
− 192.3 (7.18 − 7.57)
Depressed pedal height [under a force of 490 N (50 kg, 110 lb) with engine running] More than 90.3 (3.55)
Clearance between stopper rubber and the threaded end of stop lamp switch 0.74 − 1.96 (0.029 − 0.077)
Pedal play 3 − 11 (0.12 − 0.43)
Description Capacity (Approximate)
Metric US measure Imp measure
Fuel 105.8 28 gal 23 1/4 gal
Engine oil
Drain and refill With oil filter change
6.2 6 1/2 qt 5 1/2 qt
Without oil filter change 5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul) 7.6 8 qt 6 3/4 qt
Cooling system With reservoir at MAX level 14.4 3 3/4 gal 3 1/8 gal
Automatic transmission fluid (ATF) 10.6 11 1/4 qt 9 3/8 qt
Rear final drive oil 1.75 3 3/4 pt 3 1/8 pt
Transfer fluid 3.0 3 1/8 qt 2 5/8 qt
Front final drive oil 1.6 3 3/8 pt 2 7/8 pt
Power steering fluid (PSF) 1.0 1 1/8 qt 7/8 qt
Windshield washer fluid 4.5 1 1/4 gal 1 gal
Air conditioning system refrigerant 1.08 ± 0.05 kg 2.38 ± 0.11 lb 2.38 ± 0.11 lb
Air conditioning system lubricants 290 m9.8 fl oz 10.2 fl oz
Page 6 of 3371
ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
Revision: August 20072004 QX56 ACCELERATOR CONTROL SYSTEM ...................... 2
Removal and Installation .......................................... 2
REMOVAL ............................................................. 2
INSTALLATION ..................................................... 3
INSPECTION AFTER INSTALLATION ................. 3SERVICE DATA AND SPECIFICATIONS (SDS) ........ 4
Accelerator Control ................................................... 4
ADJUSTABLE ACCELERATOR PEDAL ............... 4
Page 7 of 3371

ACC-2Revision: August 2007
ACCELERATOR CONTROL SYSTEM
2004 QX56
ACCELERATOR CONTROL SYSTEMPFP:18005
Removal and InstallationEBS00IKW
Adjustable Accelerator Pedal
CAUTION:
Do not disassemble the accelerator pedal adjusting mechanism.
Before removal and installation the accelerator and brake pedals must be in the frontmost posi-
tion. This is to align the base position of the accelerator and brake pedals.
Do not disassemble the accelerator pedal assembly.
Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
Avoid damage from dropping the accelerator pedal assembly during handling.
Keep the accelerator pedal assembly away from water.
REMOVAL
1. Move the accelerator and brake pedals to the frontmost position.
2. Turn the ignition switch OFF and disconnect the negative battery terminal.
3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.
LBIA0379E
1. Adjustable accelerator pedal assem-
bly2. A/T control cable mounting bracket (part
of the accelerator pedal assembly)3. Adjustable pedal electric motor (part
of the accelerator pedal assembly)
4. Adjustable brake pedal cable (part
of the accelerator pedal assembly)
Page 8 of 3371

ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
MA
ACC
Revision: August 20072004 QX56
4. Disconnect the adjustable pedal electric motor electrical connec-
tor.
5. Disconnect the adjustable pedal electric motor memory electri-
cal connector, if equipped.
6. Disconnect the accelerator position sensor electrical connector.
7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.
INSTALLATION
Installation is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check that the accelerator pedal moves smoothly within the specified ranges.
Depress and release the accelerator pedal to check that it returns smoothly to the original released posi-
tion.

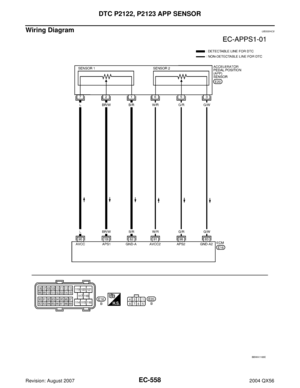

Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-576, "DTC P2138
APP SENSOR" .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-44, "
Accelerator Pedal Released
Position Learning" .
LBIA0380E
Adjustable accelerator pedal – total pedal applied stroke : 48.3 mm (1.90 in)
Adjustable accelerator pedal – total pedal adjustment travel : 73.2 mm (2.88 in)
