Page 2697 of 3371

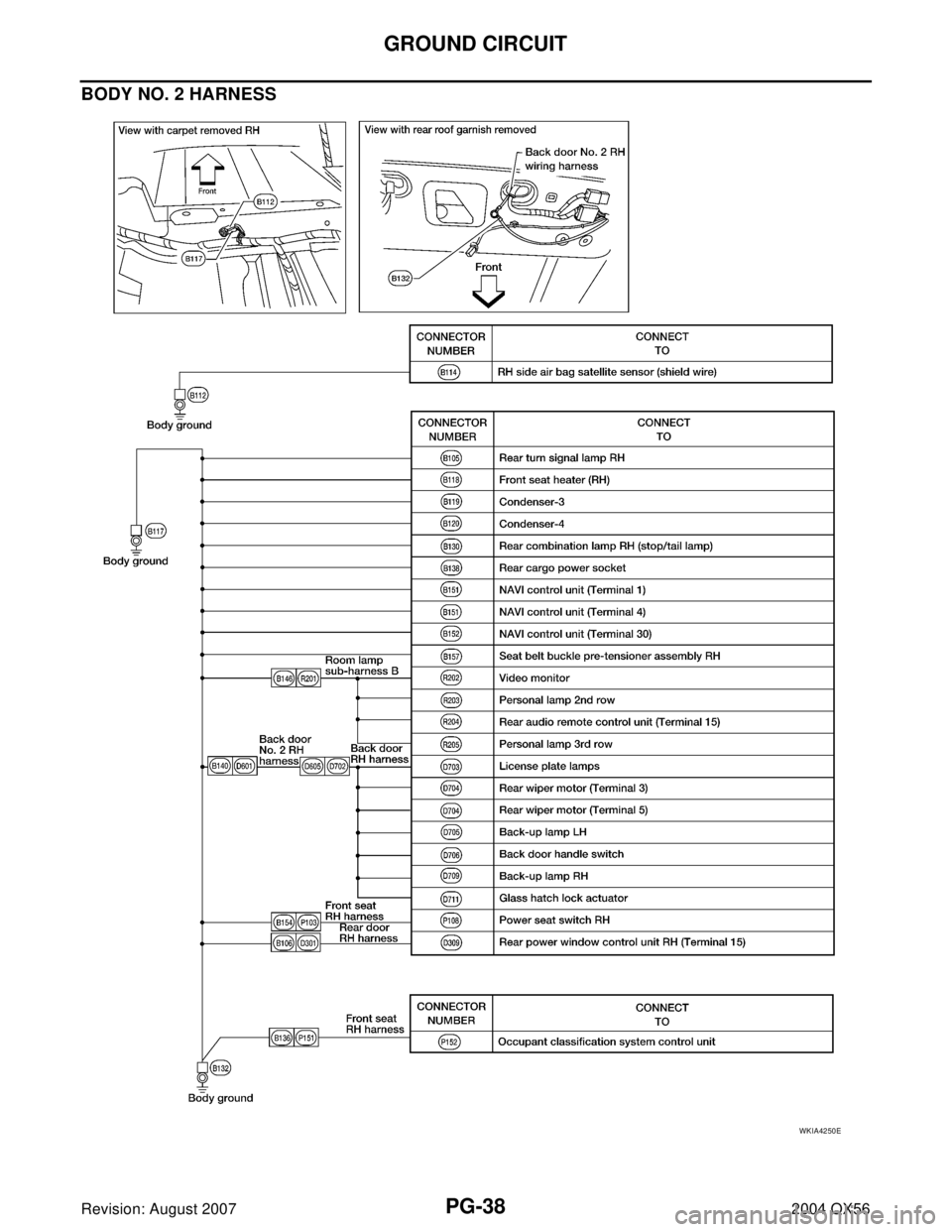

INFINITI QX56 2004 Factory Service Manual PG-38 GROUND CIRCUIT Revision: August 20072004 QX56 BODY NO. 2 HARNESS WKIA4250E

Page 2698 of 3371

INFINITI QX56 2004 Factory Service Manual GROUND CIRCUIT PG-39 C D E F G H I J L MA B PG Revision: August 20072004 QX56 BACK DOOR NO. 2 RH HARNESS WKIA1975E

Page 2699 of 3371

INFINITI QX56 2004 Factory Service Manual PG-40 HARNESS Revision: August 20072004 QX56 HARNESSPFP:24010 Harness LayoutEKS007NY HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to help locate connectors on the dra

Page 2700 of 3371

INFINITI QX56 2004 Factory Service Manual HARNESS PG-41 C D E F G H I J L MA B PG Revision: August 20072004 QX56 OUTLINE WKIA4233E

Page 2701 of 3371

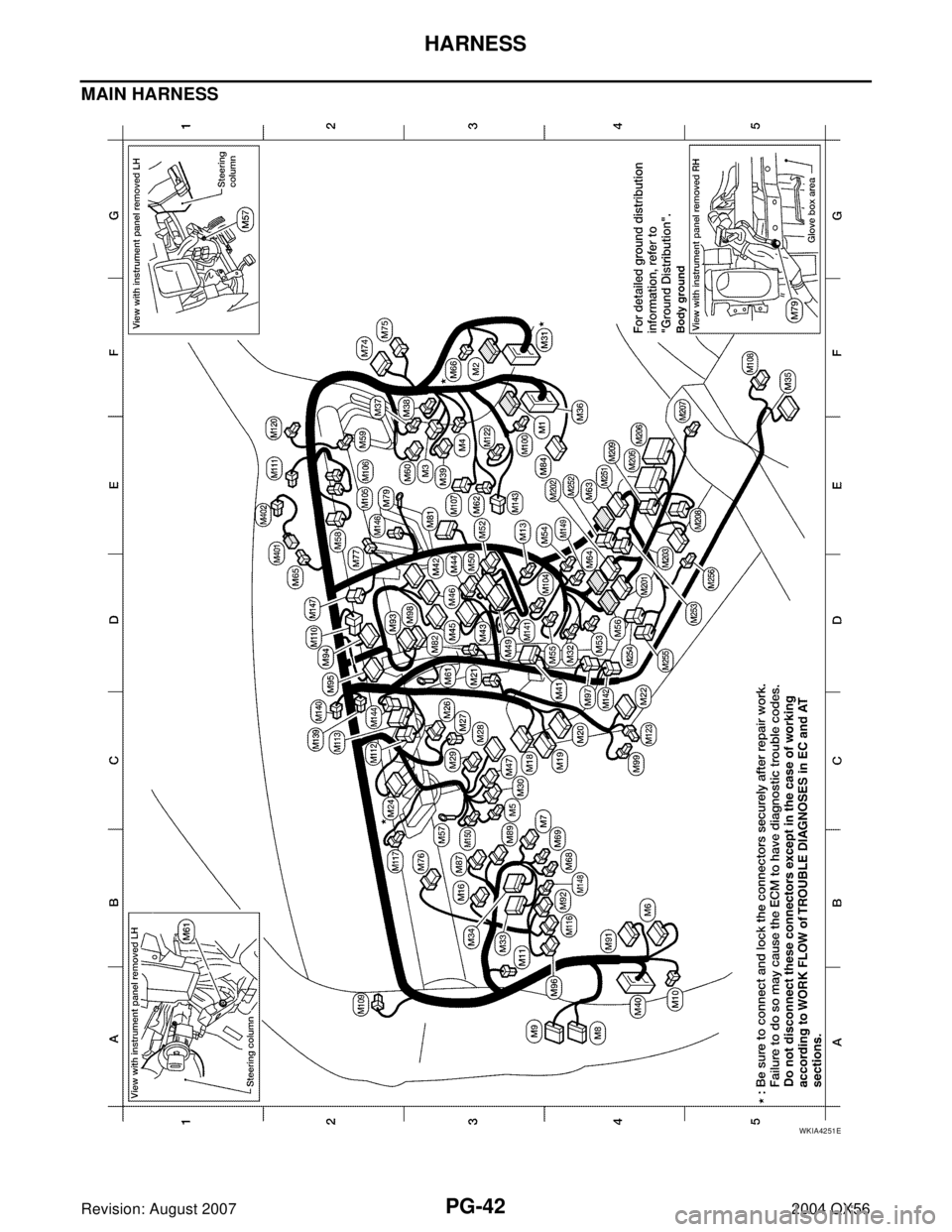

INFINITI QX56 2004 Factory Service Manual PG-42 HARNESS Revision: August 20072004 QX56 MAIN HARNESS WKIA4251E

Page 2702 of 3371

INFINITI QX56 2004 Factory Service Manual HARNESS PG-43 C D E F G H I J L MA B PG Revision: August 20072004 QX56 WKIA4252E

Page 2703 of 3371

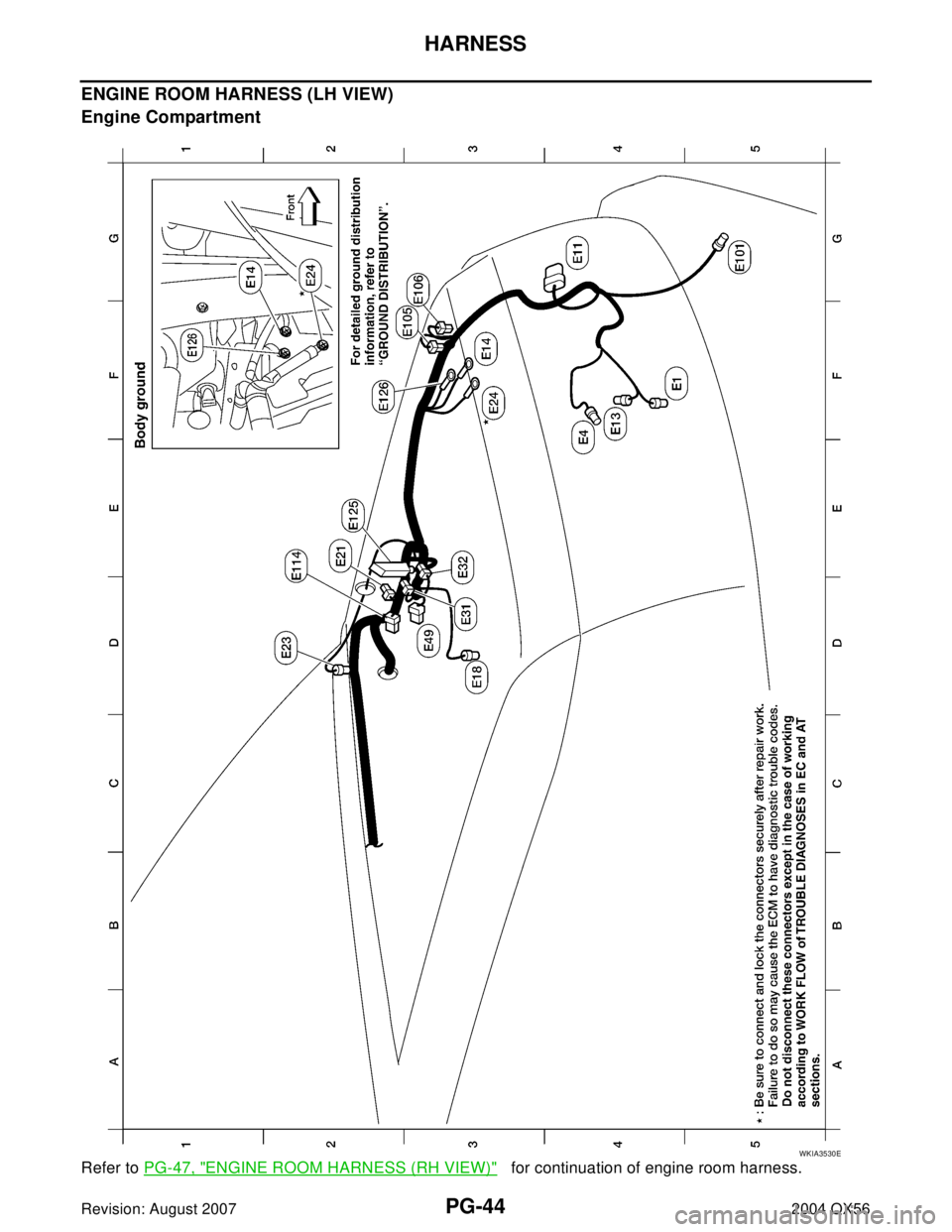

INFINITI QX56 2004 Factory Service Manual PG-44 HARNESS Revision: August 20072004 QX56 ENGINE ROOM HARNESS (LH VIEW) Engine Compartment Refer to PG-47, "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness. WKIA3530E

Page 2704 of 3371

INFINITI QX56 2004 Factory Service Manual HARNESS PG-45 C D E F G H I J L MA B PG Revision: August 20072004 QX56 WKIA3531E
