AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56

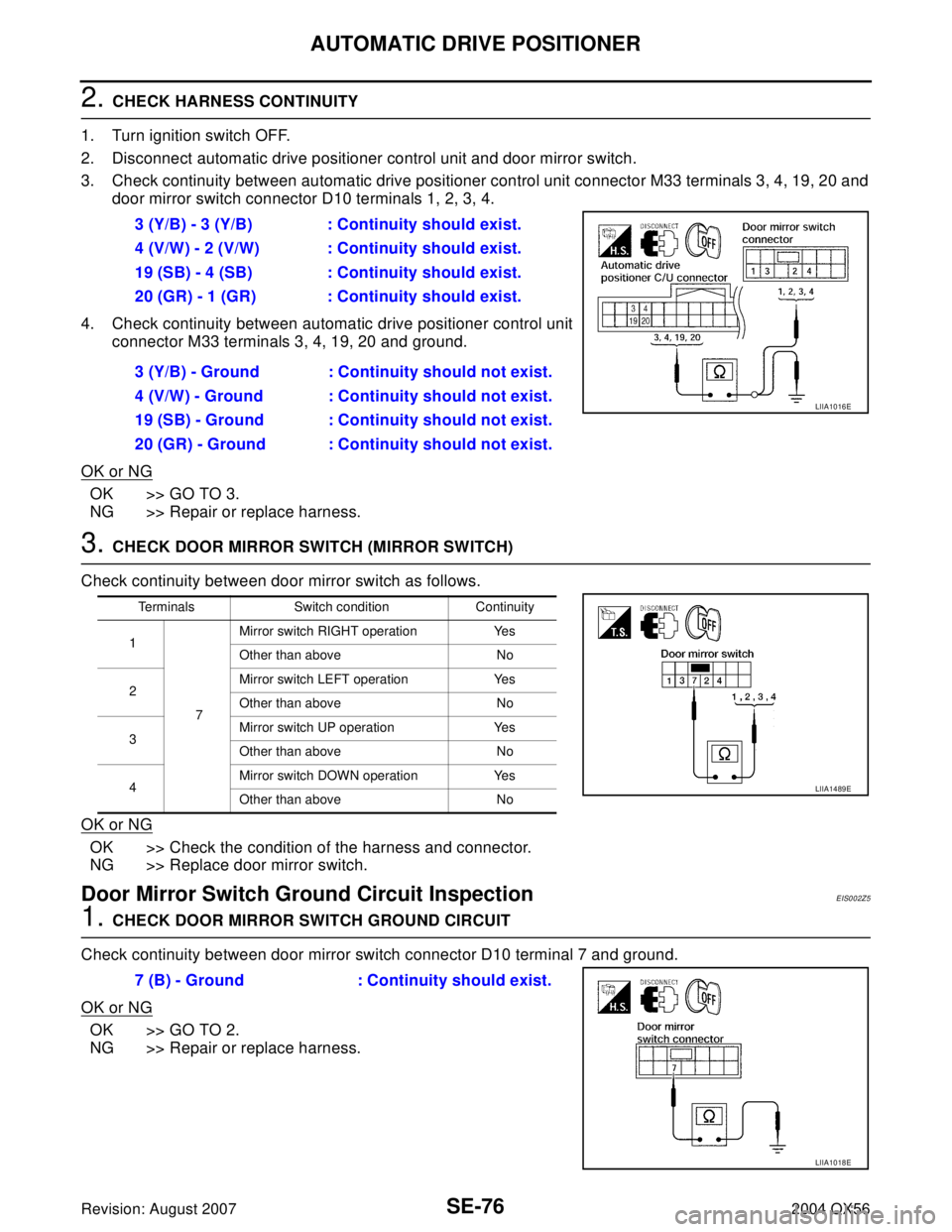

2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror switch.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and
door mirror switch connector D10 terminals 1, 2, 3, 4.
4. Check continuity between automatic drive positioner control unit
connector M33 terminals 3, 4, 19, 20 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR SWITCH (MIRROR SWITCH)
Check continuity between door mirror switch as follows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace door mirror switch.
Door Mirror Switch Ground Circuit InspectionEIS002Z5
1. CHECK DOOR MIRROR SWITCH GROUND CIRCUIT
Check continuity between door mirror switch connector D10 terminal 7 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.3 (Y/B) - 3 (Y/B) : Continuity should exist.
4 (V/W) - 2 (V/W) : Continuity should exist.
19 (SB) - 4 (SB) : Continuity should exist.
20 (GR) - 1 (GR) : Continuity should exist.
3 (Y/B) - Ground : Continuity should not exist.
4 (V/W) - Ground : Continuity should not exist.
19 (SB) - Ground : Continuity should not exist.
20 (GR) - Ground : Continuity should not exist.
LIIA1016E
Terminals Switch condition Continuity
1
7Mirror switch RIGHT operation Yes
Other than above No
2Mirror switch LEFT operation Yes
Other than above No
3Mirror switch UP operation Yes
Other than above No
4Mirror switch DOWN operation Yes
Other than above No
LIIA1489E
7 (B) - Ground : Continuity should exist.
LIIA1018E
Page 3026 of 3371

AUTOMATIC DRIVE POSITIONER
SE-77
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
2. CHECK DOOR MIRROR SWITCH (CHANGEOVER SWITCH)
Check continuity between door mirror switch as follows.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror switch.
Seat Memory Switch Circuit InspectionEIS002Z6
1. CHECK FUNCTION
With CONSULT-II
With “SET SW, MEMORY SW1, MEMORY SW2” on the DATA
MONITOR, operate the switch to check ON/OFF operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Seat memory switch circuit is OK.
NG >> GO TO 2.
Te r m i n a l s
Condition Continuity
(+) (–)
5
7Changeover switch RIGHT position Yes
Other than above No
6Changeover switch LEFT position Yes
Other than above No
LIIA1488E
Monitor item [OPERATION or
UNIT]Contents
MEMORY SW1 “ON/OFF”ON/OFF status judged from the seat
memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF”ON/OFF status judged from the seat
memory switch 2 signal is displayed.
SET SW “ON/OFF”ON/OFF status judged from the setting
switch signal is displayed.
PIIA0309E
Page 3027 of 3371

SE-78
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
2. CHECK SEAT MEMORY SWITCH
1. Turn ignition switch OFF.
2. Disconnect seat memory switch.
3. Operate the setting switch and seat memory switch.
4. Check continuity between seat memory switch as follows.
OK or NG
OK >> GO TO 3.
NG >> Replace seat memory switch.
3. CHECK HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit.
2. Check continuity between automatic drive positioner control unit
connector M33 terminals 9, 24, 25 and seat memory switch con-
nector D5 terminals 1, 2, 3.
3. Check continuity between automatic drive positioner control unit
connector M41 terminals 9, 24, 25 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK SEAT MEMORY SWITCH GROUND CIRCUIT
Check continuity between seat memory switch D5 terminal 4 and
ground.
OK or NG
OK >> Replace automatic drive positioner control unit.
NG >> Repair or replace harness.
Terminal
Condition Continuity
(+) (–)
1
4Memory switch 1: ON Yes
Memory switch 1: OFF No
2Memory switch 2: ON Yes
Memory switch 2: OFF No
3Set switch: ON Yes
Set switch: OFF No
LIIA1020E
9 (LG/B) - 1 (LG/B) : Continuity should exist.
24 (G/O) - 3 (G/O) : Continuity should exist.
25 (P/L) - 2 (P/L) : Continuity should exist.
9 (LG/B) - Ground : Continuity should not exist.
24 (G/O) - Ground : Continuity should not exist.
25 (P/L) - Ground : Continuity should not exist.
PIIA4576E
4 (B) - Ground : Continuity should exist.
PIIA4821E
Page 3028 of 3371

AUTOMATIC DRIVE POSITIONER
SE-79
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
Seat Memory Indicator Lamp Circuit InspectionEIS002Z7
1. CHECK FUNCTION
With CONSULT-II
With “MEMORY SW INDCTR” in ACTIVE TEST, check operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Seat memory switch indicator lamp circuit is OK.
NG >> GO TO 2.

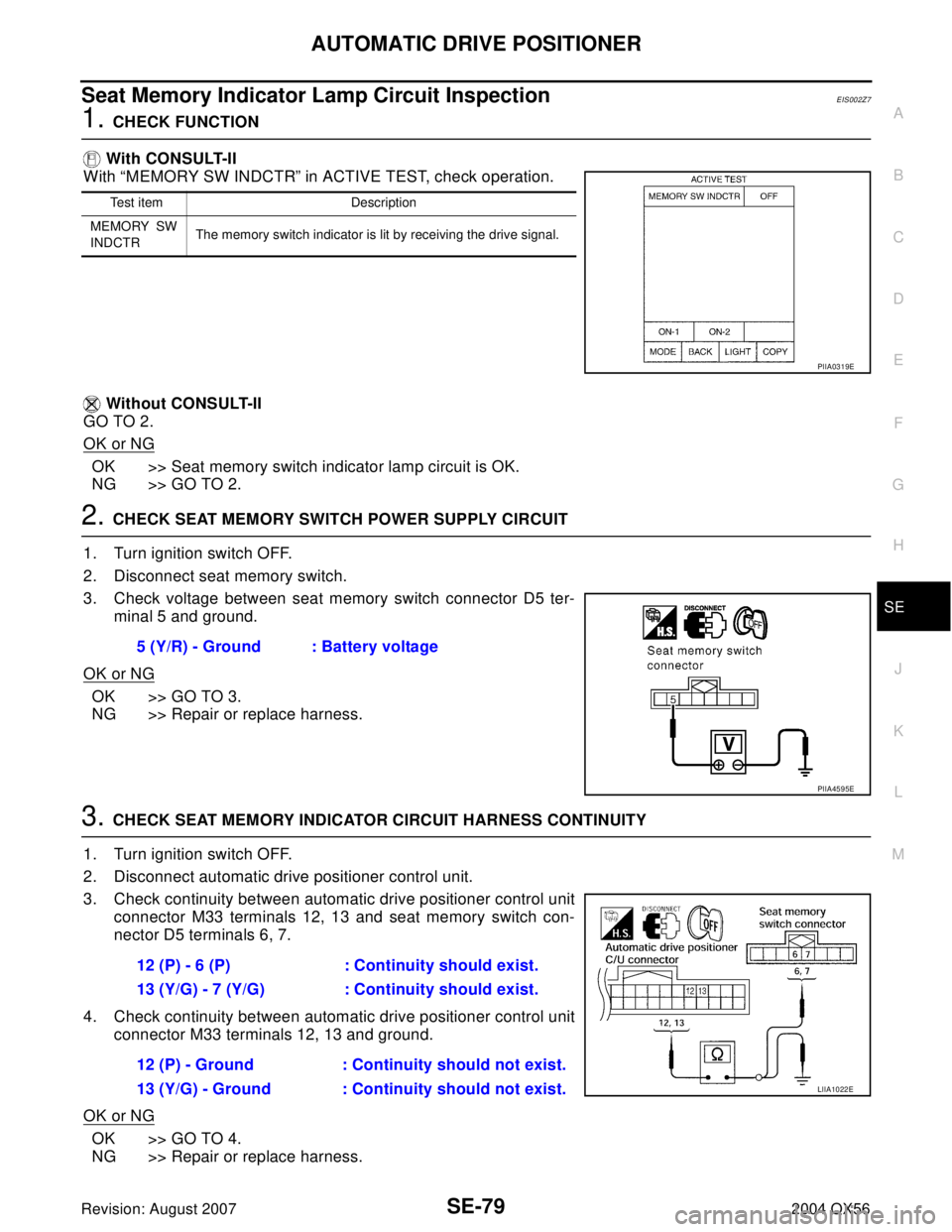

2. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect seat memory switch.
3. Check voltage between seat memory switch connector D5 ter-
minal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK SEAT MEMORY INDICATOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 12, 13 and seat memory switch con-
nector D5 terminals 6, 7.
4. Check continuity between automatic drive positioner control unit
connector M33 terminals 12, 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Test item Description
MEMORY SW
INDCTRThe memory switch indicator is lit by receiving the drive signal.
PIIA0319E
5 (Y/R) - Ground : Battery voltage
PIIA4595E
12 (P) - 6 (P) : Continuity should exist.
13 (Y/G) - 7 (Y/G) : Continuity should exist.
12 (P) - Ground : Continuity should not exist.
13 (Y/G) - Ground : Continuity should not exist.
LIIA1022E
Page 3029 of 3371

SE-80
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL
1. Connect seat memory switch.
2. Turn ignition switch ON.
3. Check voltage between automatic drive positioner control unit
connector M33 terminals 12, 13 and ground.
OK or NG
OK >> Replace automatic drive positioner control unit.
NG >> Replace seat memory switch.
Door Mirror Sensor Power Supply and Ground Circuit inspectionEIS002Z8
1. CHECK DOOR MIRROR SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and door mirror (LH and RH).
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door
mirror connector D4 (LH), D107 (RH) terminals 5, 6.
3. Check continuity between automatic drive positioner control unit
connector M34 terminals 33, 41 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK MIRROR SENSOR POWER SUPPLY
1. Connect automatic drive positioner control unit and door mirror
LH.
2. Turn ignition switch to ACC.
3. Check voltage between automatic drive positioner control unit
connector M34 terminal 33 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace automatic drive positioner control unit.12 (P) - Ground : Battery voltage
13 (Y/G) - Ground : Battery voltage
LIIA1134E
33 (W/L) - 5 (W/L) : Continuity should exist.
41 (W/G) - 6 (W/G) : Continuity should exist.
33 (W/L) - Ground : Continuity should not exist.
41 (W/G) - Ground : Continuity should not exist.
LIIA1023E
33 (W/L) - Ground : Approx. 5V
LIIA1136E
Page 3030 of 3371

AUTOMATIC DRIVE POSITIONER
SE-81
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
3. CHECK MIRROR SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between automatic drive positioner control unit
connector M34 terminal 41 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace automatic drive positioner control unit.
A/T Device (Detent Switch) Circuit InspectionEIS002Z9
1. CHECK FUNCTION
With CONSULT-II
Check that when the A/T shift lever is in P position, “DETENT SW”
on the DATA MONITOR becomes OFF.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> A/T device (detent switch) circuit is OK.
NG >> GO TO 2.
2. CHECK A/T DEVICE (DETENT SWITCH) HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/T device and driver seat control unit.
3. Check continuity between A/T device connector M203 terminal 6
and driver seat control unit connector P2 terminal 21.
4. Check continuity between A/T device connector M203 terminal 6
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.41 (W/G) - Ground : Continuity should exist.
LIIA1135E
Monitor item
[OPERATION or UNIT]Contents
DETENT SW“ON/
OFF”The selector lever position “P position (OFF)/other than P
position (ON)” judged from the park switch signal is dis-
played.
PIIA0291E
6 (L/R) - 21 (L/R) : Continuity should exist.
6 (L/R) - Ground : Continuity should not exist.
LIIA1024E
Page 3031 of 3371

SE-82
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
3. CHECK DETENTION SWITCH
Check continuity between A/T device (DETENT switch) as follows.
OK or NG
OK >> A/T device is OK.
NG >> Replace A/T device.
Steering Wheel Tilt Switch Circuit InspectionEIS0038N
1. CHECK FUNCTION
With CONSULT-II
With “TILT SW-UP, TILT SW-DOWN” on the DATA MONITOR, oper-
ate the ADP steering wheel tilt switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> ADP steering wheel tilt switch circuit is OK.
NG >> GO TO 2.
Terminals
Condition Continuity
(+) (–)
56P position Continuity should not exist.
Other than
P positionContinuity should exist.
LIIA1491E
Monitor item [OPERATION or
UNIT]Contents
TILT SW-UP “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (FR) signal is
displayed.
TILT SW-DOWN “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (RR) signal is
displayed.
PIIA0315E
ConnectorTe r m i n a l s
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M331 (W/G)
GroundTilt switch ON (UP
operation)0
Other than above 5
17 (G/B)Tilt switch ON (DOWN
operation)0
Other than above 5
LIIA0491E
Page 3032 of 3371

AUTOMATIC DRIVE POSITIONER
SE-83
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56

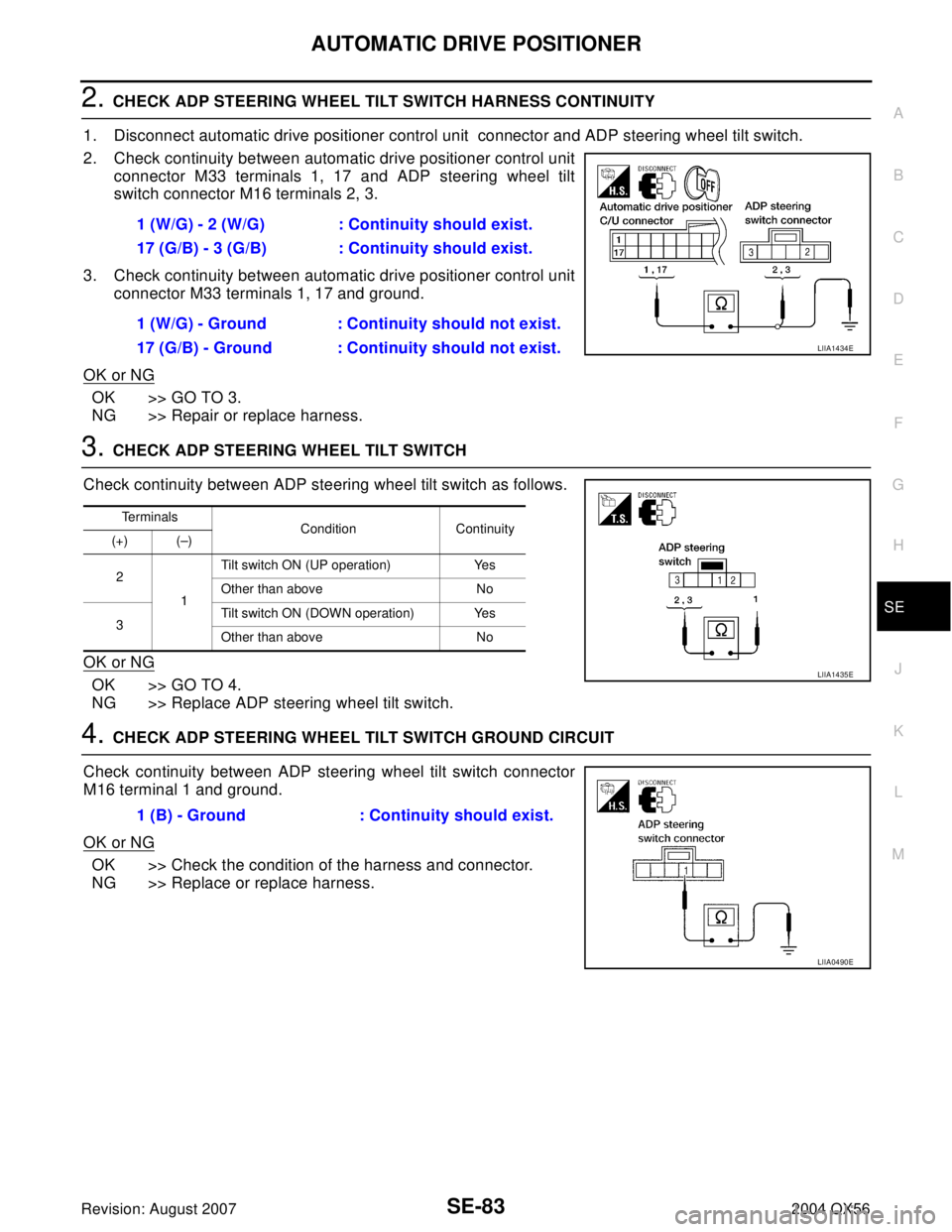

2. CHECK ADP STEERING WHEEL TILT SWITCH HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and ADP steering wheel tilt switch.
2. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ADP steering wheel tilt
switch connector M16 terminals 2, 3.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK ADP STEERING WHEEL TILT SWITCH
Check continuity between ADP steering wheel tilt switch as follows.
OK or NG
OK >> GO TO 4.
NG >> Replace ADP steering wheel tilt switch.
4. CHECK ADP STEERING WHEEL TILT SWITCH GROUND CIRCUIT
Check continuity between ADP steering wheel tilt switch connector
M16 terminal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.1 (W/G) - 2 (W/G) : Continuity should exist.
17 (G/B) - 3 (G/B) : Continuity should exist.
1 (W/G) - Ground : Continuity should not exist.
17 (G/B) - Ground : Continuity should not exist.
LIIA1434E
Te r m i n a l s
Condition Continuity
(+) (–)
2
1Tilt switch ON (UP operation) Yes
Other than above No
3Tilt switch ON (DOWN operation) Yes
Other than above No
LIIA1435E
1 (B) - Ground : Continuity should exist.
LIIA0490E
