Page 2361 of 3371

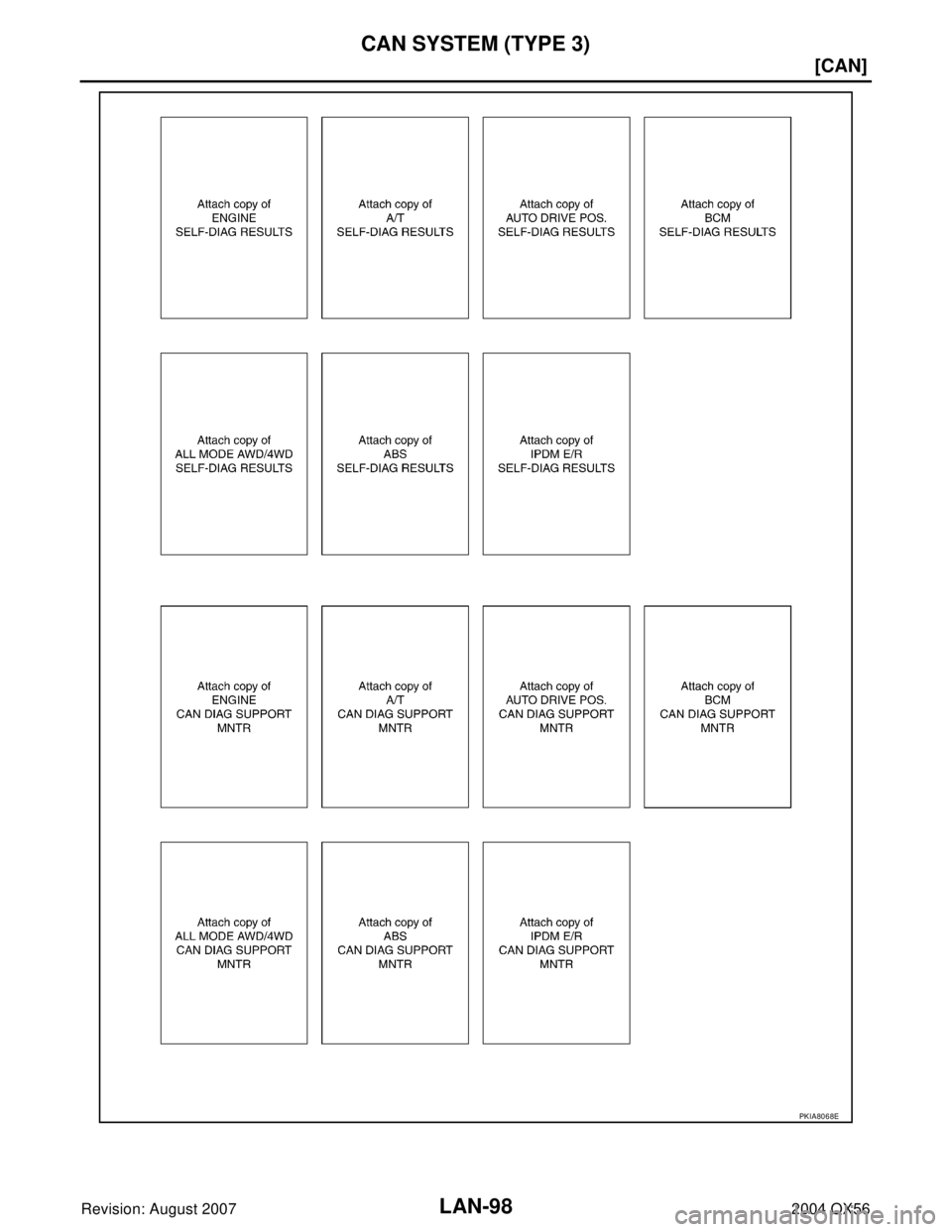

INFINITI QX56 2004 Factory Service Manual LAN-98 [CAN] CAN SYSTEM (TYPE 3) Revision: August 20072004 QX56 PKIA8068E

Page 2362 of 3371

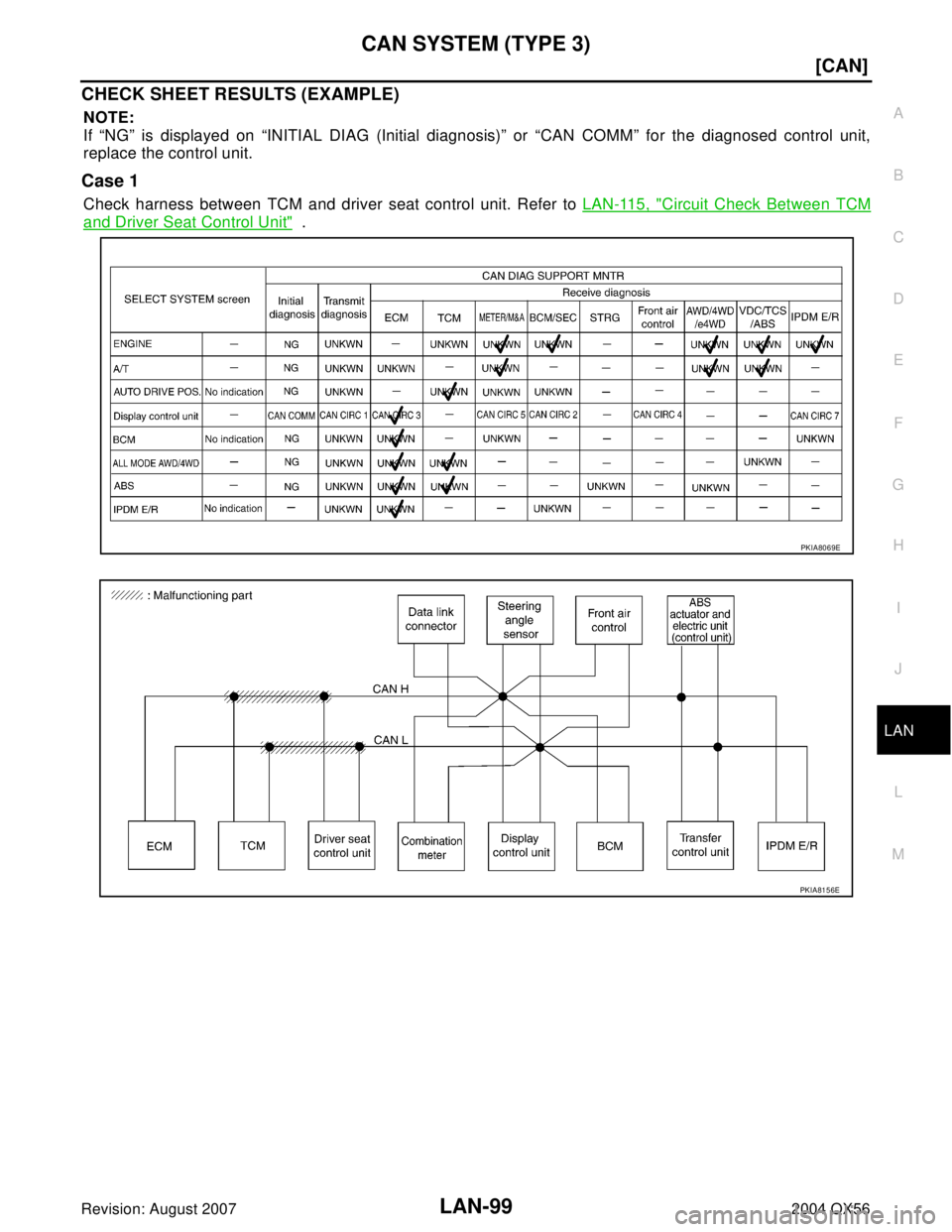

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-99 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “

Page 2363 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-100 [CAN] CAN SYSTEM (TYPE 3) Revision: August 20072004 QX56 Case 2 Check harness between driver seat control unit and data link connector. Refer to LAN-116, "Circuit Check Between Driver Seat Con

Page 2364 of 3371

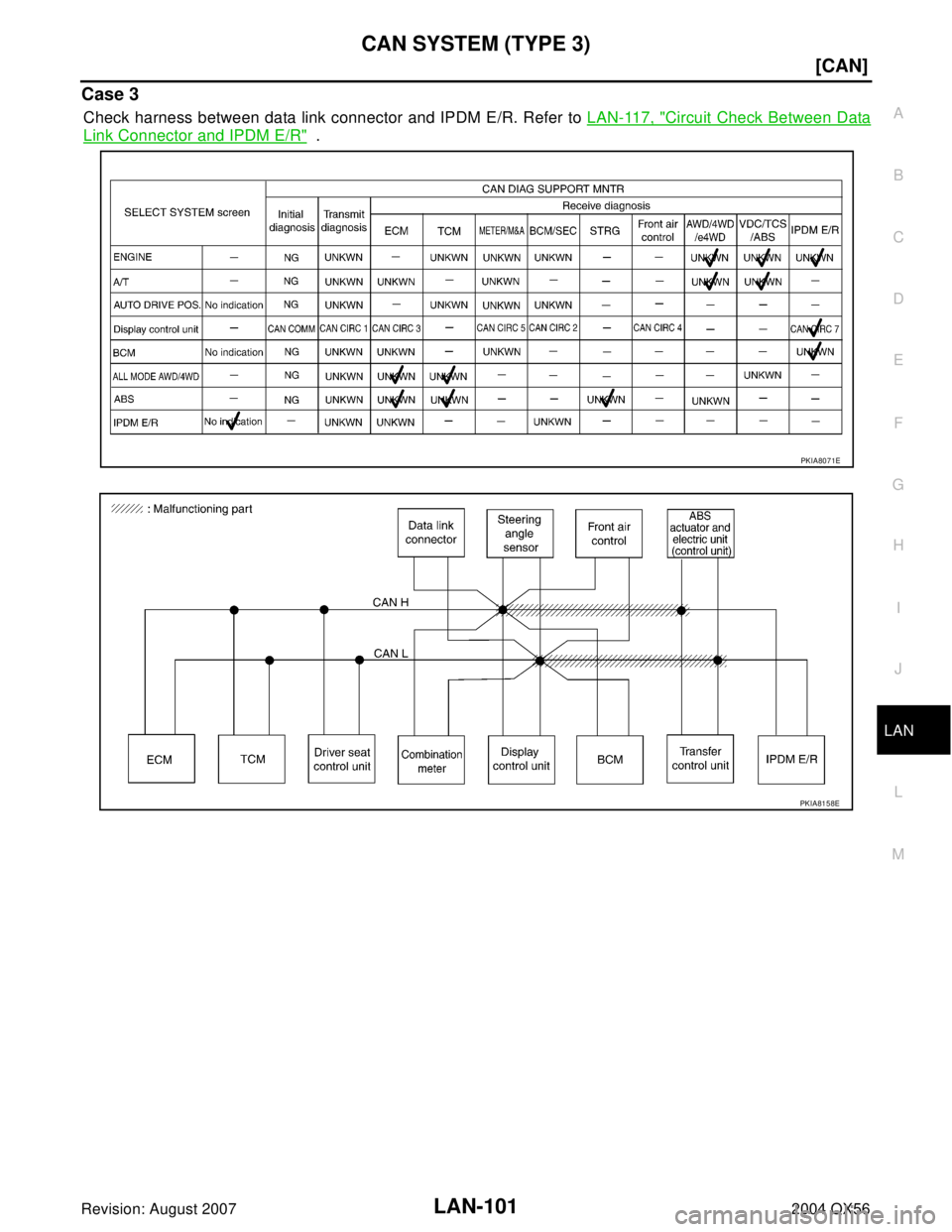

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-101 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 3 Check harness between data link connector and IPDM E/R. Refer to LAN-117, "Circuit Check Between Data

Page 2365 of 3371

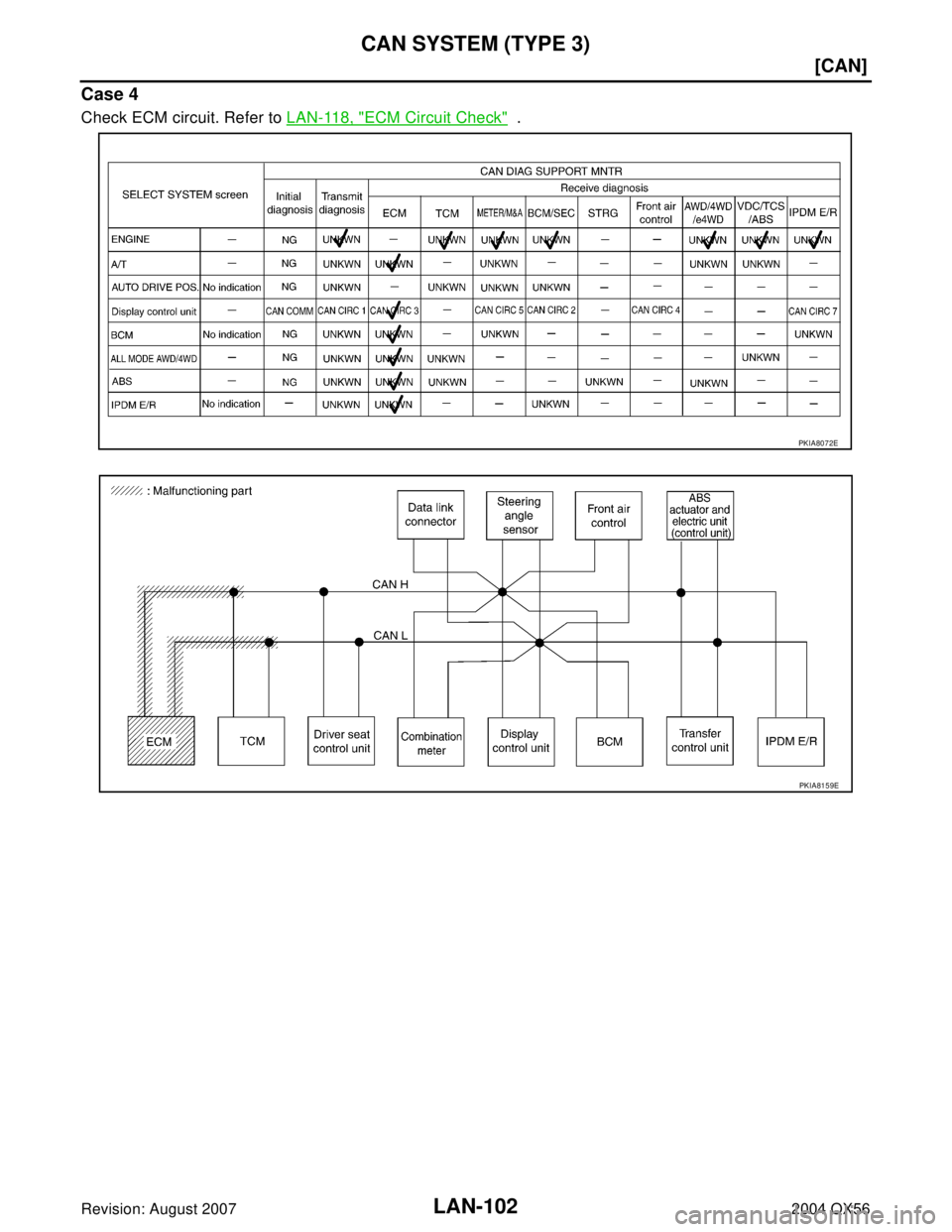

INFINITI QX56 2004 Factory Service Manual LAN-102 [CAN] CAN SYSTEM (TYPE 3) Revision: August 20072004 QX56 Case 4 Check ECM circuit. Refer to LAN-118, "ECM Circuit Check" . PKIA8072E PKIA8159E

Page 2366 of 3371

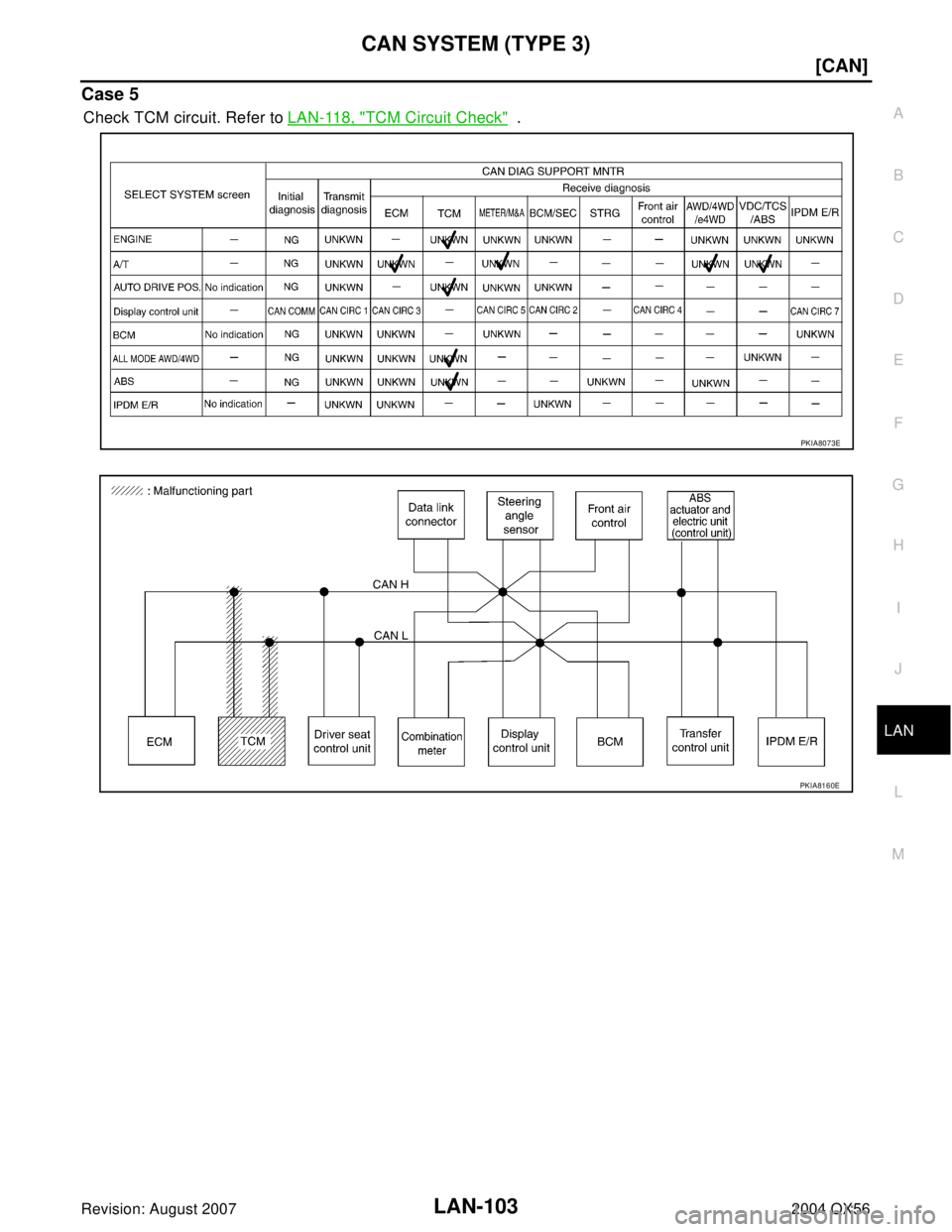

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-103 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 5 Check TCM circuit. Refer to LAN-118, "TCM Circuit Check" . PKIA8073E PKIA8160E

Page 2367 of 3371

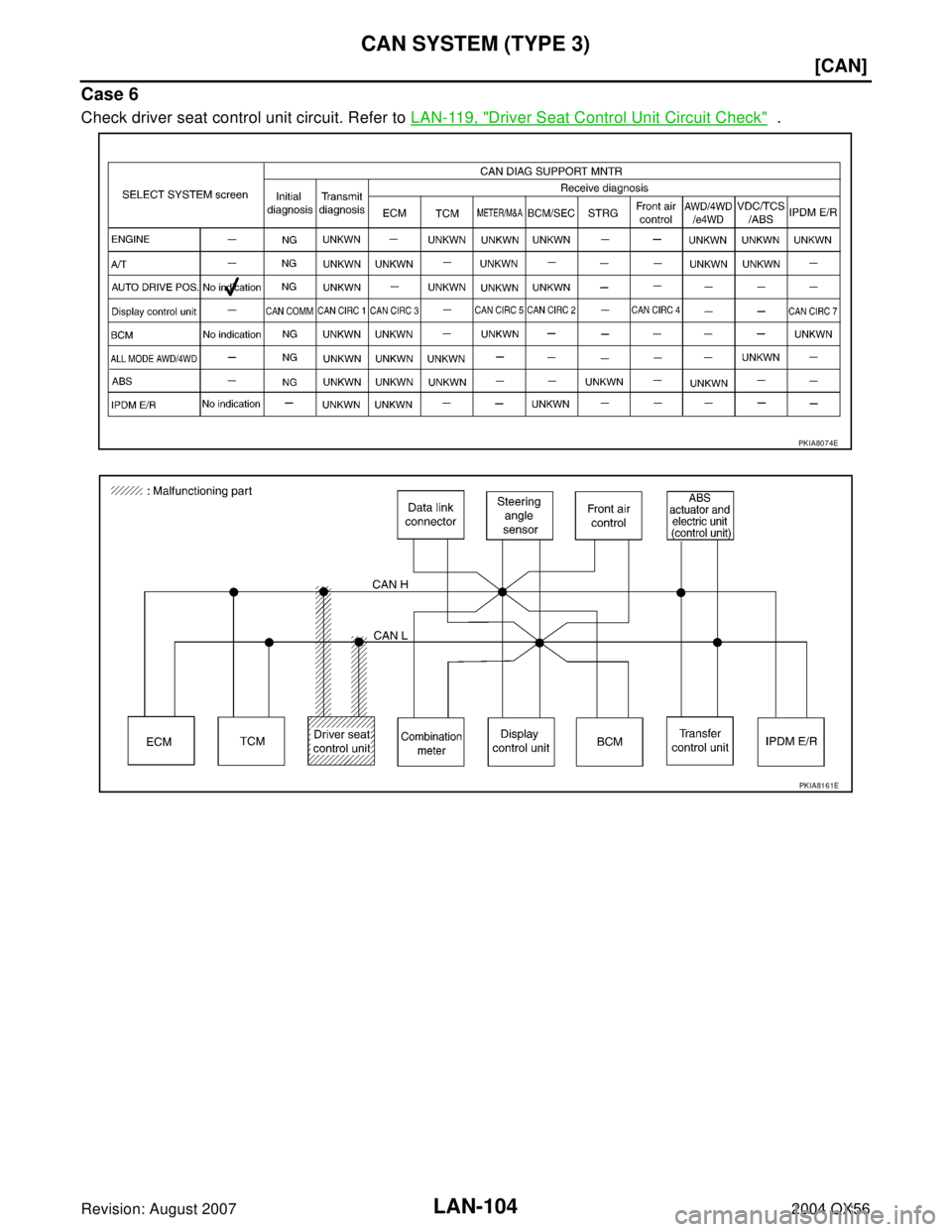

INFINITI QX56 2004 Factory Service Manual LAN-104 [CAN] CAN SYSTEM (TYPE 3) Revision: August 20072004 QX56 Case 6 Check driver seat control unit circuit. Refer to LAN-119, "Driver Seat Control Unit Circuit Check" . PKIA8074E PKIA8161E

Page 2368 of 3371

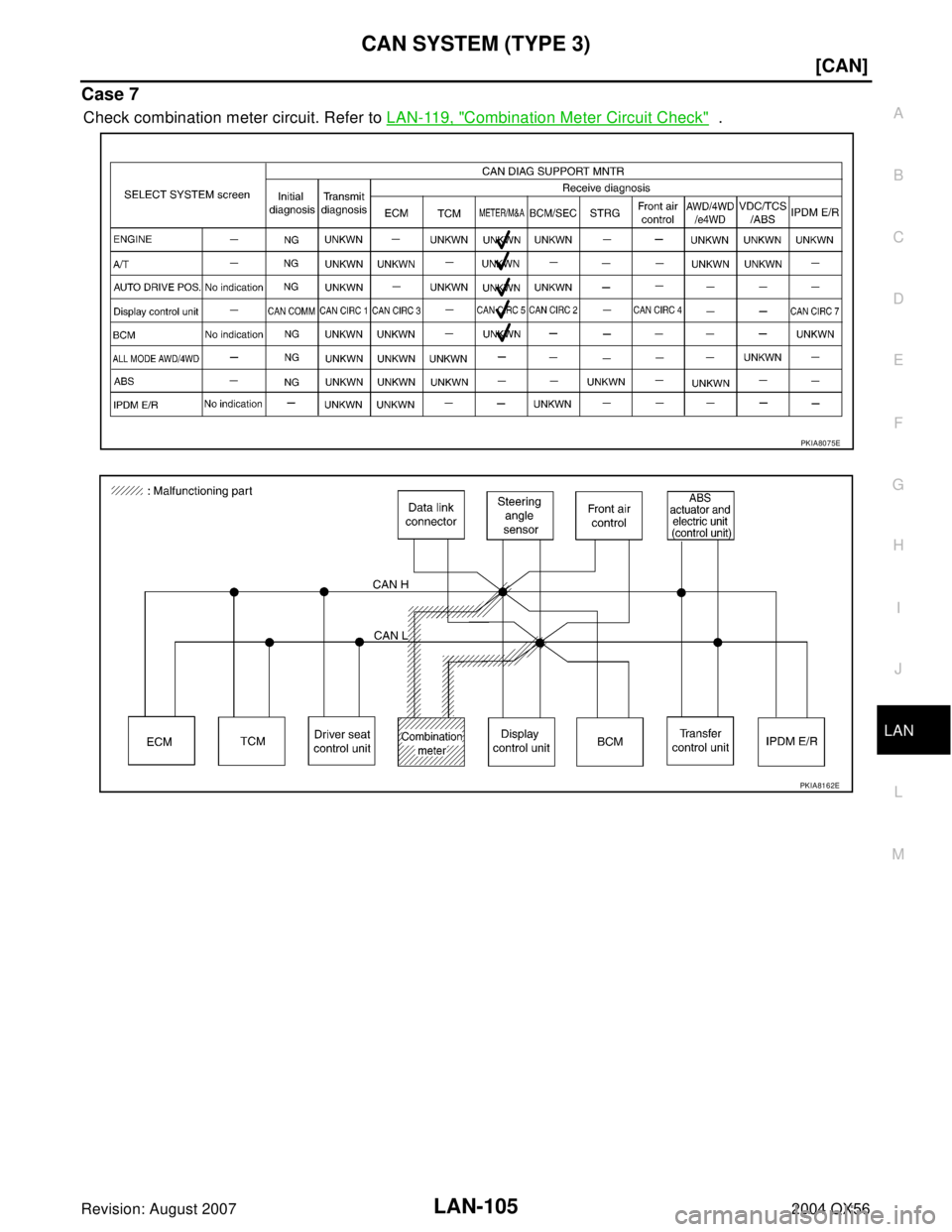

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-105 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 7 Check combination meter circuit. Refer to LAN-119, "Combination Meter Circuit Check" . PKIA8075E PKI
