2004 INFINITI QX56 Factory Service Manual

ESP inoperative fuel filter fuel adding oil start stop button automatic transmission

Page 1953 of 3371

INFINITI QX56 2004 Factory Service Manual EM-70Revision: August 2007
ENGINE ASSEMBLY
2004 QX56

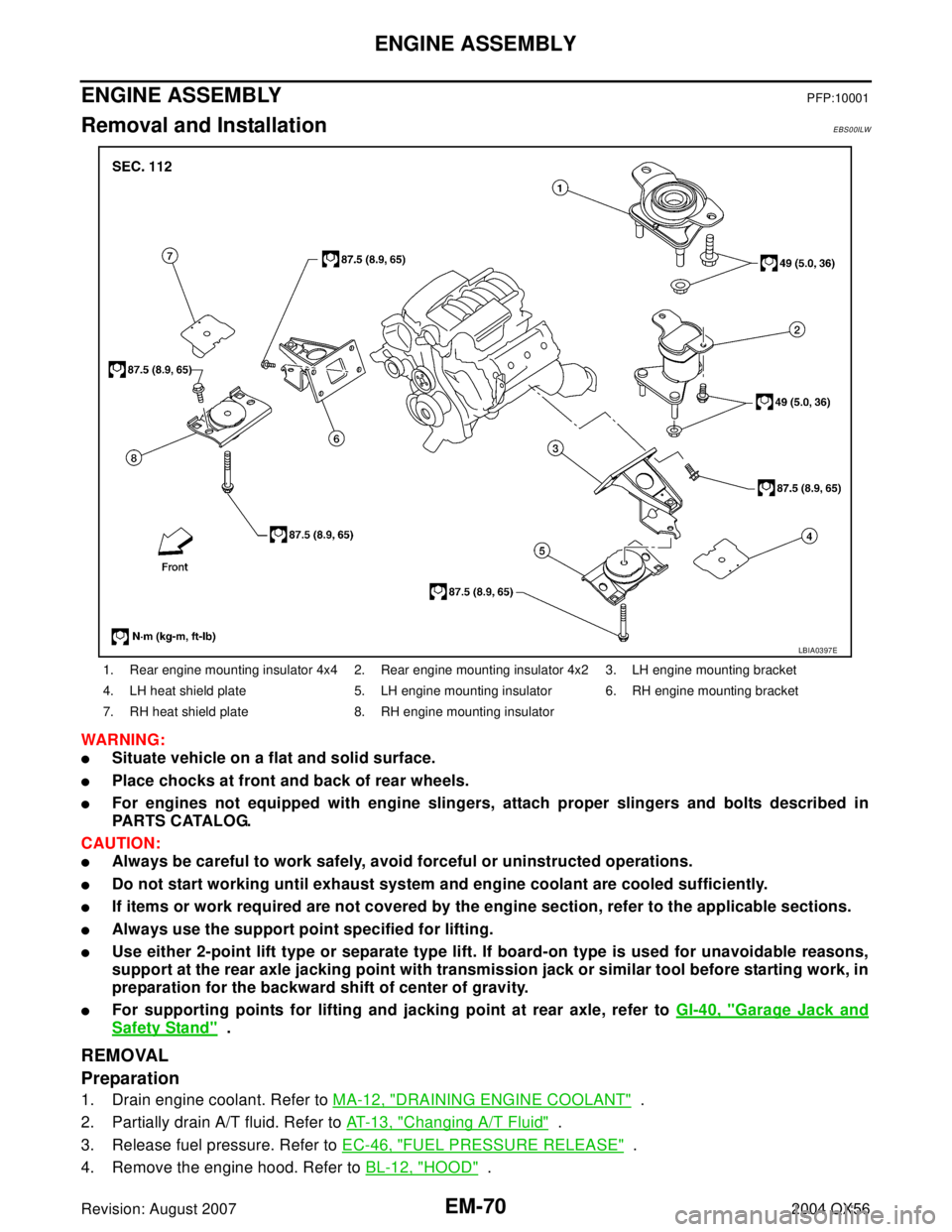

ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS00ILW
WAR NIN G:
Situate vehicle on a flat and solid surface.
Place chocks at front and back

Page 1954 of 3371

INFINITI QX56 2004 Factory Service Manual ENGINE ASSEMBLY
EM-71
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

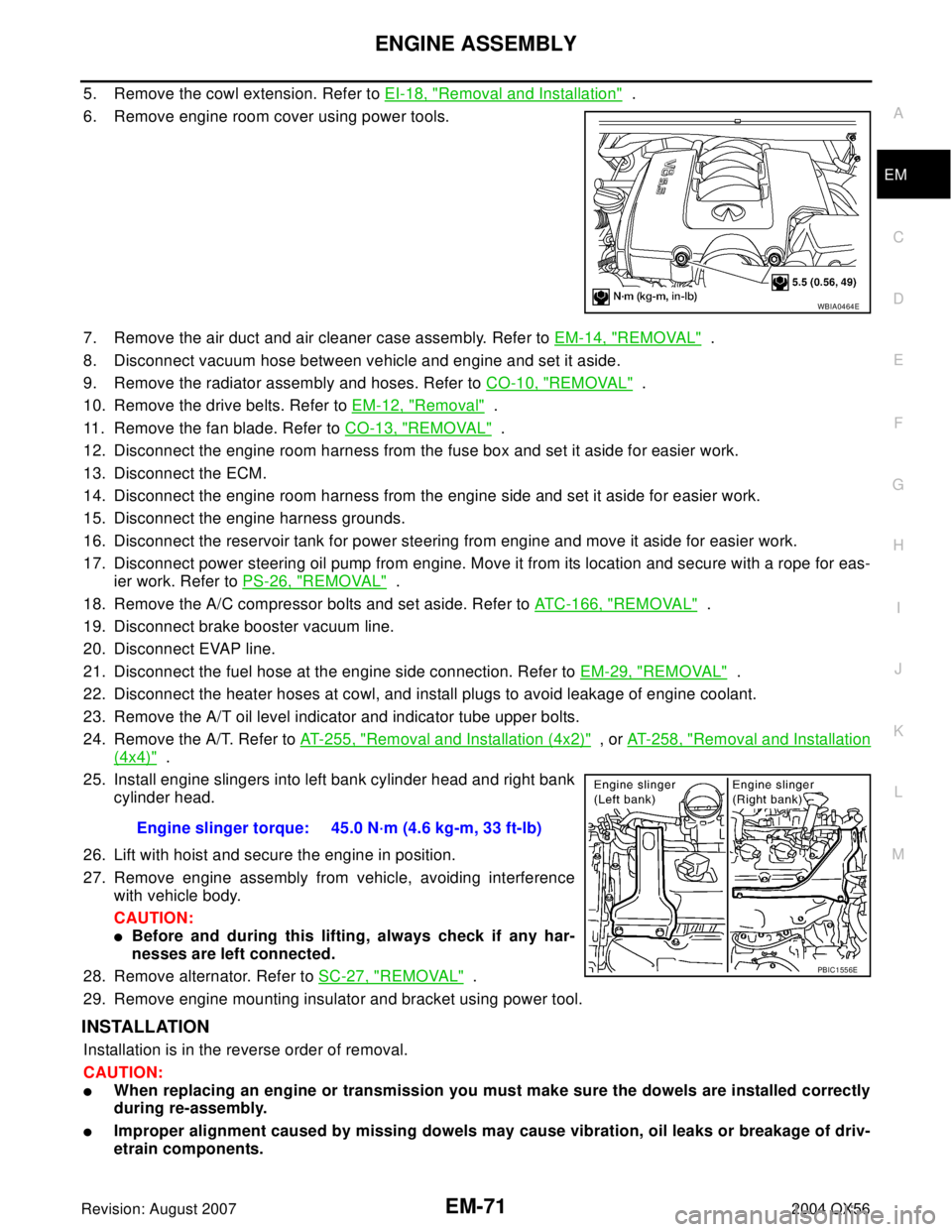

5. Remove the cowl extension. Refer to EI-18, "Removal and Installation" .
6. Remove engine room cover using power tools

ENGINE ASSEMBLY
EM-71
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
5. Remove the cowl extension. Refer to EI-18, "Removal and Installation" .
6. Remove engine room cover using power tools.
7. Remove the air duct and air cleaner case assembly. Refer to EM-14, "
REMOVAL" .
8. Disconnect vacuum hose between vehicle and engine and set it aside.
9. Remove the radiator assembly and hoses. Refer to CO-10, "
REMOVAL" .
10. Remove the drive belts. Refer to EM-12, "
Removal" .
11. Remove the fan blade. Refer to CO-13, "
REMOVAL" .
12. Disconnect the engine room harness from the fuse box and set it aside for easier work.
13. Disconnect the ECM.
14. Disconnect the engine room harness from the engine side and set it aside for easier work.
15. Disconnect the engine harness grounds.
16. Disconnect the reservoir tank for power steering from engine and move it aside for easier work.
17. Disconnect power steering oil pump from engine. Move it from its location and secure with a rope for eas-
ier work. Refer to PS-26, "
REMOVAL" .
18. Remove the A/C compressor bolts and set aside. Refer to ATC-166, "
REMOVAL" .
19. Disconnect brake booster vacuum line.
20. Disconnect EVAP line.
21. Disconnect the fuel hose at the engine side connection. Refer to EM-29, "
REMOVAL" .
22. Disconnect the heater hoses at cowl, and install plugs to avoid leakage of engine coolant.
23. Remove the A/T oil level indicator and indicator tube upper bolts.
24. Remove the A/T. Refer to AT-255, "
Removal and Installation (4x2)" , or AT-258, "Removal and Installation
(4x4)" .
25. Install engine slingers into left bank cylinder head and right bank
cylinder head.
26. Lift with hoist and secure the engine in position.
27. Remove engine assembly from vehicle, avoiding interference
with vehicle body.
CAUTION:
Before and during this lifting, always check if any har-
nesses are left connected.
28. Remove alternator. Refer to SC-27, "
REMOVAL" .
29. Remove engine mounting insulator and bracket using power tool.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing an engine or transmission you must make sure the dowels are installed correctly
during re-assembly.
Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of driv-
etrain components.
WBIA0464E
Engine slinger torque: 45.0 N·m (4.6 kg-m, 33 ft-lb)
PBIC1556E

Page 1955 of 3371

INFINITI QX56 2004 Factory Service Manual EM-72Revision: August 2007
ENGINE ASSEMBLY
2004 QX56
INSPECTION AFTER INSTALLATION
Before starting engine, check the levels of engine coolant, engine oil and working fluid. If less than
required quan

Page 1956 of 3371

INFINITI QX56 2004 Factory Service Manual CYLINDER BLOCK
EM-73
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

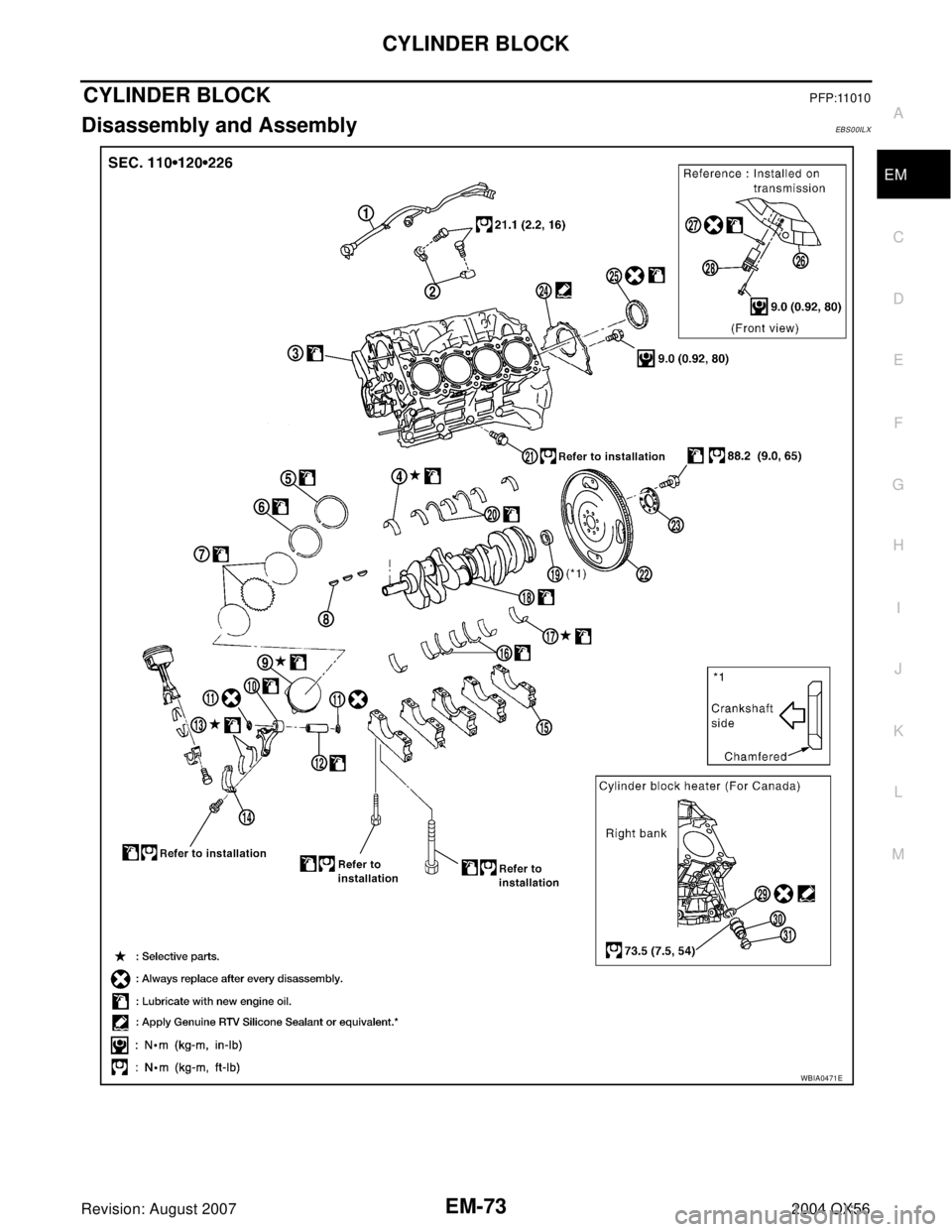

CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00ILX
WBIA0471E

Page 1957 of 3371

INFINITI QX56 2004 Factory Service Manual EM-74Revision: August 2007
CYLINDER BLOCK
2004 QX56
* Refer to GI-45, "Recommended Chemical Products and Sealants" .
DISASSEMBLY
1. Remove engine assembly. Refer to EM-70, "REMOVAL" .
2. Remove the

EM-74Revision: August 2007
CYLINDER BLOCK
2004 QX56
* Refer to GI-45, "Recommended Chemical Products and Sealants" .
DISASSEMBLY
1. Remove engine assembly. Refer to EM-70, "REMOVAL" .
2. Remove the drive plate.
Hold the crankshaft pulley bolt to lock the crankshaft and remove the drive plate bolts.
Loosen bolts diagonally.
CAUTION:
Be careful not to damage drive plate. Especially avoid
deforming and damaging of signal plate teeth (circum-
ference position).
Place the drive plate with signal plate surface facing
other than downward.
Keep magnetic materials away from signal plate.
3. Lift the engine with hoist to install it onto engine stand. Refer to EM-70, "
REMOVAL" .
CAUTION:
Use an engine stand that has a load capacity [approximately 240kg (529 lb) or more] large
enough for supporting the engine weight.
Before removing the hanging chains, make sure the engine stand is stable and there is no risk
of overturning.
If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the
potential risk of overturning the stand.
–Remove fuel tube and fuel injector assembly. Refer to EM-29, "REMOVAL" .
–Remove intake manifold. Refer to EM-15, "REMOVAL" .
–Remove exhaust manifold. Refer to EM-19, "REMOVAL" .
–Remove A/C compressor fitting bolts and brackets. Refer to ATC-166, "REMOVAL" .
–Remove ignition coil. Refer to EM-26, "REMOVAL" .
–Remove rocker cover. Refer to EM-33, "REMOVAL" .
–Other removable brackets.
4. Drain engine oil. Refer to MA-16, "
Changing Engine Oil" .
1. Knock sensor sub-harness 2. Knock sensor 3. Cylinder block
4. Main bearing 5. Top ring 6. Second ring
7. Oil ring 8. Crankshaft key 9. Piston
10. Connecting rod 11. Snap ring 12. Piston pin
13. Connecting rod bearing 14. Connecting rod bearing cap 15. Main bearing cap
16. Thrust bearing 17. Main bearing 18. Crankshaft
19. Pilot converter 20. Thrust bearing 21. Side bolt
22. Drive plate 23. Reinforcement plate 24. Rear oil seal retainer
25. Rear oil seal 26. Transmission 27. O-ring
28. Crankshaft position sensor (POS) 29. Gasket 30. Cylinder block heater
31. Connector cap
KBIA2491E

Page 1958 of 3371

INFINITI QX56 2004 Factory Service Manual CYLINDER BLOCK
EM-75
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

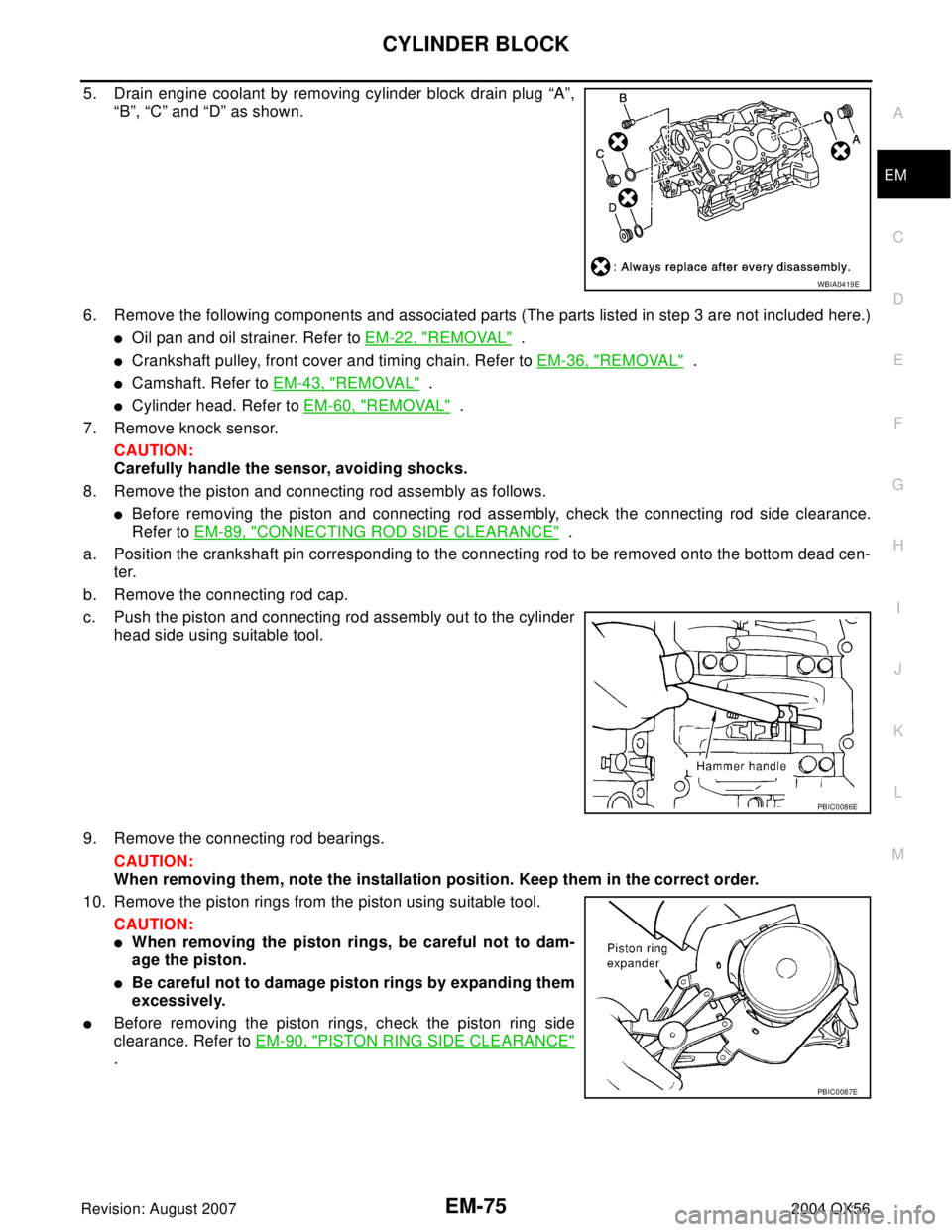

5. Drain engine coolant by removing cylinder block drain plug “A”,
“B”, “C” and “D” as shown.
6. Remove th

Page 1959 of 3371

INFINITI QX56 2004 Factory Service Manual EM-76Revision: August 2007
CYLINDER BLOCK
2004 QX56
11. Remove the piston from the connecting rod as follows.
a. Remove the snap ring using suitable tool.
b. Heat piston to 60° to 70°C (140° to 15

Page 1960 of 3371

INFINITI QX56 2004 Factory Service Manual CYLINDER BLOCK
EM-77
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

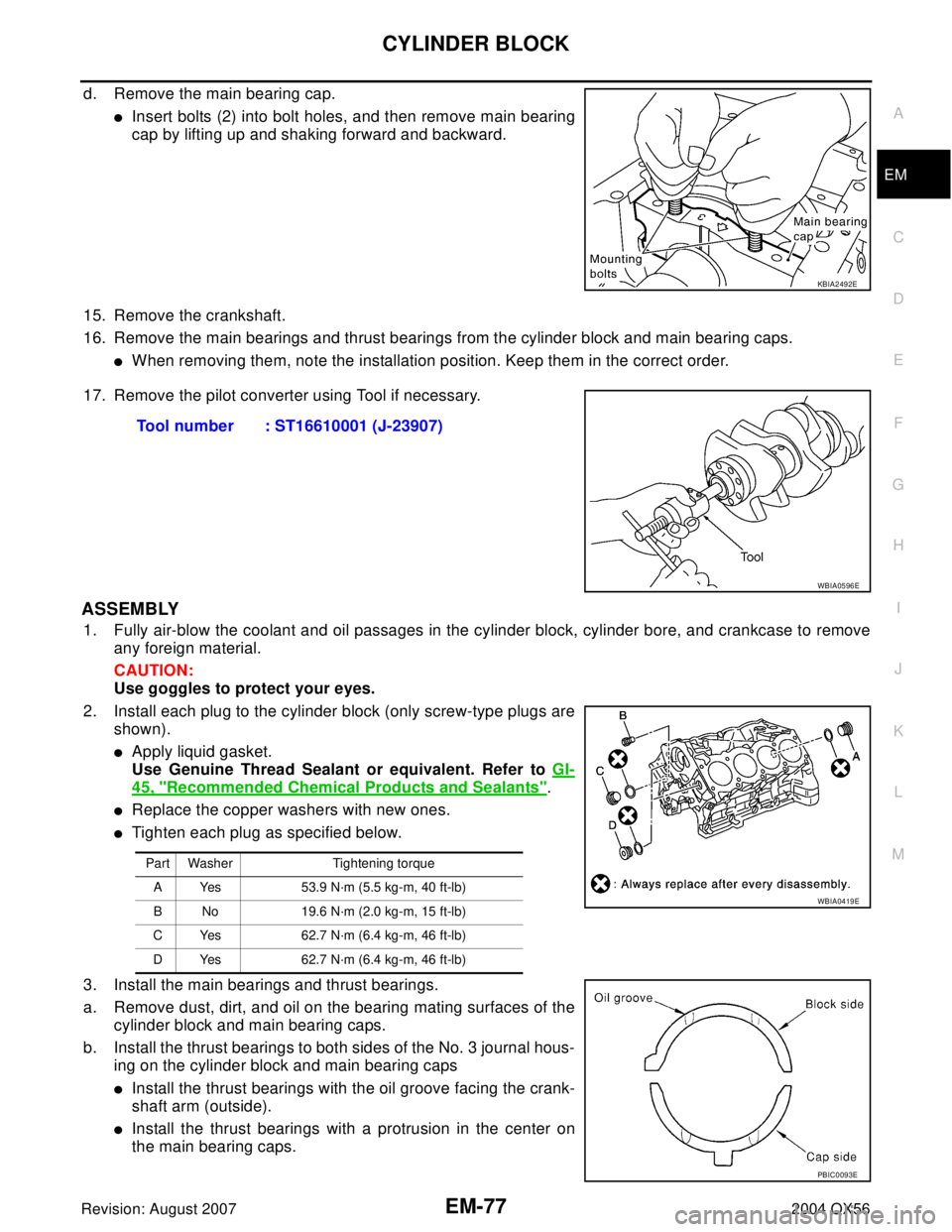

d. Remove the main bearing cap.
Insert bolts (2) into bolt holes, and then remove main bearing
cap by lifting up and sha

Load next 8 pages
