INFINITI QX56 2004 Factory Service Manual LT-2Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION ... 48
EXTERIOR LAMP BATTERY SAVER CONTROL ... 48
DELAY TIMER FUNCTION ................................. 48
CAN Communication Sy

LT-2Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION ... 48
EXTERIOR LAMP BATTERY SAVER CONTROL ... 48
DELAY TIMER FUNCTION ................................. 48
CAN Communication System Description .............. 48
Major Components and Functions .......................... 48
Schematic ............................................................... 49
Wiring Diagram — AUTO/L — ................................ 50
Terminals and Reference Values for BCM .............. 53
Terminals and Reference Values for IPDM E/R ...... 54
How to Proceed With Trouble Diagnosis ................ 55
Preliminary Check .................................................. 55
SETTING CHANGE FUNCTIONS ....................... 55
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 55
CONSULT-II Function (BCM) .................................. 57
CONSULT-II OPERATION ................................... 57
WORK SUPPORT ............................................... 58
DATA MONITOR .................................................. 58
ACTIVE TEST ..................................................... 59
SELF-DIAGNOSTIC RESULTS ........................... 59
CONSULT-II Function (IPDM E/R) .......................... 60
CONSULT-II OPERATION ................................... 60
DATA MONITOR .................................................. 61
ACTIVE TEST ..................................................... 61
Trouble Diagnosis Chart by Symptom .................... 62
Lighting Switch Inspection ...................................... 62
Optical Sensor System Inspection .......................... 63
Removal and Installation of Optical Sensor ............ 64
REMOVAL ........................................................... 64
INSTALLATION .................................................... 64
HEADLAMP AIMING CONTROL .............................. 65
System Description ................................................. 65
Wiring Diagram — H/AIM — ................................... 66
Removal and Installation ........................................ 68
Switch Circuit Inspection ........................................ 68
FRONT FOG LAMP .................................................. 69
Component Parts and Harness Connector Location ... 69
System Description ................................................. 69
OUTLINE ............................................................. 69
COMBINATION SWITCH READING FUNCTION ... 70
EXTERIOR LAMP BATTERY SAVER CONTROL ... 70
CAN Communication System Description .............. 70
Wiring Diagram — F/FOG — .................................. 71
Terminals and Reference Values for BCM .............. 73
Terminals and Reference Values for IPDM E/R ...... 74
How to Proceed With Trouble Diagnosis ................ 74
Preliminary Check .................................................. 75
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 75
CONSULT-II Functions ........................................... 76
Front Fog Lamps Do Not Illuminate (Both Sides) ... 76
Front Fog Lamp Does Not Illuminate (One Side) ... 77
Aiming Adjustment .................................................. 78
Bulb Replacement .................................................. 79
Removal and Installation ........................................ 79
TURN SIGNAL AND HAZARD WARNING LAMPS ... 80
Component Parts and Harness Connector Location ... 80
System Description ................................................. 80
OUTLINE ............................................................. 80TURN SIGNAL OPERATION ...............................80
HAZARD LAMP OPERATION .............................81
REMOTE KEYLESS ENTRY SYSTEM OPERA-
TION ....................................................................82
COMBINATION SWITCH READING FUNCTION ...82
CAN Communication System Description ..............82
Wiring Diagram — TURN — ...................................83
Terminals and Reference Values for BCM ..............85
How to Proceed With Trouble Diagnosis ................86
Preliminary Check ...................................................87
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .....................................................................87
CONSULT-II Function (BCM) ..................................88
CONSULT-II OPERATION ...................................88
DATA MONITOR ..................................................89
ACTIVE TEST ......................................................89
Turn Signal Lamp Does Not Operate ......................90
Rear Turn Signal Lamp Does Not Operate .............91
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamps Operate ............................................92
Turn Signal Indicator Lamp Does Not Operate .......93
Bulb Replacement (Front Turn Signal Lamp) ..........94
Bulb Replacement (Rear Turn Signal Lamp) ..........94
Removal and Installation of Front Turn Signal Lamp ...94
Removal and Installation of Rear Turn Signal Lamp ...94
LIGHTING AND TURN SIGNAL SWITCH ................95
Removal and Installation .........................................95
REMOVAL ............................................................95
INSTALLATION ....................................................95
HAZARD SWITCH .....................................................96
Removal and Installation .........................................96
REMOVAL ............................................................96
INSTALLATION ....................................................96
COMBINATION SWITCH ..........................................97
Wiring Diagram — COMBSW — ............................97
Combination Switch Reading Function ...................98
CONSULT-II Function (BCM) ..................................98
CONSULT-II OPERATION ...................................98
DATA MONITOR ..................................................99
Combination Switch Inspection ............................. 100
Removal and Installation ....................................... 102
Switch Circuit Inspection ....................................... 102
STOP LAMP ............................................................ 103
System Description ............................................... 103
Wiring Diagram — STOP/L — .............................. 104
High-Mounted Stop Lamp ..................................... 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
Stop Lamp ............................................................. 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
BACK-UP LAMP ..................................................... 106
Wiring Diagram — BACK/L — .............................. 106
Bulb Replacement ................................................. 107
Removal and Installation ....................................... 107
PARKING, LICENSE PLATE AND TAIL LAMPS .... 108
Component Parts and Harness Connector Location . 108
System Description ............................................... 108
OPERATION BY LIGHTING SWITCH ............... 109

Page 2434 of 3371

INFINITI QX56 2004 Factory Service Manual LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION . 109
EXTERIOR LAMP BATTERY SAVER CONTROL . 109
CAN Communication System Description ............ 109

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION . 109
EXTERIOR LAMP BATTERY SAVER CONTROL . 109
CAN Communication System Description ............ 109
Schematic ............................................................. 110
Wiring Diagram — TAIL/L — ................................ . 111
Terminals and Reference Values for BCM ............ 114
Terminals and Reference Values for IPDM E/R .... 115
How to Proceed With Trouble Diagnosis ............... 115
Preliminary Check ................................................. 116
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................... 116
CONSULT-II Functions .......................................... 117
Parking, License Plate and/or Tail Lamps Do Not
Illuminate ............................................................... 117
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ........................... 120
Front Parking Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
Tail Lamp .............................................................. 121
BULB REPLACEMENT ..................................... 121
License Plate Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
REAR COMBINATION LAMP ................................ 122
Bulb Replacement (Turn Signal) .......................... 122
Removal and Installation ...................................... 122
.......................................................................... 122
TRAILER TOW ....................................................... 123
Component Parts and Harness Connector Location . 123
System Description .............................................. 123
TRAILER TAIL LAMP OPERATION .................. 124
TRAILER BRAKE, TURN SIGNAL AND HAZARD
LAMP OPERATION .......................................... 124
TRAILER BRAKE OPERATION ........................ 124
TRAILER POWER SUPPLY OPERATION ........ 124
Schematic ............................................................ 125
Wiring Diagram — T/TOW — ............................... 126
INTERIOR ROOM LAMP ........................................ 129
Component Parts and Harness Connector Location . 129
System Description .............................................. 130POWER SUPPLY AND GROUND ....................130
SWITCH OPERATION ......................................131
ROOM LAMP TIMER OPERATION ..................131
INTERIOR LAMP BATTERY SAVER CONTROL .132
Schematic .............................................................133
Wiring Diagram — INT/L — ..................................135
Terminals and Reference Values for BCM ............142
How to Proceed With Trouble Diagnosis ..............142
Preliminary Check ................................................143
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT ...........................................143
CONSULT-II Function (BCM) ...............................144
CONSULT-II OPERATION .................................144
WORK SUPPORT .............................................145
DATA MONITOR ...............................................145
ACTIVE TEST ...................................................146
Room/Map Lamp Control Does Not Operate .......146
Personal Lamp Control Does Not Operate (Room/
Map Lamps Operate) ............................................148
All Step/Foot/Puddle Lamps Do Not Operate .......149
All Interior Room Lamps Do Not Operate .............150
Ignition Keyhole Illumination Control Does Not
Operate .................................................................150
ILLUMINATION .......................................................152
Component Parts and Harness Connector Location .152
System Description ...............................................152
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................153
EXTERIOR LAMP BATTERY SAVER CONTROL .154
CAN Communication System Description ............154
Schematic .............................................................155
Wiring Diagram — ILL — ......................................158
Removal and Installation ......................................169
ILLUMINATION CONTROL SWITCH ................169
BULB SPECIFICATIONS ........................................170
Headlamp .............................................................170
Exterior Lamp .......................................................170
Interior Lamp/Illumination .....................................170

Page 2435 of 3371

INFINITI QX56 2004 Factory Service Manual LT-4
PRECAUTIONS
Revision: August 20072004 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079M
The Supplemental Res

Page 2436 of 3371

INFINITI QX56 2004 Factory Service Manual PRECAUTIONS
LT-5
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
General precautions for service operationsEKS007RV
Never work with wet hands.
Xenon headlamp includes high voltage generatin

PRECAUTIONS
LT-5
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
General precautions for service operationsEKS007RV
Never work with wet hands.
Xenon headlamp includes high voltage generating part. Be sure
to disconnect battery negative cable (negative terminal) or
power fuse before removing, installing, or touching the xenon
headlamp (including lamp bulb).
Turn the lighting switch OFF before disconnecting and connect-
ing the connector.
When turning the xenon headlamp on and while it is illuminated,
never touch the harness, bulb, and socket of the headlamp.
When checking the headlamp on/off operation, check it on vehi-
cle and with the power connected to the vehicle-side connector.
Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not
touch the headlamp bulb just after the headlamp is turned off, because it is very hot.
Install the xenon headlamp bulb socket correctly. If it is installed
improperly, high-voltage leak or corona discharge may occur
that can melt the bulb, connector, and housing. Do not illuminate
the xenon headlamp bulb out of the headlamp housing. Doing
so can cause fire and harm your eyes.
When the bulb has burned out, wrap it in a thick vinyl bag and
discard. Do not break the bulb.
Leaving the bulb removed from the headlamp housing for a long
period of time can deteriorate the performance of the lens and
reflector (dirt, clouding). Always prepare a new bulb and have it
on hand when replacing the bulb.
Do not use organic solvent (paint thinner or gasoline) to clean
lamps and to remove old sealant.
Wiring Diagrams and Trouble DiagnosisEKS0079O
When you read wiring diagrams, refer to the following:
Refer to GI-15, "How to Read Wiring Diagrams" in GI section.
Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" for power distribution in PG section.
When you perform trouble diagnosis, refer to the following:
Refer to GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section.
Refer to GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section.
WKIA0460E
EL-3422D

Page 2437 of 3371

INFINITI QX56 2004 Factory Service Manual LT-6
HEADLAMP (FOR USA)
Revision: August 20072004 QX56
HEADLAMP (FOR USA)PFP:26010

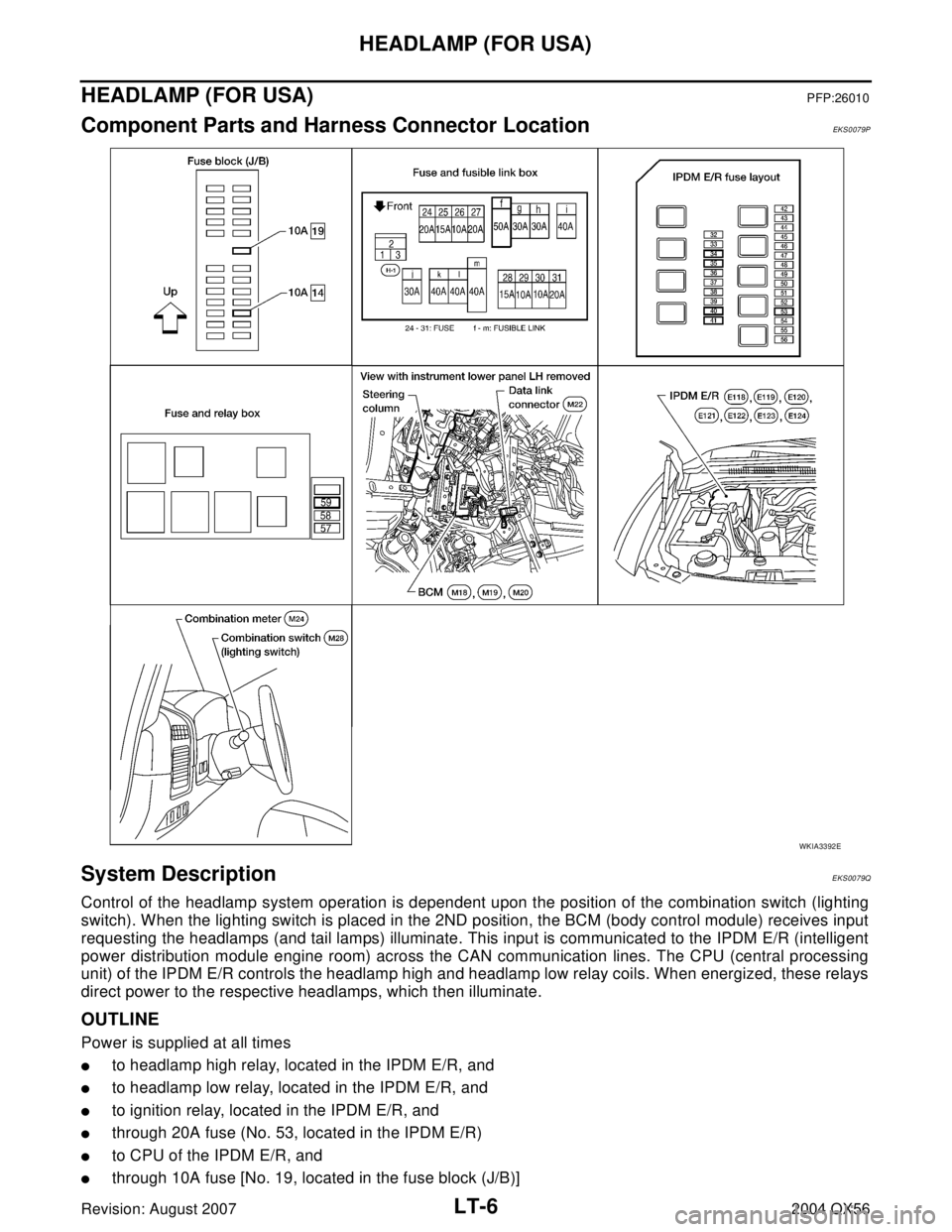

Component Parts and Harness Connector LocationEKS0079P
System DescriptionEKS0079Q
Control of the headlamp system oper

Page 2438 of 3371

INFINITI QX56 2004 Factory Service Manual HEADLAMP (FOR USA)
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
to combination meter terminal 8, and
through 50A fusible link (letter f , located in the fuse and fusible link box)

HEADLAMP (FOR USA)
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
to combination meter terminal 8, and
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch in the ON or START position, power is supplied
to ignition relay, located in the IPDM E/R, and
through 10A fuse [No. 14, located in the fuse block (J/B)]
to combination meter terminal 24, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38.
Ground is supplied
to BCM terminal 67 and
to combination meter terminal 17
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
through grounds E9, E15 and E24.
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input requesting the headlamps to illuminate. This
input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R con-
trols the headlamp low relay coil. When energized, this relay directs power
through 15A fuse (No. 41, located in the IPDM E/R)
through IPDM E/R terminal 54
to front combination lamp RH terminal 5, and
through 15A fuse (No. 40, located in the IPDM E/R)
through IPDM E/R terminal 52
to front combination lamp LH terminal 5.
Ground is supplied
to front combination lamp LH and RH terminal 1
through grounds E9, E15 and E24.
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input request-
ing the headlamp high beams to illuminate. This input is communicated to the IPDM E/R across the CAN com-
munication lines. The CPU of the combination meter controls the ON/OFF status of the HIGH BEAM indicator.
The CPU of the IPDM E/R controls the headlamp high relay coil. When energized, this relay directs power
through 10A fuse (No. 34, located in the IPDM E/R)
through IPDM E/R terminal 56
to front combination lamp RH terminal 6, and
through 10A fuse (No. 35, located in the IPDM E/R)
through IPDM E/R terminal 55
to front combination lamp LH terminal 6.
Ground is supplied
to front combination lamp LH and RH terminal 2
through grounds E9, E15 and E24.
With power and ground supplied, the high beam headlamps illuminate.
XENON HEADLAMP
Xenon type headlamp is adopted to the low beam headlamps. Xenon bulbs do not use a filament. Instead,
they produce light when a high voltage current is passed between two tungsten electrodes through a mixture
of xenon (an inert gas) and certain other metal halides. In addition to added lighting power, electronic control
of the power supply gives the headlamps stable quality and tone color.
Following are some of the many advantages of the xenon type headlamp.

Page 2439 of 3371

INFINITI QX56 2004 Factory Service Manual LT-8
HEADLAMP (FOR USA)
Revision: August 20072004 QX56
The light produced by the headlamps is a white color comparable to sunlight that is easy on the eyes.
Light output is nearly double that of hal

Page 2440 of 3371

INFINITI QX56 2004 Factory Service Manual HEADLAMP (FOR USA)
LT-9
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56

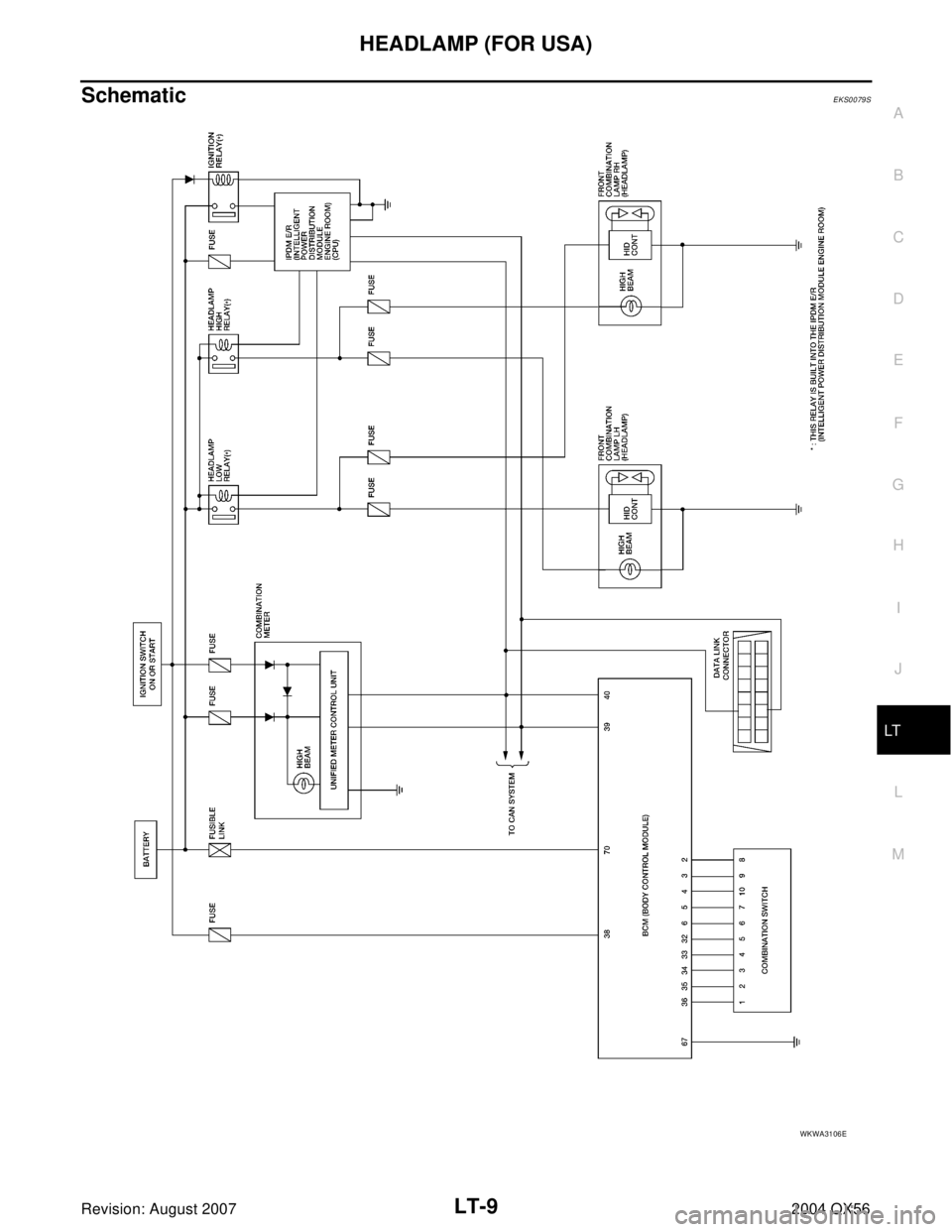

SchematicEKS0079S
WKWA3106E

Load next 8 pages
