Page 2145 of 3371

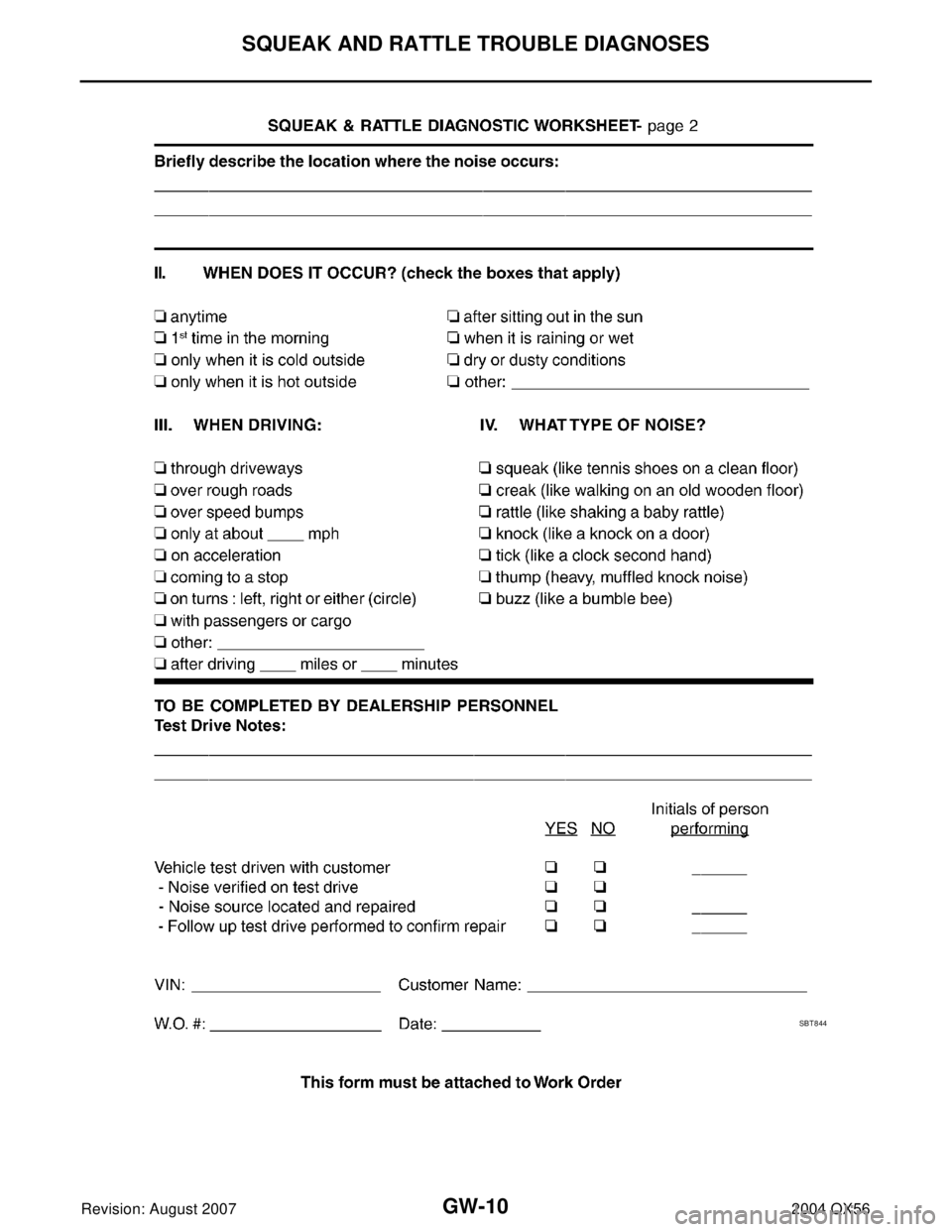

INFINITI QX56 2004 Factory Service Manual GW-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: August 20072004 QX56
SBT 8 44

Page 2146 of 3371

INFINITI QX56 2004 Factory Service Manual WINDSHIELD GLASS
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
WINDSHIELD GLASSPFP:72712
Removal and InstallationEIS002UL
REMOVAL
1. Remove inside mirror. Refer to GW-77, "Removal and

Page 2147 of 3371

INFINITI QX56 2004 Factory Service Manual GW-12
WINDSHIELD GLASS
Revision: August 20072004 QX56
Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time

Page 2148 of 3371

INFINITI QX56 2004 Factory Service Manual REAR WINDOW GLASS AND MOLDING
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
REAR WINDOW GLASS AND MOLDINGPFP:79712
Removal and InstallationEIS0 05 T U
REMOVAL
1. Remove the rear spoil

Page 2149 of 3371

INFINITI QX56 2004 Factory Service Manual GW-14
REAR WINDOW GLASS AND MOLDING
Revision: August 20072004 QX56
6. Remove the rear glass hinges.
INSTALLATION
Installation is in the reverse order of removal.

Page 2150 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
POWER WINDOW SYSTEMPFP:25401
Component Parts and Harness Connector LocationEIS002UM
System DescriptionEIS002UN
Power

Page 2151 of 3371

INFINITI QX56 2004 Factory Service Manual GW-16
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
MANUAL OPERATION
Front Driver Side Door
WINDOW UP
When the front LH switch in the main power window and door lock/unlock switch is pressed in t

GW-16
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
MANUAL OPERATION
Front Driver Side Door
WINDOW UP
When the front LH switch in the main power window and door lock/unlock switch is pressed in the up position,
Power is supplied
through main power window and door lock/unlock switch terminal 8
to front power window motor LH terminal 2.
Ground is supplied
through main power window and door lock/unlock switch terminal 11
to front power window motor LH terminal 1.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front LH switch in the main power window and door lock/unlock switch is pressed in the down posi-
tion
Power is supplied
through main power window and door lock/unlock switch terminal 11
to front power window motor LH terminal 1.
Ground is supplied
through main power window and door lock/unlock switch terminal 8
to front power window motor LH terminal 2.
Then, the motor lowers the window until the switch is released.
Front Passenger Side Door
POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OPERATION
WINDOW UP
When the power window and door lock/unlock switch RH is pressed in the up position
Power is supplied
through power window and door lock/unlock switch RH terminal 8
to front power window motor RH terminal 2.
Ground is supplied
through power window and door lock/unlock switch RH terminal 9
to front power window motor RH terminal 1.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the power window and door lock/unlock switch RH is pressed in the down position
Power is supplied
through power window and door lock/unlock switch RH terminal 9
to front power window motor RH terminal 1.
Ground is supplied
through power window and door lock/unlock switch RH terminal 8
to front power window motor RH terminal 2.
Then, the motor lowers the window until the switch is released.
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OPERATION
Signal is sent
through main power window and door lock/unlock switch terminal 14
to power window and door lock/unlock switch RH terminal 16.
The operation of power window after receiving the signal is the same as operating the power window with
power window and door lock/unlock switch RH.
Rear Door (LH or RH)
REAR POWER WINDOW SWITCH LH OR RH OPERATION
WINDOW UP
When the rear power window switch LH or RH is pressed in the up position
Power is supplied

Page 2152 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
to rear power window control unit LH or RH terminal 1
through rear power window control unit LH or RH terminal 7
t

POWER WINDOW SYSTEM
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
to rear power window control unit LH or RH terminal 1
through rear power window control unit LH or RH terminal 7
through rear power window switch LH or RH terminal 2 and 3
through rear power window switch LH or RH terminal 5
through rear power window control unit LH or RH terminal 11
to rear power window motor LH or RH terminal 2.
Ground is supplied
to rear power window control unit LH or RH terminal 15
through rear power window control unit LH or RH terminal 16
through rear power window switch LH or RH terminal 1 and 7
through rear power window switch LH or RH terminal 4
through rear power window control unit LH or RH terminal 12
to rear power window motor LH or RH terminal 1.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch LH or RH is pressed in the down position
Power is supplied
to rear power window control unit LH or RH terminal 1
through rear power window control unit LH or RH terminal 7
through rear power window switch LH or RH terminal 2 and 3
through rear power window switch LH or RH terminal 4
through rear power window control unit LH or RH terminal 12
to rear power window motor LH or RH terminal 1.
Ground is supplied
to rear power window control unit LH or RH terminal 15
through rear power window control unit LH or RH terminal 16
through rear power window switch LH or RH terminal 1 and 7
through rear power window switch LH or RH terminal 5
through rear power window control unit LH or RH terminal 11
to rear power window motor LH or RH terminal 2.
Then, the motor lowers the window until the switch is released.
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OPERATION
Signal is sent
through main power window and door lock/unlock switch terminal 14
to rear power window control unit LH or RH terminal 1.
The operation of power window after receiving the signal is the same as operating the power window with rear
power window switch LH or RH.
VENT WINDOW CLOSE
When the rear power vent window switch is pressed in the close position
Power is supplied
to rear power vent window relay (CLOSE) terminal 5
through rear power vent window relay (CLOSE) terminal 3
to rear power vent window motors terminal 2.
Ground is supplied
to rear power vent window relay (OPEN) terminal 4
through rear power vent window relay (OPEN) terminal 3
to rear power vent window motors terminal 1.
Then, the motors close the windows until the switch is released.
VENT WINDOW OPEN
When the main power window and door lock/unlock switch (rear LH) is pressed in the open position
Power is supplied
