Page 1225 of 3371

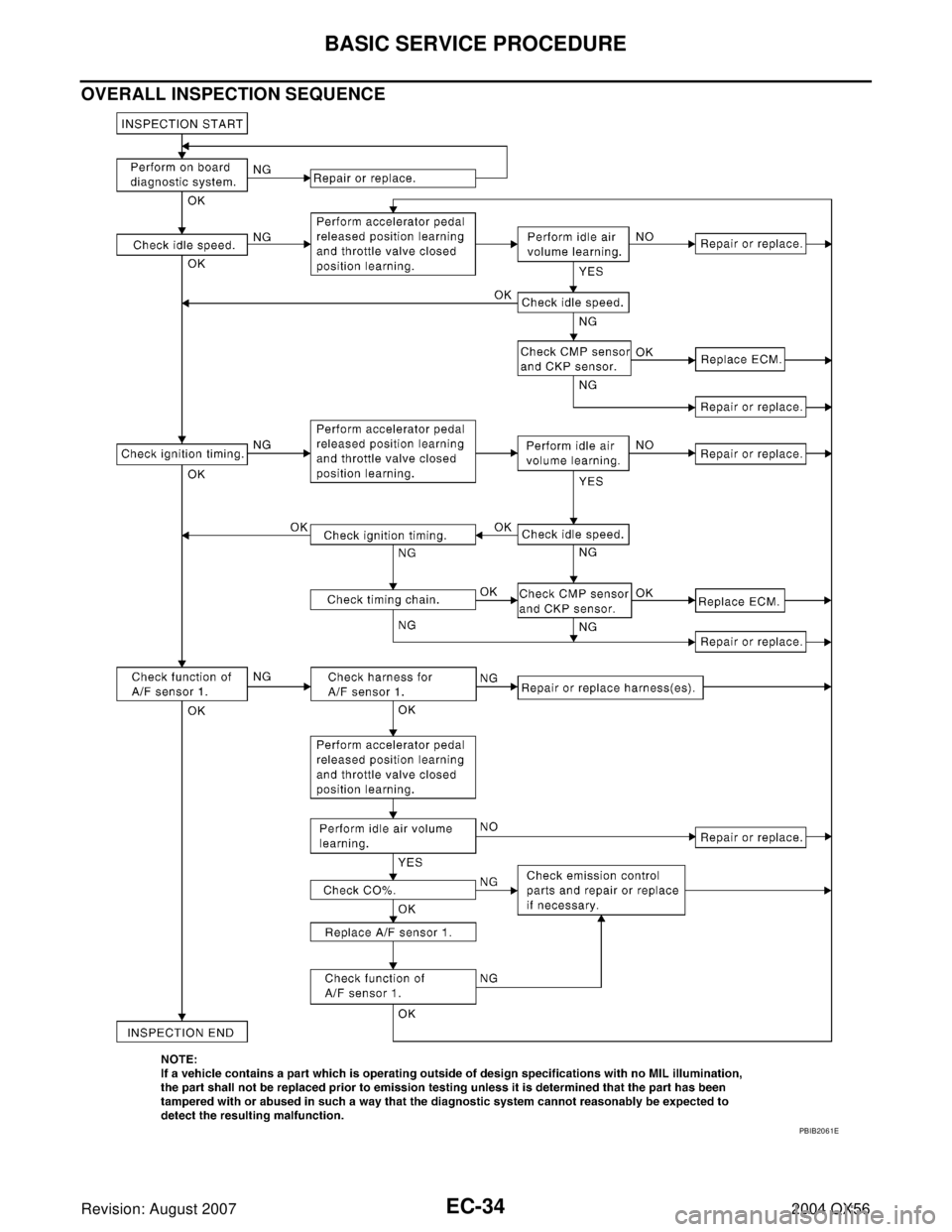

INFINITI QX56 2004 Factory Service Manual EC-34Revision: August 2007 BASIC SERVICE PROCEDURE 2004 QX56 OVERALL INSPECTION SEQUENCE PBIB2061E

Page 1226 of 3371

INFINITI QX56 2004 Factory Service Manual BASIC SERVICE PROCEDURE EC-35 C D E F G H I J K L MA EC Revision: August 20072004 QX56 INSPECTION PROCEDURE 1. INSPECTION START 1. Check service records for any recent repairs that may indicate a rela

Page 1227 of 3371

INFINITI QX56 2004 Factory Service Manual EC-36Revision: August 2007 BASIC SERVICE PROCEDURE 2004 QX56 3. CHECK TARGET IDLE SPEED With CONSULT-II 1. Run engine at about 2,000 rpm for about 2 minutes under no load. 2. Rev engine (2,000 to 3,0

Page 1228 of 3371

INFINITI QX56 2004 Factory Service Manual BASIC SERVICE PROCEDURE EC-37 C D E F G H I J K L MA EC Revision: August 20072004 QX56 6. PERFORM IDLE AIR VOLUME LEARNING Perform EC-44, " Idle Air Volume Learning" . Is Idle Air Volume Learning car

Page 1229 of 3371

INFINITI QX56 2004 Factory Service Manual EC-38Revision: August 2007 BASIC SERVICE PROCEDURE 2004 QX56 10. CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK (With CONSULT-II)>>GO TO 19. OK

Page 1230 of 3371

INFINITI QX56 2004 Factory Service Manual BASIC SERVICE PROCEDURE EC-39 C D E F G H I J K L MA EC Revision: August 20072004 QX56 15. CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK

Page 1231 of 3371

INFINITI QX56 2004 Factory Service Manual EC-40Revision: August 2007 BASIC SERVICE PROCEDURE 2004 QX56 19. CHECK AIR FUEL RATIO (A/F) SENSOR 1 FUNCTION With CONSULT-II 1. Turn ignition switch OFF and wait at a least 10 seconds. 2. Start eng

Page 1232 of 3371

INFINITI QX56 2004 Factory Service Manual BASIC SERVICE PROCEDURE EC-41 C D E F G H I J K L MA EC Revision: August 20072004 QX56 21. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HARNESS 1. Turn ignition switch OFF and disconnect battery ground cable.
