INFINITI QX56 2004 Factory Service Manual WT-18
TROUBLE DIAGNOSES
Revision: August 20072004 QX56
Data Monitor Mode
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or the actual malfunction location may be different fro

Page 3298 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES
WT-19
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56

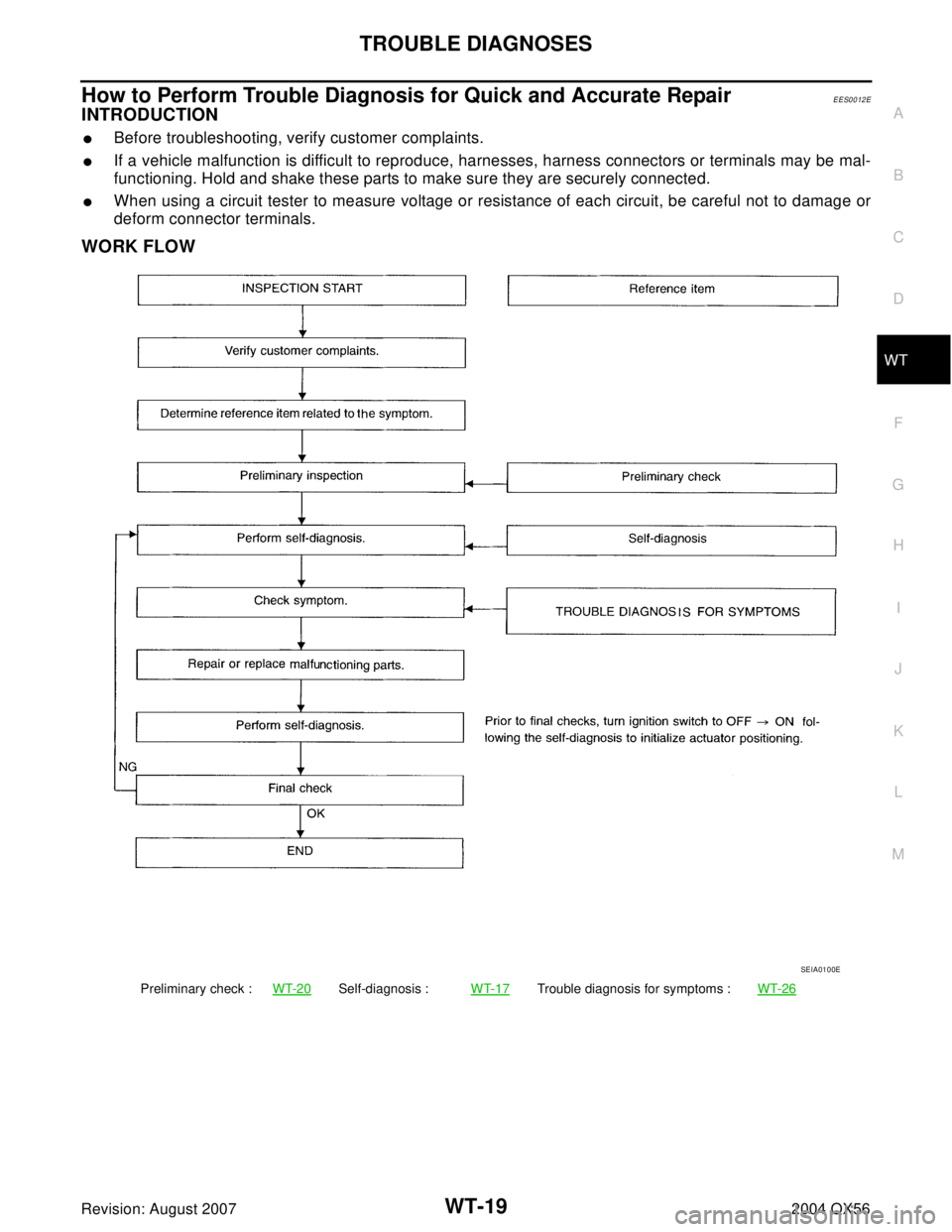

How to Perform Trouble Diagnosis for Quick and Accurate RepairEES0012E
INTRODUCTION
Before troubleshooting, verify cus

Page 3299 of 3371

INFINITI QX56 2004 Factory Service Manual WT-20
TROUBLE DIAGNOSES
Revision: August 20072004 QX56
Preliminary CheckEES0012F
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-33, "
Tire" .
OK or NG
OK >> GO TO

Page 3300 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES
WT-21
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56
Malfunction Code/Symptom ChartEES0012G
Code/Symptom Malfunction partReference
page
15
16
17
18Front-left tire pressure

TROUBLE DIAGNOSES
WT-21
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56
Malfunction Code/Symptom ChartEES0012G
Code/Symptom Malfunction partReference
page
15
16
17
18Front-left tire pressure drops to 193 kPa (2.0 kg/cm
2 , 28 psi) or less
Front-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-left tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less—
21
22
23
24Transmitter no data (front - left)
Transmitter no data (front - right)
Transmitter no data (rear - right)
Transmitter no data (rear - left)WT-23,
"Inspection 1:
Transmitter or
Control Unit
(BCM)"
31
32
33
34Transmitter checksum error (front - left)
Transmitter checksum error (front - right)
Transmitter checksum error (rear - right)
Transmitter checksum error (rear - left)WT-23,
"Inspection 2:
Tran s mitte r -
1"
35
36
37
38Transmitter pressure data error (front - left)
Transmitter pressure data error (front - right)
Transmitter pressure data error (rear - right)
Transmitter pressure data error (rear - left)WT-24,
"Inspection 3:
Tran s mitte r -
2"
41
42
43
44Transmitter function code error (front - left)
Transmitter function code error (front - right)
Transmitter function code error (rear - right)
Transmitter function code error (rear - left)WT-23,
"Inspection 2:
Tran s mitte r -
1"
45
46
47
48Transmitter battery voltage low (front - left)
Transmitter battery voltage low (front - right)
Transmitter battery voltage low (rear - right)
Transmitter battery voltage low (rear - left)WT-23,
"Inspection 2:
Tran s mitte r -
1"
52 Vehicle speed signalWT-25, "Inspection 4:
Vehicle Speed
Signal"
Low tire pressure warning lamp does
not come on when ignition switch is
turned on.Fuse or combination meter
BCM connector or circuit
BCM WT-26,
"Inspection 1:
Low Tire
Pressure
Warning
Lamp Does
Not Come On
When Ignition
Switch Is
Turned On"
Low tire pressure warning lamp stays
on when ignition switch is turned on.Combination meter
BCM connector or circuit
BCMWT-26,
"Inspection 2:
Low Tire
Pressure
Warning
Lamp Stays
On When
Ignition
Switch Is
Turned On"

Page 3301 of 3371

INFINITI QX56 2004 Factory Service Manual WT-22
TROUBLE DIAGNOSES
Revision: August 20072004 QX56
Low tire pressure warning lamp
flashes when ignition switch is turned
on.BCM harness connector or circuit
BCM
Transmitters mode off
ID registr

Page 3302 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-23
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Uni

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-23
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)EES0012H
MALFUNCTION CODE NO. 21, 22, 23 OR 24
1. CHECK CONTROL UNIT
Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM”.
Are all tire pressures displayed as 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
Check remote keyless entry receiver connector for damage or loose connections.
OK or NG
OK >> Replace BCM, then GO TO 3. Refer to BCS-19, "Removal and Installation of BCM" .
NG >> Repair or replace remote keyless entry receiver connector.
3. ID REGISTRATION
Carry out ID registration of all transmitters.
Is there a tire that cannot register ID?
YES >> Replace transmitter of the tire, then GO TO 5. Refer to WT-31, "Transmitter (Pressure Sensor)" .
NO >> GO TO 4.
4. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.
Inspection 2: Transmitter - 1EES0012I
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2.

Page 3303 of 3371

INFINITI QX56 2004 Factory Service Manual WT-24
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
2. REPLACE TRANSMITTER
1. Check low tire pressure warning lamp again for flashing, replace malfunctioning transmitter.

WT-24
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
2. REPLACE TRANSMITTER
1. Check low tire pressure warning lamp again for flashing, replace malfunctioning transmitter.
2. Carry out ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> GO TO 3.
NO >> GO TO Inspection 1. Refer to WT-23, "
Inspection 1: Transmitter or Control Unit (BCM)" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> Replace malfunctioning transmitter, and perform Step 3 again. Refer to WT-31, "
Transmitter
(Pressure Sensor)" .
Inspection 3: Transmitter - 2EES0012J
MALFUNCTION CODE NO. 35, 36, 37 OR 38
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-33, "
Tire" .
Are there any tires with pressure of 64 psi or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
>> Replace transmitter with new one if “DATA MONITOR ITEM” displays 64 psi or more. Refer to
WT-31, "
Transmitter (Pressure Sensor)" . Then GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.

Page 3304 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: August 20072004 QX56
Inspection 4: Vehicle Speed SignalEES001PU
MALFUNCTION CODE NO. 52
1. SELF-DIAGNOSTIC RESULT

Load next 8 pages
