ON-VEHICLE SERVICE
Revision: August 20072004 QX56
ON-VEHICLE SERVICEPFP:00000
Front Suspension PartsEES0010I
Check front suspension parts for excessive play, cracks, wear and
other damage.
Shake each front wheel to check for excessive play.
If looseness is noted, inspect wheel bearing end play, then
check ball joint end play. Refer to FSU-15, "
Inspection" .
Make sure that the cotter pin is inserted (4WD only).
Retighten all nuts and bolts to the specified torque.
Check shock absorber for oil leakage and other damage.
Check suspension ball joint for grease leakage and ball joint
dust cover for cracks and other damage.
Front Wheel AlignmentEES0010J
PRELIMINARY INSPECTION
WAR NIN G:
Always adjust the alignment with the vehicle on a flat surface.
NOTE:
If alignment is out of specification, inspect and replace any damaged or worn rear suspension parts before
making any adjustments.
1. Check and adjust the wheel alignment with the vehicle under unladen conditions. “Unladen conditions”
means that the fuel, coolant, and lubricant are full; and that the spare tire, jack, hand tools and mats are in
their designated positions.
2. Check the tires for incorrect air pressure and excessive wear.
3. Check the wheels for run out and damage. Refer to WT-4, "
Inspection" .
4. Check the wheel bearing axial end play. Refer to FAX-5, "
WHEEL BEARING INSPECTION" .
5. Check the shock absorbers for leaks or damage.
6. Check each mounting point of the suspension components for any excessive looseness or damage.
7. Check each link, arm, and the rear suspension member for any damage.
8. Check the vehicle height. Refer to FSU-21, "
Wheelarch Height (Unladen*1 )" .
For air leveling vehicles, verify the level using Consult-II memory register 1103 and set to 0 ± 10 mm (0
± 0.39 in) as necessary.
GENERAL INFORMATION AND RECOMMENDATIONS
1. A Four-Wheel Thrust Alignment should be performed.
This type of alignment is recommended for any NISSAN vehicle.
The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel
is centered.
The alignment machine itself should be capable of accepting any NISSAN vehicle.
The alignment machine should be checked to ensure that it is level.
2. Make sure the alignment machine is properly calibrated.
Your alignment machine should be regularly calibrated in order to give correct information.Suspension component torques : Refer to FSU-5,
"Components" .
SM A52 5A
SFA392B
Page 2066 of 3371

ON-VEHICLE SERVICE
FSU-7
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: August 20072004 QX56
Check with the manufacturer of your specific alignment machine for their recommended Service/Cali-
bration Schedule.
THE ALIGNMENT PROCESS
IMPORTANT: Use only the alignment specifications listed in this Service Manual. Refer to FSU-21,
"Wheelarch Height (Unladen*1 )" .
1. When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do NOT use these indicators.
The alignment specifications programmed into your alignment machine that operate these indicators
may not be correct.
This may result in an ERROR.
2. Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). Do NOT use this “Rolling Compensation”
method.
Use the “Jacking Compensation” method. After installing the alignment targets or head units, raise the
vehicle and rotate the wheels 1/2 turn both ways.
See Instructions in the alignment machine you are using for more information.
CAMBER AND CASTER
1. Measure camber and caster of both the right and left wheels
with a suitable alignment gauge and adjust as necessary to
specification.
2. If outside of the specified value, adjust camber and caster using
the adjusting bolts in the front lower link.
CAUTION:
After adjusting the camber then check the toe-in.
NOTE:
Camber changes about 3' (0.11°) with each graduation of one
adjusting bolt. Refer to table below for examples of lower link
adjusting bolt effect on camber and caster.
3. Tighten the adjusting bolt nuts to specification. Refer to FSU-5, "
Components" . Camber : Refer to FSU-20, "
Wheel Alignment
(Unladen*1 )" .
SRA0 96 A
LEIA0092E
Rear adjusting
bolt1 In 1 Out 1 In 1 Out 0 0 1 In 1 Out
Front adjusting
bolt1 Out 1 In 1 In 1 Out 1 In 1 Out 0 0
Camber
Degree minute
(Decimal degree)0 (0) 0 (0) 7' (0.11°)-7' (-0.11°)3' (0.11°) -3' (-0.11°)3' (0.11°) -3' (-0.11°)
Caster
Degree minute
(Decimal degree)-14' (-0.11°) 14' (0.11°) 0 (0) 0 (0) 7' (0.11°) -7' (-0.11°)-7' (-0.11°)7' (0.11°)
Page 2067 of 3371

FSU-8
ON-VEHICLE SERVICE
Revision: August 20072004 QX56
TOE-IN
WAR NIN G:
Always perform the following procedure on a flat surface.
Make sure that no person is in front of the vehicle before pushing it.
1. Bounce the front of vehicle up and down to stabilize the vehicle height (posture).
2. Push the vehicle straight ahead about 5 m (16 ft).
3. Put a mark on base line of the tread (rear side) of both front tires
at the same height as hub center as shown. These marks are
measuring points.
4. Measure the distance “A” on the rear side of the front tires as
shown.
5. Push the vehicle slowly ahead to rotate the wheels 180°
degrees (1/2 a turn).
CAUTION:
If the wheels have rotated more than 180° degrees (1/2
turn), start this procedure again from the beginning. Never
push the vehicle backward.
6. Measure the distance “B” on the front side of the front tires at the
same marks as shown. Total toe-in is calculated as “A” – “B”.
7. Adjust the toe-in by varying the length of the steering outer tie-
rods.
a. Loosen the outer tie-rod lock nuts.
b. Adjust the toe-in by screwing the outer tie-rods in or out.
c. Tighten the outer tie-rod lock nuts to specification.
FRONT WHEEL TURNING ANGLE
1. Start engine and run at idle.
2. Set wheels in straight-ahead position. Then move vehicle for-
ward until front wheels rest on turning radius gauge properly.
Make sure vehicle is level.
3. Rotate steering wheel all the way right and left; measure turning
angle.
If front wheel turning angles are out of the specification, check
if the following parts are worn or damaged.
AFA05 0
Total toe-in : Refer to FSU-20, "Wheel Alignment
(Unladen*1 )" .
SFA234AC
Standard length “L” : Refer to PS-15, "POWER
STEERING GEAR AND LINK-
AGE" .
Lock nut : Refer to PS-15, "
Removal and
Installation" .
SFA486A
Wheel turning angle
(full turn): Refer to FSU-20, "Wheel
Alignment (Unladen*1 )" .
SFA439BA
Page 2068 of 3371
ON-VEHICLE SERVICE
FSU-9
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: August 20072004 QX56
–Steering gear
–Ste er ing c olumn
–Front suspension components
If found that they are worn or damaged, replace them with new ones.
Page 2069 of 3371

FSU-10
COIL SPRING AND SHOCK ABSORBER
Revision: August 20072004 QX56
COIL SPRING AND SHOCK ABSORBERPFP:56210
Removal and InstallationEES0010K
REMOVAL

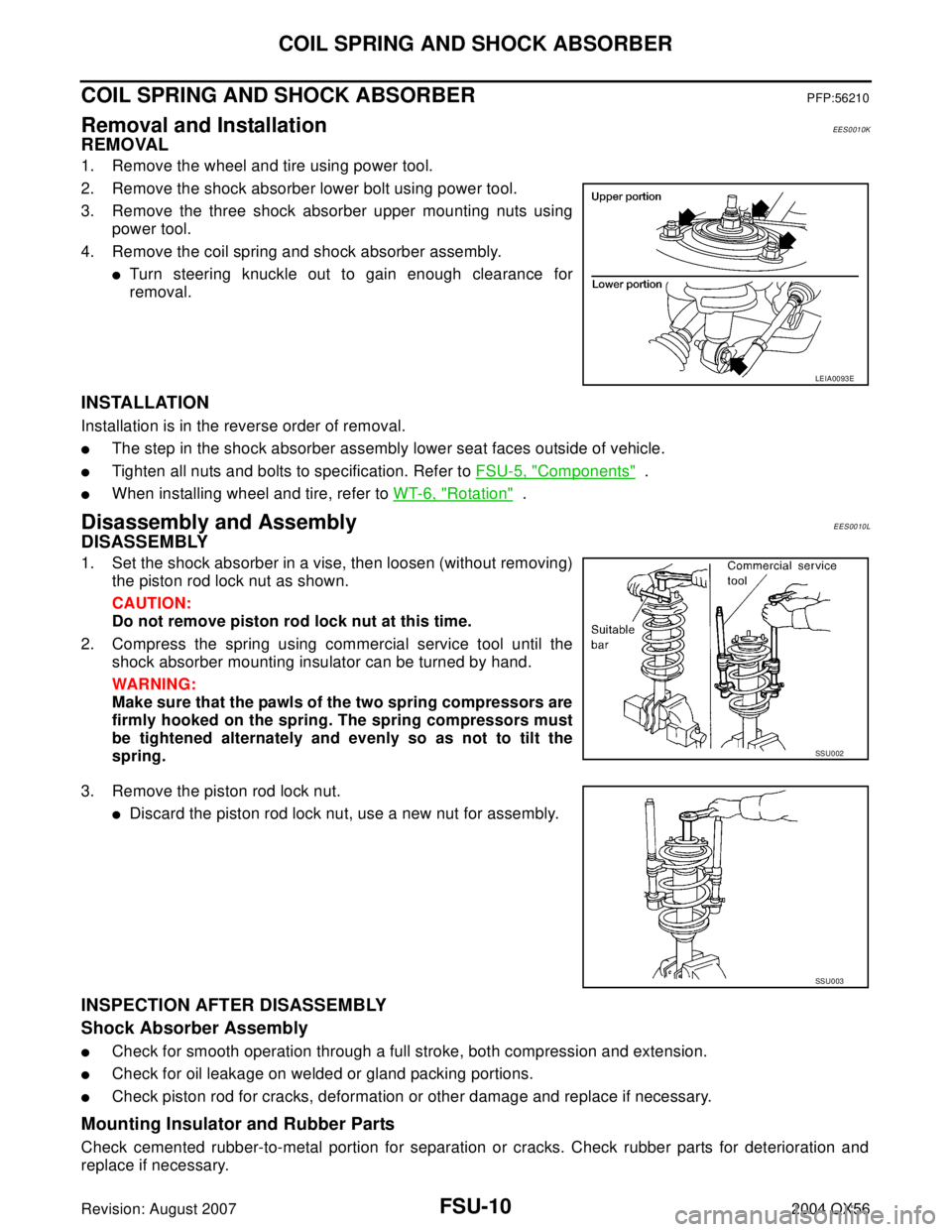

1. Remove the wheel and tire using power tool.
2. Remove the shock absorber lower bolt using power tool.
3. Remove the three shock absorber upper mounting nuts using
power tool.
4. Remove the coil spring and shock absorber assembly.
Turn steering knuckle out to gain enough clearance for
removal.
INSTALLATION
Installation is in the reverse order of removal.
The step in the shock absorber assembly lower seat faces outside of vehicle.
Tighten all nuts and bolts to specification. Refer to FSU-5, "Components" .
When installing wheel and tire, refer to WT-6, "Rotation" .
Disassembly and AssemblyEES0010L
DISASSEMBLY
1. Set the shock absorber in a vise, then loosen (without removing)
the piston rod lock nut as shown.
CAUTION:
Do not remove piston rod lock nut at this time.
2. Compress the spring using commercial service tool until the
shock absorber mounting insulator can be turned by hand.
WAR NIN G:
Make sure that the pawls of the two spring compressors are
firmly hooked on the spring. The spring compressors must
be tightened alternately and evenly so as not to tilt the
spring.
3. Remove the piston rod lock nut.
Discard the piston rod lock nut, use a new nut for assembly.
INSPECTION AFTER DISASSEMBLY
Shock Absorber Assembly
Check for smooth operation through a full stroke, both compression and extension.
Check for oil leakage on welded or gland packing portions.
Check piston rod for cracks, deformation or other damage and replace if necessary.
Mounting Insulator and Rubber Parts
Check cemented rubber-to-metal portion for separation or cracks. Check rubber parts for deterioration and
replace if necessary.
LEIA0093E
SSU0 02
SSU0 03
Page 2070 of 3371
COIL SPRING AND SHOCK ABSORBER
FSU-11
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: August 20072004 QX56
Coil Spring
Check for cracks, deformation or other damage and replace if necessary.
Check the free spring height.
ASSEMBLY

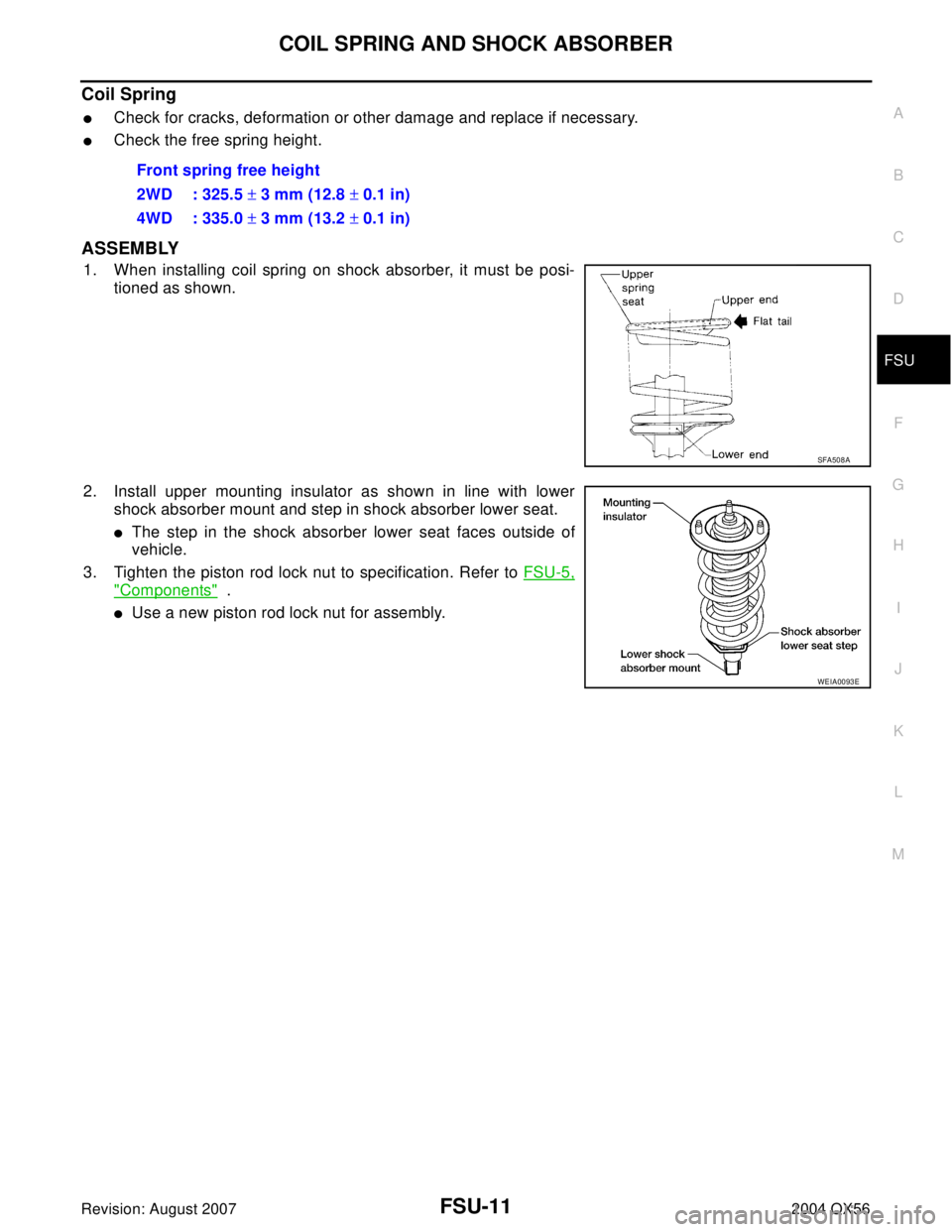

1. When installing coil spring on shock absorber, it must be posi-
tioned as shown.
2. Install upper mounting insulator as shown in line with lower
shock absorber mount and step in shock absorber lower seat.
The step in the shock absorber lower seat faces outside of
vehicle.
3. Tighten the piston rod lock nut to specification. Refer to FSU-5,
"Components" .
Use a new piston rod lock nut for assembly.Front spring free height
2WD : 325.5 ± 3 mm (12.8 ± 0.1 in)
4WD : 335.0 ± 3 mm (13.2 ± 0.1 in)
SFA508A
WEIA0093E
Page 2071 of 3371
FSU-12
STABILIZER BAR
Revision: August 20072004 QX56
STABILIZER BARPFP:54611
Removal and InstallationEES0010M
REMOVAL
1. Remove engine under cover using power tool.
2. Remove stabilizer bar mounting bracket bolts and connecting
rod nuts as shown, using power tool.
3. Remove bushings from stabilizer bar.
INSPECTION AFTER REMOVAL
Check stabilizer bar for twist and deformation. Replace if necessary.
Check rubber bushing for cracks, wear and deterioration. Replace if necessary.
INSTALLATION
Installation is in the reverse order of removal.
Tighten all nuts and bolts to specification. Refer to FSU-5, "Components" .
LEIA0094E
Page 2072 of 3371
UPPER LINK
FSU-13
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: August 20072004 QX56
UPPER LINKPFP:54524
Removal and InstallationEES0010N
REMOVAL
1. Remove the wheel and tire using power tool.
2. Remove wheel opening shield.

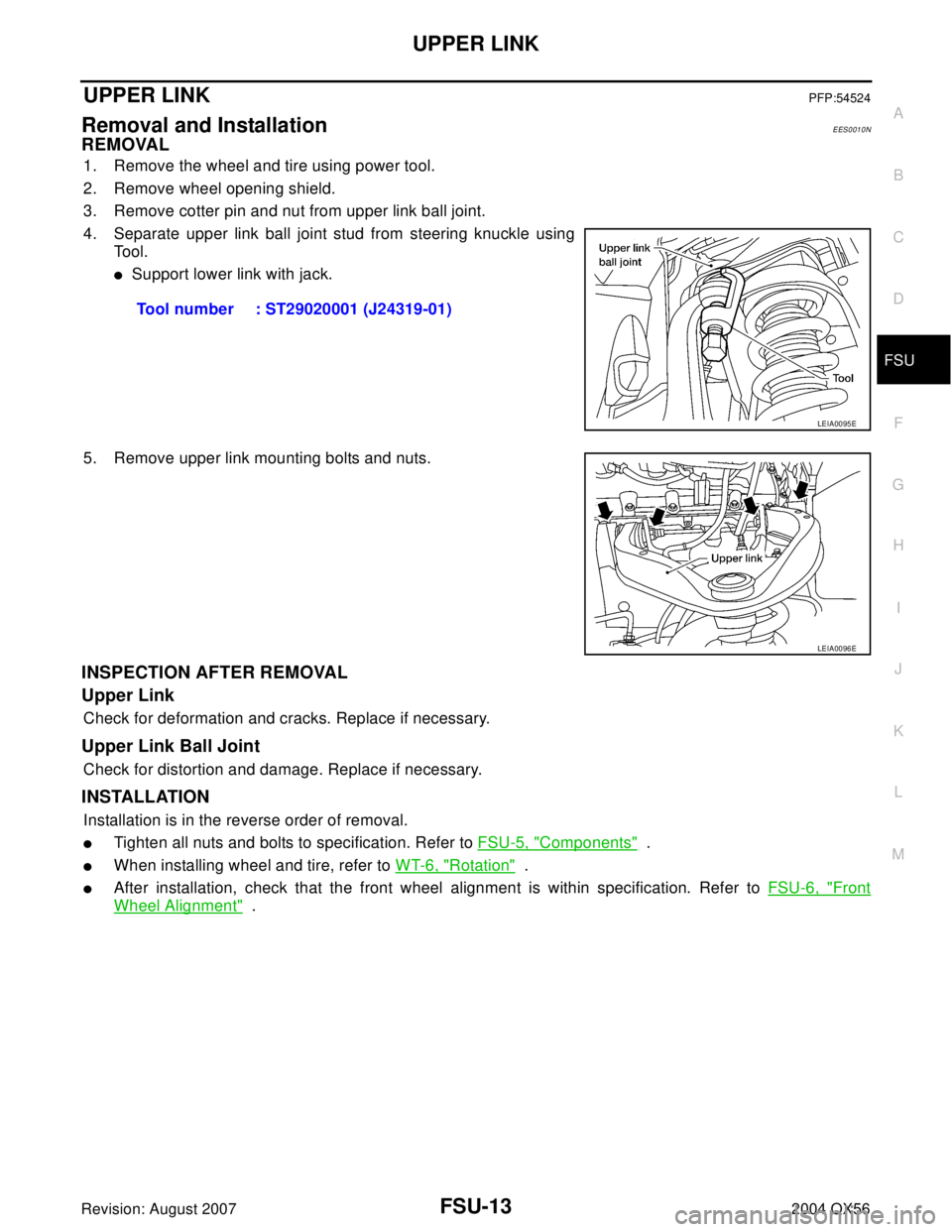

3. Remove cotter pin and nut from upper link ball joint.
4. Separate upper link ball joint stud from steering knuckle using
Tool.
Support lower link with jack.
5. Remove upper link mounting bolts and nuts.
INSPECTION AFTER REMOVAL
Upper Link
Check for deformation and cracks. Replace if necessary.
Upper Link Ball Joint
Check for distortion and damage. Replace if necessary.
INSTALLATION
Installation is in the reverse order of removal.
Tighten all nuts and bolts to specification. Refer to FSU-5, "Components" .
When installing wheel and tire, refer to WT-6, "Rotation" .
After installation, check that the front wheel alignment is within specification. Refer to FSU-6, "Front
Wheel Alignment" . Tool number : ST29020001 (J24319-01)
LEIA0095E
LEIA0096E
