Page 3265 of 3371
TF-140
CENTER CASE
Revision: August 20072004 QX56
CENTER CASEPFP:33105
AssemblyEDS00194
OIL FILTER
1. Apply ATF to the two new O-rings (1), and install them on the oil
filter (2).
NOTE:
Do not reuse O-rings.
2. Apply ATF or petroleum jelly to the new O-ring, and install them
on filter stud.
NOTE:
Do not reuse O-rings.
3. Install filter stud to oil filter.
4. Install oil filter to center case and tighten bolts to specifications.
CAUTION:
Do not knock oil filter with a tool such as a hammer.
SUB OIL PUMP
1. Install outer gear and inner gear in to sub oil pump housing, and
measure side clearance. Refer to TF-133, "
SUB-OIL PUMP" .
2. Align dowel pin hole and mounting bolt hole of sub oil pump
assembly with center case. Install sub oil pump cover then
tighten bolts.
WDIA0285E
PDIA0184E
Oil filter bolts : 7.9 N·m (0.81 kg-m, 70 in-lb)
SDIA2135E
Sub oil pump bolts : 7.9 N·m (0.81 kg-m, 70 in-lb)
SDIA2328E
Page 3266 of 3371

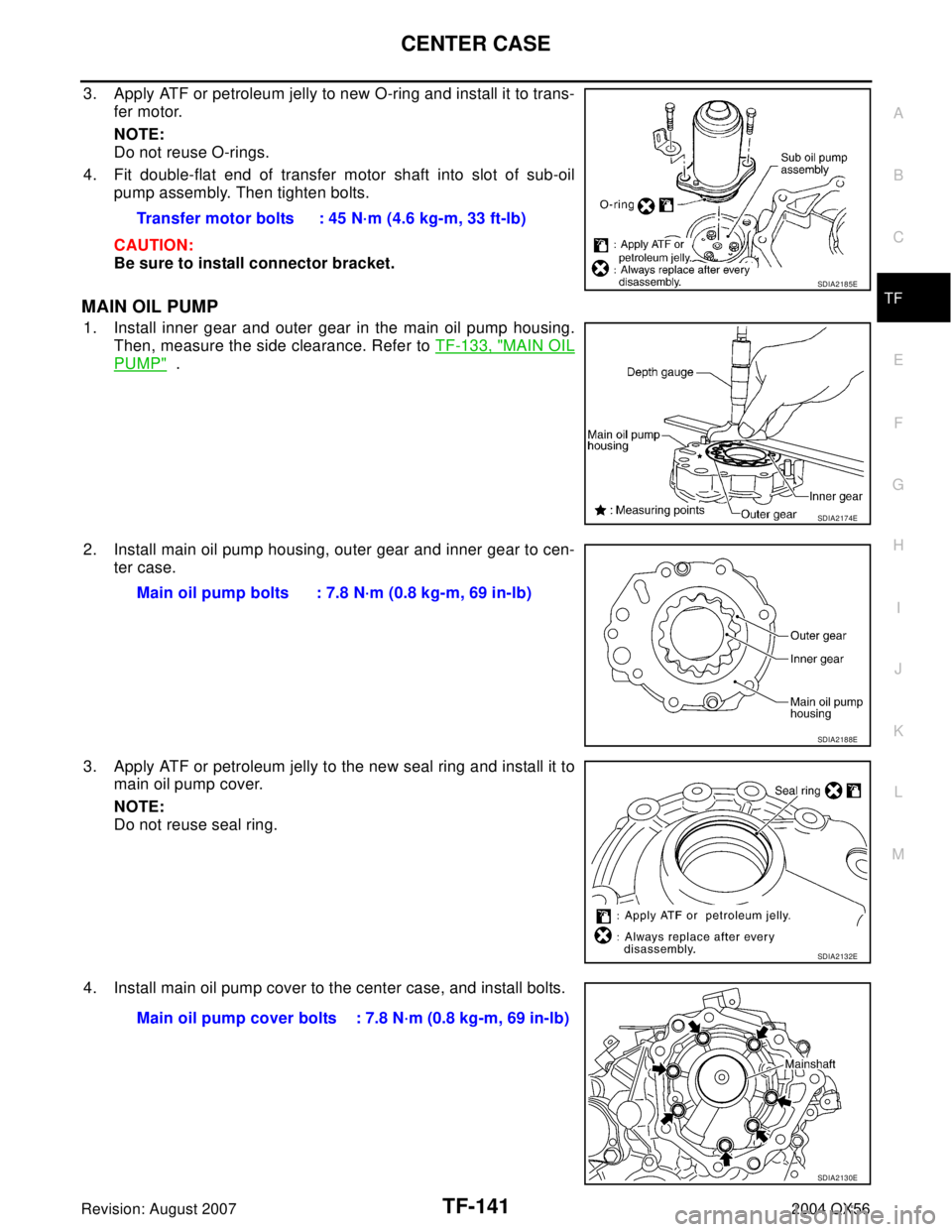

CENTER CASE
TF-141
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
3. Apply ATF or petroleum jelly to new O-ring and install it to trans-
fer motor.
NOTE:
Do not reuse O-rings.
4. Fit double-flat end of transfer motor shaft into slot of sub-oil
pump assembly. Then tighten bolts.
CAUTION:
Be sure to install connector bracket.
MAIN OIL PUMP
1. Install inner gear and outer gear in the main oil pump housing.
Then, measure the side clearance. Refer to TF-133, "
MAIN OIL
PUMP" .
2. Install main oil pump housing, outer gear and inner gear to cen-
ter case.
3. Apply ATF or petroleum jelly to the new seal ring and install it to
main oil pump cover.
NOTE:
Do not reuse seal ring.
4. Install main oil pump cover to the center case, and install bolts.Transfer motor bolts : 45 N·m (4.6 kg-m, 33 ft-lb)
SDIA2185E
SDIA2174E
Main oil pump bolts : 7.8 N·m (0.8 kg-m, 69 in-lb)
SDIA2188E
SDIA2132E
Main oil pump cover bolts : 7.8 N·m (0.8 kg-m, 69 in-lb)
SDIA2130E
Page 3267 of 3371

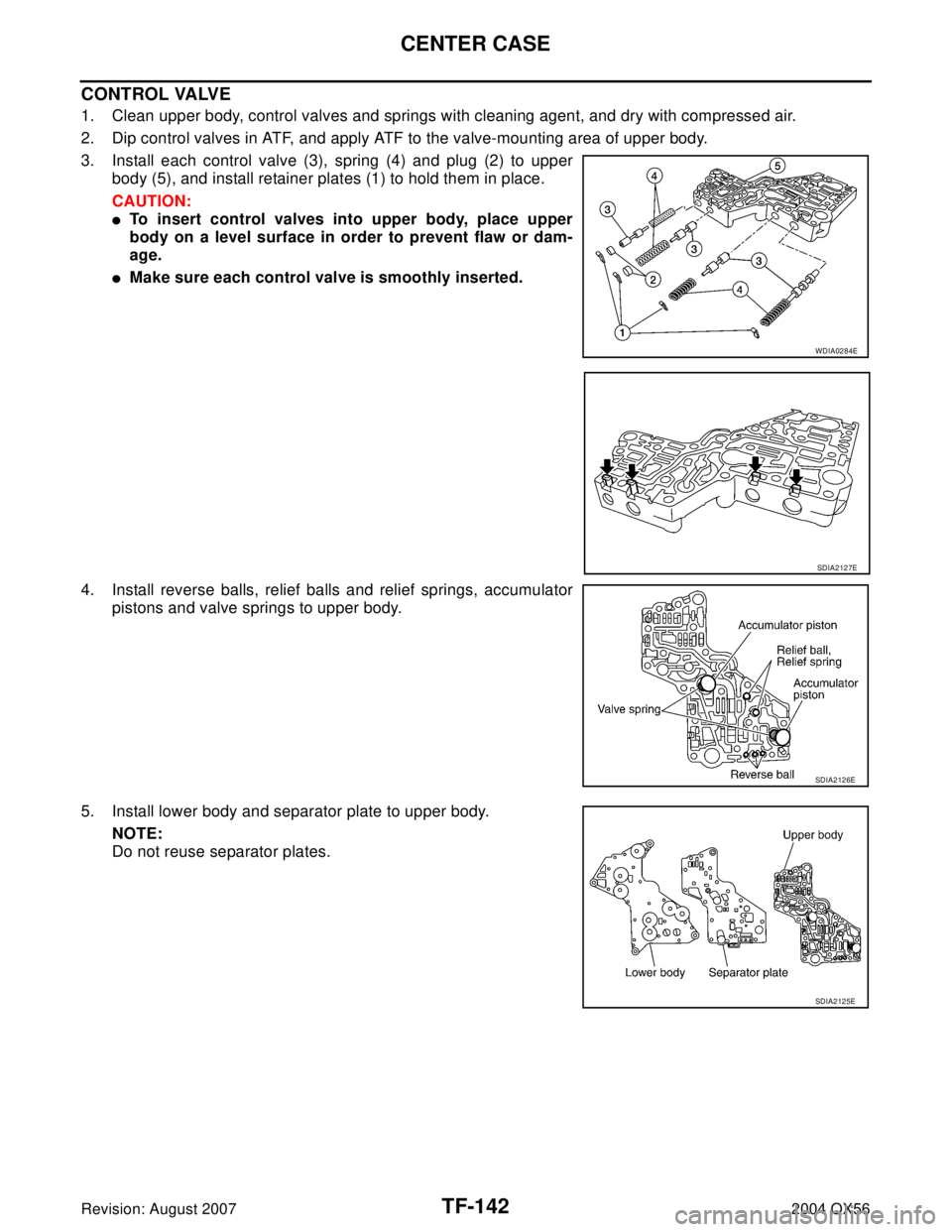

TF-142
CENTER CASE
Revision: August 20072004 QX56
CONTROL VALVE
1. Clean upper body, control valves and springs with cleaning agent, and dry with compressed air.
2. Dip control valves in ATF, and apply ATF to the valve-mounting area of upper body.
3. Install each control valve (3), spring (4) and plug (2) to upper
body (5), and install retainer plates (1) to hold them in place.
CAUTION:
To insert control valves into upper body, place upper
body on a level surface in order to prevent flaw or dam-
age.
Make sure each control valve is smoothly inserted.
4. Install reverse balls, relief balls and relief springs, accumulator
pistons and valve springs to upper body.
5. Install lower body and separator plate to upper body.
NOTE:
Do not reuse separator plates.
WDIA0284E
SDIA2127E
SDIA2126E
SDIA2125E
Page 3268 of 3371

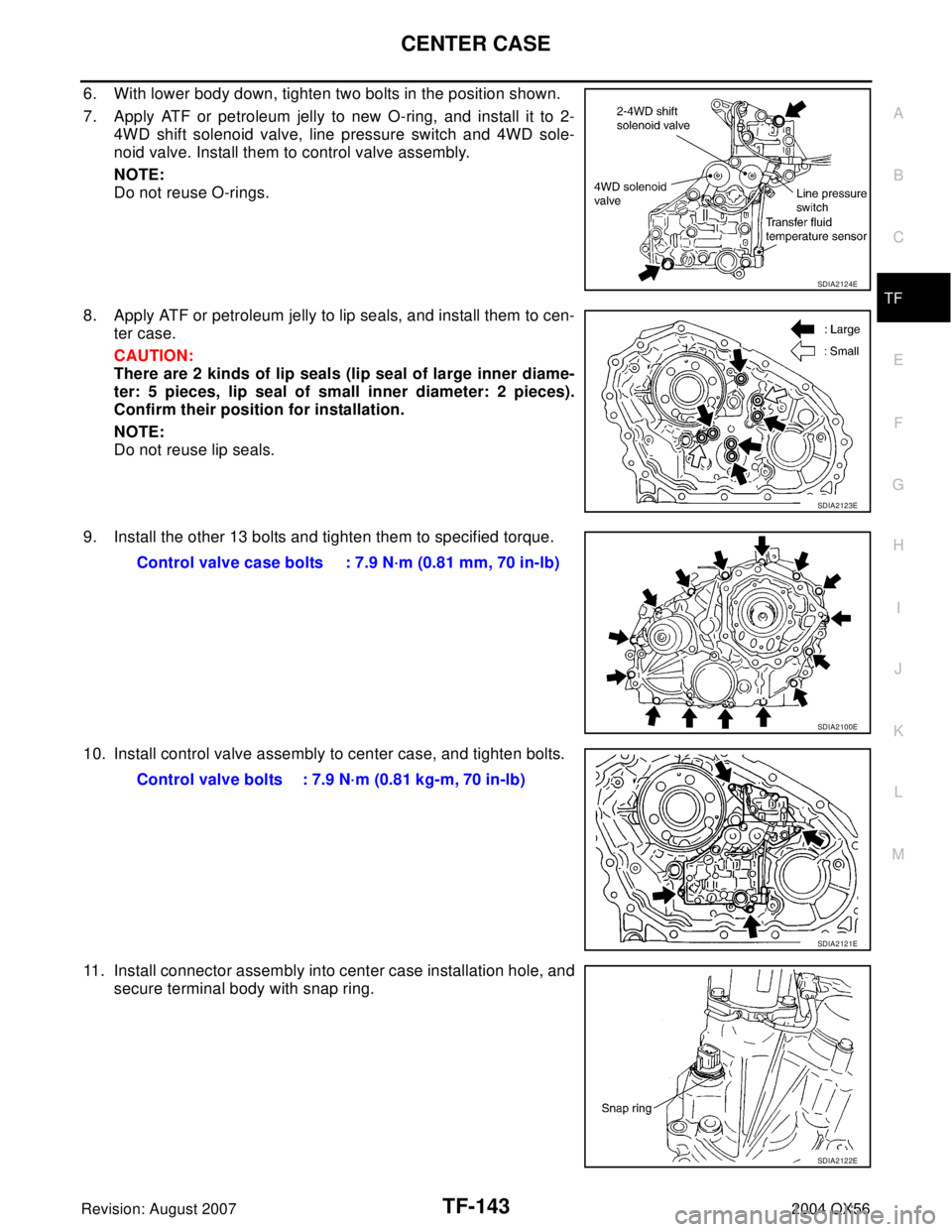

CENTER CASE
TF-143
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
6. With lower body down, tighten two bolts in the position shown.
7. Apply ATF or petroleum jelly to new O-ring, and install it to 2-
4WD shift solenoid valve, line pressure switch and 4WD sole-
noid valve. Install them to control valve assembly.
NOTE:
Do not reuse O-rings.
8. Apply ATF or petroleum jelly to lip seals, and install them to cen-
ter case.
CAUTION:
There are 2 kinds of lip seals (lip seal of large inner diame-
ter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm their position for installation.
NOTE:
Do not reuse lip seals.
9. Install the other 13 bolts and tighten them to specified torque.
10. Install control valve assembly to center case, and tighten bolts.
11. Install connector assembly into center case installation hole, and
secure terminal body with snap ring.
SDIA2124E
SDIA2123E
Control valve case bolts : 7.9 N·m (0.81 mm, 70 in-lb)
SDIA2100E
Control valve bolts : 7.9 N·m (0.81 kg-m, 70 in-lb)
SDIA2121E
SDIA2122E
Page 3269 of 3371

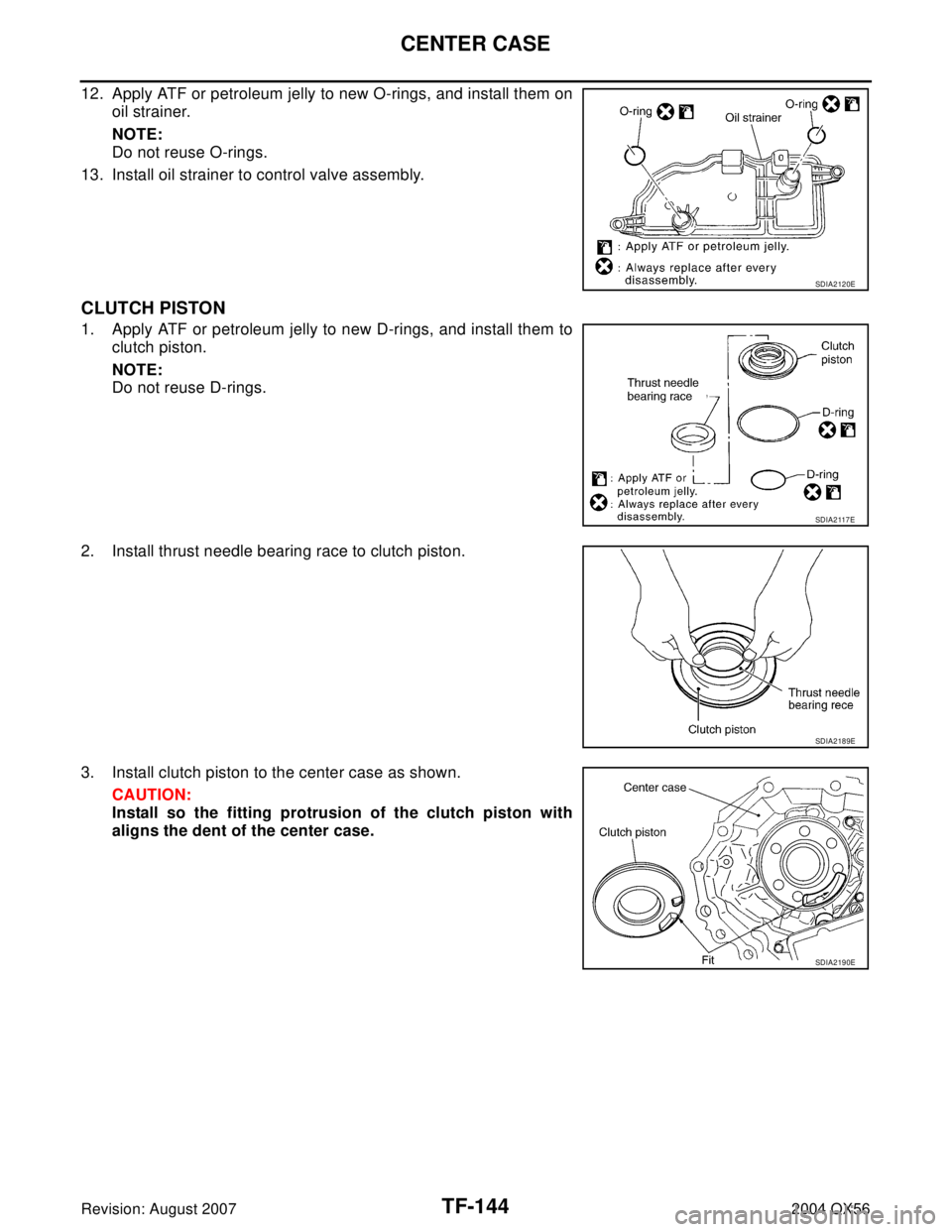

TF-144
CENTER CASE
Revision: August 20072004 QX56
12. Apply ATF or petroleum jelly to new O-rings, and install them on
oil strainer.
NOTE:
Do not reuse O-rings.
13. Install oil strainer to control valve assembly.
CLUTCH PISTON
1. Apply ATF or petroleum jelly to new D-rings, and install them to
clutch piston.
NOTE:
Do not reuse D-rings.
2. Install thrust needle bearing race to clutch piston.
3. Install clutch piston to the center case as shown.
CAUTION:
Install so the fitting protrusion of the clutch piston with
aligns the dent of the center case.
SDIA2120E
SDIA2 117 E
SDIA2189E
SDIA2190E
Page 3270 of 3371

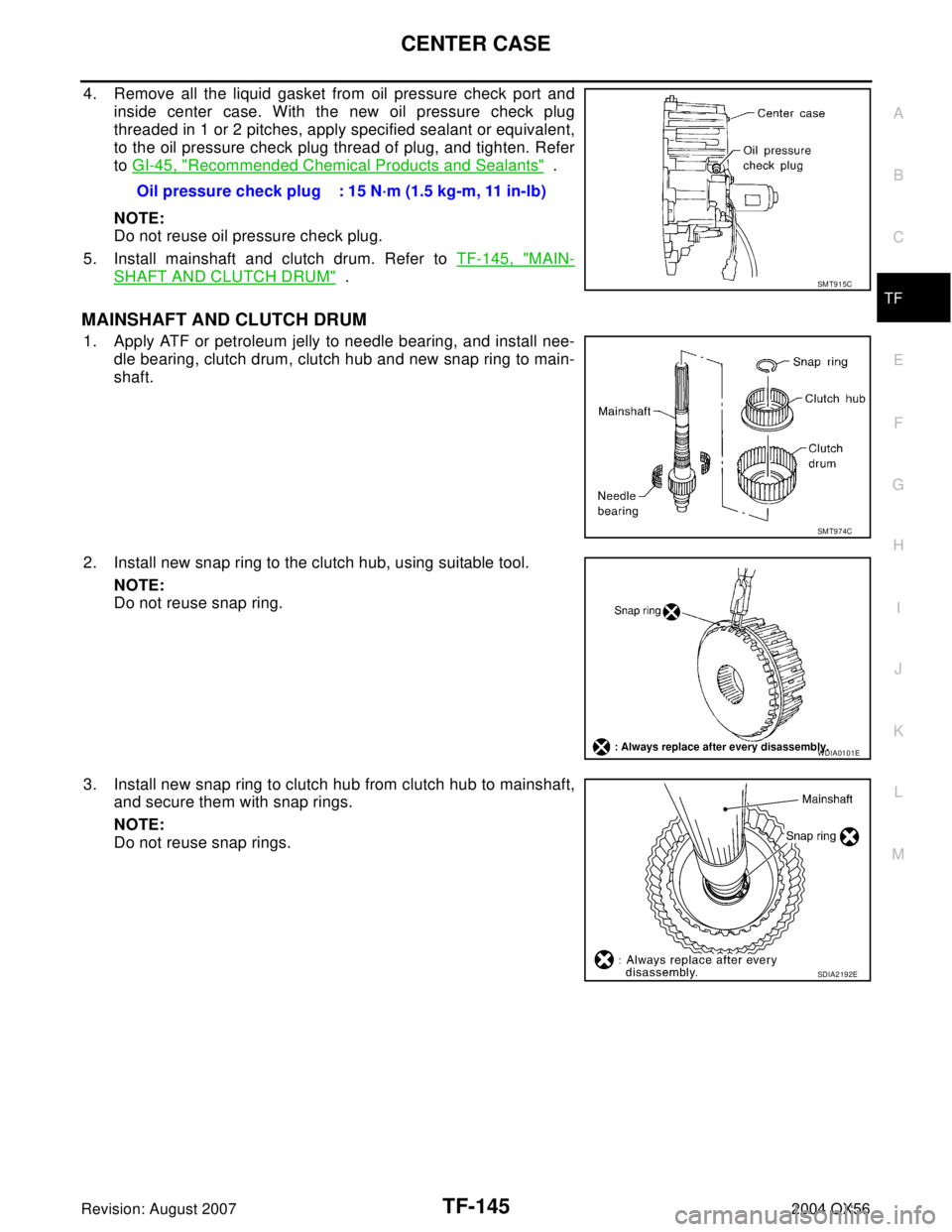

CENTER CASE
TF-145
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
4. Remove all the liquid gasket from oil pressure check port and
inside center case. With the new oil pressure check plug
threaded in 1 or 2 pitches, apply specified sealant or equivalent,
to the oil pressure check plug thread of plug, and tighten. Refer
to GI-45, "
Recommended Chemical Products and Sealants" .
NOTE:
Do not reuse oil pressure check plug.
5. Install mainshaft and clutch drum. Refer to TF-145, "
MAIN-
SHAFT AND CLUTCH DRUM" .
MAINSHAFT AND CLUTCH DRUM
1. Apply ATF or petroleum jelly to needle bearing, and install nee-
dle bearing, clutch drum, clutch hub and new snap ring to main-
shaft.
2. Install new snap ring to the clutch hub, using suitable tool.
NOTE:
Do not reuse snap ring.
3. Install new snap ring to clutch hub from clutch hub to mainshaft,
and secure them with snap rings.
NOTE:
Do not reuse snap rings.Oil pressure check plug : 15 N·m (1.5 kg-m, 11 in-lb)
SMT915C
SMT974C
WDIA0101E
SDIA2192E
Page 3271 of 3371

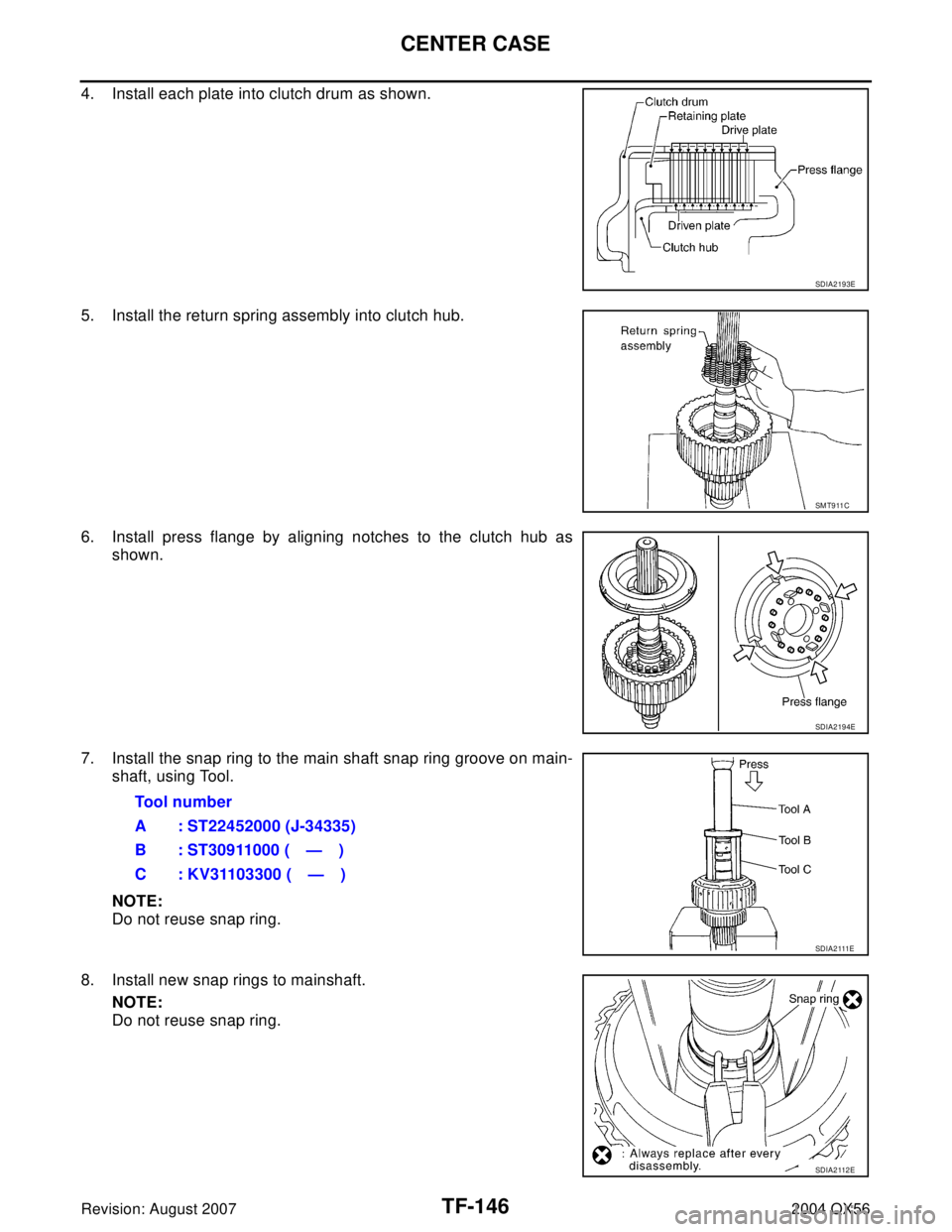

TF-146
CENTER CASE
Revision: August 20072004 QX56
4. Install each plate into clutch drum as shown.
5. Install the return spring assembly into clutch hub.
6. Install press flange by aligning notches to the clutch hub as
shown.
7. Install the snap ring to the main shaft snap ring groove on main-
shaft, using Tool.
NOTE:
Do not reuse snap ring.
8. Install new snap rings to mainshaft.
NOTE:
Do not reuse snap ring.
SDIA2193E
SM T9 11 C
SDIA2194E
Tool number
A : ST22452000 (J-34335)
B : ST30911000 ( — )
C : KV31103300 ( — )
SD I A 2 111E
SDIA2 112 E
Page 3272 of 3371

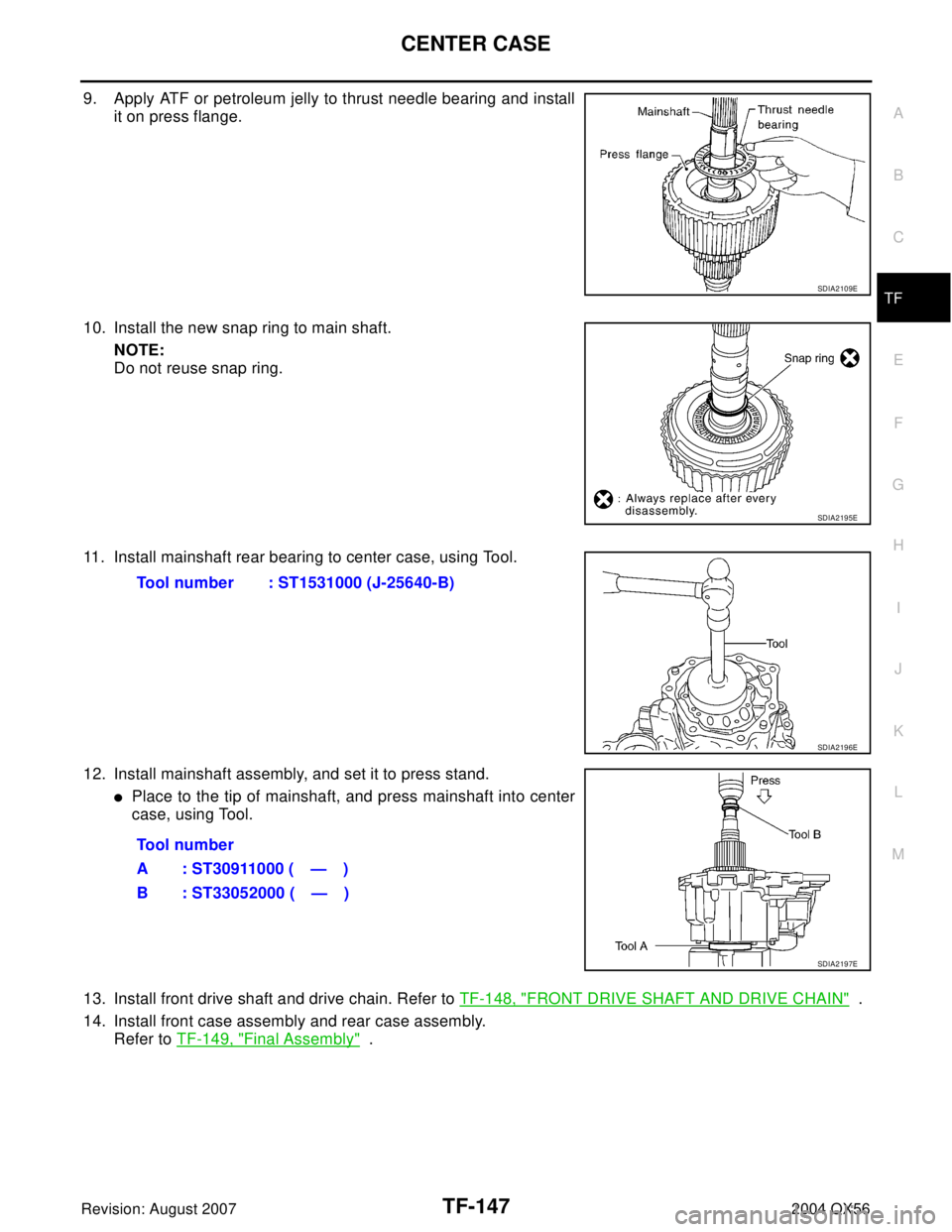

CENTER CASE
TF-147
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
9. Apply ATF or petroleum jelly to thrust needle bearing and install
it on press flange.
10. Install the new snap ring to main shaft.
NOTE:
Do not reuse snap ring.
11. Install mainshaft rear bearing to center case, using Tool.
12. Install mainshaft assembly, and set it to press stand.
Place to the tip of mainshaft, and press mainshaft into center
case, using Tool.
13. Install front drive shaft and drive chain. Refer to TF-148, "
FRONT DRIVE SHAFT AND DRIVE CHAIN" .
14. Install front case assembly and rear case assembly.
Refer to TF-149, "
Final Assembly" .
SDIA2109E
SDIA2195E
Tool number : ST1531000 (J-25640-B)
SDIA2196E
To o l n u m b e r
A : ST30911000 ( — )
B : ST33052000 ( — )
SDIA2197E
