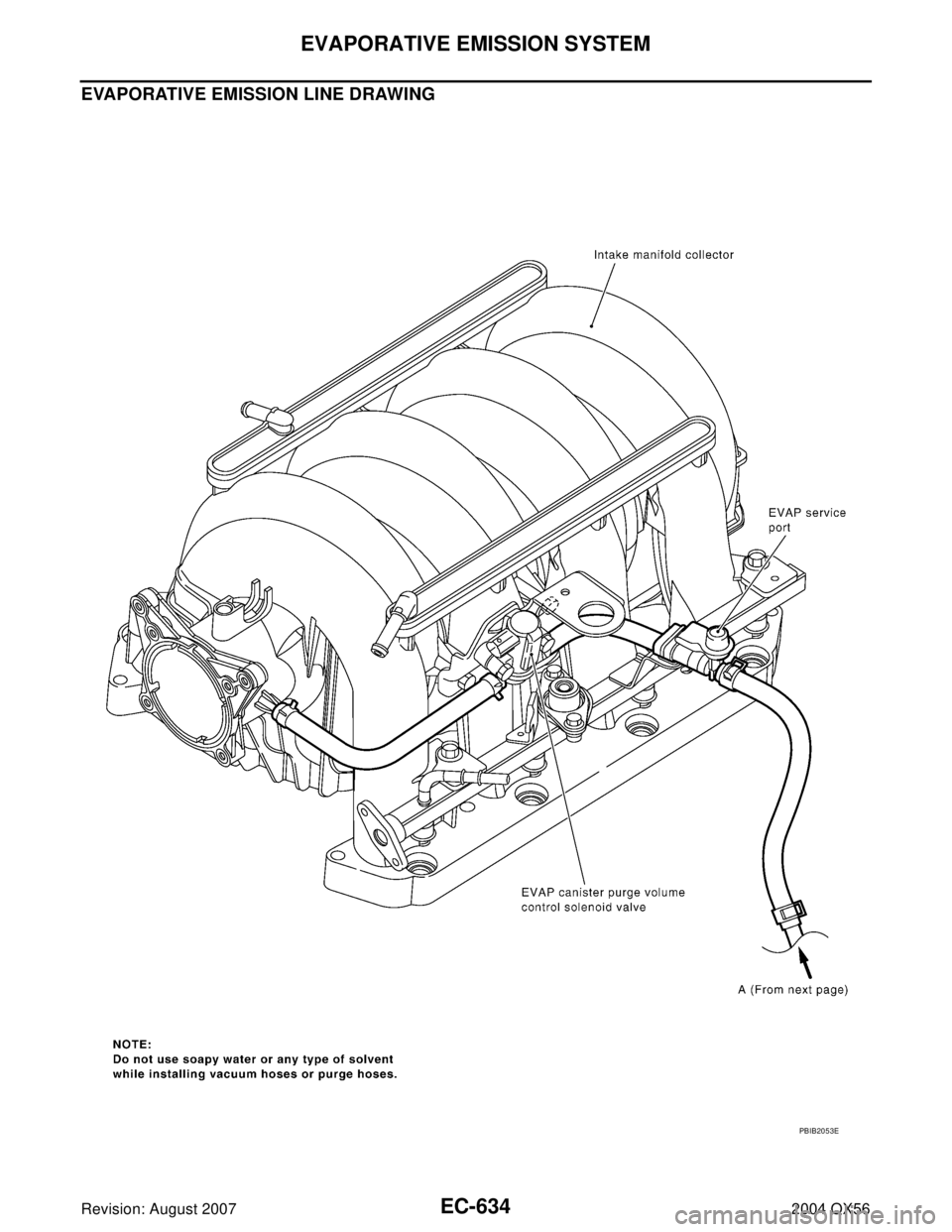

INFINITI QX56 2004 Factory Service Manual EC-634Revision: August 2007 EVAPORATIVE EMISSION SYSTEM 2004 QX56 EVAPORATIVE EMISSION LINE DRAWING PBIB2053E

Page 1826 of 3371

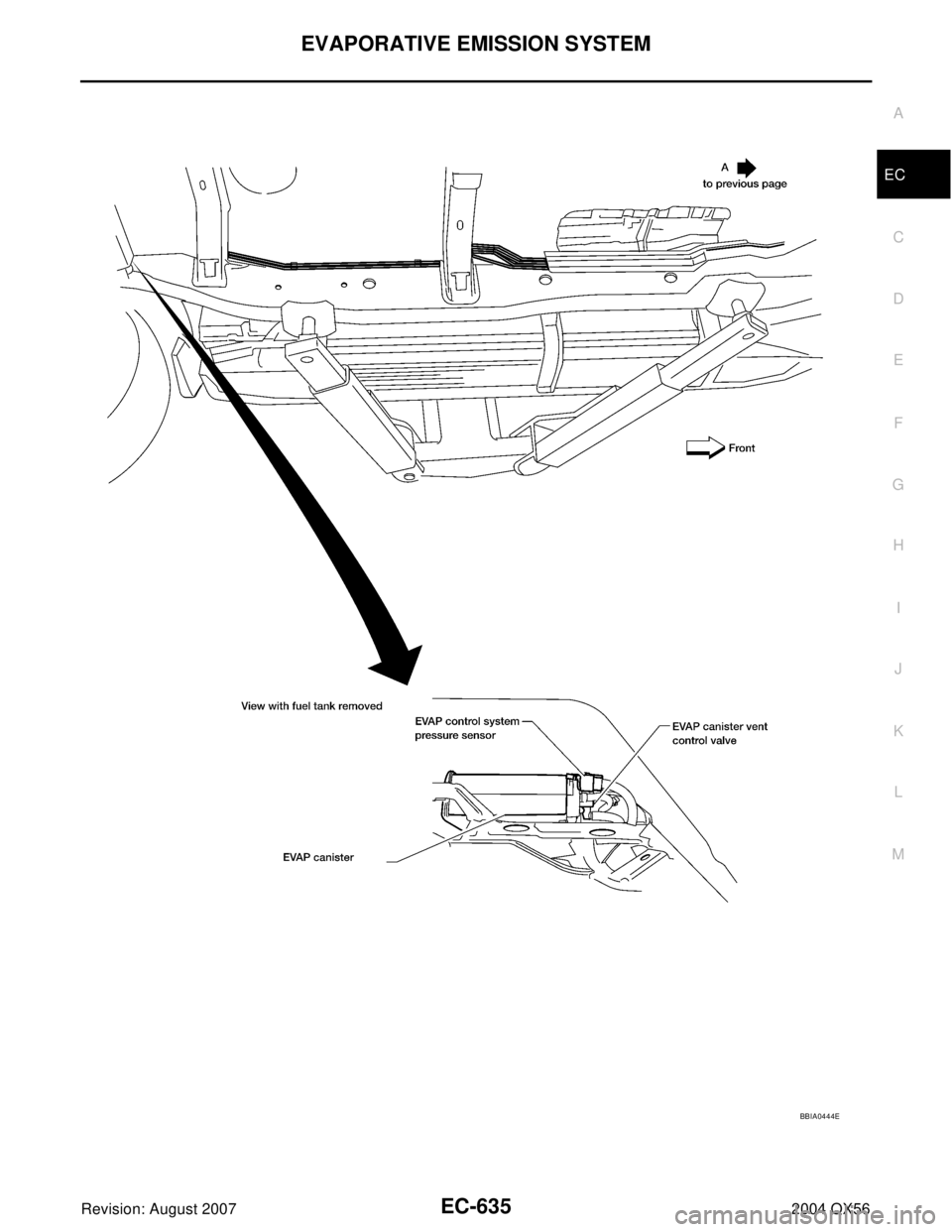

INFINITI QX56 2004 Factory Service Manual EVAPORATIVE EMISSION SYSTEM EC-635 C D E F G H I J K L MA EC Revision: August 20072004 QX56 BBIA0444E

Page 1827 of 3371

INFINITI QX56 2004 Factory Service Manual EC-636Revision: August 2007 EVAPORATIVE EMISSION SYSTEM 2004 QX56 Component InspectionUBS00HDZ EVAP CANISTER Check EVAP canister as follows: 1. Block port B . 2. Blow air into port A and check that

Page 1828 of 3371

INFINITI QX56 2004 Factory Service Manual EVAPORATIVE EMISSION SYSTEM EC-637 C D E F G H I J K L MA EC Revision: August 20072004 QX56 EVAP SERVICE PORT Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel v

Page 1829 of 3371

INFINITI QX56 2004 Factory Service Manual EC-638Revision: August 2007 EVAPORATIVE EMISSION SYSTEM 2004 QX56 WITH CONSULT-II 1. Attach the EVAP service port adapter securely to the EVAP service port. 2. Also attach the pressure pump and hose

Page 1830 of 3371

INFINITI QX56 2004 Factory Service Manual EVAPORATIVE EMISSION SYSTEM EC-639 C D E F G H I J K L MA EC Revision: August 20072004 QX56 3. Apply battery voltage to between the terminals of EVAP canister vent control valve to make a closed EVAP

Page 1831 of 3371

INFINITI QX56 2004 Factory Service Manual EC-640Revision: August 2007 ON BOARD REFUELING VAPOR RECOVERY (ORVR) 2004 QX56 ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032 System DescriptionUBS00HE2 From the beginning of refueling, the air and

Page 1832 of 3371

INFINITI QX56 2004 Factory Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR) EC-641 C D E F G H I J K L MA EC Revision: August 20072004 QX56 Diagnostic ProcedureUBS00HE3 SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG. 1. CHECK EVAP CAN
