Page 2705 of 3371

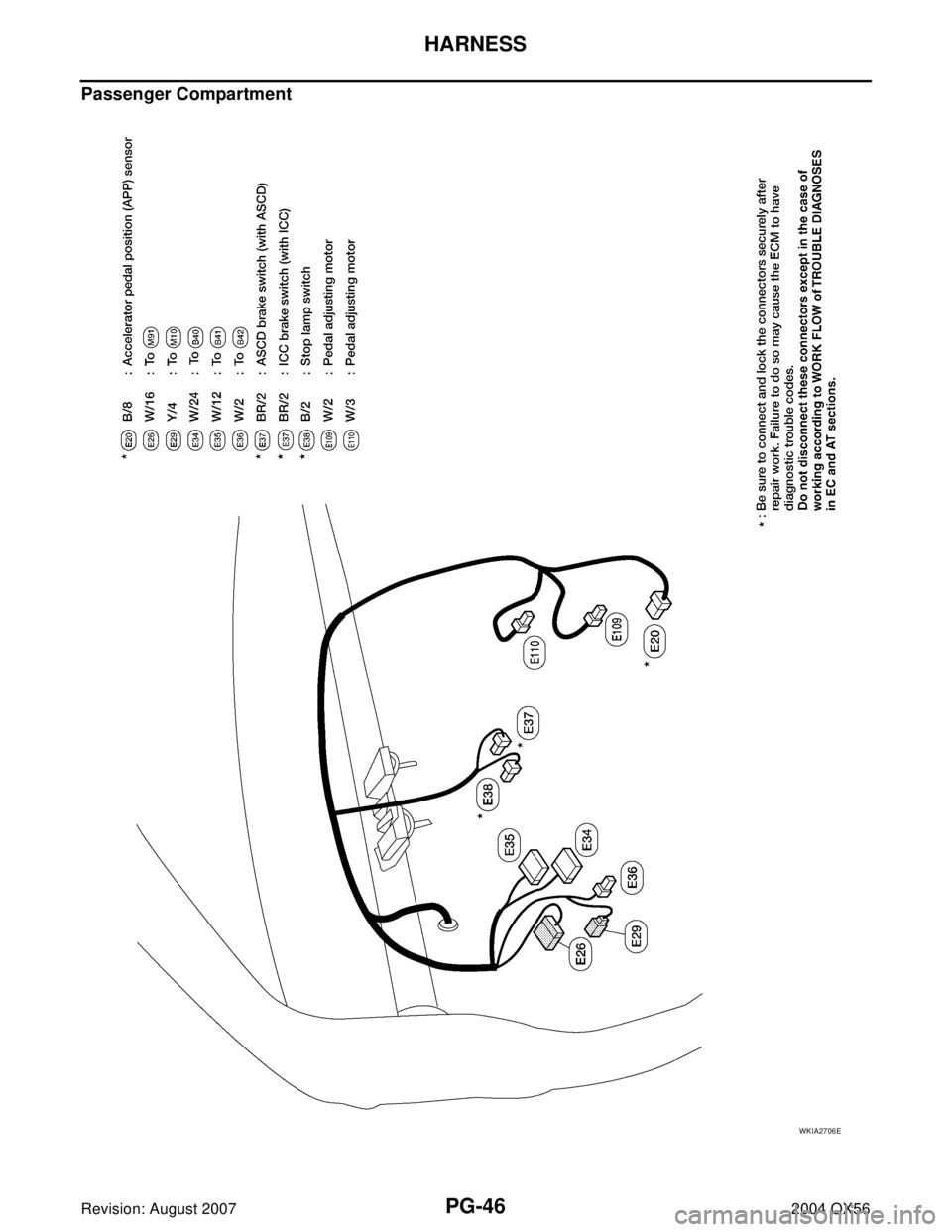

INFINITI QX56 2004 Factory Service Manual PG-46 HARNESS Revision: August 20072004 QX56 Passenger Compartment WKIA2706E

Page 2706 of 3371

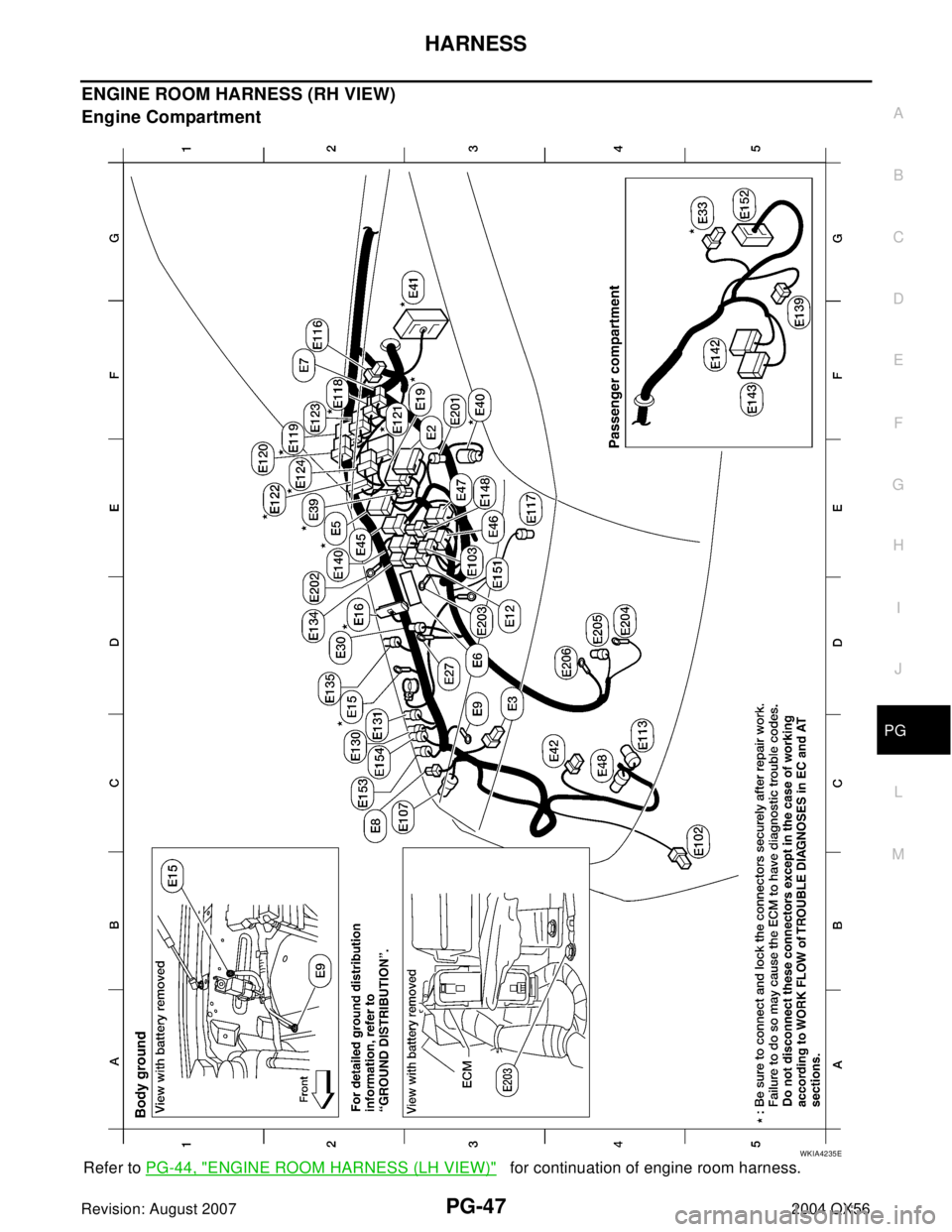

INFINITI QX56 2004 Factory Service Manual HARNESS PG-47 C D E F G H I J L MA B PG Revision: August 20072004 QX56 ENGINE ROOM HARNESS (RH VIEW) Engine Compartment Refer to PG-44, "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine roo

Page 2707 of 3371

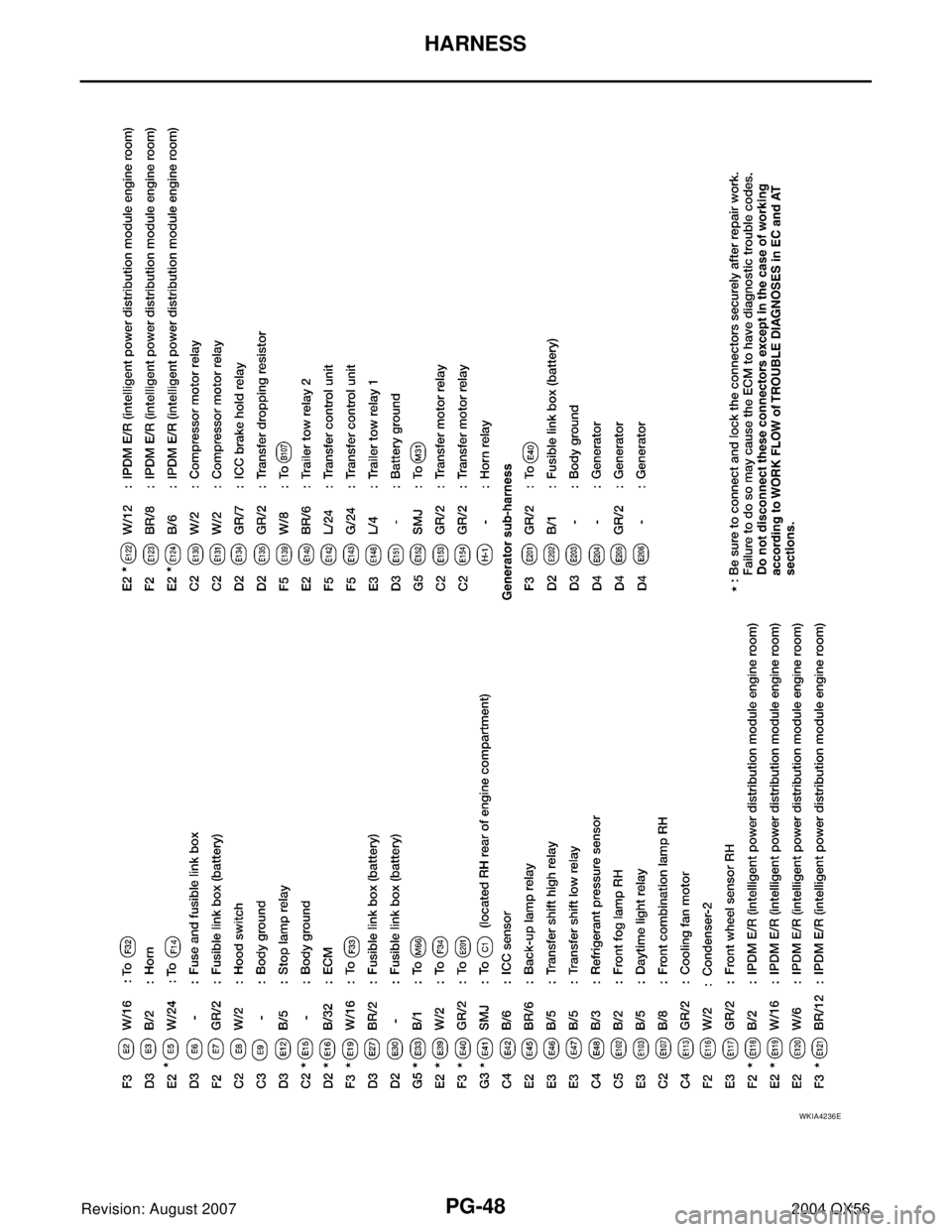

INFINITI QX56 2004 Factory Service Manual PG-48 HARNESS Revision: August 20072004 QX56 WKIA4236E

Page 2708 of 3371

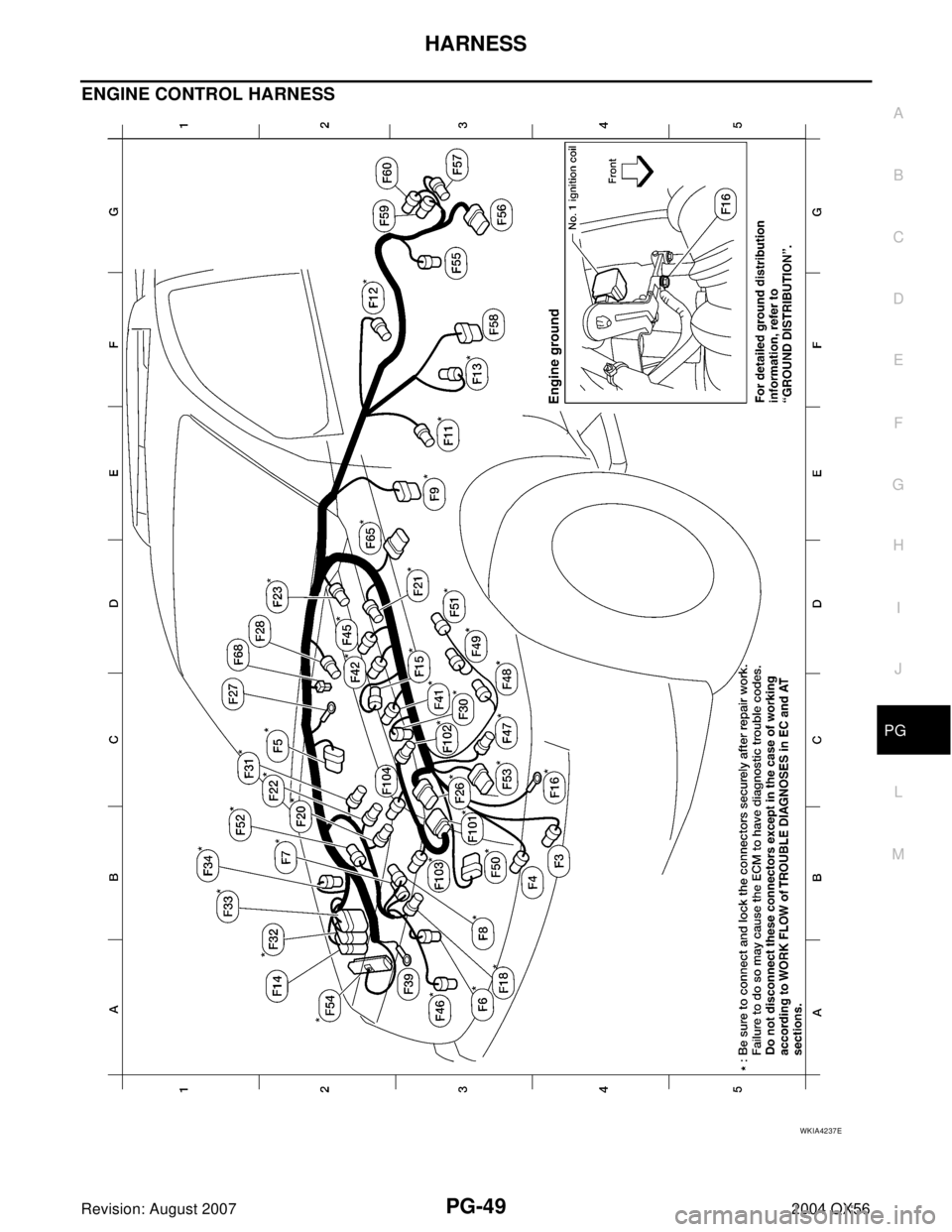

INFINITI QX56 2004 Factory Service Manual HARNESS PG-49 C D E F G H I J L MA B PG Revision: August 20072004 QX56 ENGINE CONTROL HARNESS WKIA4237E

Page 2709 of 3371

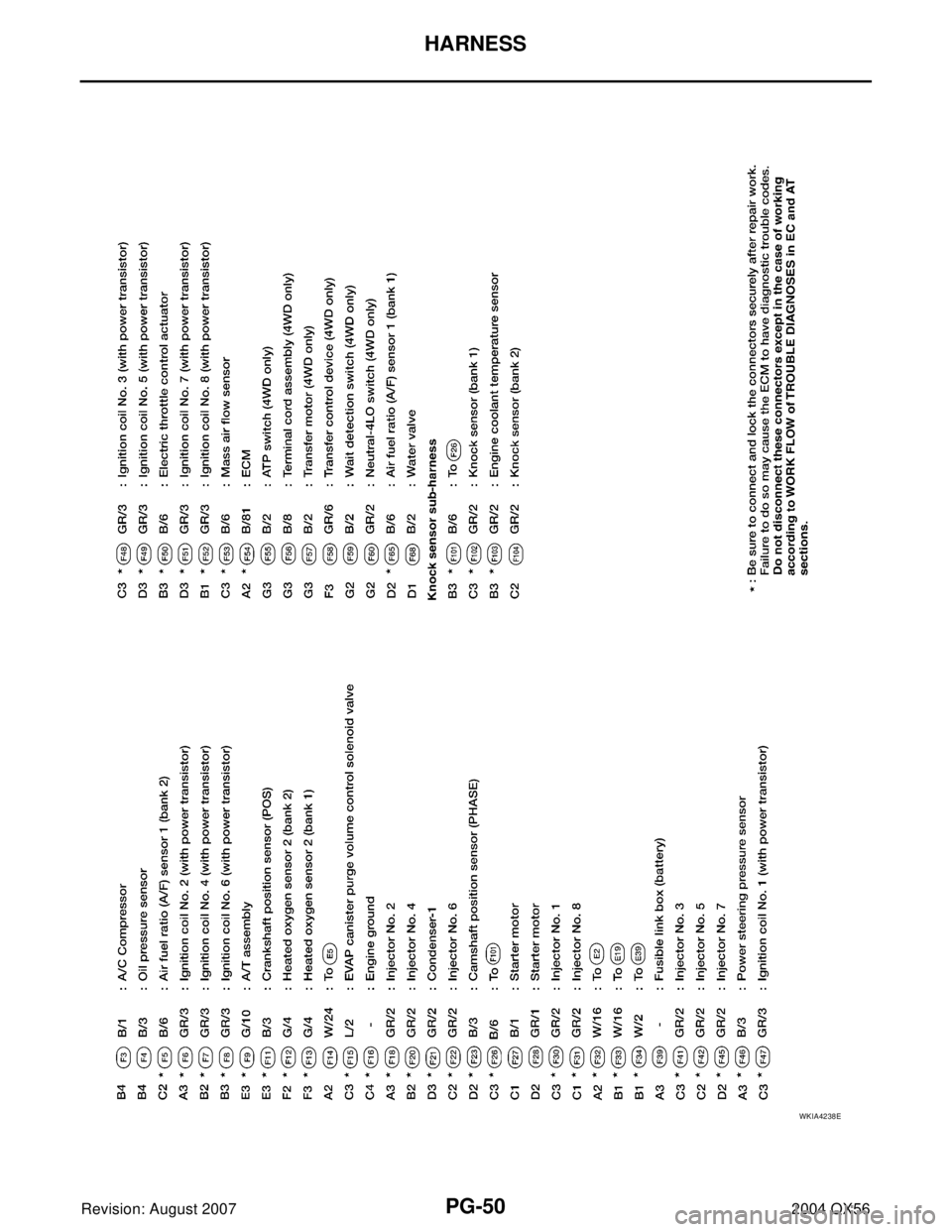

INFINITI QX56 2004 Factory Service Manual PG-50 HARNESS Revision: August 20072004 QX56 WKIA4238E

Page 2710 of 3371

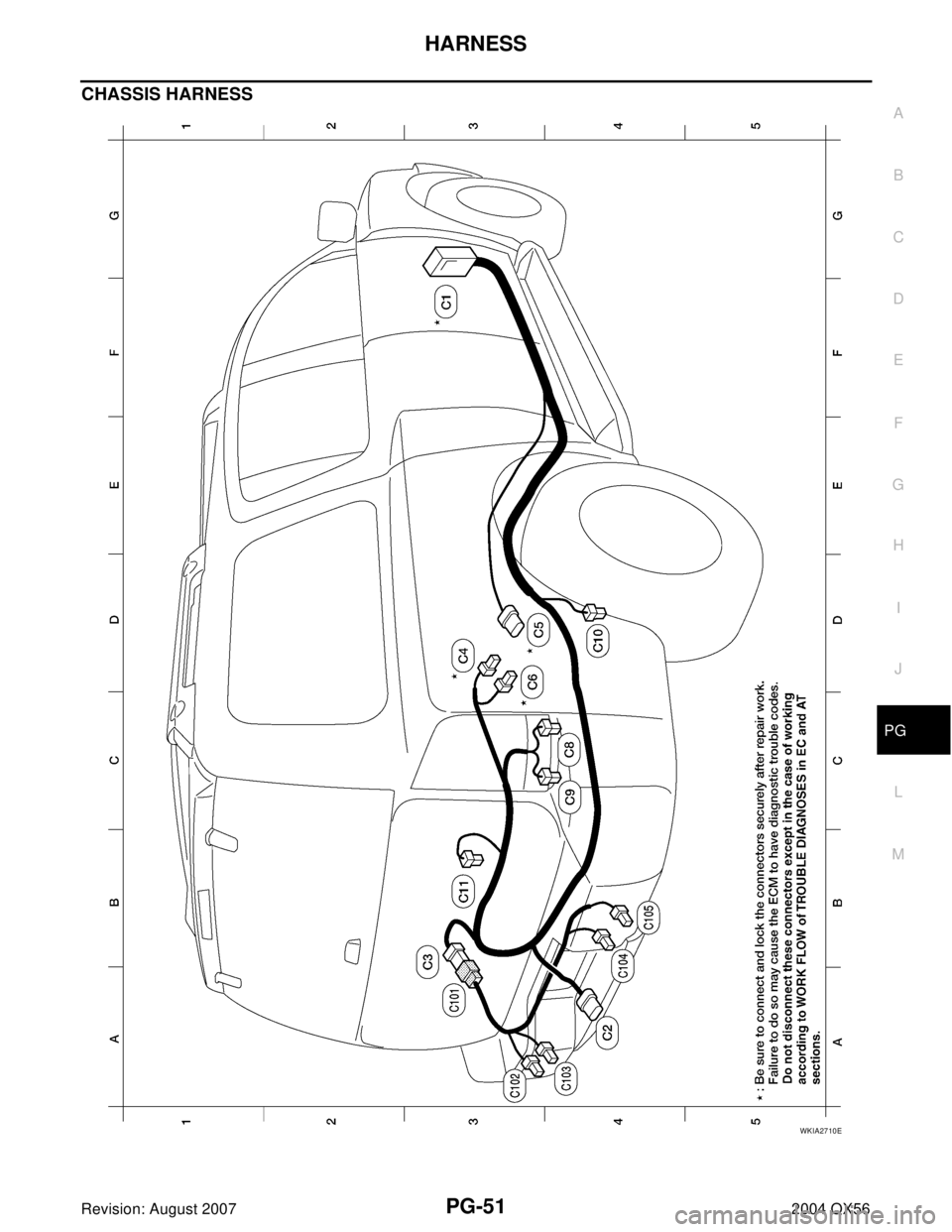

INFINITI QX56 2004 Factory Service Manual HARNESS PG-51 C D E F G H I J L MA B PG Revision: August 20072004 QX56 CHASSIS HARNESS WKIA2710E

Page 2711 of 3371

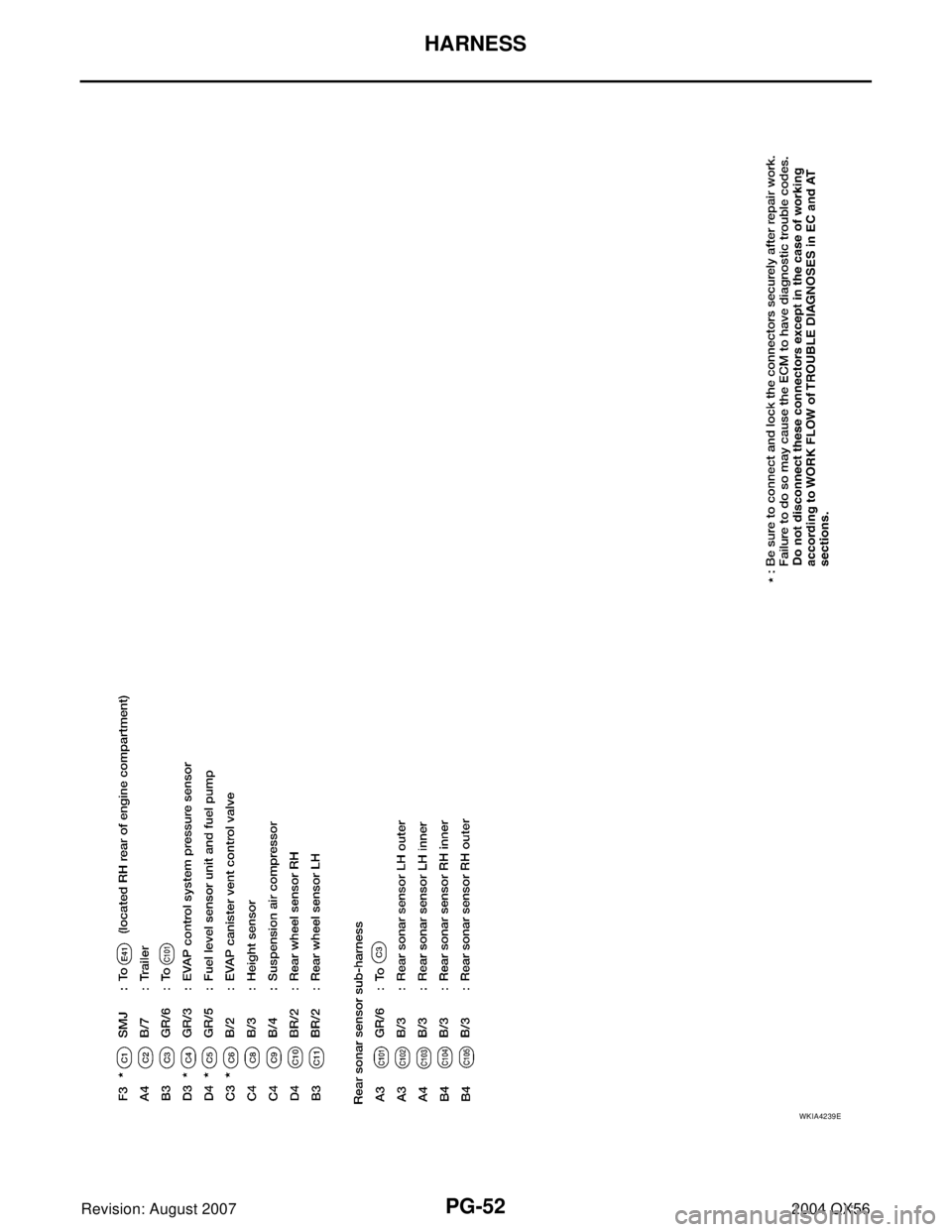

INFINITI QX56 2004 Factory Service Manual PG-52 HARNESS Revision: August 20072004 QX56 WKIA4239E

Page 2712 of 3371

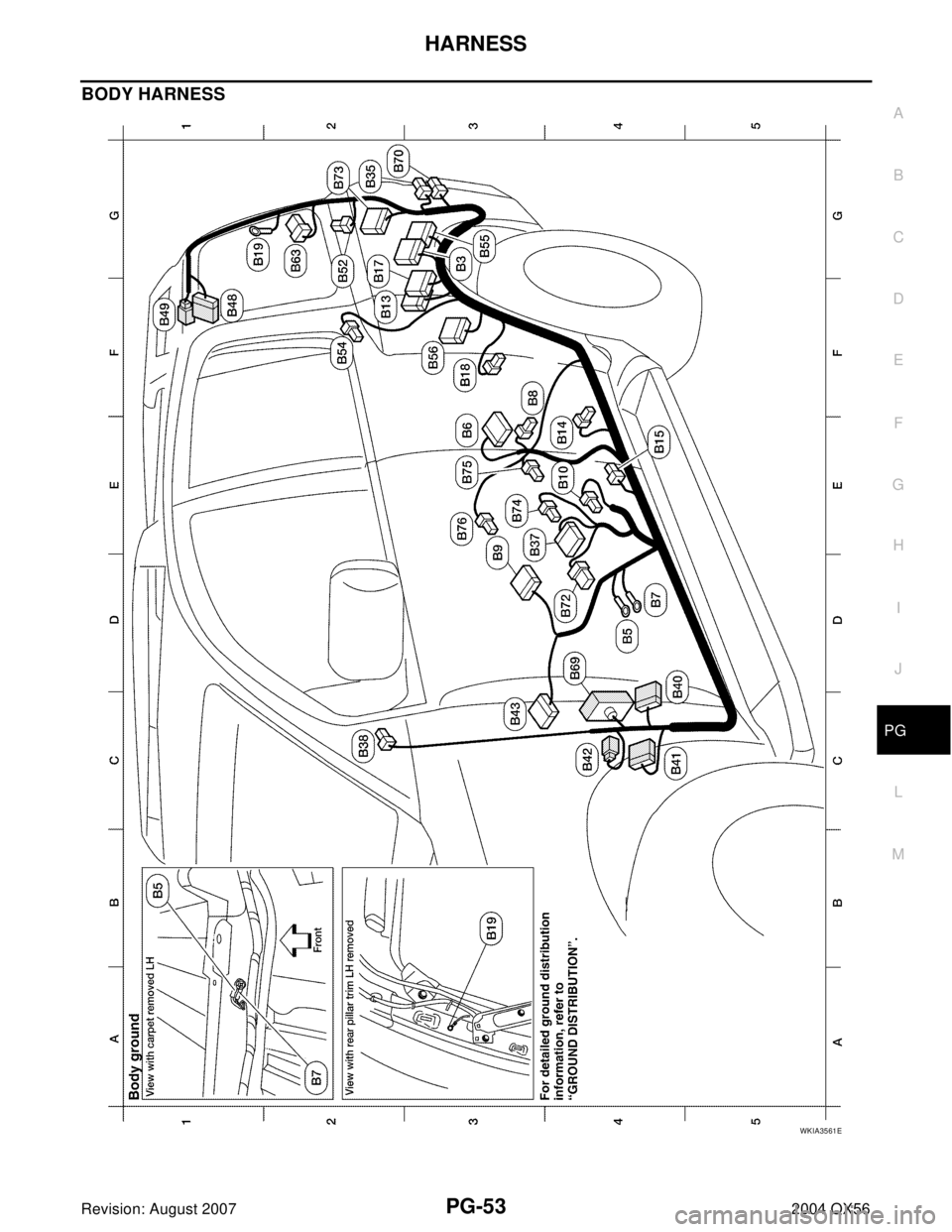

INFINITI QX56 2004 Factory Service Manual HARNESS PG-53 C D E F G H I J L MA B PG Revision: August 20072004 QX56 BODY HARNESS WKIA3561E
