Page 369 of 3371

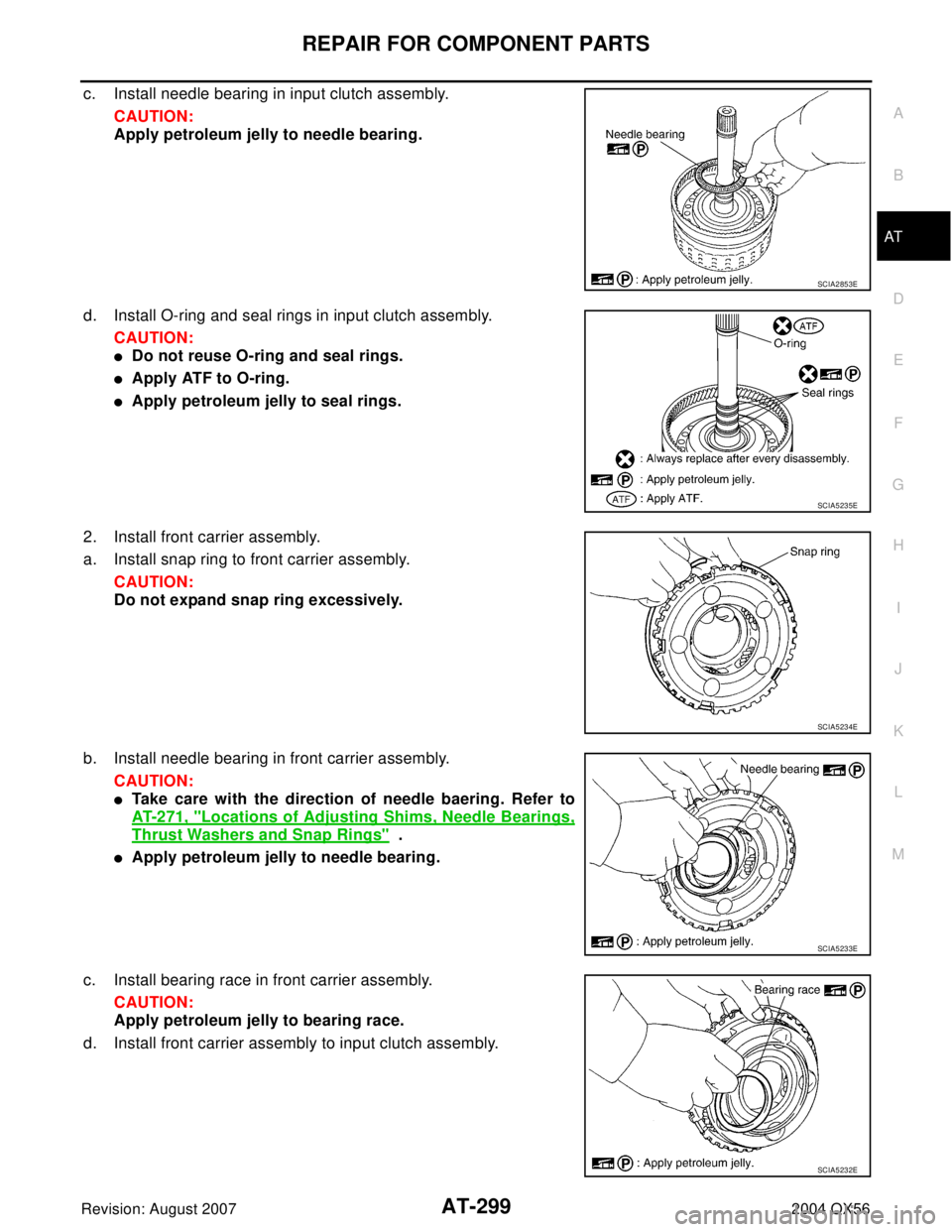

INFINITI QX56 2004 Factory Service Manual AT-298 REPAIR FOR COMPONENT PARTS Revision: August 20072004 QX56 CAUTION: If necessary, replace the input clutch assembly. Front Carrier Assembly Check for deformation, fatigue or damage. CAUTION: If

Page 370 of 3371

INFINITI QX56 2004 Factory Service Manual REPAIR FOR COMPONENT PARTS AT-299 D E F G H I J K L MA B AT Revision: August 20072004 QX56 c. Install needle bearing in input clutch assembly. CAUTION: Apply petroleum jelly to needle bearing. d. Inst

Page 371 of 3371

INFINITI QX56 2004 Factory Service Manual AT-300 REPAIR FOR COMPONENT PARTS Revision: August 20072004 QX56 3. Compress snap ring using 2 flat-bladed screwdrivers. 4. Install front carrier assembly and input clutch assembly to rear internal ge

Page 372 of 3371

INFINITI QX56 2004 Factory Service Manual REPAIR FOR COMPONENT PARTS AT-301 D E F G H I J K L MA B AT Revision: August 20072004 QX56 2. Using a snap ring pliers, remove snap ring from mid sun gear assembly. CAUTION: Do not expand snap ring ex

Page 373 of 3371

INFINITI QX56 2004 Factory Service Manual AT-302 REPAIR FOR COMPONENT PARTS Revision: August 20072004 QX56 a. Using a flat-bladed screwdriver, remove snap ring from rear sun gear. b. Remove 1st one-way clutch from rear sun gear. 5. Remove sea

Page 374 of 3371

INFINITI QX56 2004 Factory Service Manual REPAIR FOR COMPONENT PARTS AT-303 D E F G H I J K L MA B AT Revision: August 20072004 QX56 CAUTION: If necessary, replace the high and low reverse clutch hub. ASSEMBLY 1. Install seal rings from mid s

Page 375 of 3371

INFINITI QX56 2004 Factory Service Manual AT-304 REPAIR FOR COMPONENT PARTS Revision: August 20072004 QX56 5. Install needle bearing to high and low reverse clutch hub. CAUTION: Take care with the direction of needle baering. Refer to AT- 2

Page 376 of 3371

INFINITI QX56 2004 Factory Service Manual REPAIR FOR COMPONENT PARTS AT-305 D E F G H I J K L MA B AT Revision: August 20072004 QX56 High and Low Reverse ClutchUCS002JO COMPONENTS DISASSEMBLY 1. Remove bearing race from high and low reverse c
