INFINITI QX56 2004 Factory Service Manual LT-74
FRONT FOG LAMP
Revision: August 20072004 QX56
Terminals and Reference Values for IPDM E/REKS007B9
How to Proceed With Trouble DiagnosisEKS007BA
1. Confirm the symptom or customer complaint.
2. U

Page 2506 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT FOG LAMP
LT-75
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
Preliminary CheckEKS007BB

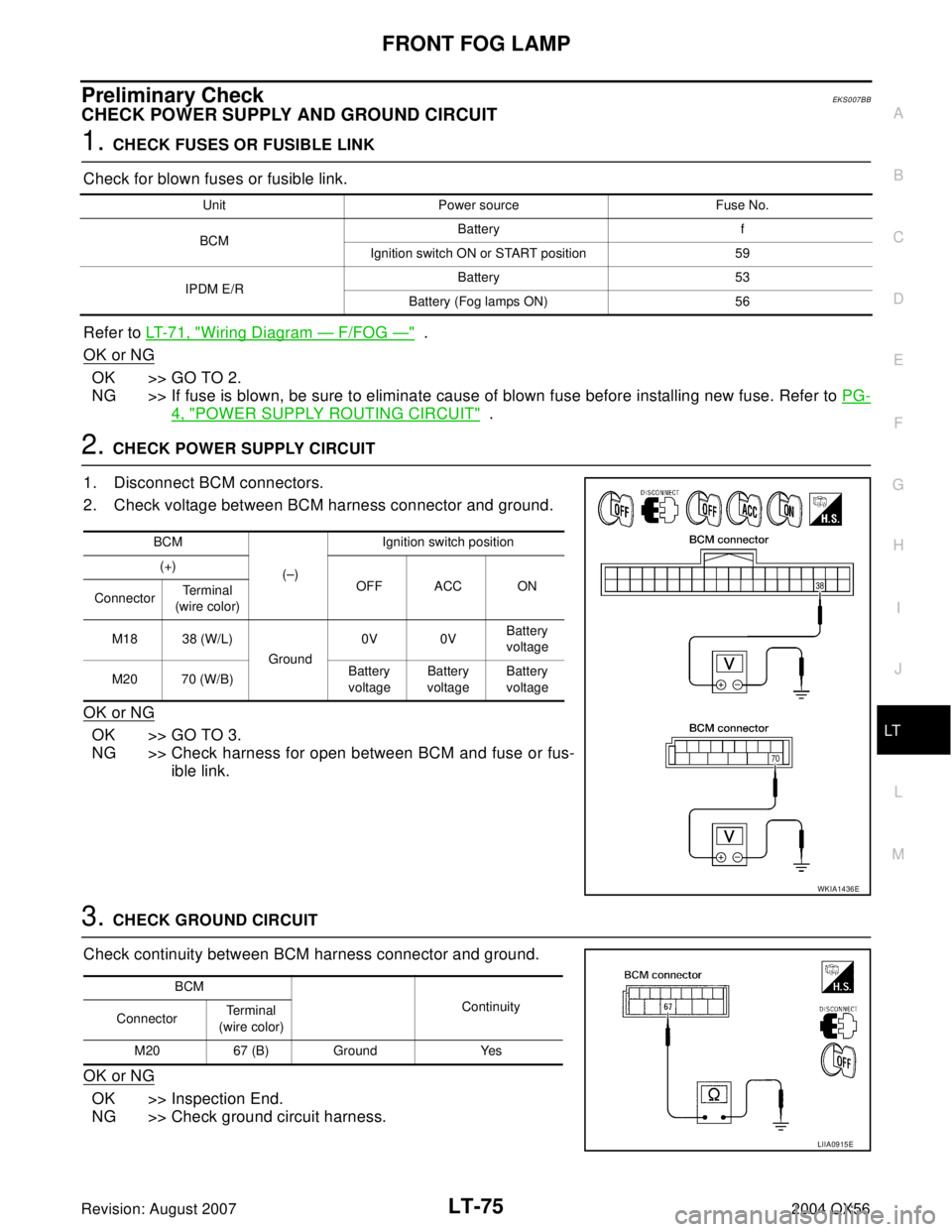

CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fu

Page 2507 of 3371

INFINITI QX56 2004 Factory Service Manual LT-76
FRONT FOG LAMP
Revision: August 20072004 QX56
CONSULT-II FunctionsEKS007BC
Refer to LT- 1 8 , "CONSULT-II Function (BCM)" in HEADLAMP (FOR USA).
Refer to LT- 2 1 , "
CONSULT-II Function (IPD

Page 2508 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT FOG LAMP
LT-77
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
4. IPDM E/R INSPECTION
Start auto active test. Refer to PG-23, "
Auto Active Test" . When
front fog lamp relay is operati

Page 2509 of 3371

INFINITI QX56 2004 Factory Service Manual LT-78
FRONT FOG LAMP
Revision: August 20072004 QX56
Aiming AdjustmentEKS007BF
The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming
adjustment, make s

Page 2510 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT FOG LAMP
LT-79
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
Bulb Replacement EKS007BG
1. Remove the front turn/fog lamp assembly. Refer to LT-79, "Removal and Installation" .
2. Tur

Page 2511 of 3371

INFINITI QX56 2004 Factory Service Manual LT-80
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: August 20072004 QX56
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
Component Parts and Harness Connector LocationEKS007BI
System DescriptionEKS007B

Page 2512 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-81
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
through front turn/fog lamp LH terminal 3
to grounds E9, E15 and E24, and
to rear turn signal lam

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-81
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
through front turn/fog lamp LH terminal 3
to grounds E9, E15 and E24, and
to rear turn signal lamp LH terminal 1
through rear turn signal lamp LH terminal 3
to grounds B7 and B19.
BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamp within combination meter.
RH Turn
When the turn signal switch is moved to the right position, the BCM, interpreting it as turn signal is ON, outputs
turn signal from BCM terminal 61.
The BCM supplies power
through BCM terminal 61
to front turn/fog lamp RH terminal 2
through front turn/fog lamp RH terminal 3
to grounds E9, E15 and E24, and
to rear turn signal lamp RH terminal 1
through rear signal lamp terminal 3
to grounds B117 and B132.
BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamp within combination meter.
HAZARD LAMP OPERATION
Power is supplied at all times
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70, and
through 10A fuse [No. 19, located in the fuse block (J/B)]
to combination meter terminal 8.
Ground is supplied
to BCM terminal 67 and
to combination meter terminal 17
to grounds M57, M61 and M79.
When the hazard switch is depressed, ground is supplied
to BCM terminal 29
through hazard switch terminal 2
through hazard switch terminal 1
through grounds M57, M61 and M79.
When the hazard switch is depressed, the BCM, interpreting it as turn signal is ON, outputs turn signal from
BCM terminals 60 and 61.
The BCM supplies power
through BCM terminals 60 and 61
to front turn/fog lamp LH and RH terminal 2
through front turn/fog lamp LH and RH terminal 3
to grounds E9, E15 and E24, and
to rear turn signal lamp LH terminal 1
through rear turn signal lamp LH terminal 3
to grounds B7 and B19, and
to rear turn signal lamp RH terminal 1
through rear turn signal lamp terminal 3
to grounds B117 and B132.
BCM sends signal to combination meter through CAN communication lines, and turns on turn signal indicator
lamps within combination meter.
