INFINITI QX56 2004 Factory Service Manual LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Precauti

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Precautions for Liquid Gasket .................................. 2
REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tool ......................................... 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Drawing ....................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
OIL LEVEL ............................................................ 7
OIL APPEARANCE ............................................... 7
OIL LEAKAGE ....................................................... 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ................................................ 8
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10OIL COOLER ............................................................ 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 11
INSTALLATION ................................................... 12
INSPECTION AFTER INSTALLATION ................ 12
OIL PUMP ................................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ................ 14
Disassembly and Assembly .................................... 14
DISASSEMBLY ................................................... 14
INSPECTION AFTER DISASSEMBLY ................ 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Standard and Limit .................................................. 16
OIL PRESSURE .................................................. 16
OIL PUMP ........................................................... 16
REGULATOR VALVE .......................................... 16
ENGINE OIL CAPACITY (APPROXIMATE) ........ 16

Page 2603 of 3371

INFINITI QX56 2004 Factory Service Manual LU-2Revision: August 2007
PRECAUTIONS
2004 QX56
PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS00I4E
REMOVAL OF LIQUID GASKET SEALING
After removing the bolts and nuts, separate the mating surf

Page 2604 of 3371

INFINITI QX56 2004 Factory Service Manual PREPARATION
LU-3
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00I4F
The actual shapes of Kent-Moore tools may differ from those of special serv

Page 2605 of 3371

INFINITI QX56 2004 Factory Service Manual LU-4Revision: August 2007
PREPARATION
2004 QX56
Commercial Service ToolEBS00I4G
Tool nameDescription
Power toolLoosening bolts and nuts
Deep socketRemoving and installing oil pressure sensor
Deep soc

Page 2606 of 3371

INFINITI QX56 2004 Factory Service Manual LUBRICATION SYSTEM
LU-5
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: August 20072004 QX56
LUBRICATION SYSTEMPFP:15010
Lubrication CircuitEBS00I4H
WBIA0399E
1. Exhaust camshaft 2. Intake camshaft 3. Main oil ga

Page 2607 of 3371

INFINITI QX56 2004 Factory Service Manual LU-6Revision: August 2007
LUBRICATION SYSTEM
2004 QX56

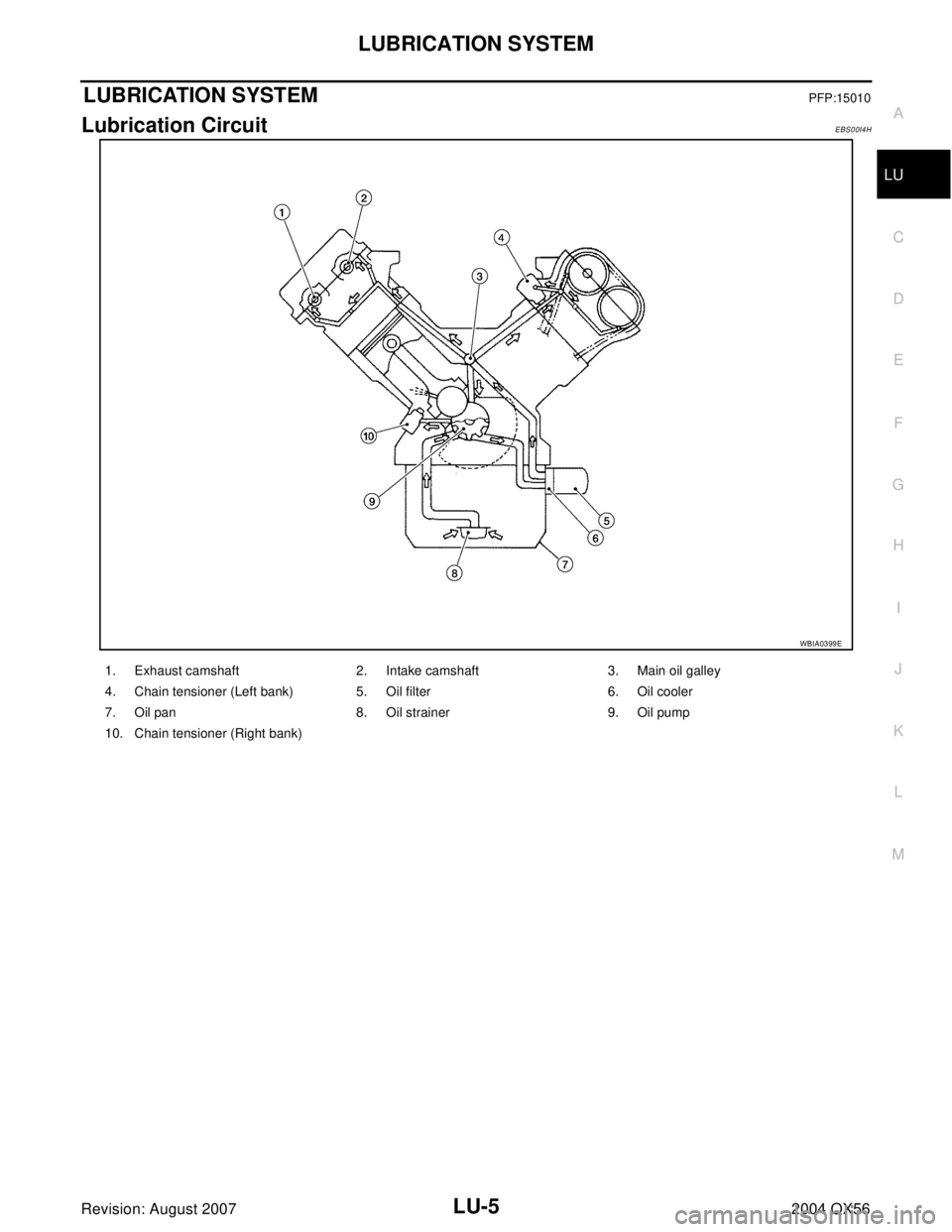

System DrawingEBS00I4I
PBIC1901E

Page 2608 of 3371

INFINITI QX56 2004 Factory Service Manual ENGINE OIL
LU-7
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: August 20072004 QX56
ENGINE OILPFP:KLA92
InspectionEBS00I4J
OIL LEVEL
Before starting the engine make sure the vehicle is parked on a
flat and leve
