INFINITI QX56 2004 Factory Service Manual EC-410Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionUBS00H8T
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000

Page 1602 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-411
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
On Board Diagnosis LogicUBS00H8V
If the cooling fan or another component in the cooling system malfunc

DTC P1217 ENGINE OVER TEMPERATURE
EC-411
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
On Board Diagnosis LogicUBS00H8V

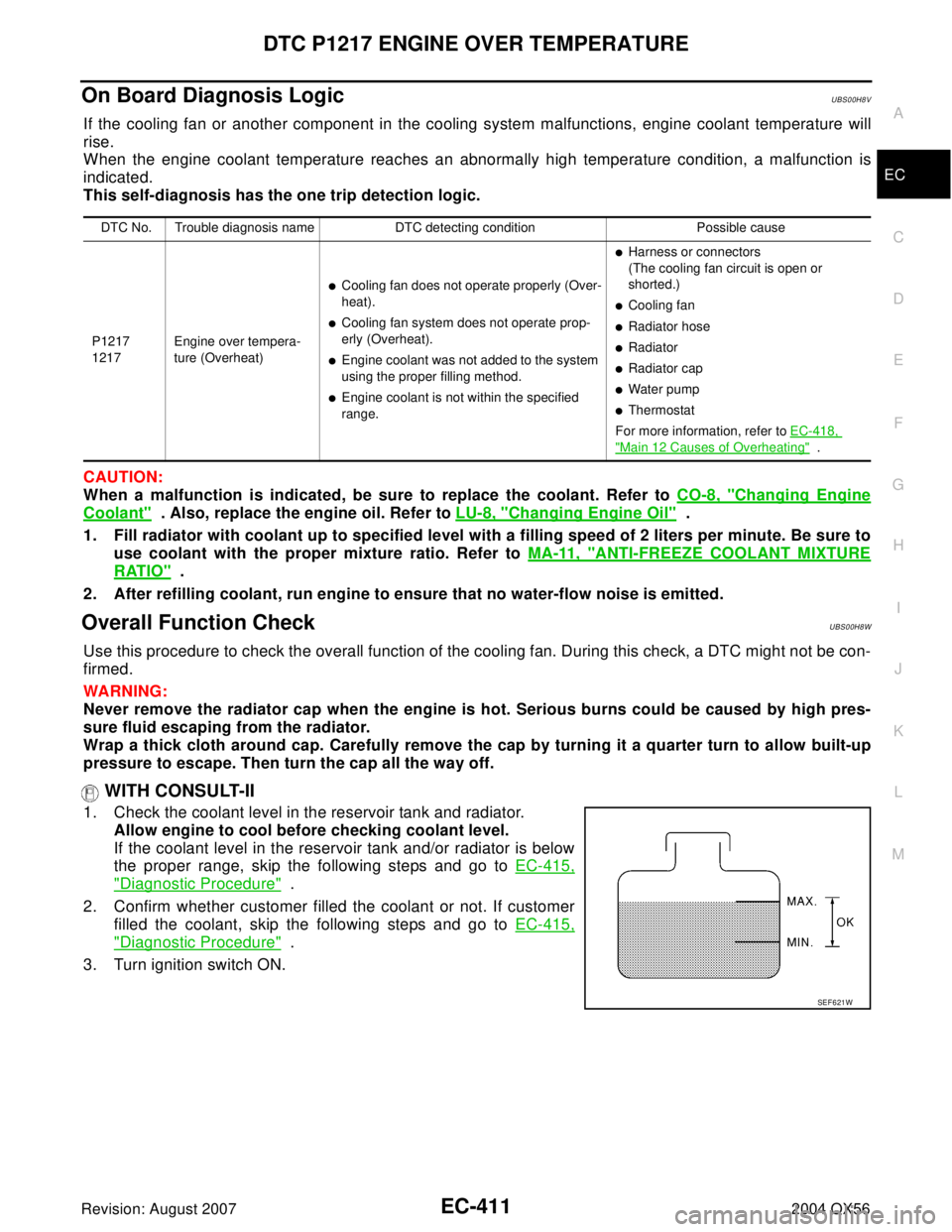

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-8, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-8, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-11, "
ANTI-FREEZE COOLANT MIXTURE
RATIO" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckUBS00H8W
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-418,
"Main 12 Causes of Overheating" .
SEF 6 21 W

Page 1603 of 3371

INFINITI QX56 2004 Factory Service Manual EC-412Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56

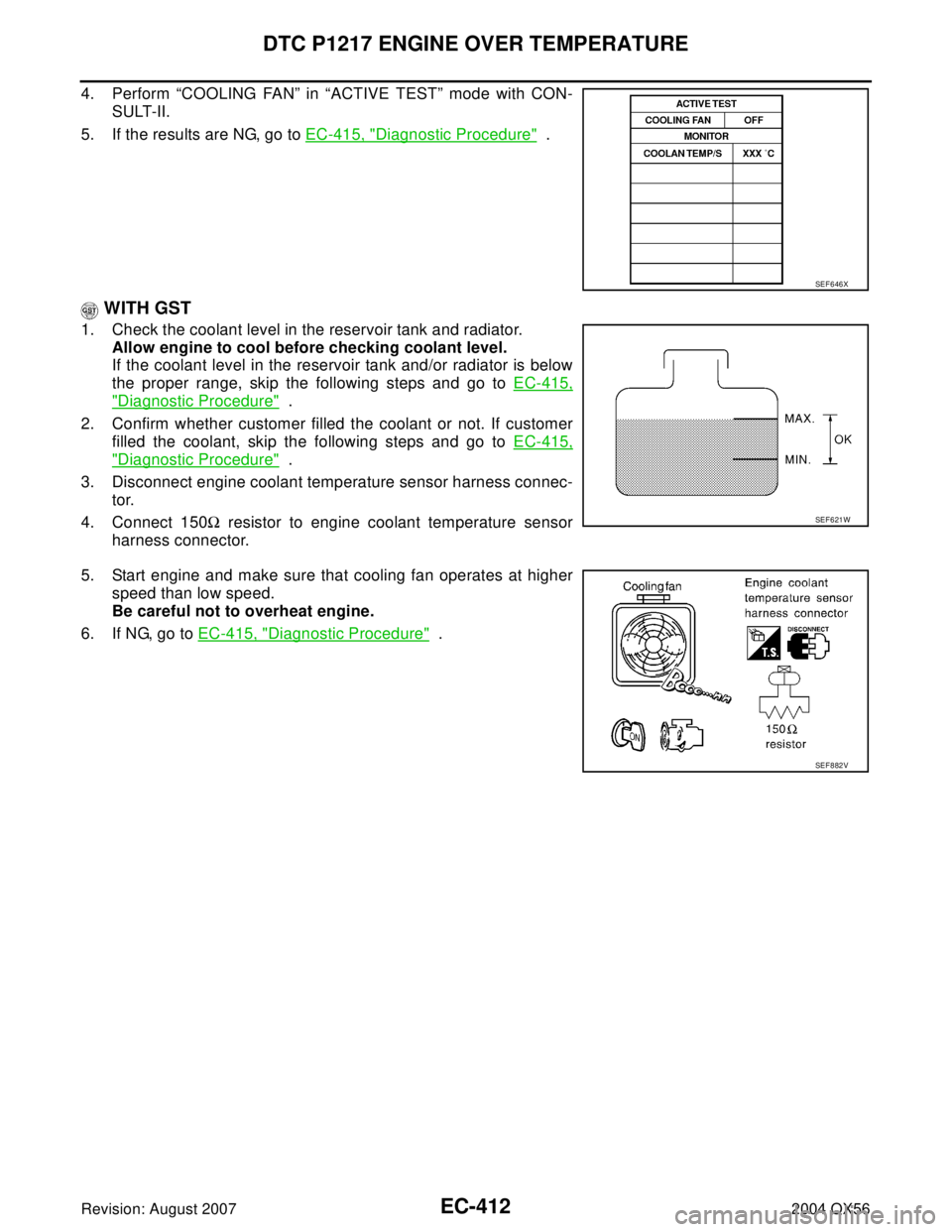

4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-415, "
Diagnostic P

Page 1604 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-413
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

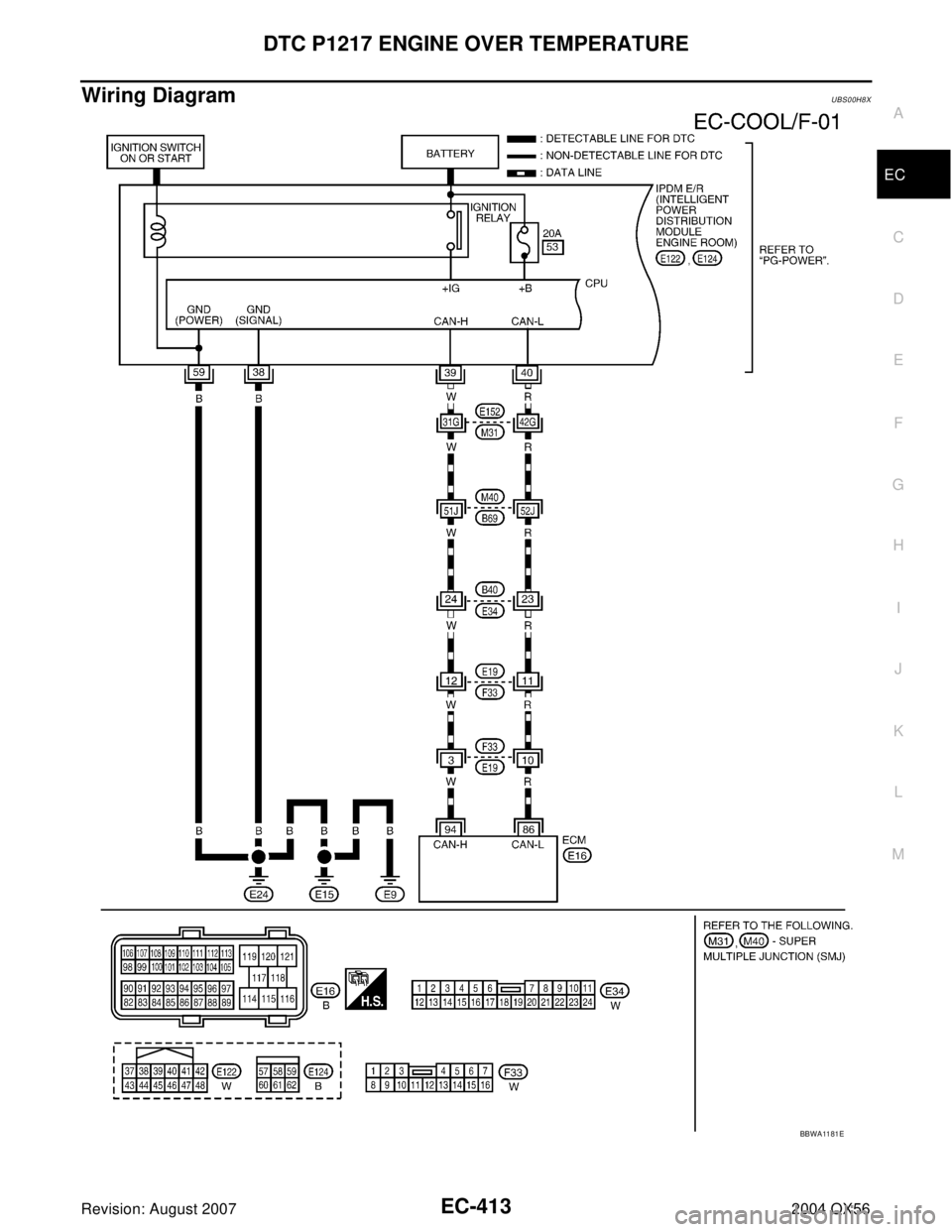

Wiring DiagramUBS00H8X
BBWA11 81 E

Page 1605 of 3371

INFINITI QX56 2004 Factory Service Manual EC-414Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56

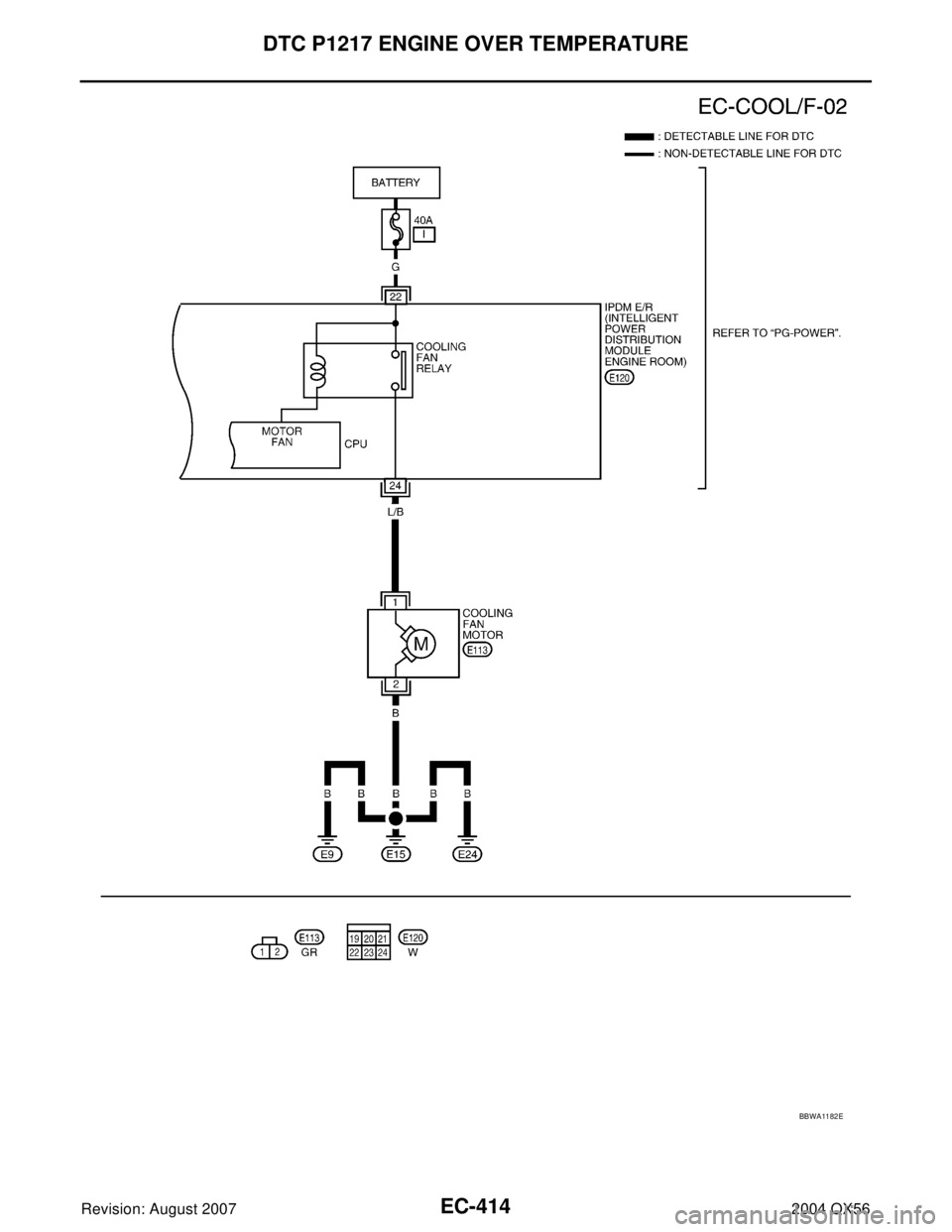

BBWA11 82 E

Page 1606 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-415
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

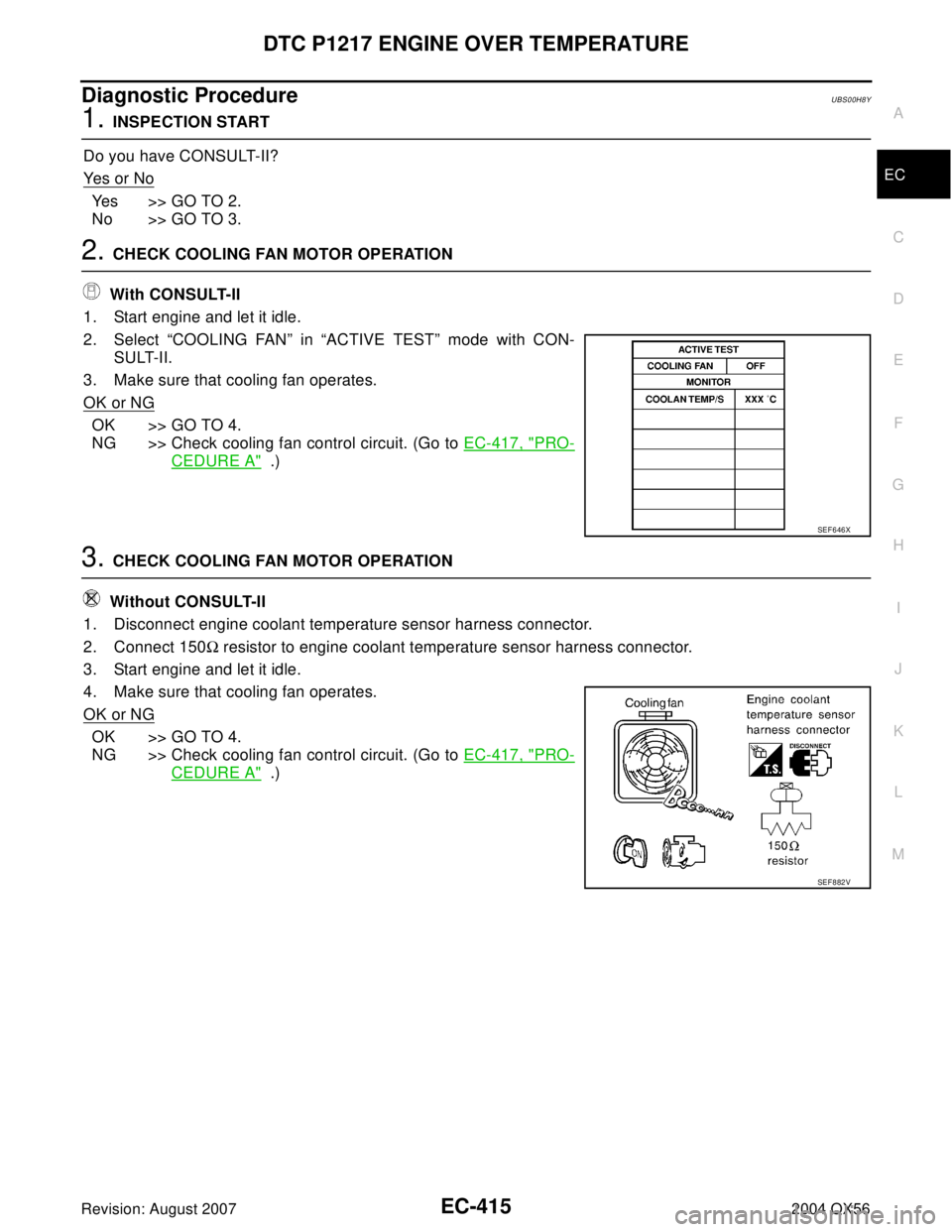

Diagnostic ProcedureUBS00H8Y
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2

Page 1607 of 3371

INFINITI QX56 2004 Factory Service Manual EC-416Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56

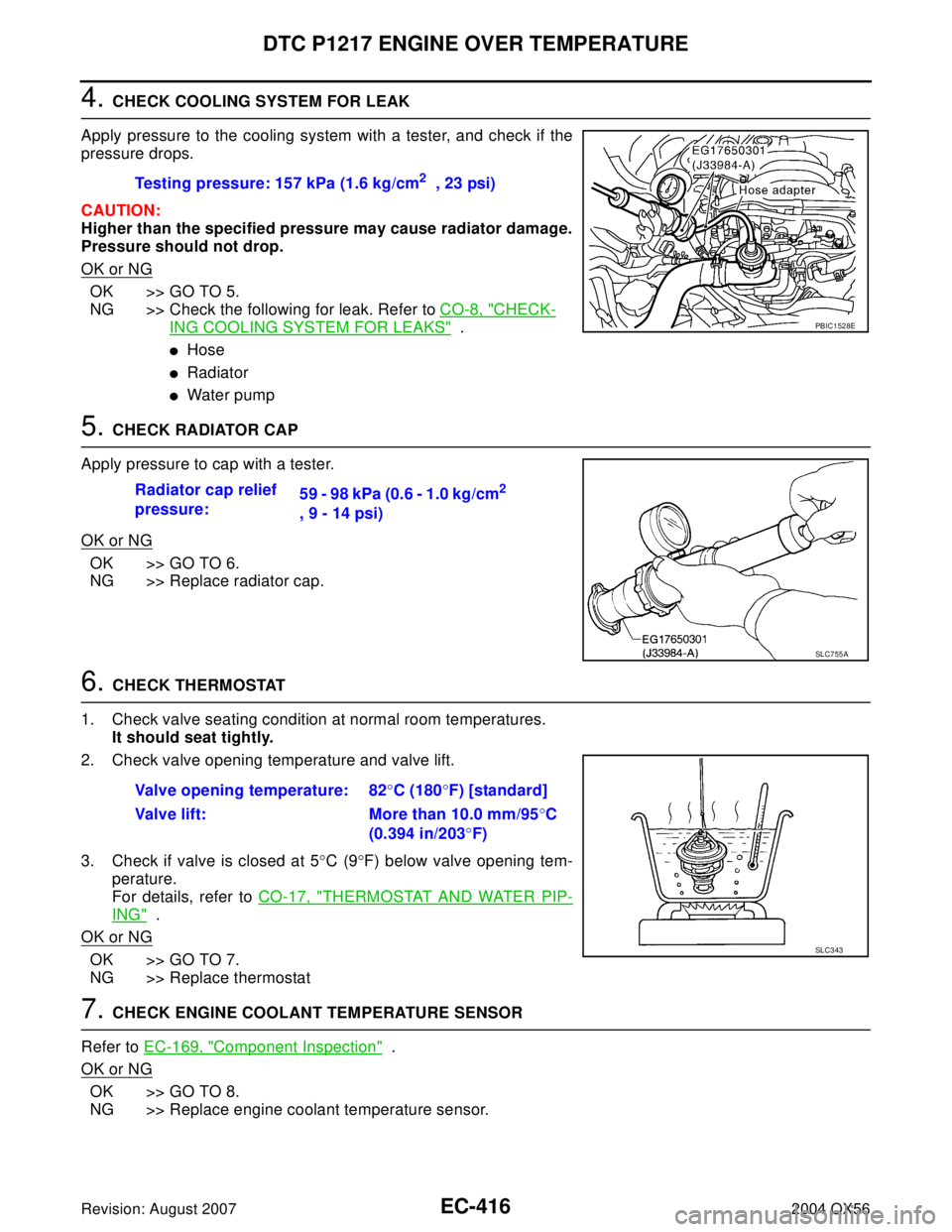

4. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
H

Page 1608 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-417
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

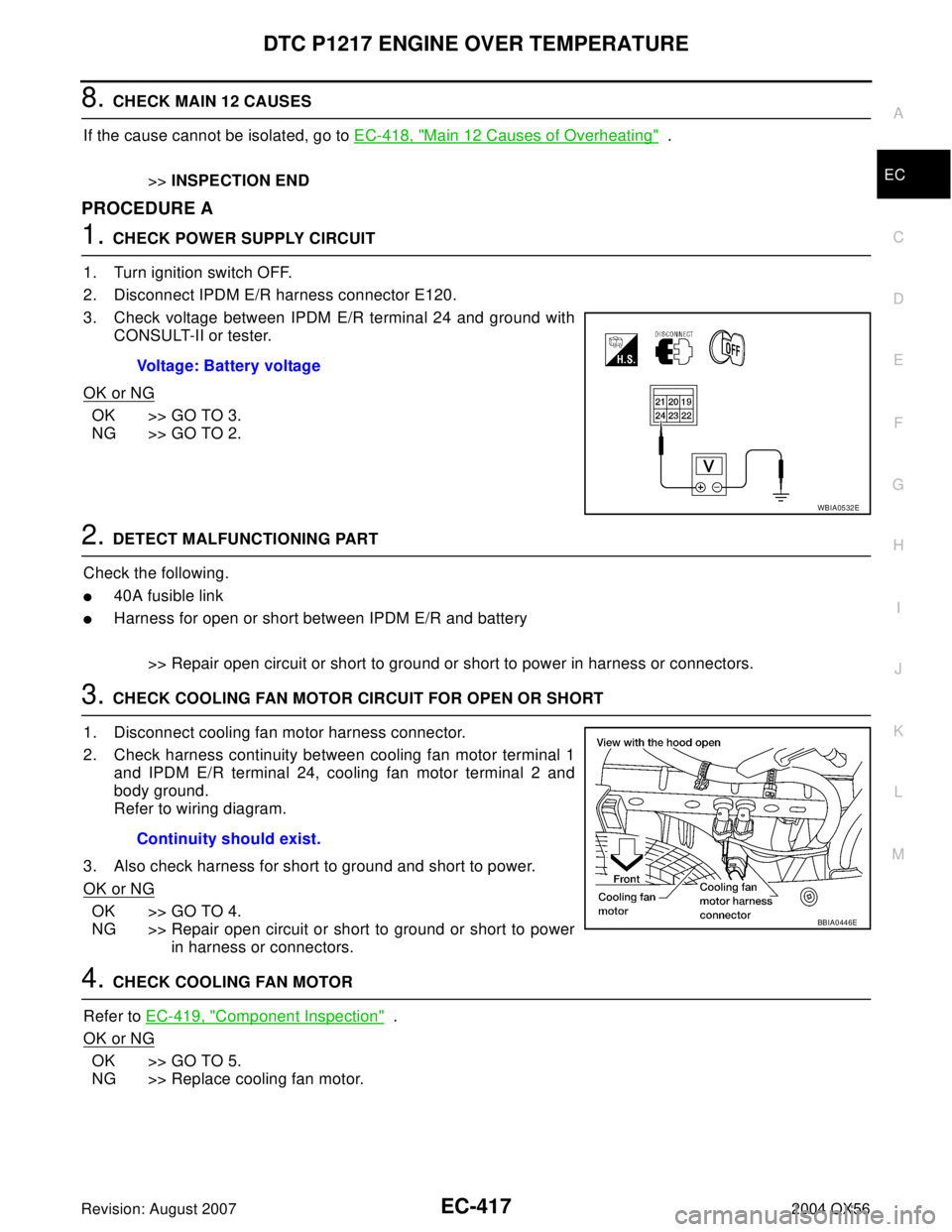

8. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-418, "
Main 12 Causes of Overheating
