Page 3009 of 3371

INFINITI QX56 2004 Factory Service Manual SE-60 AUTOMATIC DRIVE POSITIONER Revision: August 20072004 QX56 2. CHECK PEDAL ADJUSTING SENSOR CIRCUIT HARNESS CONTINUITY 1. Disconnect automatic drive positioner control unit and pedal adjusting sen

Page 3010 of 3371

INFINITI QX56 2004 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-61 C D E F G H J K L MA B SE Revision: August 20072004 QX56 2. CHECK MIRROR SENSOR INSPECTION With CONSULT–II Check that “ON” is displayed on “MIR/SE LH R–L, M

Page 3011 of 3371

INFINITI QX56 2004 Factory Service Manual SE-62 AUTOMATIC DRIVE POSITIONER Revision: August 20072004 QX56 4. CHECK HARNESS CONTINUITY 2 1. Disconnect automatic drive positioner control unit and door mirror LH. 2. Check continuity between auto

Page 3012 of 3371

INFINITI QX56 2004 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-63 C D E F G H J K L MA B SE Revision: August 20072004 QX56 3. CHECK HARNESS CONTINUITY 1 1. Disconnect automatic drive positioner control unit and door mirror RH. 2. Che

Page 3013 of 3371

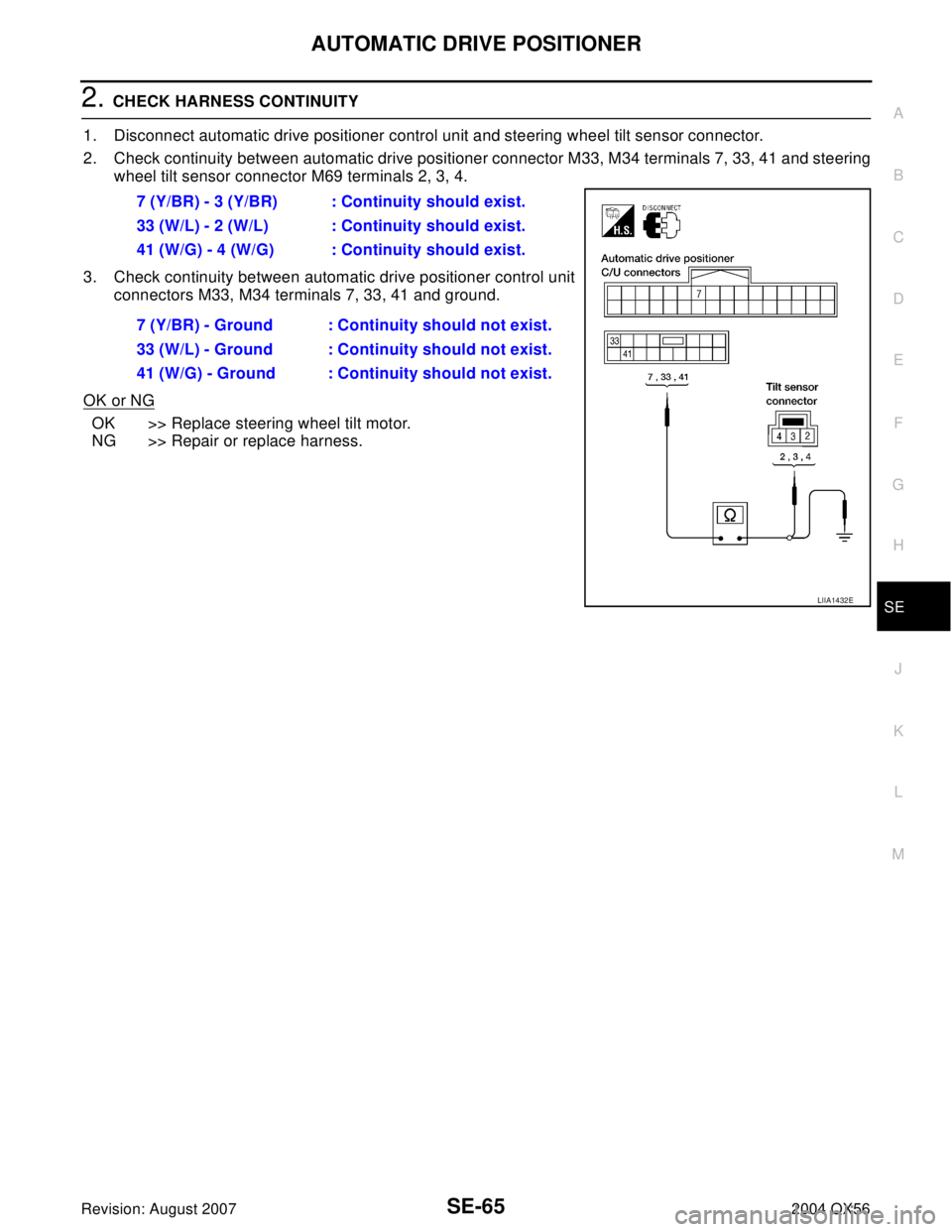

INFINITI QX56 2004 Factory Service Manual SE-64 AUTOMATIC DRIVE POSITIONER Revision: August 20072004 QX56 Steering Wheel Tilt Sensor Circuit InspectionEIS0038M 1. CHECK FUNCTION With CONSULT-II Operate the pedal adjusting switch with “TILT

Page 3014 of 3371

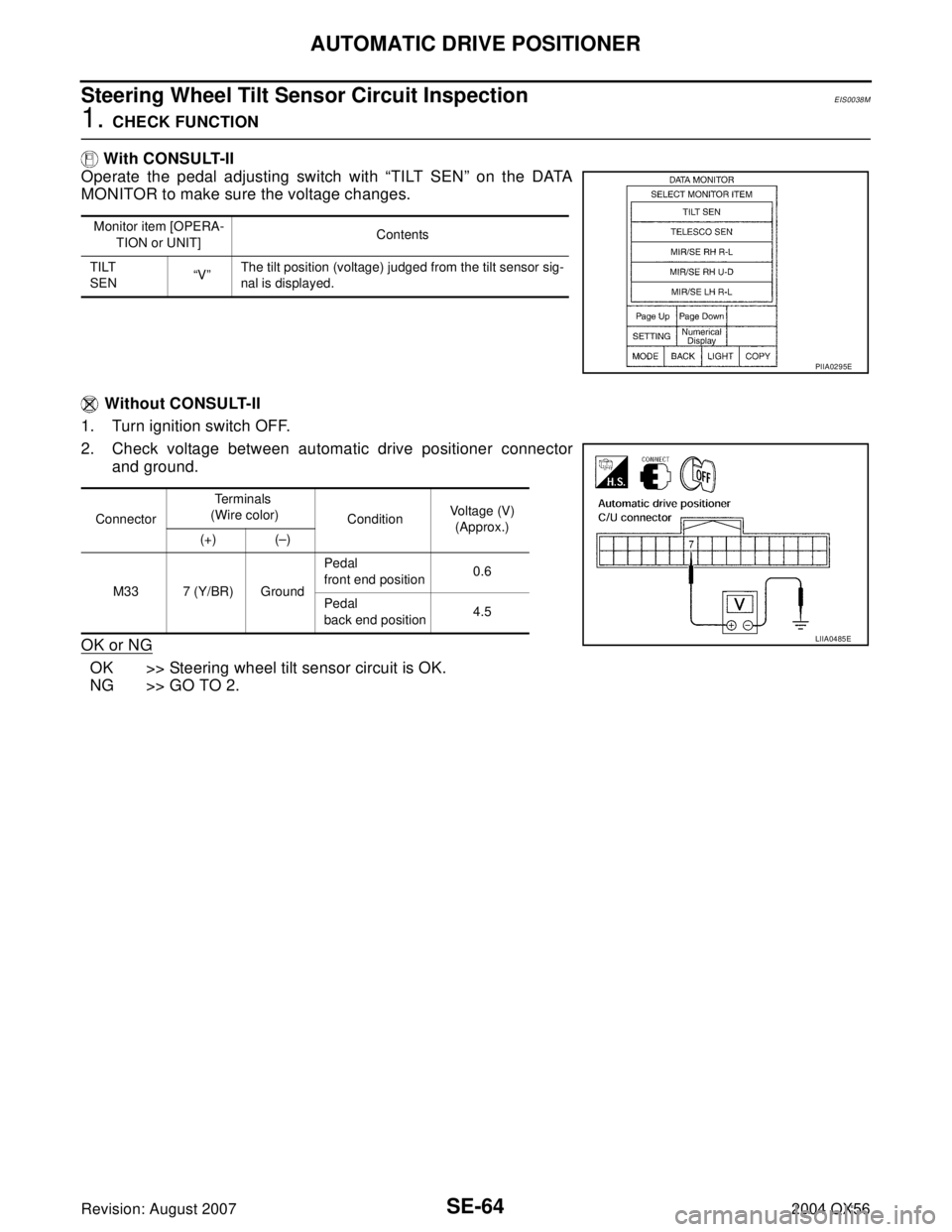

INFINITI QX56 2004 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-65 C D E F G H J K L MA B SE Revision: August 20072004 QX56 2. CHECK HARNESS CONTINUITY 1. Disconnect automatic drive positioner control unit and steering wheel tilt sens

Page 3015 of 3371

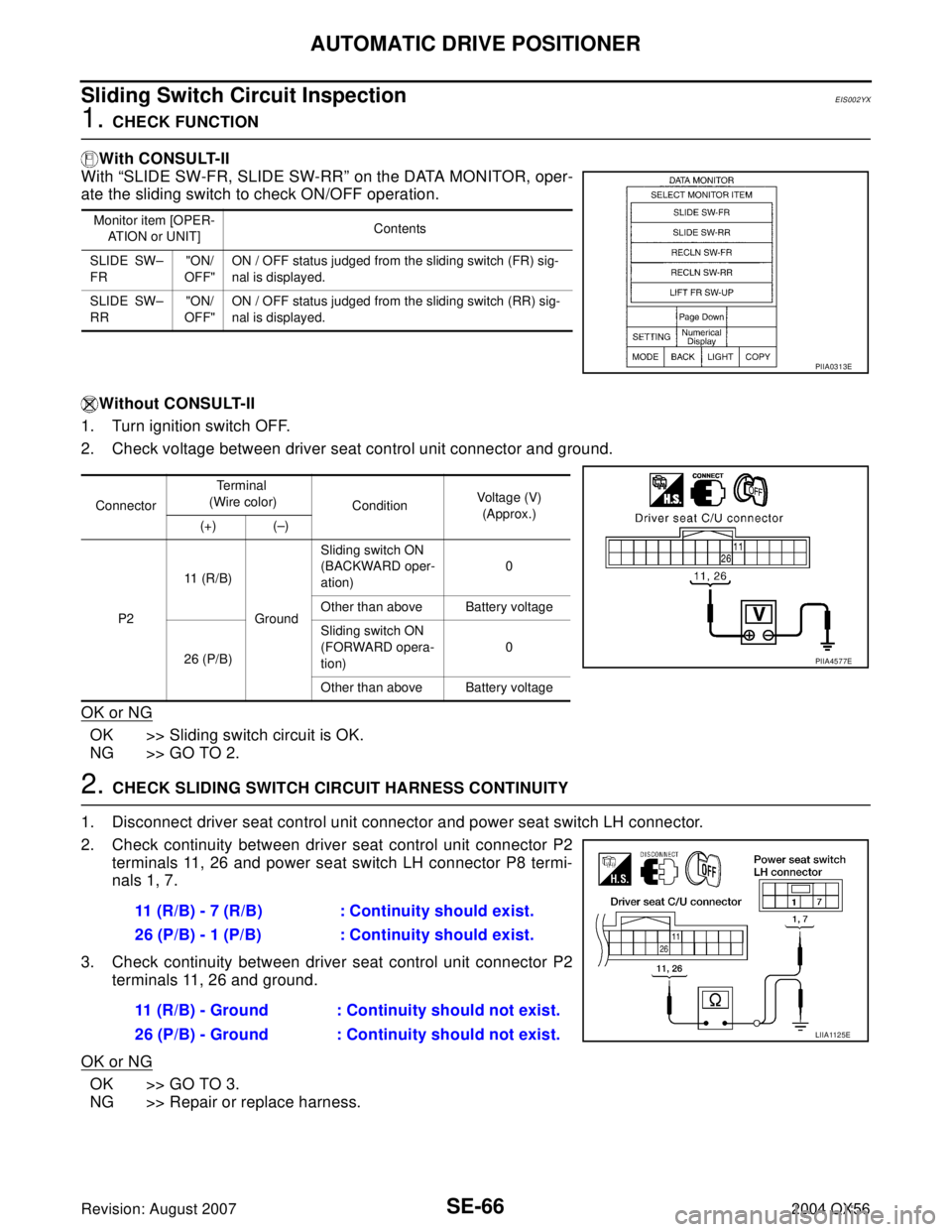

INFINITI QX56 2004 Factory Service Manual SE-66 AUTOMATIC DRIVE POSITIONER Revision: August 20072004 QX56 Sliding Switch Circuit InspectionEIS002YX 1. CHECK FUNCTION With CONSULT-II With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, ope

Page 3016 of 3371

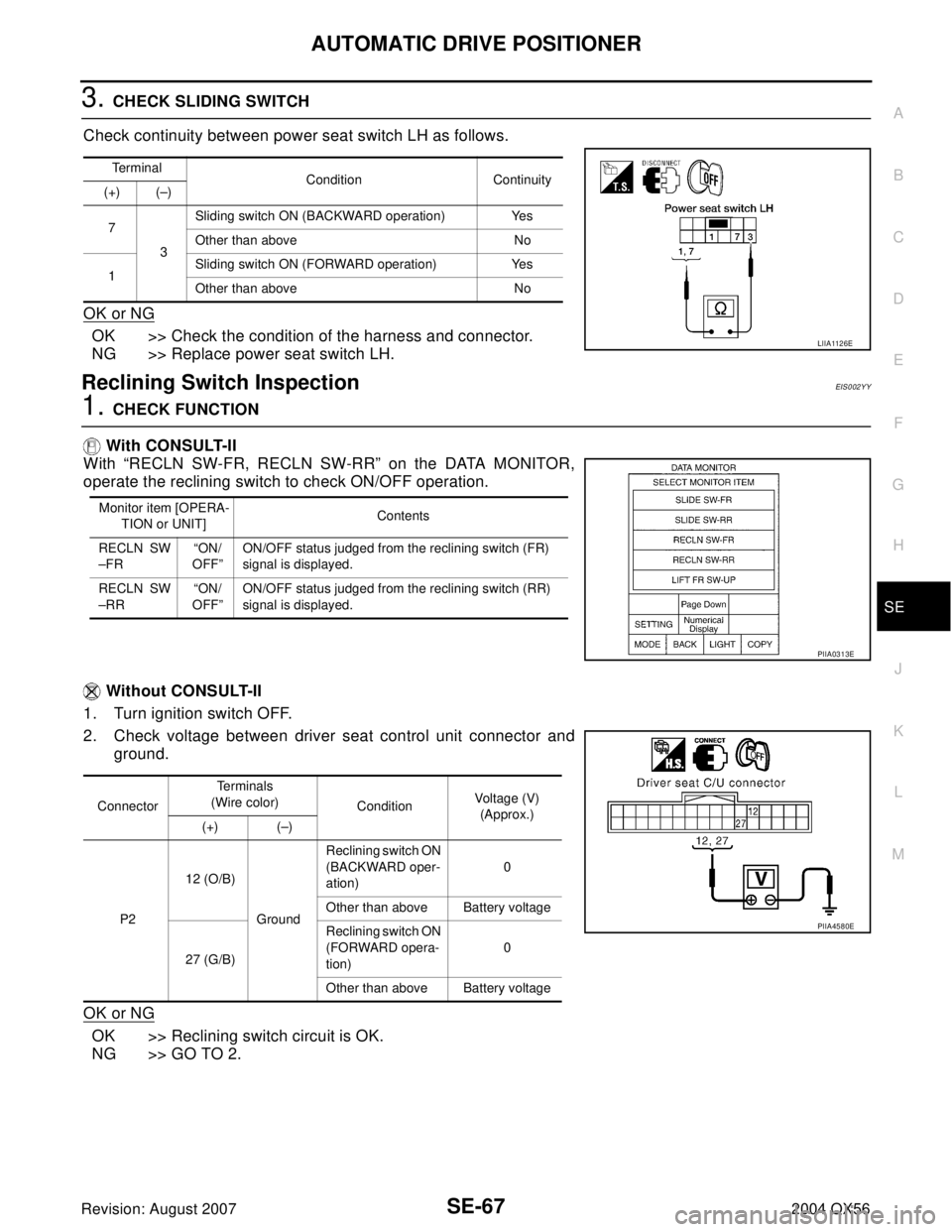

INFINITI QX56 2004 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-67 C D E F G H J K L MA B SE Revision: August 20072004 QX56 3. CHECK SLIDING SWITCH Check continuity between power seat switch LH as follows. OK or NG OK >> Check the con
