Page 1481 of 3371

INFINITI QX56 2004 Factory Service Manual EC-290Revision: August 2007 DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE 2004 QX56 4. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION With CONSULT-II 1. Recon

Page 1482 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EC-291 C D E F G H I J K L MA EC Revision: August 20072004 QX56 Removal and InstallationUBS00H4Y EVAP CANISTER PURGE VOLUME CONTROL

Page 1483 of 3371

INFINITI QX56 2004 Factory Service Manual EC-292Revision: August 2007 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2004 QX56 DTC P0447 EVAP CANISTER VENT CONTROL VALVEPFP:14935 Component DescriptionUBS00H4Z The EVAP canister vent control valve

Page 1484 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-293 C D E F G H I J K L MA EC Revision: August 20072004 QX56 DTC Confirmation ProcedureUBS00H52 NOTE: If DTC Confirmation Procedure has been previously co

Page 1485 of 3371

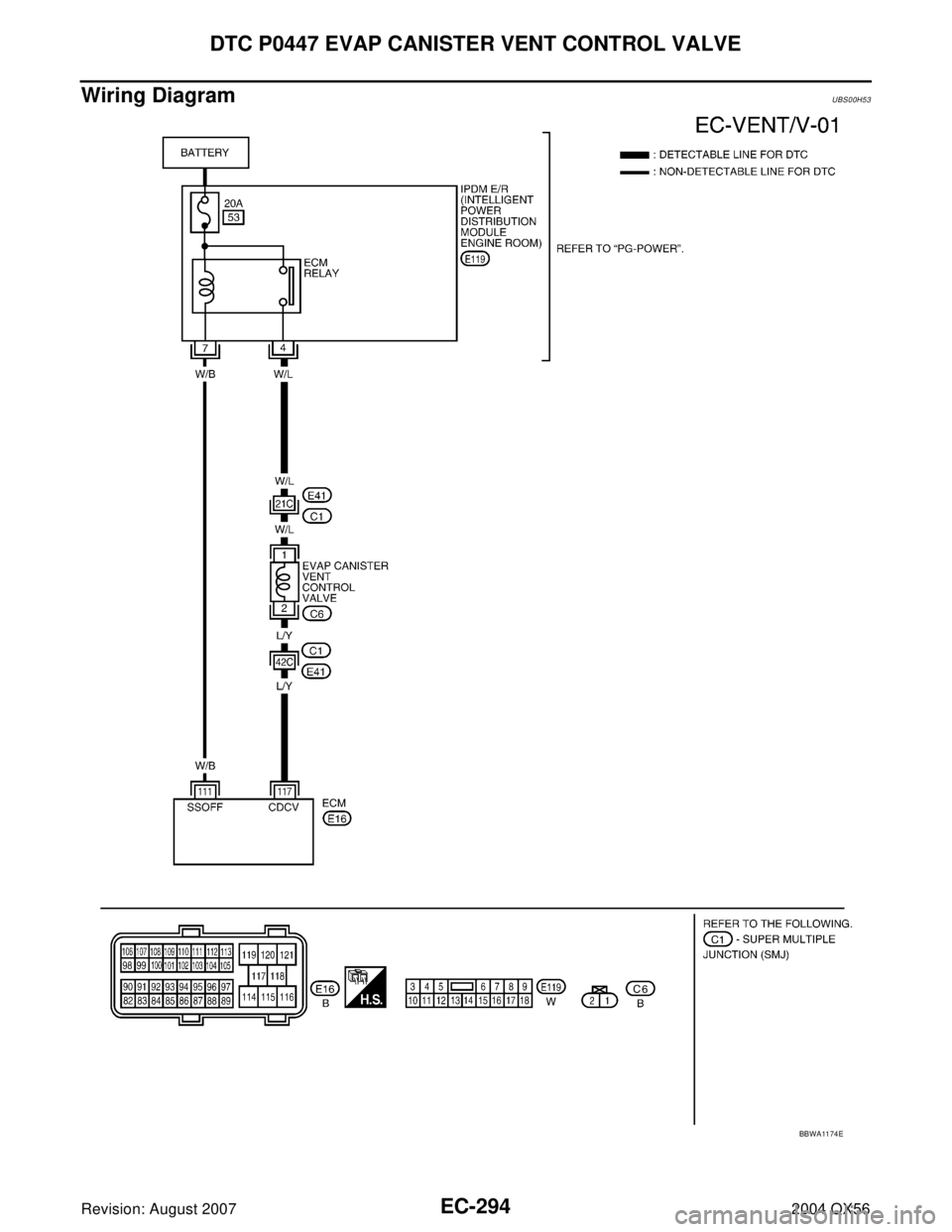

INFINITI QX56 2004 Factory Service Manual EC-294Revision: August 2007 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2004 QX56 Wiring DiagramUBS00H53 BBWA11 74 E

Page 1486 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-295 C D E F G H I J K L MA EC Revision: August 20072004 QX56 Specification data are reference values and are measured between each terminal and ground. CA

Page 1487 of 3371

INFINITI QX56 2004 Factory Service Manual EC-296Revision: August 2007 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2004 QX56 3. CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect EVAP canister

Page 1488 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-297 C D E F G H I J K L MA EC Revision: August 20072004 QX56 6. DETECT MALFUNCTIONING PART Check the following. Harness connectors E41, C1 Harness for o
