Page 905 of 3371

BL-140
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
ECM Re-communicating FunctionEIS002TO
The following procedure can automatically perform re-communication of ECM and BCM, but only when the
ECM has been replaced with a new one which has never been energized on-board.
(In this step, initialization procedure by CONSULT-II is not necessary)
NOTE:
When registering new key IDs or replacing the ECM other than brand new, refer to CONSULT-II
Operation Manual NATS-IVIS/NVIS.
If multiple keys are attached to the key holder, separate them before work.
Distinguish keys with unregistered key ID from those with registered ID.
1. Install ECM.
2. Using a registered key (*1), turn ignition switch to ON.
*1: To perform this step, use the key that has been used before performing ECM replacement.
3. Maintain ignition switch in ON position for at least 5 seconds.
4. Turn ignition switch to OFF.
5. Start engine.
If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-II Operation Manual NATS-IVIS/NVIS and initialize control
unit.
Page 906 of 3371
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Wiring Diagram — NATS —EIS002TP
WIWA1079E
Page 907 of 3371

BL-142
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Terminals and Reference Value for BCMEIS002TQ
CONSULT-IIEIS002TR
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Insert IVIS (NATS) program card into CONSULT-II.
3. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.
4. Turn ignition switch ON.
5. Touch “START”.
Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
21 G NATS antenna amp. Ignition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should move.
23 G/O Security indicator lampGoes OFF → illuminates (Every 2.4
seconds)Battery voltage → 0
25 BR NATS antenna amp. Ignition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should move.
38 W/L Ignition switch (ON or START)Ignition switch (ON or START posi-
tion)Battery voltage
39 W CAN-H — —
40 R CAN-L — —
57 Y/R Battery power supply — Battery voltage
67 B Ground — 0
70 W/B Battery power supply — Battery voltage
Program card : NATS (AEN04A-1) or later
BBIA0369E
PBR4 55 D
Page 908 of 3371

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
6. Touch "JA60" and "OK" on "VEHICLE SELECT" screen. For cancelling touch "CANCEL" on "VEHICLE
SELECT" screen.
NOTE:
Confirm vehicle model on IDENTIFICATION PLATE. Refer to
GI-46, "
Model Variation"
7. Select “NATS V.5.0”.
If “NATS V5.0” is not indicated, go to GI-39, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
8. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual
NATS-IVIS/NVIS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
NOTE:
When any initialization is performed, all IDs previously registered will be erased and all NATS ignition keys
must be registered again.
The engine cannot be started with an unregistered key. In this case, the system will show “DIFFERENCE
OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.
In rare case, “CHAIN OF ECM-IMMU” might be stored as a self-diagnostic result during key registration
procedure, even if the system is not malfunctioning.
LKIA0606E
SEL027X
SEL150X
CONSULT-II DIAGNOSTIC TEST
MODEDescription
C/U INITIALIZATIONWhen replacing any of the following components, C/U initialization and re-registration of all
NATS ignition keys are necessary.
[(NATS ignition key/ BCM/ ECM]
SELF-DIAG RESULTSDetected items (screen terms) are as shown in the chart.
Refer to BL-144, "
IVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART" .
Page 909 of 3371

BL-144
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56

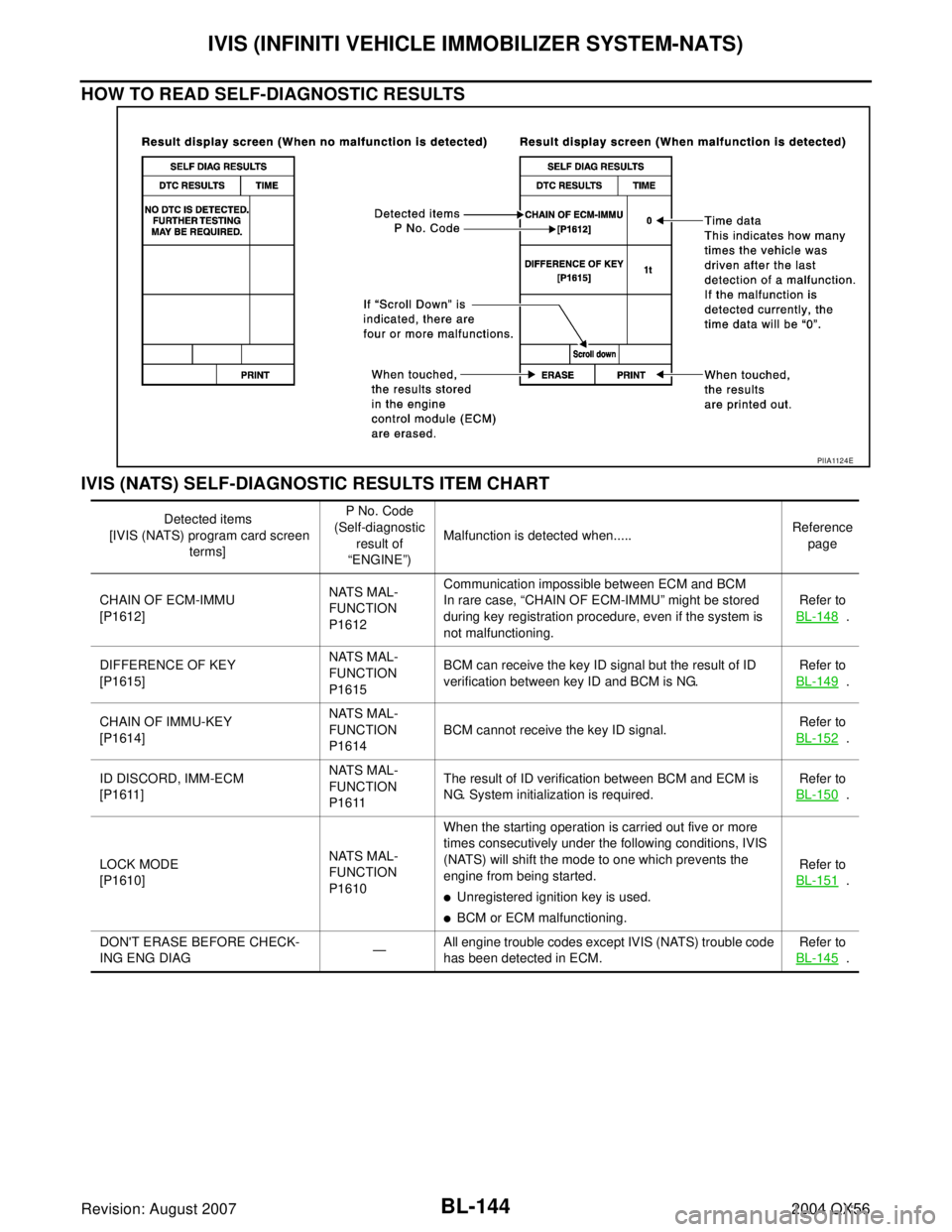

HOW TO READ SELF-DIAGNOSTIC RESULTS
IVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART
PIIA1124E
Detected items
[IVIS (NATS) program card screen
terms]P No. Code
(Self-diagnostic
result of
“ENGINE”)Malfunction is detected when.....Reference
page
CHAIN OF ECM-IMMU
[P1612]NATS MAL-
FUNCTION
P1612Communication impossible between ECM and BCM
In rare case, “CHAIN OF ECM-IMMU” might be stored
during key registration procedure, even if the system is
not malfunctioning.Refer to
BL-148
.
DIFFERENCE OF KEY
[P1615]NATS MAL-
FUNCTION
P1615BCM can receive the key ID signal but the result of ID
verification between key ID and BCM is NG.Refer to
BL-149
.
CHAIN OF IMMU-KEY
[P1614]NATS MAL-
FUNCTION
P1614BCM cannot receive the key ID signal.Refer to
BL-152
.
ID DISCORD, IMM-ECM
[P1611]NATS MAL-
FUNCTION
P1611The result of ID verification between BCM and ECM is
NG. System initialization is required.Refer to
BL-150
.
LOCK MODE
[P1610]NATS MAL-
FUNCTION
P1610When the starting operation is carried out five or more
times consecutively under the following conditions, IVIS
(NATS) will shift the mode to one which prevents the
engine from being started.
Unregistered ignition key is used.
BCM or ECM malfunctioning.Refer to
BL-151
.
DON'T ERASE BEFORE CHECK-
ING ENG DIAG—All engine trouble codes except IVIS (NATS) trouble code
has been detected in ECM.Refer to
BL-145
.
Page 910 of 3371
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-145
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Work FlowEIS002TS
SEL024X
Page 911 of 3371

BL-146
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Trouble DiagnosesEIS002TT
SYMPTOM MATRIX CHART 1
Self-diagnosis related item
*: When IVIS (NATS) detects trouble, the security indicator lights up while ignition key is in the “ON” position.SymptomDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.Diagnostic Procedure
(Reference page)System
(Malfunctioning part or
mode)Reference Part No. Of
Illustration On System
Diagram
Security indicator
lighting up*
Engine cannot be
startedCHAIN OF ECM-IMMU
[P1612]PROCEDURE 1
(BL-148
)In rare case, “CHAIN OF
ECM-IMMU” might be
stored during key regis-
tration procedure, even if
the system is not mal-
functioning.—
Open circuit in battery
voltage line of BCM cir-
cuitC1
Open circuit in ignition
line of BCM circuitC2
Open circuit in ground
line of BCM circuitC3
Open or short circuit
between BCM and ECM
communication lineC4
ECM B
BCM A
DIFFERENCE OF KEY
[P1615]PROCEDURE 2
(BL-149
)Unregistered key D
BCM A
CHAIN OF IMMU-KEY
[P1614]PROCEDURE 5
(BL-152
)Malfunction of key ID
chipE5
Communication line
between ANT/ AMP and
BCM:
Open circuit or short cir-
cuit of battery voltage
line or ground lineE1
E2
Open circuit in power
source line of ANT/ AMP
circuitE3
Open circuit in ground
line of ANT/ AMP circuitE4
NATS antenna amp. E6
BCM A
ID DISCORD, IMM-ECM
[P1611]PROCEDURE 3
(BL-150
)System initialization has
not yet been completed.F
ECM B
LOCK MODE
[P1610]PROCEDURE 4
(BL-151
)LOCK MODE D
Security indicator light-
ing up*DON'T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(BL-145
)Engine trouble data and
IVIS (NATS) trouble data
have been detected in
ECM—
Page 912 of 3371
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
SYMPTOM MATRIX CHART 2
Non self-diagnosis related item
*: CONSULT-II self-diagnostic results display screen “no malfunction is detected”.
DIAGNOSTIC SYSTEM DIAGRAM
SymptomDiagnostic Procedure
(Reference page)System
(Malfunctioning part or mode)Reference Part No. Of Illustra-
tion On System Diagram
Security indicator does not light
up*.PROCEDURE 6
(BL-155
)Combination meter (security
indictor lamp)—
Open circuit between fuse and
BCM—
BCM A
WIIA0550E
