Page 2177 of 3371

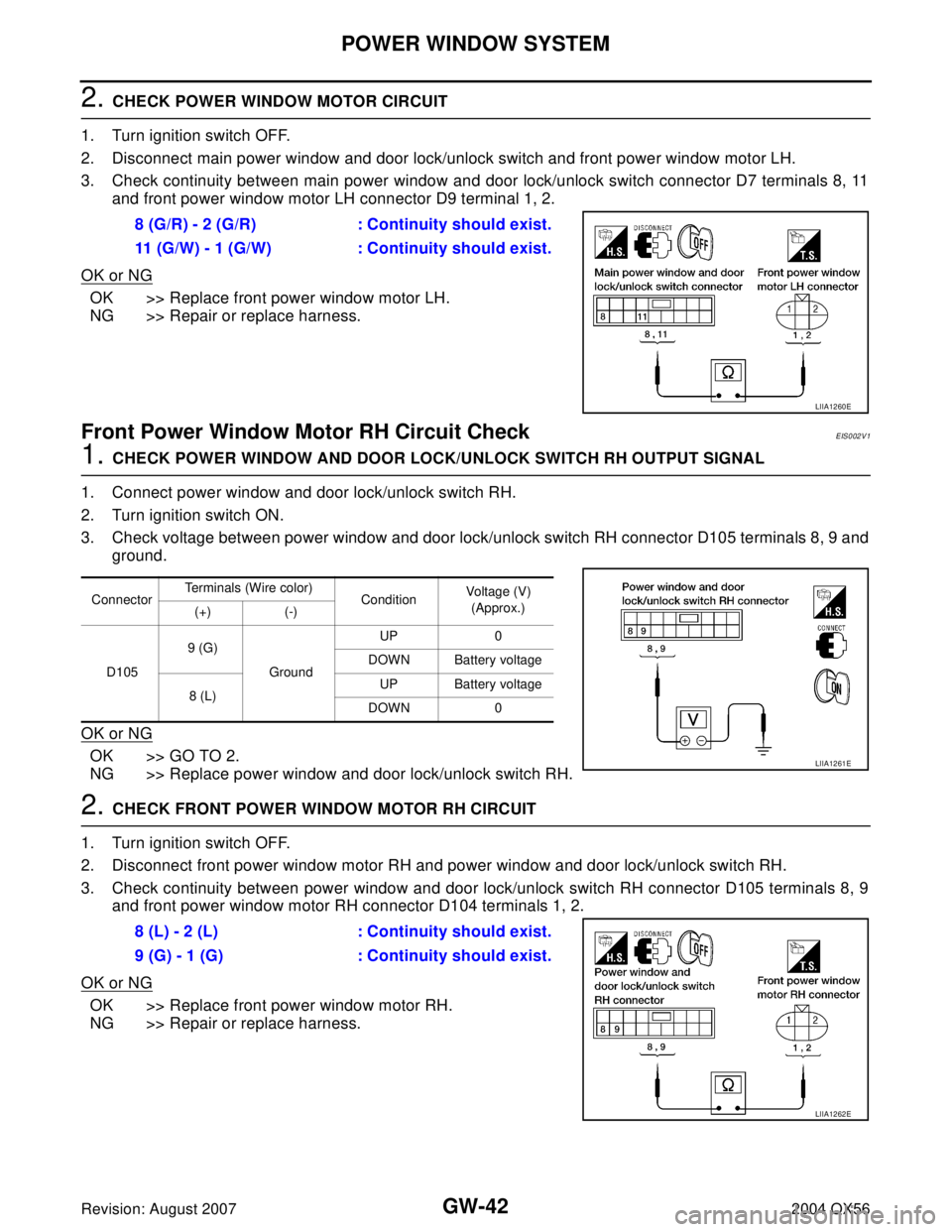

INFINITI QX56 2004 Factory Service Manual GW-42 POWER WINDOW SYSTEM Revision: August 20072004 QX56 2. CHECK POWER WINDOW MOTOR CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect main power window and door lock/unlock switch and front power wi

Page 2178 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM GW-43 C D E F G H J K L MA B GW Revision: August 20072004 QX56 Limit Switch Circuit Check Front LHEIS002V2 1. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH LIMIT SIGNAL 1. Tu

Page 2179 of 3371

INFINITI QX56 2004 Factory Service Manual GW-44 POWER WINDOW SYSTEM Revision: August 20072004 QX56 4. CHECK HARNESS CONTINUITY 1. Disconnect main power window and door lock/unlock switch. 2. Check continuity between front power window motor L

Page 2180 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM GW-45 C D E F G H J K L MA B GW Revision: August 20072004 QX56 2. CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL 1. Disconnect front power window motor RH. 2. Check voltage between

Page 2181 of 3371

INFINITI QX56 2004 Factory Service Manual GW-46 POWER WINDOW SYSTEM Revision: August 20072004 QX56 5. CHECK HARNESS CONTINUITY 1. Turn ignition switch OFF. 2. Disconnect power window and door lock/unlock switch RH. 3. Check continuity between

Page 2182 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM GW-47 C D E F G H J K L MA B GW Revision: August 20072004 QX56 3. CHECK ENCODER GROUND 1. Turn ignition switch OFF. 2. Check continuity between front power window motor LH connecto

Page 2183 of 3371

INFINITI QX56 2004 Factory Service Manual GW-48 POWER WINDOW SYSTEM Revision: August 20072004 QX56 6. CHECK ENCODER CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect front power window motor LH and main power window and door lock/unlock swit

Page 2184 of 3371

INFINITI QX56 2004 Factory Service Manual POWER WINDOW SYSTEM GW-49 C D E F G H J K L MA B GW Revision: August 20072004 QX56 3. CHECK ENCODER GROUND 1. Turn ignition switch OFF. 2. Check continuity between front power window motor RH connecto
