Page 2713 of 3371

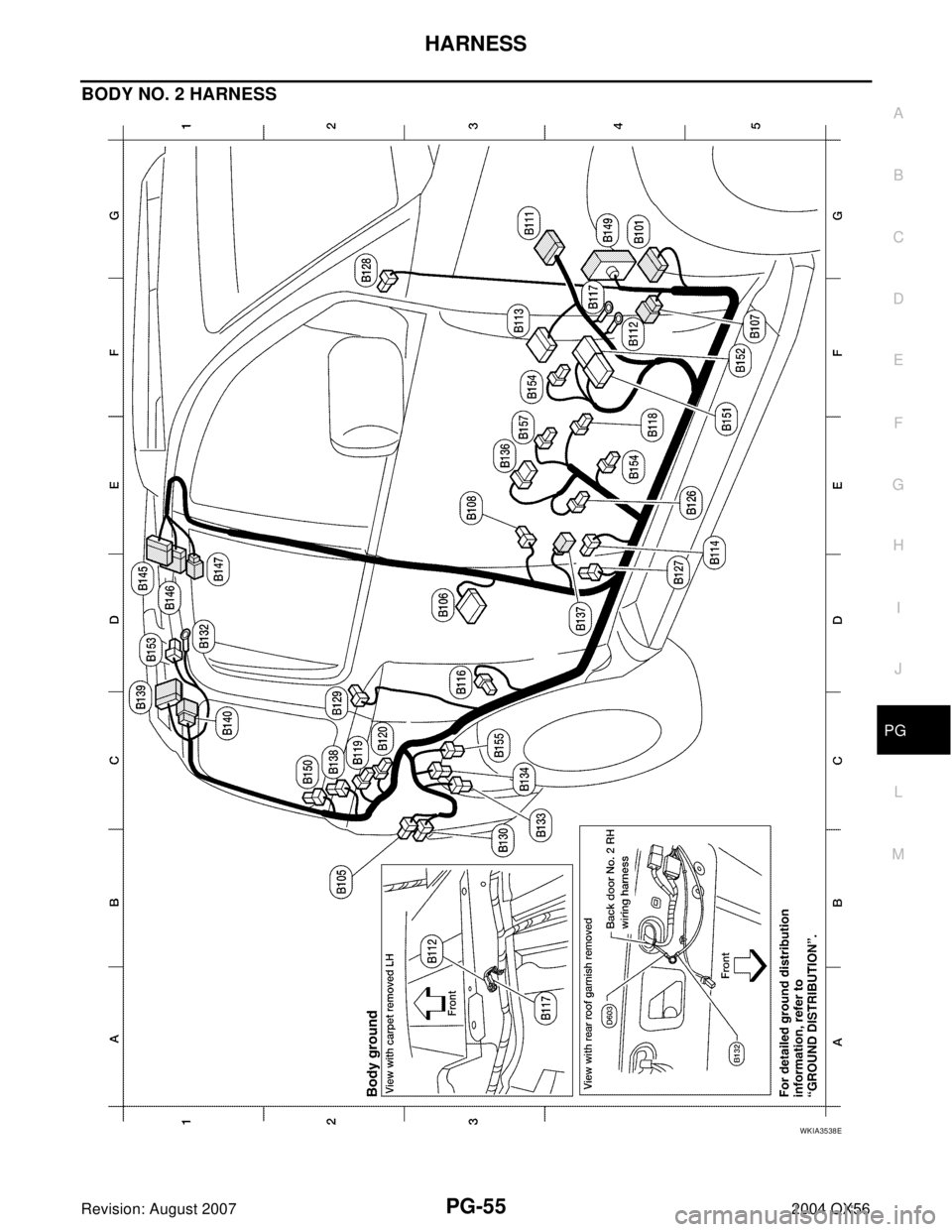

INFINITI QX56 2004 Factory Service Manual PG-54 HARNESS Revision: August 20072004 QX56 WKIA2713E

Page 2714 of 3371

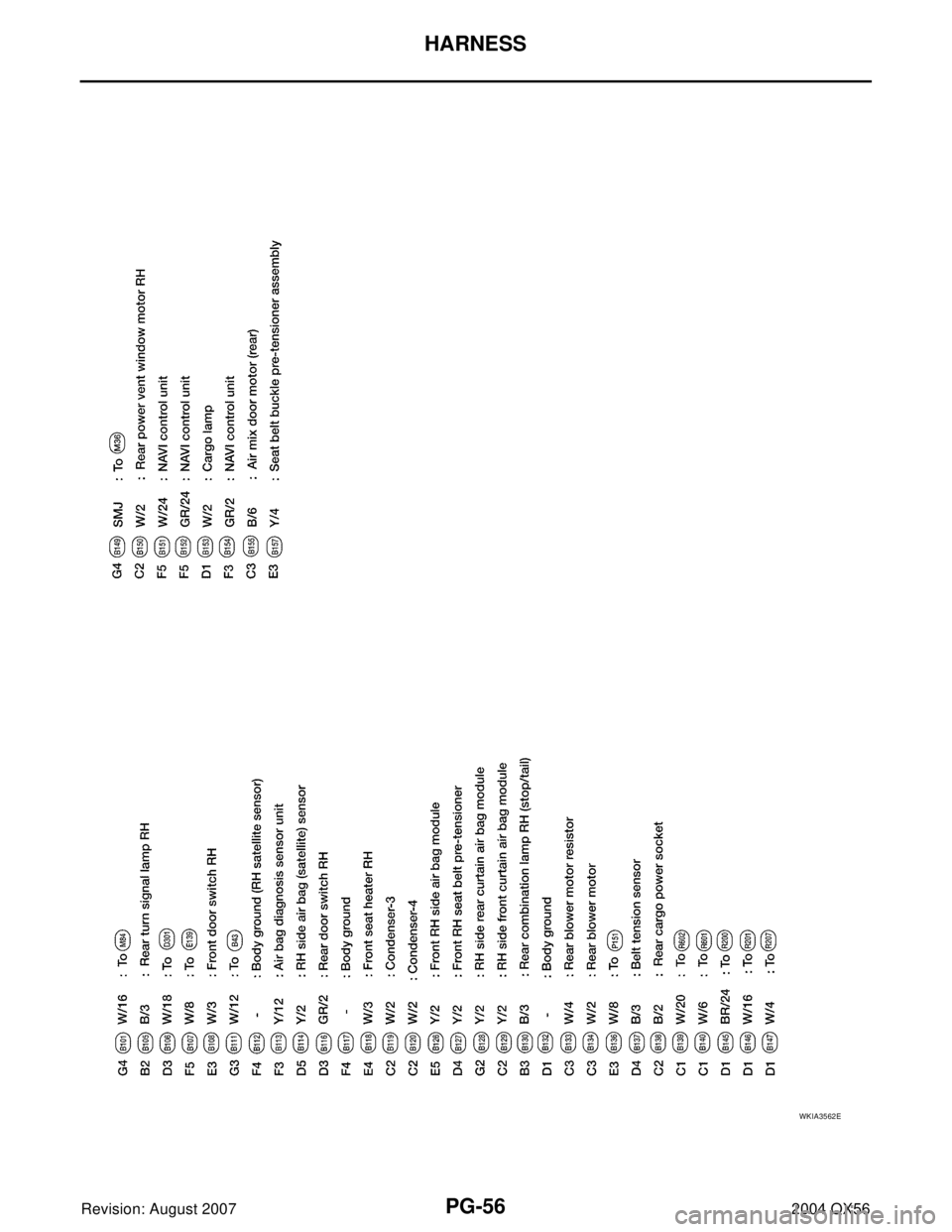

INFINITI QX56 2004 Factory Service Manual HARNESS PG-55 C D E F G H I J L MA B PG Revision: August 20072004 QX56 BODY NO. 2 HARNESS WKIA3538E

Page 2715 of 3371

INFINITI QX56 2004 Factory Service Manual PG-56 HARNESS Revision: August 20072004 QX56 WKIA3562E

Page 2716 of 3371

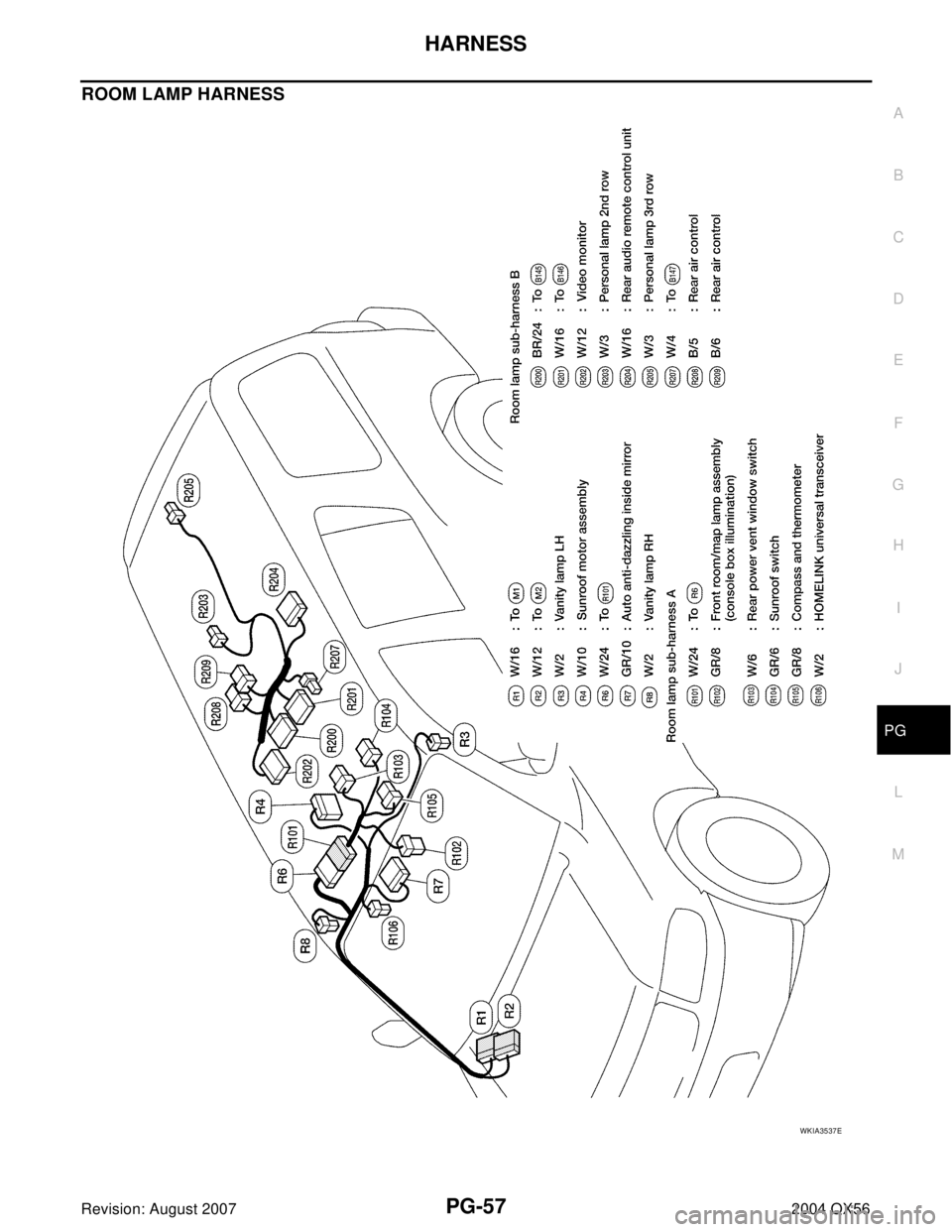

INFINITI QX56 2004 Factory Service Manual HARNESS PG-57 C D E F G H I J L MA B PG Revision: August 20072004 QX56 ROOM LAMP HARNESS WKIA3537E

Page 2717 of 3371

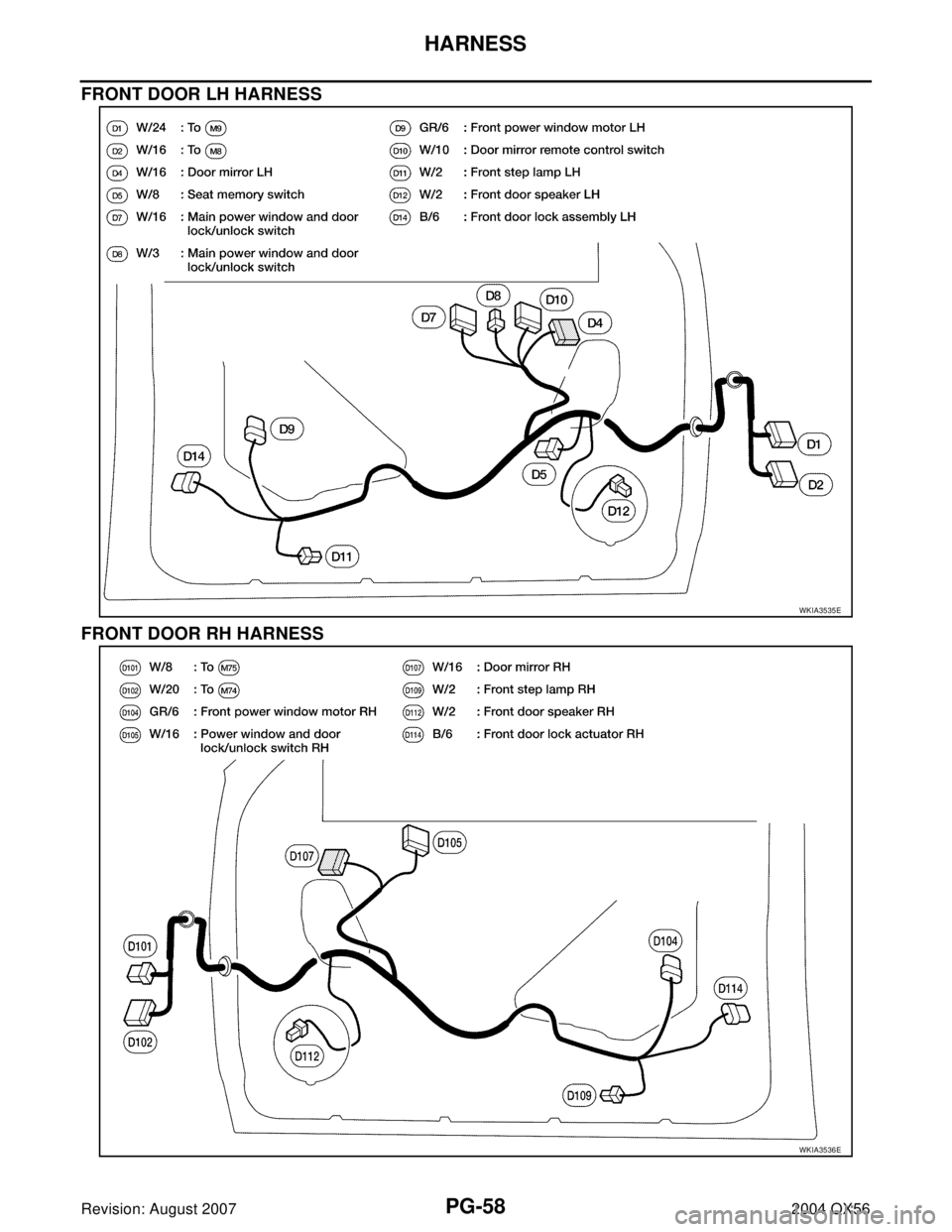

INFINITI QX56 2004 Factory Service Manual PG-58 HARNESS Revision: August 20072004 QX56 FRONT DOOR LH HARNESS FRONT DOOR RH HARNESS WKIA3535E WKIA3536E

Page 2718 of 3371

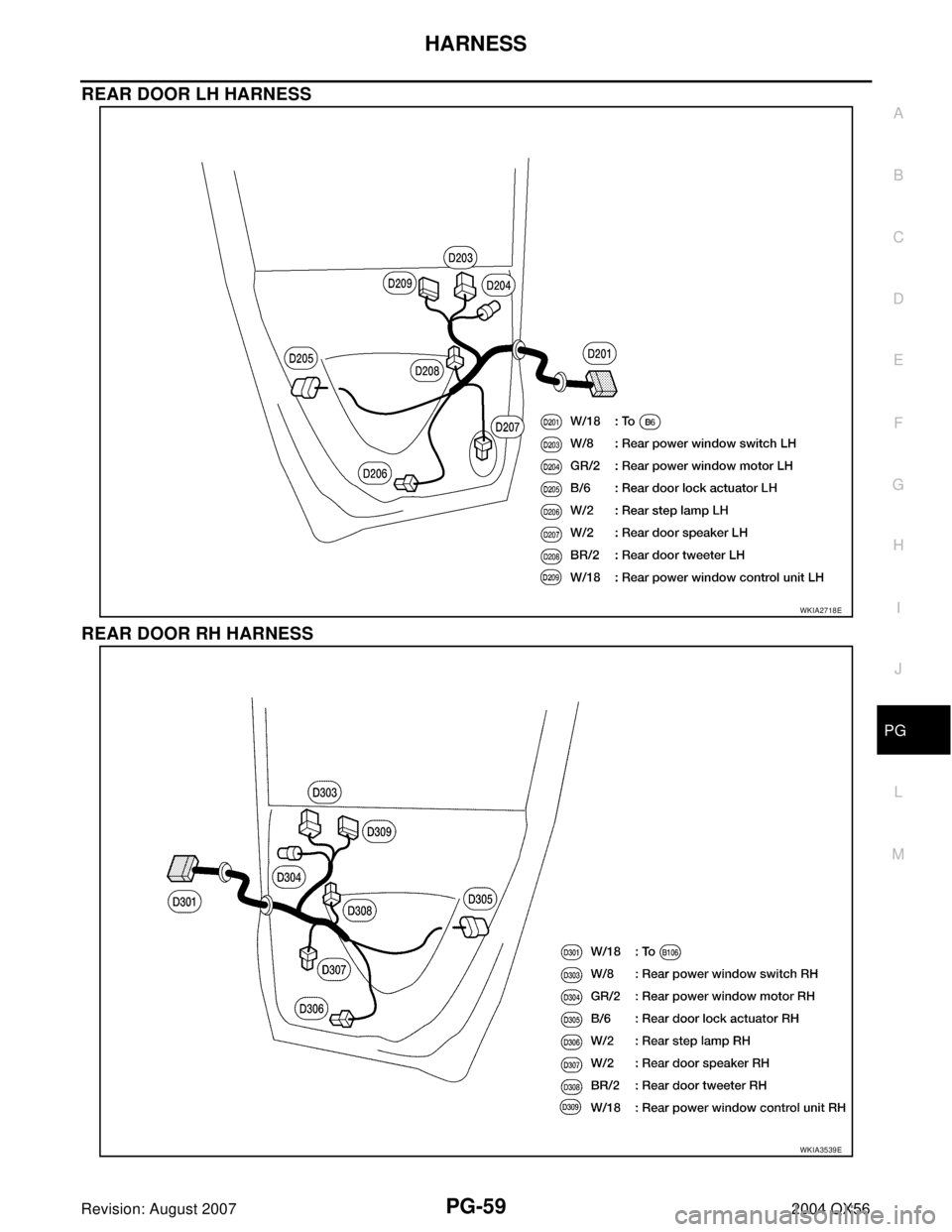

INFINITI QX56 2004 Factory Service Manual HARNESS PG-59 C D E F G H I J L MA B PG Revision: August 20072004 QX56 REAR DOOR LH HARNESS REAR DOOR RH HARNESS WKIA2718E WKIA3539E

Page 2719 of 3371

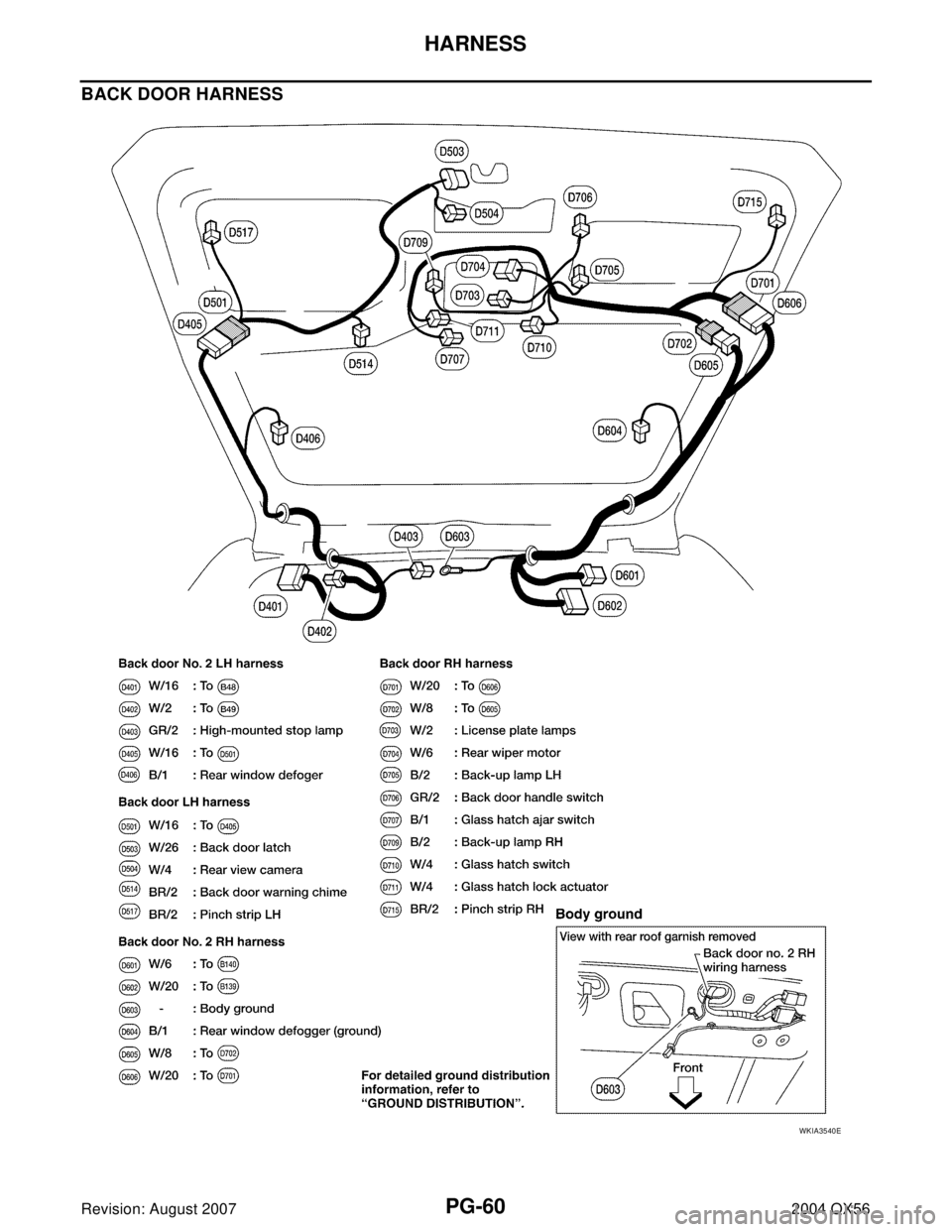

INFINITI QX56 2004 Factory Service Manual PG-60 HARNESS Revision: August 20072004 QX56 BACK DOOR HARNESS WKIA3540E

Page 2720 of 3371

INFINITI QX56 2004 Factory Service Manual HARNESS PG-61 C D E F G H I J L MA B PG Revision: August 20072004 QX56 Wiring Diagram Codes (Cell Codes)EKS007NZ Use the chart below to find out what each wiring diagram code stands for. Refer to the
