Page 1873 of 3371

INFINITI QX56 2004 Factory Service Manual EI-32 DOOR FINISHER Revision: August 20072004 QX56 Disconnect harness connector. 7. Remove step lamp. Disconnect harness connector. 8. Remove door finisher and disconnect lock cable and handle cable

Page 1874 of 3371

INFINITI QX56 2004 Factory Service Manual DOOR FINISHER EI-33 C D E F G H J K L MA B EI Revision: August 20072004 QX56 Remove screws behind pull handle escutcheon. 5. Remove armrest. Remove screws behind armrest. 6. Remove step lamp. Disco

Page 1875 of 3371

INFINITI QX56 2004 Factory Service Manual EI-34 BODY SIDE TRIM Revision: August 20072004 QX56 BODY SIDE TRIMPFP:76913 Removal and InstallationEIS002XJ CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips fr

Page 1876 of 3371

INFINITI QX56 2004 Factory Service Manual BODY SIDE TRIM EI-35 C D E F G H J K L MA B EI Revision: August 20072004 QX56 Installation is in the reverse order of removal. CENTER PILLAR LOWER FINISHER Removal and Installation 1. Remove front and

Page 1877 of 3371

INFINITI QX56 2004 Factory Service Manual EI-36 FLOOR TRIM Revision: August 20072004 QX56 FLOOR TRIMPFP:74902 Removal and InstallationEIS002XK 1. Remove front seats. Refer to SE-96, "FRONT SEAT" . Remove subwoofer. Refer to AV- 4 6 , "Remo

Page 1878 of 3371

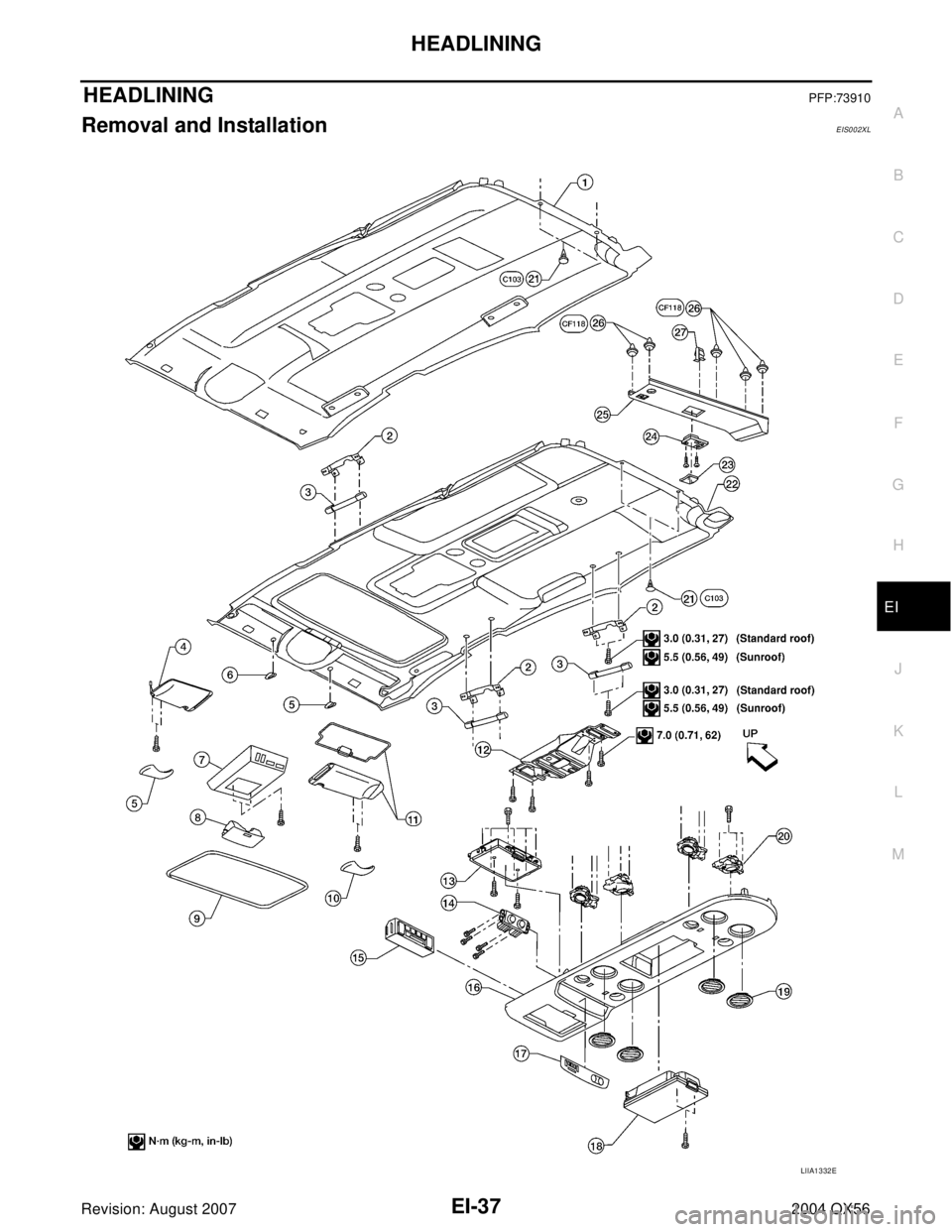

INFINITI QX56 2004 Factory Service Manual HEADLINING EI-37 C D E F G H J K L MA B EI Revision: August 20072004 QX56 HEADLININGPFP:73910 Removal and InstallationEIS002XL LIIA1332E

Page 1879 of 3371

INFINITI QX56 2004 Factory Service Manual EI-38 HEADLINING Revision: August 20072004 QX56 CAUTION: Disconnect both terminals from battery in advance. 1. Remove body side trim. Refer to EI-34, " BODY SIDE TRIM" . 2. Remove luggage floor trim.

Page 1880 of 3371

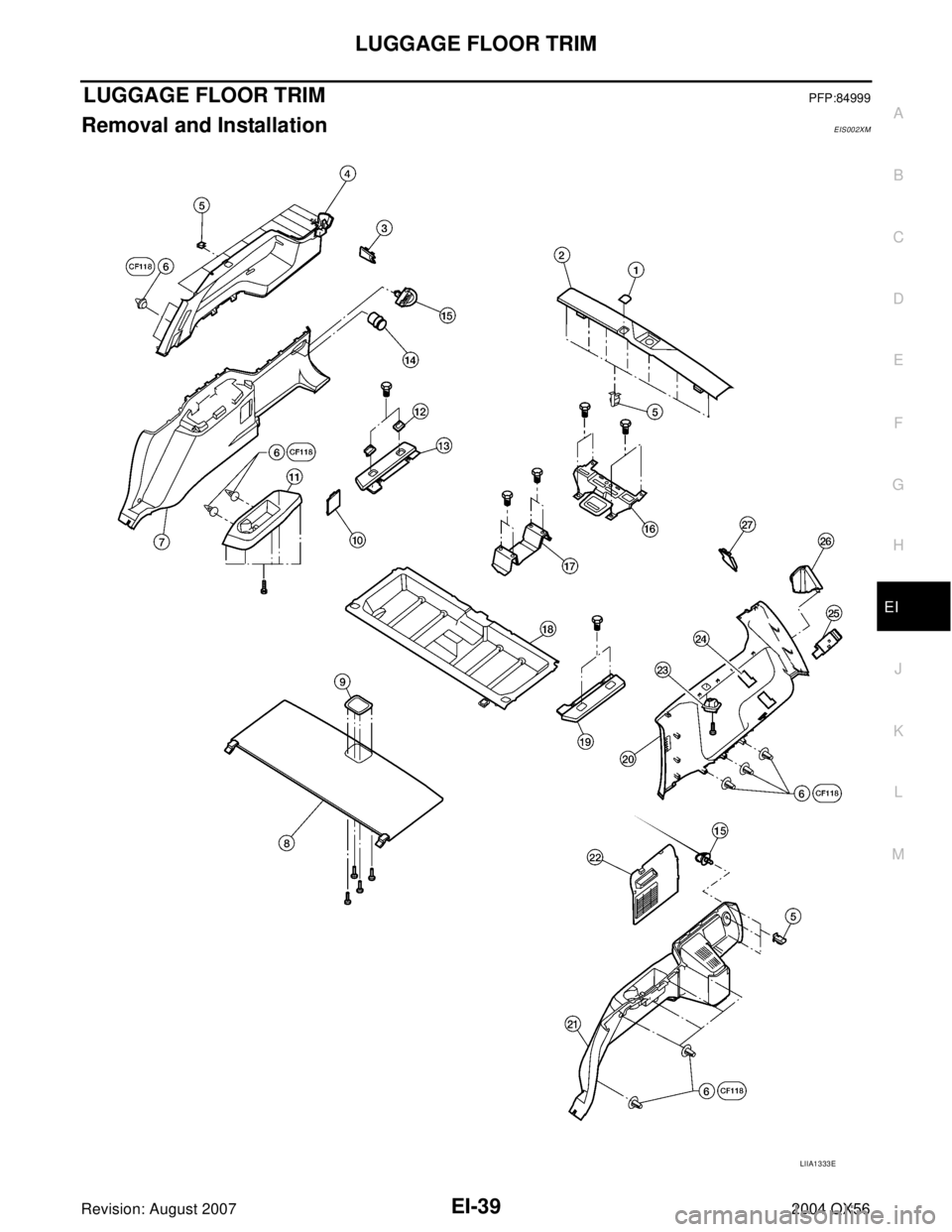

INFINITI QX56 2004 Factory Service Manual LUGGAGE FLOOR TRIM EI-39 C D E F G H J K L MA B EI Revision: August 20072004 QX56 LUGGAGE FLOOR TRIMPFP:84999 Removal and InstallationEIS002XM LIIA1333E
