Page 2513 of 3371

INFINITI QX56 2004 Factory Service Manual LT-82 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 REMOTE KEYLESS ENTRY SYSTEM OPERATION Power is supplied at all times through 50A fusible link (letter f , located in the fus

Page 2514 of 3371

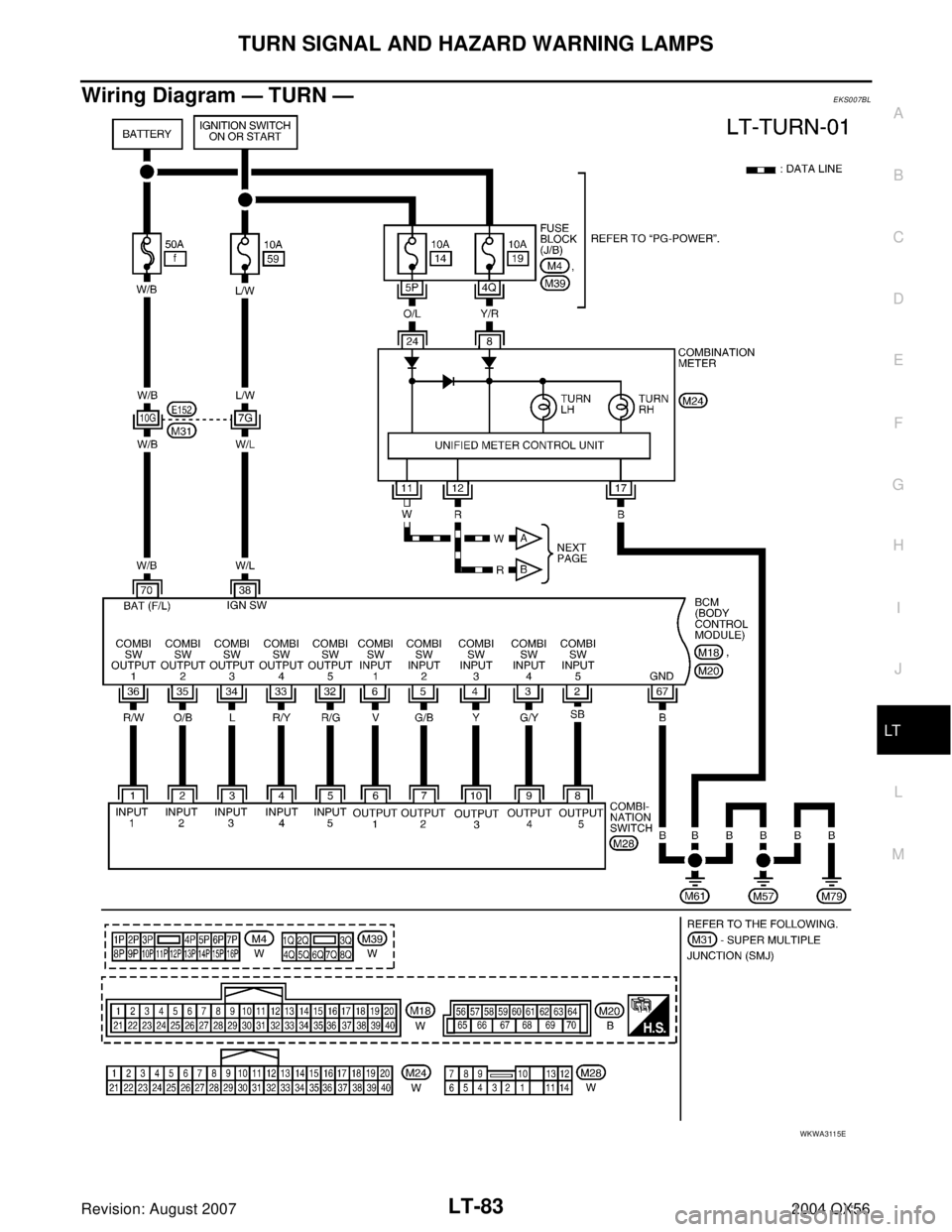

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-83 C D E F G H I J L MA B LT Revision: August 20072004 QX56 Wiring Diagram — TURN —EKS007BL WKWA3115E

Page 2515 of 3371

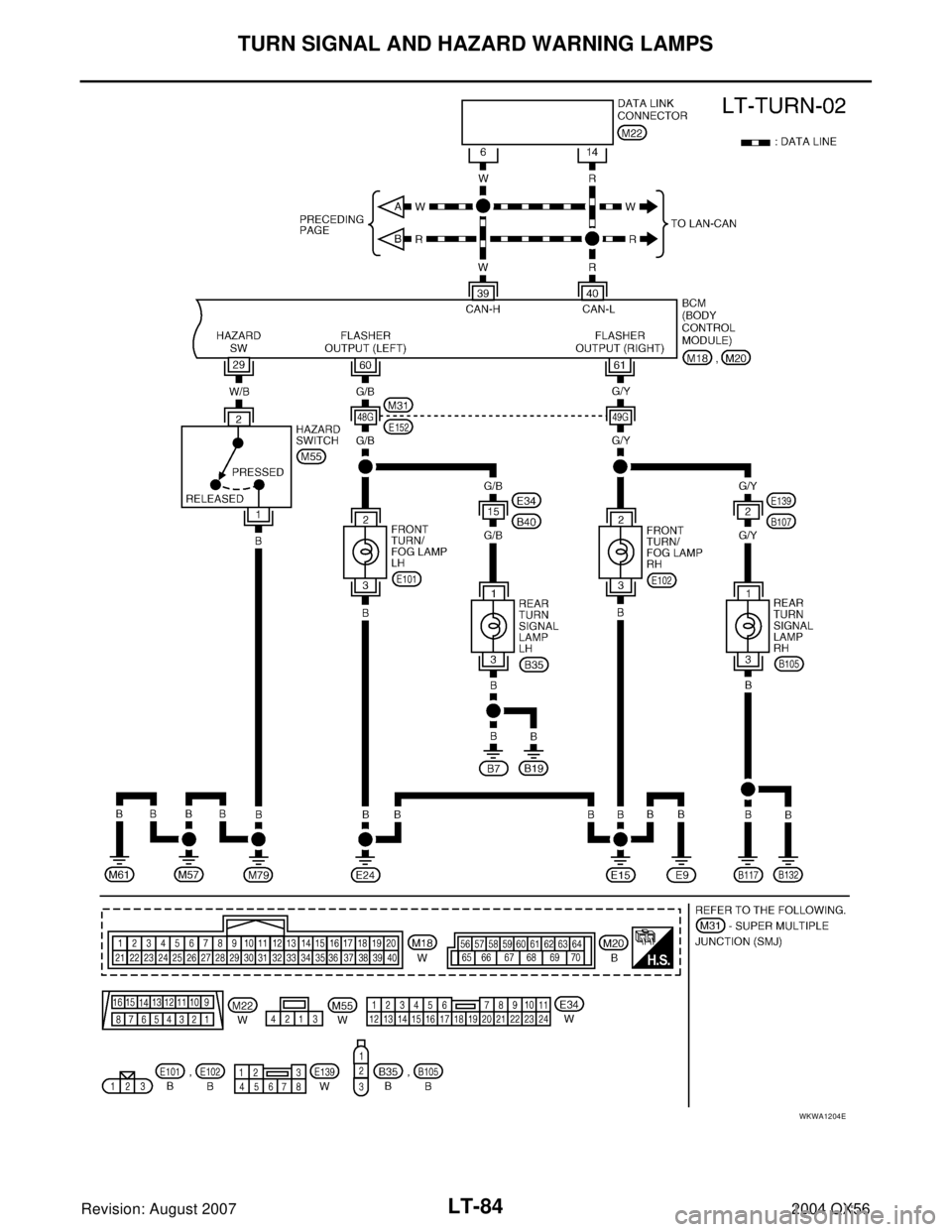

INFINITI QX56 2004 Factory Service Manual LT-84 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 WKWA1204E

Page 2516 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-85 C D E F G H I J L MA B LT Revision: August 20072004 QX56 Terminals and Reference Values for BCMEKS007BM Terminal No.Wire colorSignal nameMeasuring conditio

Page 2517 of 3371

INFINITI QX56 2004 Factory Service Manual LT-86 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 How to Proceed With Trouble DiagnosisEKS007BN 1. Confirm the symptom or customer complaint. 2. Understand operation descriptio

Page 2518 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-87 C D E F G H I J L MA B LT Revision: August 20072004 QX56 Preliminary CheckEKS007BO CHECK POWER SUPPLY AND GROUND CIRCUIT 1. CHECK FUSES OR FUSIBLE LINK Check

Page 2519 of 3371

INFINITI QX56 2004 Factory Service Manual LT-88 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 CONSULT-II Function (BCM)EKS007BP CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

Page 2520 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-89 C D E F G H I J L MA B LT Revision: August 20072004 QX56 4. Touch “FLASHER” on “SELECT TEST ITEM” screen. DATA MONITOR Operation Procedure 1. Touch
