INFINITI QX56 2004 Factory Service Manual LU-16Revision: August 2007
SERVICE DATA AND SPECIFICATIONS (SDS)
2004 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00I4P
OIL PRESSURE
Unit: kPa (kg/cm2 , psi)
OIL PUMP
Uni

Page 2618 of 3371

INFINITI QX56 2004 Factory Service Manual MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION MA
A
B
MA
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Precautions for S

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION MA
A
B
MA
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
GENERAL MAINTENANCE ....................................... 4
General Maintenance ............................................... 4
PERIODIC MAINTENANCE ....................................... 6
Introduction of Periodic Maintenance ....................... 6
Maintenance For Off-road Driving (4WD only) ......... 6
Schedule 1 ............................................................... 6
EMISSION CONTROL SYSTEM MAINTE-
NANCE .................................................................. 6
CHASSIS AND BODY MAINTENANCE ............... 7
Schedule 2 ............................................................... 8
EMISSION CONTROL SYSTEM MAINTE-
NANCE .................................................................. 8
CHASSIS AND BODY MAINTENANCE ............... 9
RECOMMENDED FLUIDS AND LUBRICANTS ...... 10
Fluids and Lubricants ............................................. 10
SAE Viscosity Number ............................................11
GASOLINE ENGINE OIL .....................................11
ANTI-FREEZE COOLANT MIXTURE RATIO ......11
ENGINE MAINTENANCE ......................................... 12
Checking Drive Belts .............................................. 12
DRIVE BELT TENSION ...................................... 12
Changing Engine Coolant ...................................... 12
DRAINING ENGINE COOLANT ......................... 12
REFILLING ENGINE COOLANT ........................ 13
FLUSHING COOLING SYSTEM ......................... 14
Checking Fuel Lines ............................................... 15
Changing Fuel Filter ............................................... 15
Changing Engine Air Cleaner Filter ........................ 15
VISCOUS PAPER TYPE ..................................... 15
Changing Engine Oil .............................................. 16
Changing Oil Filter ................................................. 16
Changing Spark Plugs ........................................... 17
REMOVAL ........................................................... 17INSPECTION AFTER REMOVAL ....................... 18
INSTALLATION ................................................... 19
Checking EVAP Vapor Lines .................................. 19
CHASSIS AND BODY MAINTENANCE ................... 20
Changing In-cabin Microfilter .................................. 20
Checking Exhaust System ...................................... 21
Checking A/T Fluid ................................................. 21
Changing A/T Fluid ................................................. 23
Checking Transfer Fluid ......................................... 24
FLUID LEAKAGE AND FLUID LEVEL ................ 24
Changing Transfer Fluid ......................................... 24
DRAINING ........................................................... 24
FILLING ............................................................... 24
Checking Propeller Shaft ........................................ 24
Checking Final Drive Oil ......................................... 24
Changing Final Drive Oil ......................................... 25
Balancing Wheels ................................................... 25
REMOVAL ........................................................... 25
WHEEL BALANCE ADJUSTMENT ..................... 25
Tire Rotation ........................................................... 27
Checking Brake Fluid Level and Leaks .................. 27
Checking Brake Lines and Cables ......................... 27
Checking Disc Brake .............................................. 28
ROTOR ................................................................ 28
CALIPER ............................................................. 28
PAD ..................................................................... 28
Checking Steering Gear and Linkage ..................... 28
STEERING GEAR ............................................... 28
STEERING LINKAGE ......................................... 28
Checking Power Steering Fluid and Lines .............. 29
CHECKING FLUID LEVEL .................................. 29
CHECKING LINES .............................................. 29
Checking Axle and Suspension Parts .................... 29
FRONT AND REAR AXLE AND SUSPENSION
PARTS ................................................................. 29
DRIVE SHAFT ..................................................... 29
Lubricating Locks, Hinges and Hood Latches ........ 30
Checking Seat Belts, Buckles, Retractors, Anchors
and Adjusters .......................................................... 31

Page 2619 of 3371

INFINITI QX56 2004 Factory Service Manual MA-2
PRECAUTIONS
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ELS000ZW
The Supplemental Rest

Page 2620 of 3371

INFINITI QX56 2004 Factory Service Manual PREPARATION
MA-3
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
PREPARATIONPFP:00002

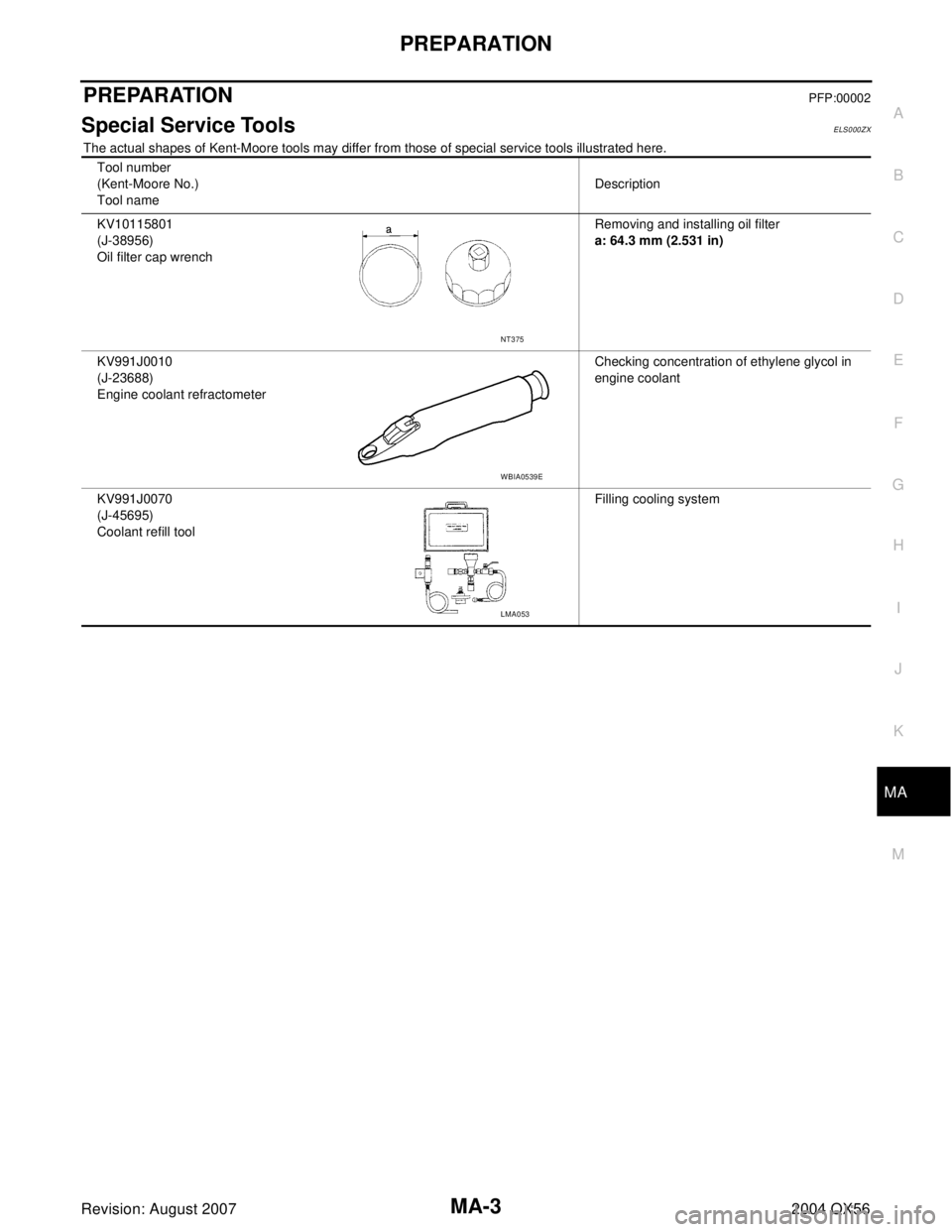

Special Service ToolsELS000ZX
The actual shapes of Kent-Moore tools may differ from those of special serv

Page 2621 of 3371

INFINITI QX56 2004 Factory Service Manual MA-4
GENERAL MAINTENANCE
Revision: August 20072004 QX56
GENERAL MAINTENANCEPFP:00000
General MaintenanceELS000ZZ
General maintenance includes those items which should be checked during the normal day-

MA-4
GENERAL MAINTENANCE
Revision: August 20072004 QX56
GENERAL MAINTENANCEPFP:00000
General MaintenanceELS000ZZ
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owner can perform these
checks and inspections or have their NISSAN dealers perform them.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.ItemReference page
TiresCheck the pressure with a gauge at least once a month and always prior to a
long distance trip. Adjust to the specified pressure if necessary. Check carefully
for damage, cuts or excessive wear.—
Wheel lug nutsWhen checking the tires, make sure no nuts are missing, and check for any
loose nuts. Tighten if necessary.WT-6, "
Rotation"
WindshieldClean the windshield on a regular basis. Check the windshield at least every six
months for cracks or other damage. Repair as necessary.
Tire rotationTires should be rotated every 12,000 km (7,500 miles).WT-6, "
Rotation"
Wheel alignment and
balanceIf the vehicle pulls to either side while driving on a straight and level road, or if
you detect uneven or abnormal tire wear, there may be a need for wheel align-
ment. If the steering wheel or seat vibrates at normal highway speeds, wheel
balancing may be needed.WT-5, "Balancing
Wheels", FSU-6, "Front
Wheel Alignment"
Windshield wiper
bladesCheck for cracks or wear if they do not wipe properly.
—
Doors and engine
hoodCheck that all doors and the engine hood operate smoothly as well as the back
hatch. Also make sure that all latches lock securely. Lubricate if necessary.
Make sure that the secondary latch keeps the hood from opening when the pri-
mary latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently.MA-30, "
Lubricating
Locks, Hinges and Hood
Latches"
Lamps
Make sure that the head lamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head
lamp aim. Clean the head lamps on a regular basis.LT- 3 1 , "Aiming Adjust-
ment" for US, LT- 4 6 ,
"Aiming Adjustment" f o r
Canada
ItemReference page
Warning lamps and
buzzers/chimesMake sure that all warning lamps and buzzers/chimes are operating properly.DI-25, "
Electrical Com-
ponents Inspection"
Windshield wiper and
washerCheck that the wipers and washer operate properly and that the wipers do not
streak.—
Windshield defrosterCheck that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner.—
Steering wheelCheck that it has the specified play. Be sure to check for changes in the steering
condition, such as excessive play, hard steering or strange noises.PS-7, "
CHECKING
STEERING WHEEL
PLAY"
SeatsCheck seat position controls such as seat adjusters, seat back recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every
position. Check that the head restraints move up and down smoothly and that
the locks (if equipped) hold securely in all latched positions. Check that the
latches lock securely for folding-down rear seat backs.—
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.SB-10, "
Seat Belt
Inspection", MA-31,
"Checking Seat Belts,
Buckles, Retractors,
Anchors and Adjusters"
Accelerator pedalCheck the pedal for smooth operation. Keep the floor mats away from the pedal. —

Page 2622 of 3371

INFINITI QX56 2004 Factory Service Manual GENERAL MAINTENANCE
MA-5
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g. each time you check

GENERAL MAINTENANCE
MA-5
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel).BrakesCheck that the brake does not pull the vehicle to one side when applied. —
Brake pedal and
boosterCheck the pedal for smooth operation and make sure it has the proper distance
under it when depressed fully. Check the brake booster function. Keep the floor
mats away from the pedal.BR-6, "
Inspection and
Adjustment", BR-17,
"On-Vehicle Service"
Parking brakeCheck that the parking brake control has the proper travel and make sure that
the vehicle is held securely on a fairly steep hill when only the parking brake is
applied.PB-3, "On-Vehicle Ser-
vice"
Automatic transmis-
sion “Park” mecha-
nismOn a fairly steep hill check that the vehicle is held securely with the selector
lever in the P position without applying the brakes. — ItemReference page
ItemReference page
Windshield washer
fluidCheck that there is adequate fluid in the tank.
—
Engine coolant levelCheck the coolant level when the engine is cold.MA-12
Radiator and hosesCheck the front of the radiator and clean off any dirt, insects, leaves, etc., that
may have accumulated. Make sure the hoses have no cracks, deformation,
deterioration or loose connections.—
Brake fluid levelMake sure that the brake fluid level is between the “MAX” and “MIN” lines on the
reservoirsMA-27
BatteryCheck the fluid level in each cell. It should be between the “MAX” and “MIN”
lines. Vehicles operated in high temperatures or under severe conditions require
frequent checks of the battery fluid level.—
Engine drive beltMake sure that no belt is frayed, worn, cracked or oily.MA-12
Engine oil levelCheck the level on the dipstick after parking the vehicle on a level spot and turn-
ing off the engine.MA-16
Power steering fluid
level and linesCheck the level on the reservoir with the engine off. Check the lines for improper
attachment, leaks, cracks, etc.MA-29
Automatic transmis-
sion fluid levelCheck the level on the dipstick after putting the selector lever in “P” with the
engine idling.MA-21
Exhaust systemMake sure there are no loose supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of exhaust fumes, immediately locate
the trouble and correct it.MA-21
UnderbodyThe underbody is frequently exposed to corrosive substances such as those
used on icy roads or to control dust. It is very important to remove these sub-
stances, otherwise rust will form on the floor pan, frame, fuel lines and around
the exhaust system. At the end of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean those areas where mud and dirt
can easily accumulate.—
Fluid leaksCheck under the vehicle for fuel, oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping from the air conditioner after use is
normal. If you should notice any leaks or gasoline fumes are evident, check for
the cause and correct it immediately.—

Page 2623 of 3371

INFINITI QX56 2004 Factory Service Manual MA-6
PERIODIC MAINTENANCE
Revision: August 20072004 QX56
PERIODIC MAINTENANCEPFP:00026
Introduction of Periodic MaintenanceELS00100
Two different maintenance schedules are provided, and should be used

MA-6
PERIODIC MAINTENANCE
Revision: August 20072004 QX56
PERIODIC MAINTENANCEPFP:00026
Introduction of Periodic MaintenanceELS00100
Two different maintenance schedules are provided, and should be used, depending upon the conditions in
which the vehicle is mainly operated. After 60,000 miles (96,000 km) or 48 months, continue the periodic
maintenance at the same mileage or time intervals, whichever comes first.
Maintenance For Off-road Driving (4WD only)ELS0012H
After driving the vehicle off-road through sand, mud, or water; more frequent maintenance may be required for
the following items:
Brake pads and rotors
Brake lines and hoses
Rear final drive oil, transmission fluid, and transfer fluid
Steering linkage
Drive shafts
Engine air cleaner filter
In-cabin microfilters
Schedule 1ELS00101
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only Schedule 1Follow Periodic Maintenance Schedule 1 if your driving habits frequently includes
one or more of the following driving conditions:
Repeated short trips of less than 5 miles (8 km).
Repeated short trips of less than 10 miles (16 km) with outside temperatures
remaining below freezing.
Operating in hot weather in stop-and-go “rush hour” traffic.
Extensive idling and/or low speed driving for long distances, such as police,
taxi or door-to-door delivery use.
Driving in dusty conditions.
Driving on rough, muddy, or salt spread roads.
Towing a trailer or using a car-top carrier.Emission Control Sys-
tem MaintenanceMA-6
Chassis and Body
MaintenanceMA-6
Schedule 2Follow Periodic Maintenance Schedule 2 if none of the driving conditions shown
in Schedule 1 apply to the driving habits.Emission Control Sys-
tem MaintenanceMA-8Chassis and Body
MaintenanceMA-8
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles,
kilometers or months, which-
ever comes first.Miles x 1,000
(km x 1,000)
Months3.75
(6)
37.50
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Drive belts NOTE (1)MA-12
Air cleaner filter NOTE (2) [R]MA-15
EVAP vapor linesI*MA-19
Fuel linesI*MA-15
Fuel filter NOTE (3)—
Engine coolant NOTE (4)MA-12
Engine oil R R RRRRRRMA-16
Engine oil filter R R RRRRRRMA-16
Spark plugs (double PLATI-
NUM-TIPPED type)Replace every 105,000 miles (169,000 km).MA-17
Intake and exhaust valve
clearance*NOTE (5)EM-52

Page 2624 of 3371

INFINITI QX56 2004 Factory Service Manual PERIODIC MAINTENANCE
MA-7
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive b

PERIODIC MAINTENANCE
MA-7
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, go to the FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required.
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. L = Lubricate. [ ]: At the mileage intervals only. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles,
kilometers or months, which-
ever comes first.Miles x 1,000
(km x 1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Drive belts NOTE (1) I*MA-12
Air cleaner filter NOTE (2) [R]MA-15
EVAP vapor linesI*MA-19
Fuel linesI*MA-15
Fuel filter NOTE (3)—
Engine coolant NOTE (4) R*MA-12
Engine oil R R R R R R R RMA-16
Engine oil filter R R R R R R R RMA-16
Spark plugs (double PLATI-
NUM-TIPPED type)Replace every 105,000 miles (169,000 km).MA-17
Intake and exhaust valve
clearance*NOTE (5)EM-52
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months3.75
(6)
37.5
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Brake lines and cables I IMA-27
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I I MA-21
Transfer fluid and front final drive oil NOTE (1) I IMA-24,
MA-24
Rear final drive oil NOTE (1) I IMA-24,
MA-24
Steering gear, linkage, axle, and suspension
partsIIIIMA-28,
MA-29
Tire Rotation NOTE (2)MA-27
Drive shaft boots and propeller shaft (4WD) I I I IMA-24
Exhaust system I I I IMA-21
In-cabin microfilter R RAT C - 1 4 2

Load next 8 pages

Page: < prev 1-10 ... 2585-2592 2593-2600 2601-2608 2609-2616 2617-2624 2625-2632 2633-2640 2641-2648 2649-2656 ... 3376 next >

steering wheel refuelling ESP spare tire garage door opener CD changer
