BRC-44
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
3. CHECKING SOLENOID POWER AND GROUND
1. Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 and body ground.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E125 and body ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-66, "
Removal and Installation" .
NG >> Repair the circuit.
Actuator Motor, Motor Relay, and Circuit InspectionEFS003R4
INSPECTION PROCEDURE
1. CHECKING SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
Yes >> GO TO 2.
No >> Inspection End.
2. CONNECTOR INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.ABS actuator and electric
unit (control unit)
connector E125Body
groundMeasured
value
(Approx.)
32 (B/Y) — 12V
WFIA0195E
ABS actuator and electric
unit (control unit)
connector E125Body
groundMeasured
value Ω
(Approx.)
16 (B) — 0 Ω
47 (B) — 0 Ω
WFIA0196E
Self-diagnosis results
PUMP MOTOR
ACTUATOR RLY
Page 1058 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-45
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. CHECKING ABS MOTOR AND MOTOR RELAY POWER SYSTEM
1. Check voltage between A INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-45
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. CHECKING ABS MOTOR AND MOTOR RELAY POWER SYSTEM
1. Check voltage between A](/manual-img/42/57034/w960_57034-1057.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-45
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. CHECKING ABS MOTOR AND MOTOR RELAY POWER SYSTEM
1. Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 and body ground.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) connector E125 and body ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-66, "
Removal and Installation" .
NG >> Repair the circuit.
Stop Lamp Switch System InspectionEFS003R5
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
Yes >> GO TO 2.
No >> Inspection End.
2. CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125 and stop lamp switch connec-
tor E38.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.ABS actuator and electric
unit (control unit)
connector E125Body
groundMeasured
value
(Approx.)
1 (Y) — 12V
WFIA0209E
ABS actuator and electric
unit (control unit)
harness connector E125Body
groundMeasured
value Ω
(Approx.)
16 (B) — 0Ω
47 (B) — 0Ω
WFIA0196E
Self-diagnosis results
STOP LAMP SW
Page 1059 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-46
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
3. STOP LAMP SWITCH INSPECTION
Check the voltage between the ABS actuator and electric unit (con-
trol u INFINITI QX56 2004 Factory Service Manual BRC-46
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
3. STOP LAMP SWITCH INSPECTION
Check the voltage between the ABS actuator and electric unit (con-
trol u](/manual-img/42/57034/w960_57034-1058.png)

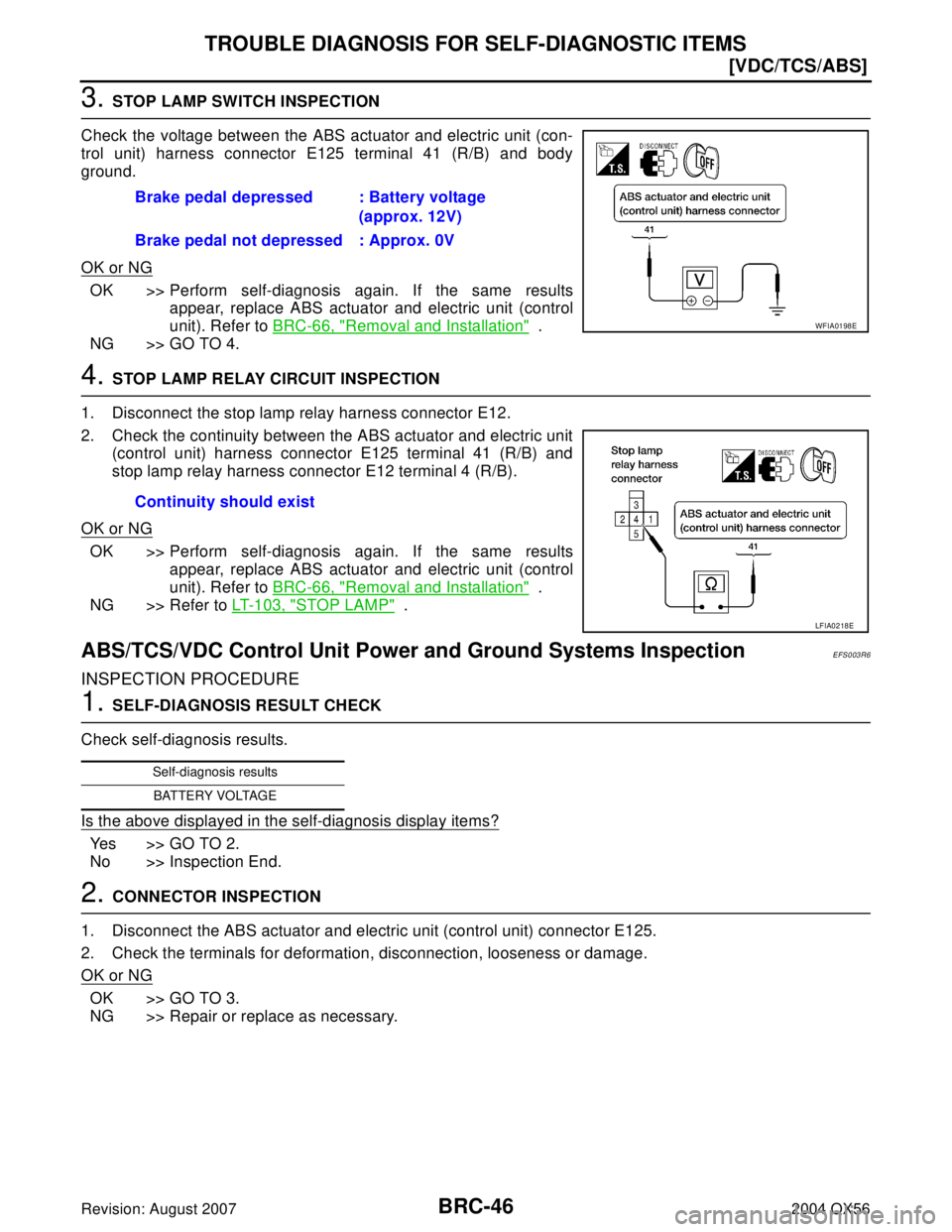

BRC-46
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
3. STOP LAMP SWITCH INSPECTION
Check the voltage between the ABS actuator and electric unit (con-
trol unit) harness connector E125 terminal 41 (R/B) and body
ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-66, "
Removal and Installation" .
NG >> GO TO 4.
4. STOP LAMP RELAY CIRCUIT INSPECTION
1. Disconnect the stop lamp relay harness connector E12.
2. Check the continuity between the ABS actuator and electric unit
(control unit) harness connector E125 terminal 41 (R/B) and
stop lamp relay harness connector E12 terminal 4 (R/B).
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-66, "
Removal and Installation" .
NG >> Refer to LT-103, "
STOP LAMP" .
ABS/TCS/VDC Control Unit Power and Ground Systems InspectionEFS003R6
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
Yes >> GO TO 2.
No >> Inspection End.
2. CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.Brake pedal depressed : Battery voltage
(approx. 12V)
Brake pedal not depressed : Approx. 0V
WFIA0198E
Continuity should exist
LFIA0218E
Self-diagnosis results
BATTERY VOLTAGE
Page 1060 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-47
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ABS/TCS/VDC CONTROL UNIT POWER AND GROUND CIRCUIT INSPECTION
Measure the v INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-47
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ABS/TCS/VDC CONTROL UNIT POWER AND GROUND CIRCUIT INSPECTION
Measure the v](/manual-img/42/57034/w960_57034-1059.png)

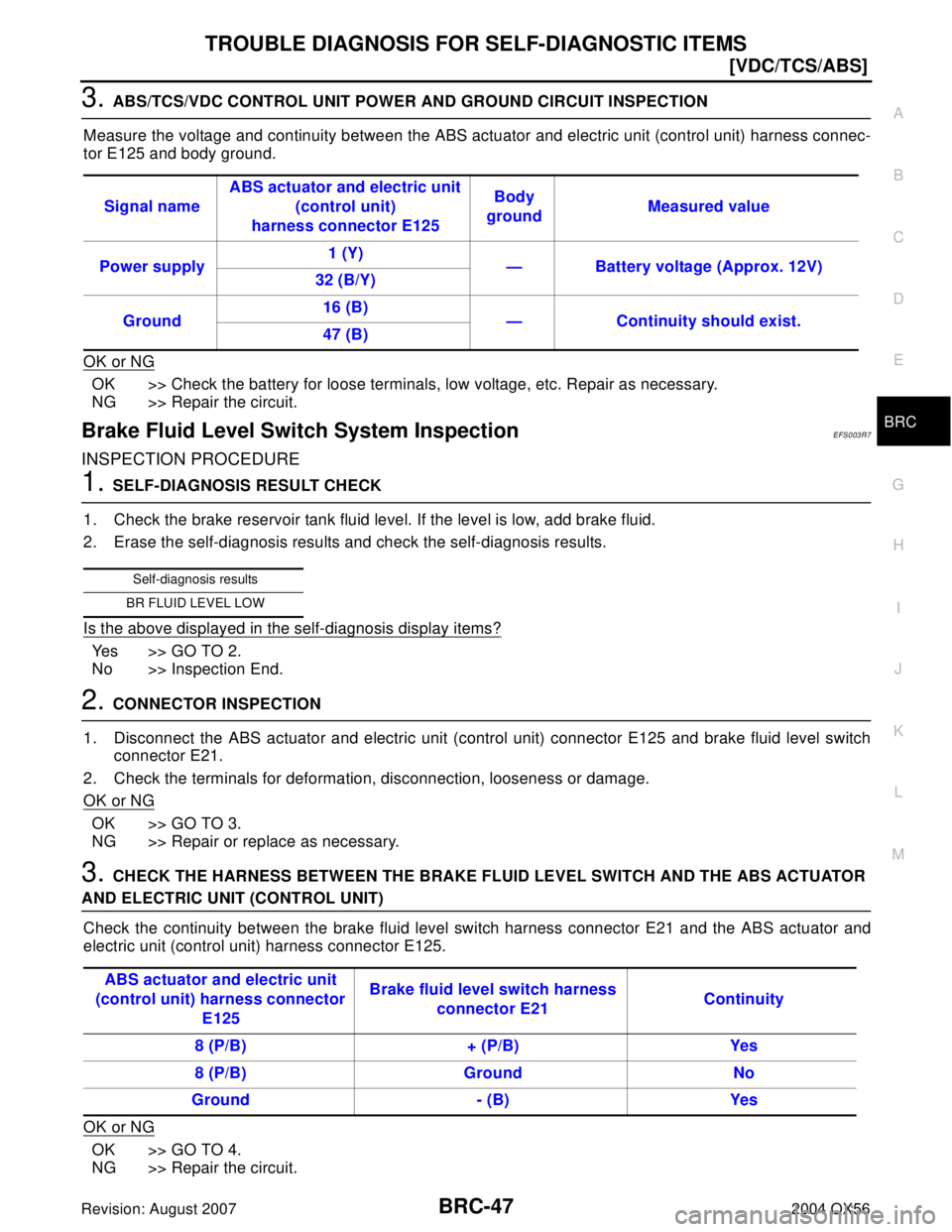

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-47
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ABS/TCS/VDC CONTROL UNIT POWER AND GROUND CIRCUIT INSPECTION
Measure the voltage and continuity between the ABS actuator and electric unit (control unit) harness connec-
tor E125 and body ground.
OK or NG
OK >> Check the battery for loose terminals, low voltage, etc. Repair as necessary.
NG >> Repair the circuit.
Brake Fluid Level Switch System InspectionEFS003R7
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
1. Check the brake reservoir tank fluid level. If the level is low, add brake fluid.
2. Erase the self-diagnosis results and check the self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
Yes >> GO TO 2.
No >> Inspection End.
2. CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125 and brake fluid level switch
connector E21.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3. CHECK THE HARNESS BETWEEN THE BRAKE FLUID LEVEL SWITCH AND THE ABS ACTUATOR
AND ELECTRIC UNIT (CONTROL UNIT)
Check the continuity between the brake fluid level switch harness connector E21 and the ABS actuator and
electric unit (control unit) harness connector E125.
OK or NG
OK >> GO TO 4.
NG >> Repair the circuit.Signal nameABS actuator and electric unit
(control unit)
harness connector E125Body
groundMeasured value
Power supply1 (Y)
— Battery voltage (Approx. 12V)
32 (B/Y)
Ground16 (B)
— Continuity should exist.
47 (B)
Self-diagnosis results
BR FLUID LEVEL LOW
ABS actuator and electric unit
(control unit) harness connector
E125Brake fluid level switch harness
connector E21Continuity
8 (P/B) + (P/B) Yes
8 (P/B) Ground No
Ground - (B) Yes
Page 1061 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
4. CHECK BRAKE FLUID LEVEL SWITCH
Check continuity between brake fluid level switch terminals + and -.
O INFINITI QX56 2004 Factory Service Manual BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
4. CHECK BRAKE FLUID LEVEL SWITCH
Check continuity between brake fluid level switch terminals + and -.
O](/manual-img/42/57034/w960_57034-1060.png)
BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
4. CHECK BRAKE FLUID LEVEL SWITCH
Check continuity between brake fluid level switch terminals + and -.
OK or NG
OK >> Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit
(control unit). Refer to BRC-66, "
Removal and Installation" .
NG >> Replace brake fluid level switch.
Active Booster System InspectionEFS003R8
INSPECTION PROCEDURE
1. DISPLAY SELF DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the active booster connector E49 and ABS actuator and electric unit (control unit) connector
E125 and inspect the terminals for deformation, disconnection, looseness, or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair connector.Continuity should not exist.
Self-diagnosis results
ACTIVE BOOSTER SOLENOID NG
ACTIVE BOOSTER RESPONSE NG
BRAKE RELEASE SWITCH NG
BRAKE BOOSTER DEFECT
Page 1062 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-49
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ACTIVE BOOSTER CIRCUIT INSPECTION
1. Measure the continuity between the AB INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-49
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ACTIVE BOOSTER CIRCUIT INSPECTION
1. Measure the continuity between the AB](/manual-img/42/57034/w960_57034-1061.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-49
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
3. ACTIVE BOOSTER CIRCUIT INSPECTION
1. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and
active booster connector E49.
2. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and body
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connector.
4. ACTIVE BOOSTER SENSOR INSPECTION
1. Reconnect the active booster and ABS actuator and electric unit (control unit) connectors.
2. Use "DATA MONITOR" to check if the status of "RELEASE SW NO" and "RELEASE SW NC" is normal.
OK or NG
OK >> Inspection End.
NG >> Replace active booster.
Delta Stroke Sensor System InspectionEFS003R9
INSPECTION PROCEDURE
1. DISPLAY SELF DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.ABS actuator and electric unit
(control unit) connector E125Active booster connector
E49Continuity
17 (W/R) 3 (W/R)
Ye s 27 (L/B) 1 (L/B)
28 (Y/B) 5 (Y/B)
30 (LG/R) 2 (LG/R)
31 (W/G) 4 (W/G)
ABS actuator and electric unit
(control unit) connector E125Body ground Continuity
17 (W/R)
—No 27 (L/B)
28 (Y/B)
30 (LG/R)
31 (W/G)
ConditionData monitor display
RELEASE SW NO RELEASE SW NC
When brake pedal is depressed ON OFF
When brake pedal is released OFF ON
Self-diagnosis results
DELTA S SEN NG
Page 1063 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the delta stroke sensor connector INFINITI QX56 2004 Factory Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the delta stroke sensor connector](/manual-img/42/57034/w960_57034-1062.png)

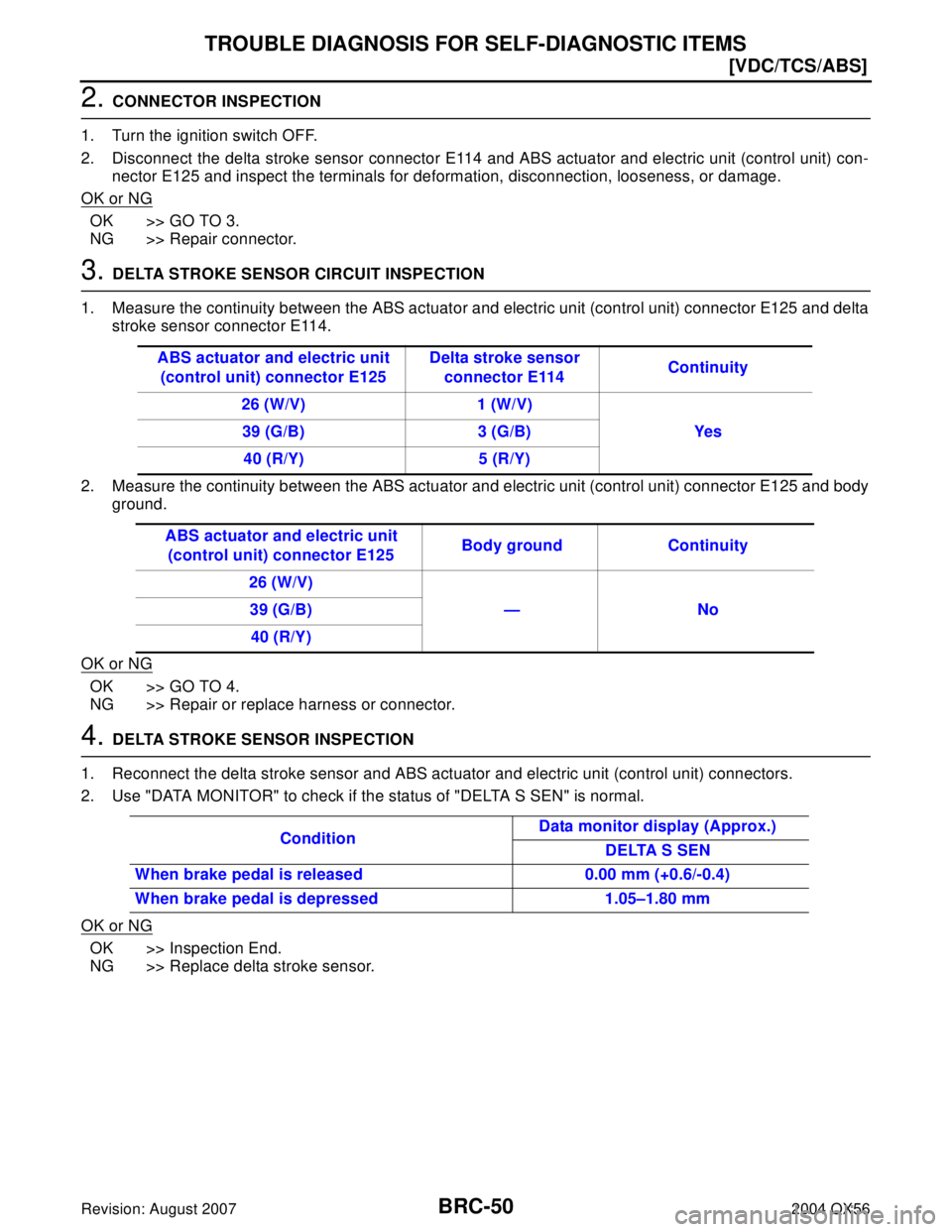

BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the delta stroke sensor connector E114 and ABS actuator and electric unit (control unit) con-
nector E125 and inspect the terminals for deformation, disconnection, looseness, or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair connector.
3. DELTA STROKE SENSOR CIRCUIT INSPECTION
1. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and delta
stroke sensor connector E114.
2. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and body
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connector.
4. DELTA STROKE SENSOR INSPECTION
1. Reconnect the delta stroke sensor and ABS actuator and electric unit (control unit) connectors.
2. Use "DATA MONITOR" to check if the status of "DELTA S SEN" is normal.
OK or NG
OK >> Inspection End.
NG >> Replace delta stroke sensor.ABS actuator and electric unit
(control unit) connector E125Delta stroke sensor
connector E114Continuity
26 (W/V) 1 (W/V)
Yes 39 (G/B) 3 (G/B)
40 (R/Y) 5 (R/Y)
ABS actuator and electric unit
(control unit) connector E125Body ground Continuity
26 (W/V)
—No 39 (G/B)
40 (R/Y)
ConditionData monitor display (Approx.)
DELTA S SEN
When brake pedal is released 0.00 mm (+0.6/-0.4)
When brake pedal is depressed 1.05–1.80 mm
Page 1064 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Pressure Sensor System InspectionEF S0 03 RA
FRONT PRESSURE INSPECTION PROCED INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Pressure Sensor System InspectionEF S0 03 RA
FRONT PRESSURE INSPECTION PROCED](/manual-img/42/57034/w960_57034-1063.png)

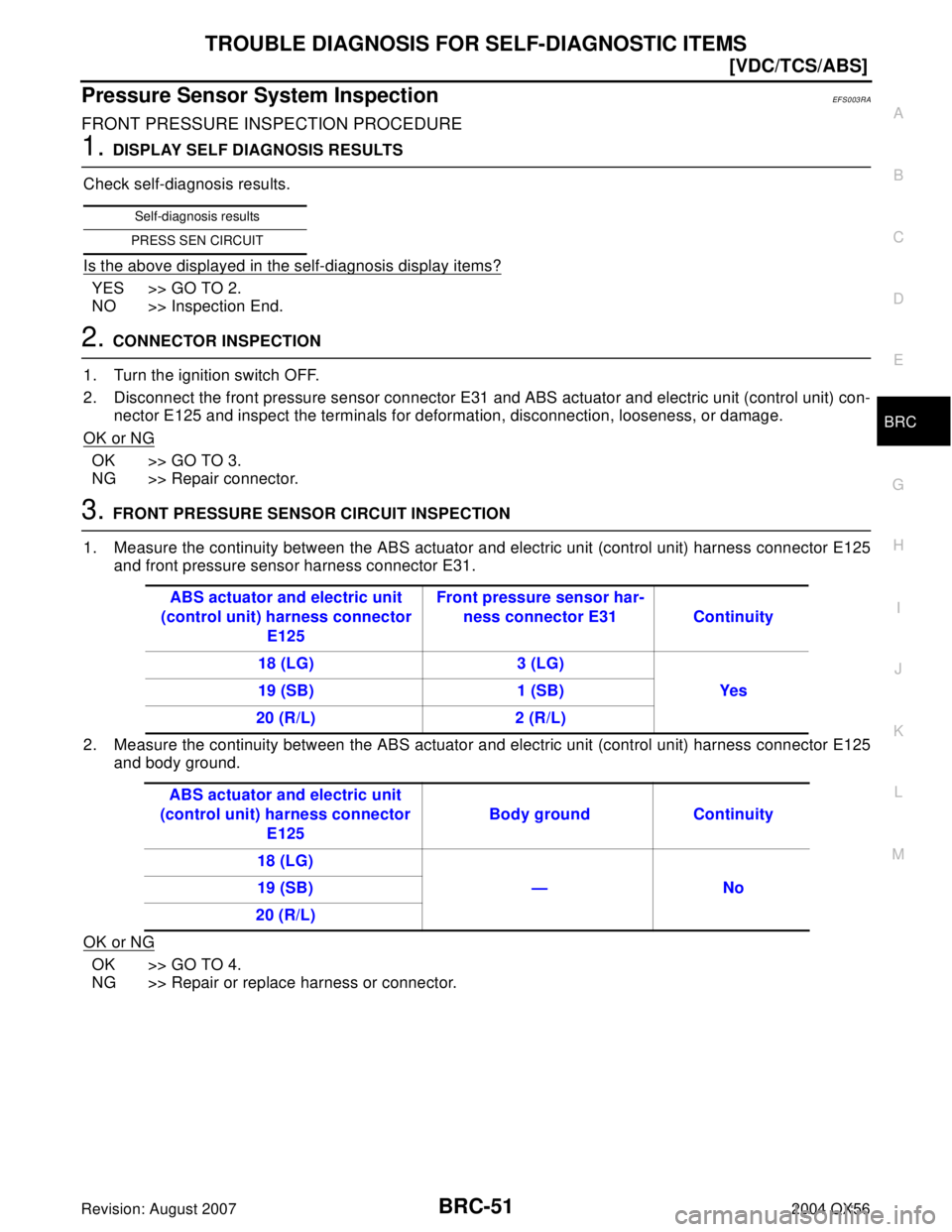

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Pressure Sensor System InspectionEF S0 03 RA
FRONT PRESSURE INSPECTION PROCEDURE
1. DISPLAY SELF DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the front pressure sensor connector E31 and ABS actuator and electric unit (control unit) con-
nector E125 and inspect the terminals for deformation, disconnection, looseness, or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair connector.
3. FRONT PRESSURE SENSOR CIRCUIT INSPECTION
1. Measure the continuity between the ABS actuator and electric unit (control unit) harness connector E125
and front pressure sensor harness connector E31.
2. Measure the continuity between the ABS actuator and electric unit (control unit) harness connector E125
and body ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connector.
Self-diagnosis results
PRESS SEN CIRCUIT
ABS actuator and electric unit
(control unit) harness connector
E125Front pressure sensor har-
ness connector E31 Continuity
18 (LG) 3 (LG)
Yes 19 (SB) 1 (SB)
20 (R/L) 2 (R/L)
ABS actuator and electric unit
(control unit) harness connector
E125Body ground Continuity
18 (LG)
—No 19 (SB)
20 (R/L)
