Page 1545 of 3371

INFINITI QX56 2004 Factory Service Manual EC-354Revision: August 2007
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2004 QX56
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATERPFP:22693
DescriptionUBS00H71
SYSTEM DESCRIPTION
The ECM perf

EC-354Revision: August 2007
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2004 QX56
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATERPFP:22693
DescriptionUBS00H71
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeUBS00H72
Specification data are reference values.
On Board Diagnosis LogicUBS00H73
DTC Confirmation ProcedureUBS00H74
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-358, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Air fuel ratio (A/F) sensor 1
heater controlAir fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1031
1031
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
lowThe current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)
A/F sensor 1 heater P1051
1051
(Bank 2)
P1032
1032
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
highThe current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)
A/F sensor 1 heater P1052
1052
(Bank 2)
SEF 0 58 Y

Page 1546 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-355
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

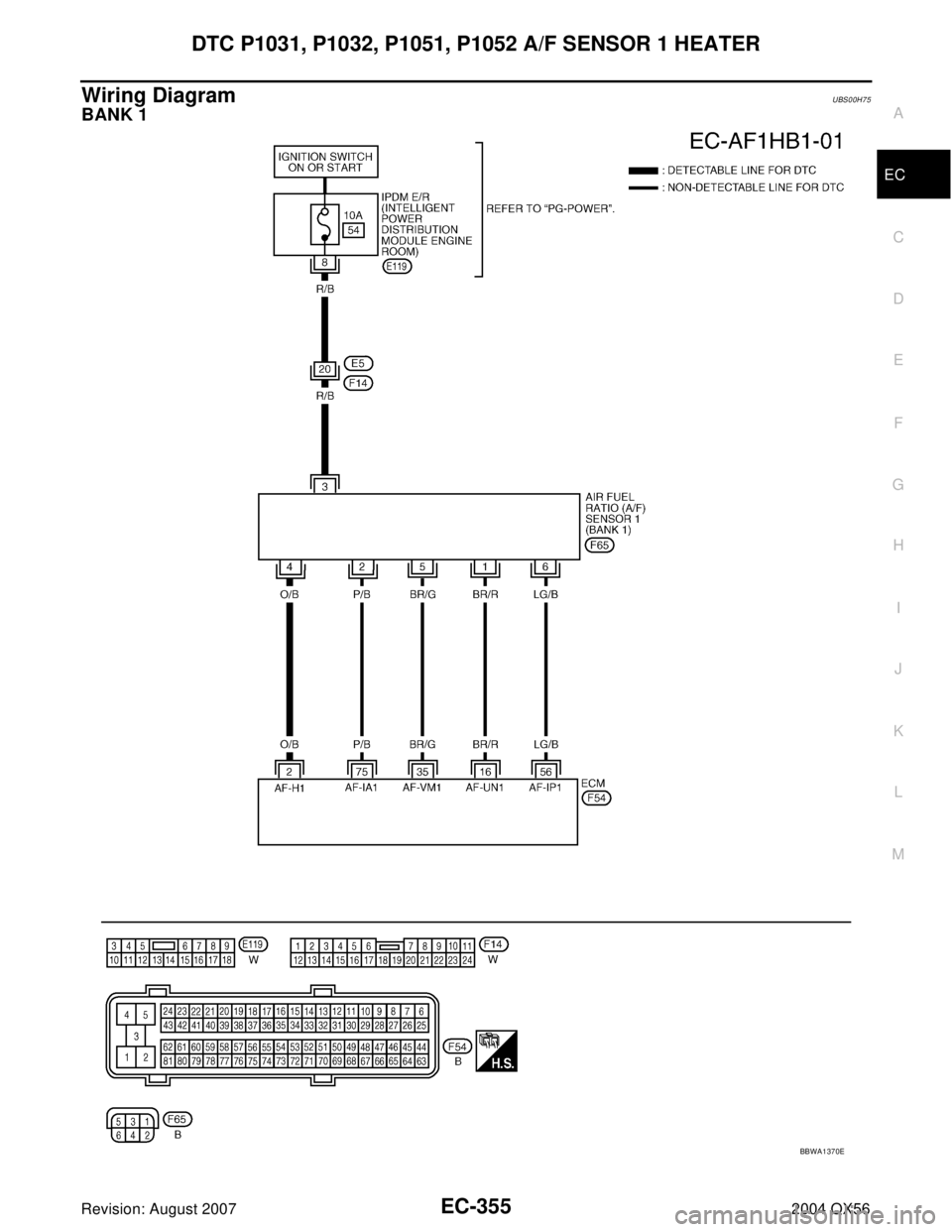

Wiring DiagramUBS00H75
BANK 1
BBWA1370E

Page 1547 of 3371

INFINITI QX56 2004 Factory Service Manual EC-356Revision: August 2007
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2004 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is meas

Page 1548 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-357
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

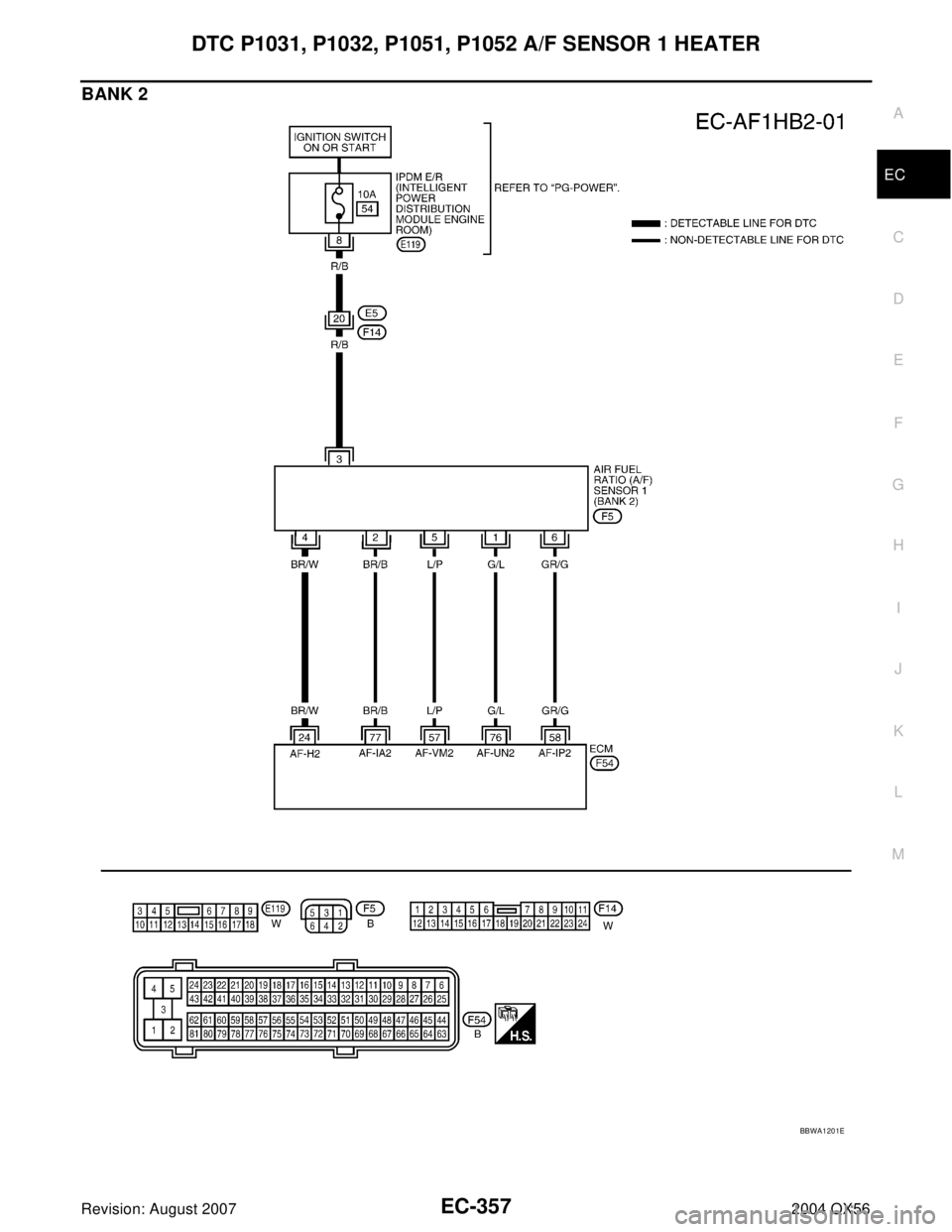

BANK 2
BBWA1201E

Page 1549 of 3371

INFINITI QX56 2004 Factory Service Manual EC-358Revision: August 2007
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2004 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is meas

Page 1550 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-359
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ra

Page 1551 of 3371

INFINITI QX56 2004 Factory Service Manual EC-360Revision: August 2007
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2004 QX56
6. CHECK INTERMITTENT INCIDENT
Perform EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >>

Page 1552 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P1065 ECM POWER SUPPLY
EC-361
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionUBS00H79
Battery voltage is supplied to the ECM even
