Page 2657 of 3371

INFINITI QX56 2004 Factory Service Manual PB-8
PARKING BRAKE SHOE
Revision: August 20072004 QX56
CAUTION:
To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after
every break-in operation.
Do not perf

Page 2658 of 3371

INFINITI QX56 2004 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PB-9
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: August 20072004 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake EFS003Q8
Unit: mm (in)
Parking Bra

Page 2659 of 3371

INFINITI QX56 2004 Factory Service Manual PB-10
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: August 20072004 QX56

Page 2660 of 3371

INFINITI QX56 2004 Factory Service Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: August 20072004 QX56 PRECAUTIONS ...................................................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
POWER SUPPLY ROUTING CIRCUIT ...................... 4
Schematic ................................................................ 4
Wiring Diagram — POWER — ................................. 6
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 6
ACCESSORY POWER SUPPLY — IGNITION
SW. IN ACC OR ON .............................................11
IGNITION POWER SUPPLY — IGNITION SW.
IN ON .................................................................. 12
IGNITION POWER SUPPLY — IGNITION SW.
IN ON AND/OR START ....................................... 13
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 17
System Description ................................................ 17
SYSTEMS CONTROLLED BY IPDM E/R ........... 17
CAN COMMUNICATION LINE CONTROL ......... 17
IPDM E/R STATUS CONTROL ........................... 18
CAN Communication System Description .............. 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function (IPDM E/R) ......................... 19
CONSULT-II BASIC OPERATION ...................... 19
SELF-DIAGNOSTIC RESULTS .......................... 20
DATA MONITOR ................................................. 20
ACTIVE TEST ..................................................... 22
Auto Active Test ..................................................... 23
DESCRIPTION .................................................... 23
OPERATION PROCEDURE ............................... 23
INSPECTION IN AUTO ACTIVE TEST MODE ... 23
Schematic .............................................................. 25
IPDM E/R Terminal Arrangement ........................... 26
IPDM E/R Power/Ground Circuit Inspection .......... 27
Inspection with CONSULT-II (Self-Diagnosis) ........ 28
Removal and Installation of IPDM E/R ................... 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 29GROUND CIRCUIT ................................................... 30
Ground Distribution ................................................. 30
MAIN HARNESS ................................................. 30
ENGINE ROOM HARNESS ................................ 33
ENGINE CONTROL HARNESS .......................... 36
BODY HARNESS ................................................ 37
BODY NO. 2 HARNESS ..................................... 38
BACK DOOR NO. 2 RH HARNESS .................... 39
HARNESS ................................................................. 40
Harness Layout ...................................................... 40
HOW TO READ HARNESS LAYOUT ................. 40
OUTLINE ............................................................. 41
MAIN HARNESS ................................................. 42
ENGINE ROOM HARNESS (LH VIEW) .............. 44
ENGINE ROOM HARNESS (RH VIEW) ............. 47
ENGINE CONTROL HARNESS .......................... 49
CHASSIS HARNESS .......................................... 51
BODY HARNESS ................................................ 53
BODY NO. 2 HARNESS ..................................... 55
ROOM LAMP HARNESS .................................... 57
FRONT DOOR LH HARNESS ............................ 58
FRONT DOOR RH HARNESS ............................ 58
REAR DOOR LH HARNESS ............................... 59
REAR DOOR RH HARNESS .............................. 59
BACK DOOR HARNESS .................................... 60
Wiring Diagram Codes (Cell Codes) ...................... 61
ELECTRICAL UNITS LOCATION ............................ 64
Electrical Units Location ......................................... 64
ENGINE COMPARTMENT .................................. 64
PASSENGER COMPARTMENT ......................... 65
Fuse ........................................................................ 67
Fusible Link ............................................................ 67
Circuit Breaker (Built Into BCM) ............................. 67
HARNESS CONNECTOR ......................................... 68
Description .............................................................. 68
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 68
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 69
HARNESS CONNECTOR (DIRECT-CONNECT

Page 2661 of 3371

INFINITI QX56 2004 Factory Service Manual PG-2Revision: August 20072004 QX56 SRS COMPONENT TYPE) ................................. 70
ELECTRICAL UNITS ................................................ 71
Terminal Arrangement ...............

Page 2662 of 3371

INFINITI QX56 2004 Factory Service Manual PRECAUTIONS
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS

PRECAUTIONS
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS007NJ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WA RN ING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Wiring Diagrams and Trouble DiagnosisEKS007NK
When you read wiring diagrams, refer to the following:
Refer to GI-15, "How to Read Wiring Diagrams" in GI section.
Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" for power distribution.
When you perform trouble diagnosis, refer to the following:
Refer to GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section.
Refer to GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section.

Page 2663 of 3371

INFINITI QX56 2004 Factory Service Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: August 20072004 QX56

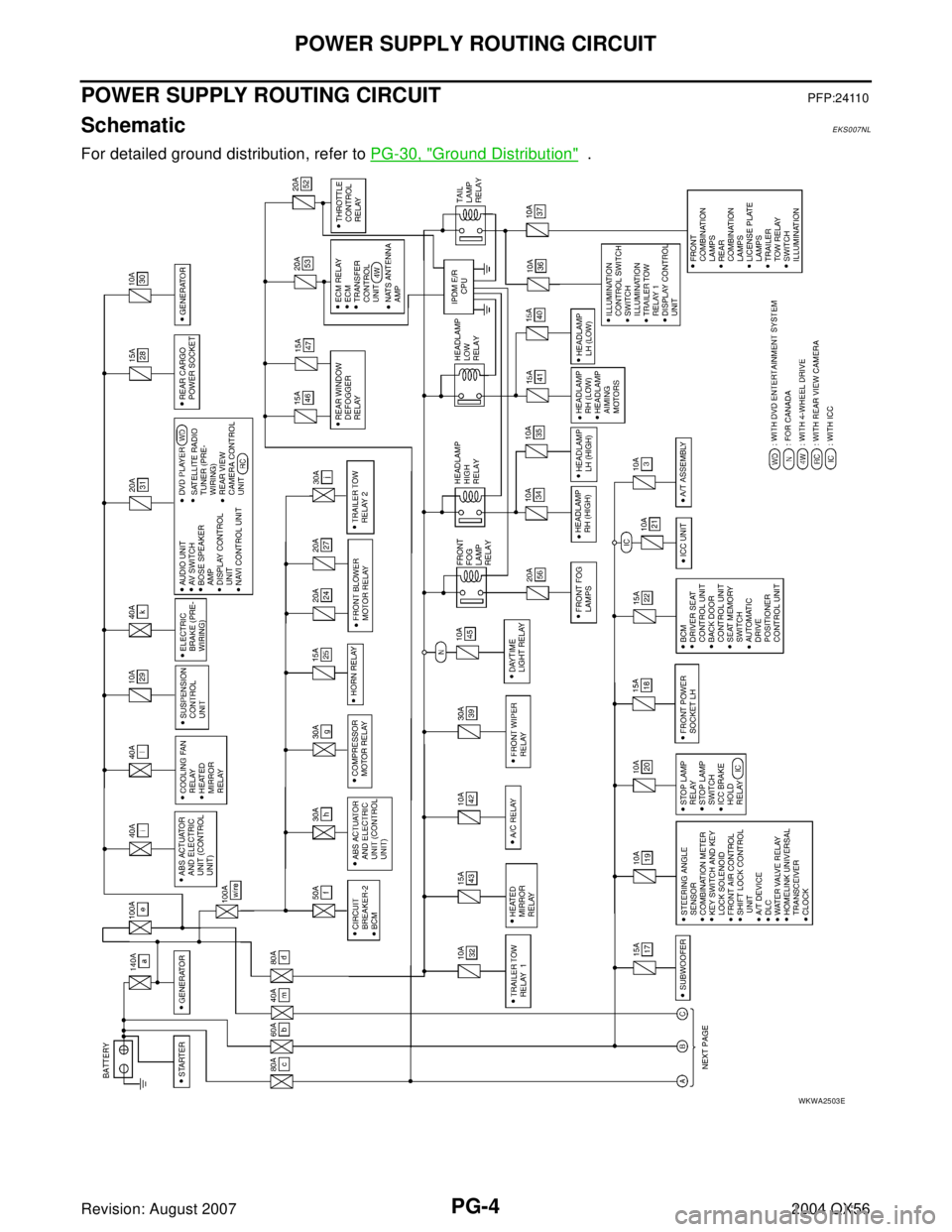

POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicEKS007NL
For detailed ground distribution, refer to PG-30, "Ground Distribution" .
WKWA

Page 2664 of 3371

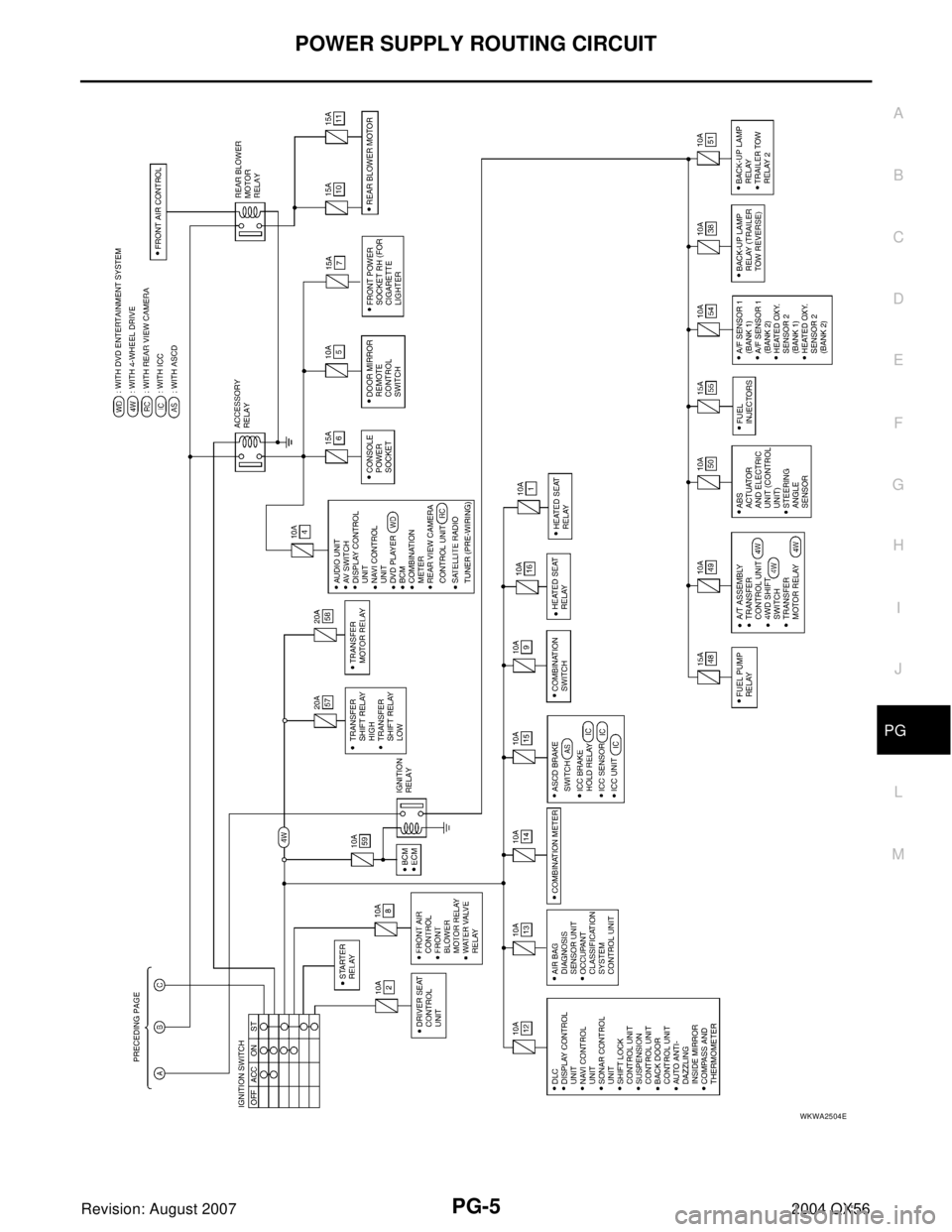

INFINITI QX56 2004 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
WKWA2504E
