Page 1881 of 3371

INFINITI QX56 2004 Factory Service Manual EI-40
LUGGAGE FLOOR TRIM
Revision: August 20072004 QX56
REMOVAL
1. Remove 2nd and 3rd row seat belts. Refer to SB-3, "SEAT BELTS" .
2. Remove third row seat belt buckles.
3. Remove third row seat ass

Page 1882 of 3371

INFINITI QX56 2004 Factory Service Manual BACK DOOR TRIM
EI-41
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: August 20072004 QX56
BACK DOOR TRIMPFP:90900
Removal and InstallationEIS002XN
1. Disconnect door open/close link. Refer to BL-136, "BACK DOOR L

Page 1883 of 3371

INFINITI QX56 2004 Factory Service Manual EI-42
BACK DOOR TRIM
Revision: August 20072004 QX56

Page 1884 of 3371

INFINITI QX56 2004 Factory Service Manual EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 3
Precautions for

EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 3
Precautions for Drain Engine Coolant ...................... 3
Precautions for Disconnecting Fuel Piping .............. 3
Precautions for Removal and Disassembly ............. 3
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 3
Precautions for Assembly and Installation ............... 3
Parts Requiring Angular Tightening ......................... 3
Precautions for Liquid Gasket .................................. 4
REMOVAL OF LIQUID GASKET SEALING .......... 4
LIQUID GASKET APPLICATION PROCEDURE ..... 4
PREPARATION ........................................................... 5

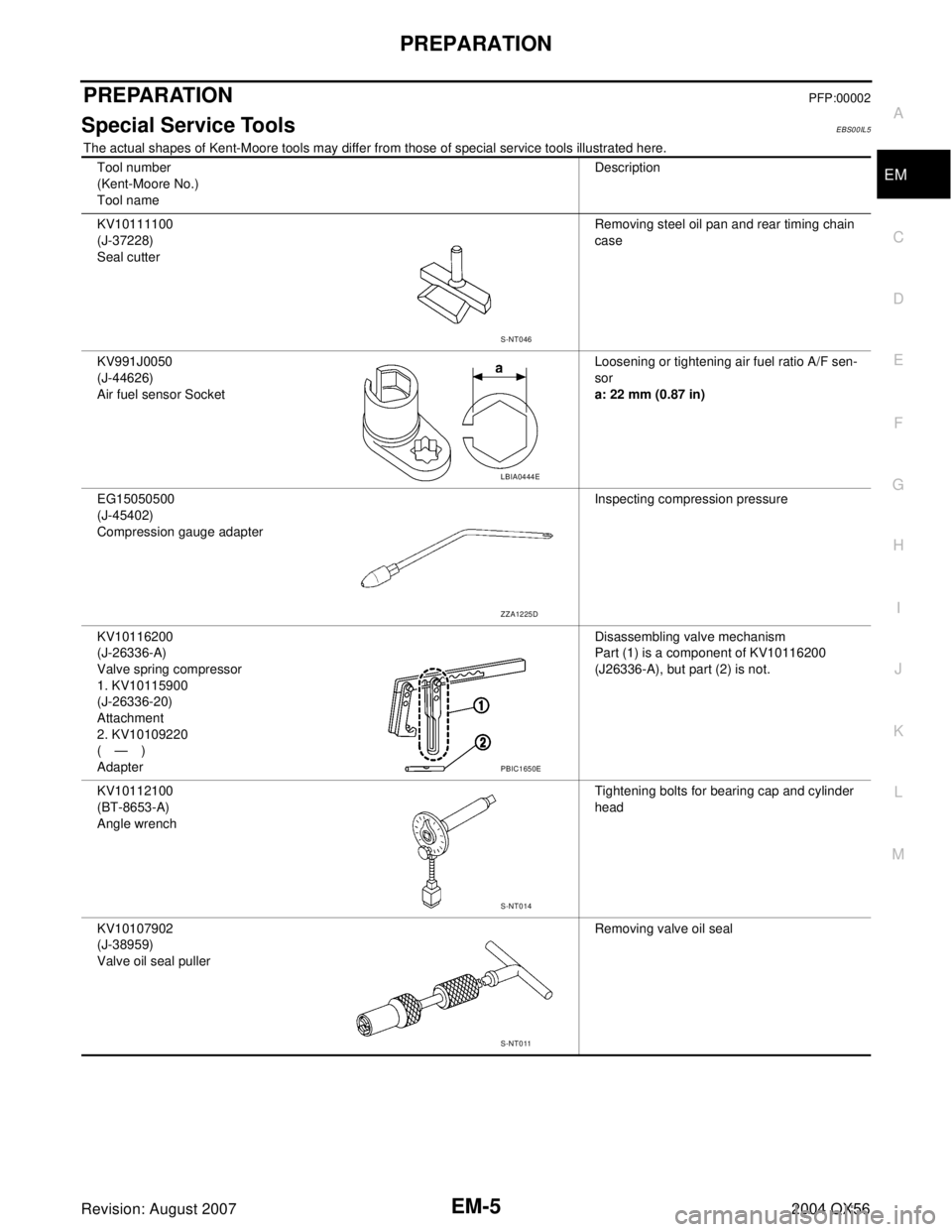

Special Service Tools ............................................... 5
Commercial Service Tools ........................................ 7
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 9
NVH Troubleshooting —Engine Noise ..................... 9
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 10
ENGINE ROOM COVER ...........................................11
Removal and Installation .........................................11
REMOVAL ............................................................11
INSTALLATION ....................................................11
DRIVE BELTS ........................................................... 12
Checking Drive Belts .............................................. 12
Tension Adjustment ................................................ 12
Removal and Installation ........................................ 12
DRIVE BELT ....................................................... 12
INSTALLATION ................................................... 13
Drive Belt Auto Tensioner and Idler Pulley ............. 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
AIR CLEANER AND AIR DUCT ............................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSTALLATION ................................................... 14
CHANGING AIR CLEANER FILTER ................... 14INTAKE MANIFOLD ................................................. 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ................ 18
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST .......................................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSPECTION AFTER REMOVAL ....................... 20
INSTALLATION ................................................... 20
OIL PAN AND OIL STRAINER ................................. 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 25
IGNITION COIL ......................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
SPARK PLUG (PLATINUM-TIPPED TYPE) ............. 27
Removal and Installation ........................................ 27
REMOVAL ........................................................... 27
INSPECTION AFTER REMOVAL ....................... 27
INSTALLATION ................................................... 28
FUEL INJECTOR AND FUEL TUBE ........................ 29
Removal and Installation ........................................ 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
INSPECTION AFTER INSTALLATION ................ 32
ROCKER COVER ..................................................... 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 34
TIMING CHAIN .......................................................... 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 36
INSPECTION AFTER REMOVAL ....................... 39
INSTALLATION ................................................... 39

Page 1885 of 3371

INFINITI QX56 2004 Factory Service Manual EM-2Revision: August 20072004 QX56 CAMSHAFT ............................................................... 43
Removal and Installation ........................................ 43
REMOVAL ...........

EM-2Revision: August 20072004 QX56 CAMSHAFT ............................................................... 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ........................ 47
INSTALLATION .................................................... 49
Valve Clearance ...................................................... 52
INSPECTION ....................................................... 52
ADJUSTMENT .................................................... 54
OIL SEAL .................................................................. 56
Removal and Installation of Valve Oil Seal ............. 56
REMOVAL ........................................................... 56
INSTALLATION .................................................... 56
Removal and Installation of Front Oil Seal ............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 57
Removal and Installation of Rear Oil Seal .............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 58
CYLINDER HEAD ..................................................... 59
On-Vehicle Service ................................................. 59
CHECKING COMPRESSION PRESSURE ......... 59
Removal and Installation ........................................ 60
REMOVAL ........................................................... 60
INSPECTION AFTER REMOVAL ........................ 61
INSTALLATION .................................................... 61
Disassembly and Assembly .................................... 62
DISASSEMBLY ................................................... 62
ASSEMBLY ......................................................... 63
Inspection After Disassembly ................................. 64
CYLINDER HEAD DISTORTION ........................ 64
VALVE DIMENSIONS .......................................... 65
VALVE GUIDE CLEARANCE .............................. 66
VALVE GUIDE REPLACEMENT ......................... 66
VALVE SEAT CONTACT ..................................... 68
VALVE SEAT REPLACEMENT ........................... 68
VALVE SPRING SQUARENESS ......................... 69
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 69
ENGINE ASSEMBLY ................................................ 70
Removal and Installation ........................................ 70
REMOVAL ........................................................... 70
INSTALLATION .................................................... 71
INSPECTION AFTER INSTALLATION ................ 72
CYLINDER BLOCK ................................................... 73
Disassembly and Assembly .................................... 73
DISASSEMBLY ................................................... 74ASSEMBLY ..........................................................77
How to Select Piston and Bearing ..........................82
DESCRIPTION ....................................................82
HOW TO SELECT PISTON .................................83
HOW TO SELECT CONNECTING ROD BEAR-
ING .......................................................................84
HOW TO SELECT MAIN BEARING ....................85
Inspection After Disassembly ..................................89
CRANKSHAFT END PLAY ..................................89
CONNECTING ROD SIDE CLEARANCE ...........89
PISTON AND PISTON PIN CLEARANCE ...........89
PISTON RING SIDE CLEARANCE .....................90
PISTON RING END GAP ....................................90
CONNECTING ROD BEND AND TORSION .......91
CONNECTING ROD BEARING (BIG END) ........91
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) ...........................................91
CYLINDER BLOCK DISTORTION ......................92
MAIN BEARING HOUSING INSIDE DIAMETER ...93
PISTON TO CYLINDER BORE CLEARANCE ....93
CRANKSHAFT JOURNAL DIAMETER ...............94
CRANKSHAFT PIN DIAMETER ..........................95
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT .................................................................95
CRANKSHAFT RUNOUT ....................................95
CONNECTING ROD BEARING OIL CLEAR-
ANCE ...................................................................95
MAIN BEARING OIL CLEARANCE .....................96
CRUSH HEIGHT OF MAIN BEARING ................97
CRUSH HEIGHT OF CONNECTING ROD
BEARING .............................................................97
MAIN BEARING CAP BOLT DIAMETER .............97
CONNECTING ROD BOLT DIAMETER ..............98
SERVICE DATA AND SPECIFICATIONS (SDS) ......99
Standard and Limit ..................................................99
GENERAL SPECIFICATIONS .............................99
DRIVE BELTS ......................................................99
EXHAUST MANIFOLD ........................................99
CAMSHAFT AND CAMSHAFT BEARING ......... 100
CYLINDER HEAD .............................................. 102
CYLINDER BLOCK ............................................ 104
PISTON, PISTON RING AND PISTON PIN ...... 105
CONNECTING ROD .......................................... 105
CRANKSHAFT ................................................... 106
MAIN BEARING ................................................. 107

Page 1886 of 3371

INFINITI QX56 2004 Factory Service Manual PRECAUTIONS
EM-3
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Drain Engine CoolantEBS00IKY
Drain engine coolant when engine is cooled.
Precautions for

PRECAUTIONS
EM-3
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Drain Engine CoolantEBS00IKY
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00IKZ
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disconnecting and disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00IL0
When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementEBS00IL1
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00IL2
Use torque wrench to tighten bolts or nuts to specification.
When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
Replace with new gasket, packing, oil seal or O-ring.
Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.
Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
Release air within route when refilling after draining engine coolant.
Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine
stopped). Then make sure that there are no leaks at fuel line connections.
After repairing, start engine and increase engine speed to check engine coolant, fuel, oil, and exhaust
systems for leakage.
Parts Requiring Angular TighteningEBS00IL3
For final tightening of the following engine parts use Tool:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap bolts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angle
tightening)
Do not use a torque value for final tightening.
The torque value for these parts are for a preliminary step.
Ensure thread and seat surfaces are clean and lightly coated with engine oil. Tool number : KV10112100 (BT-8653-A)

Page 1887 of 3371

INFINITI QX56 2004 Factory Service Manual EM-4Revision: August 2007
PRECAUTIONS
2004 QX56
Precautions for Liquid GasketEBS00IL4
REMOVAL OF LIQUID GASKET SEALING
After removing the bolts and nuts, separate the mating surface
and remove the ol

Page 1888 of 3371

INFINITI QX56 2004 Factory Service Manual PREPARATION
EM-5
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00IL5
The actual shapes of Kent-Moore tools may differ from those of special serv

Load next 8 pages
