Page 2289 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-26 [CAN] CAN SYSTEM (TYPE 1) Revision: August 20072004 QX56 Case 2 Check harness between driver seat control unit and data link connector. Refer to LAN-41, "Circuit Check Between Driver Seat Contr

Page 2290 of 3371

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-27 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 3 Check harness between data link connector and IPDM E/R. Refer to LAN-42, "Circuit Check Between Data L

Page 2291 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-28 [CAN] CAN SYSTEM (TYPE 1) Revision: August 20072004 QX56 Case 4 Check ECM circuit. Refer to LAN-43, "ECM Circuit Check" . PKIA8053E PKIA8145E

Page 2292 of 3371

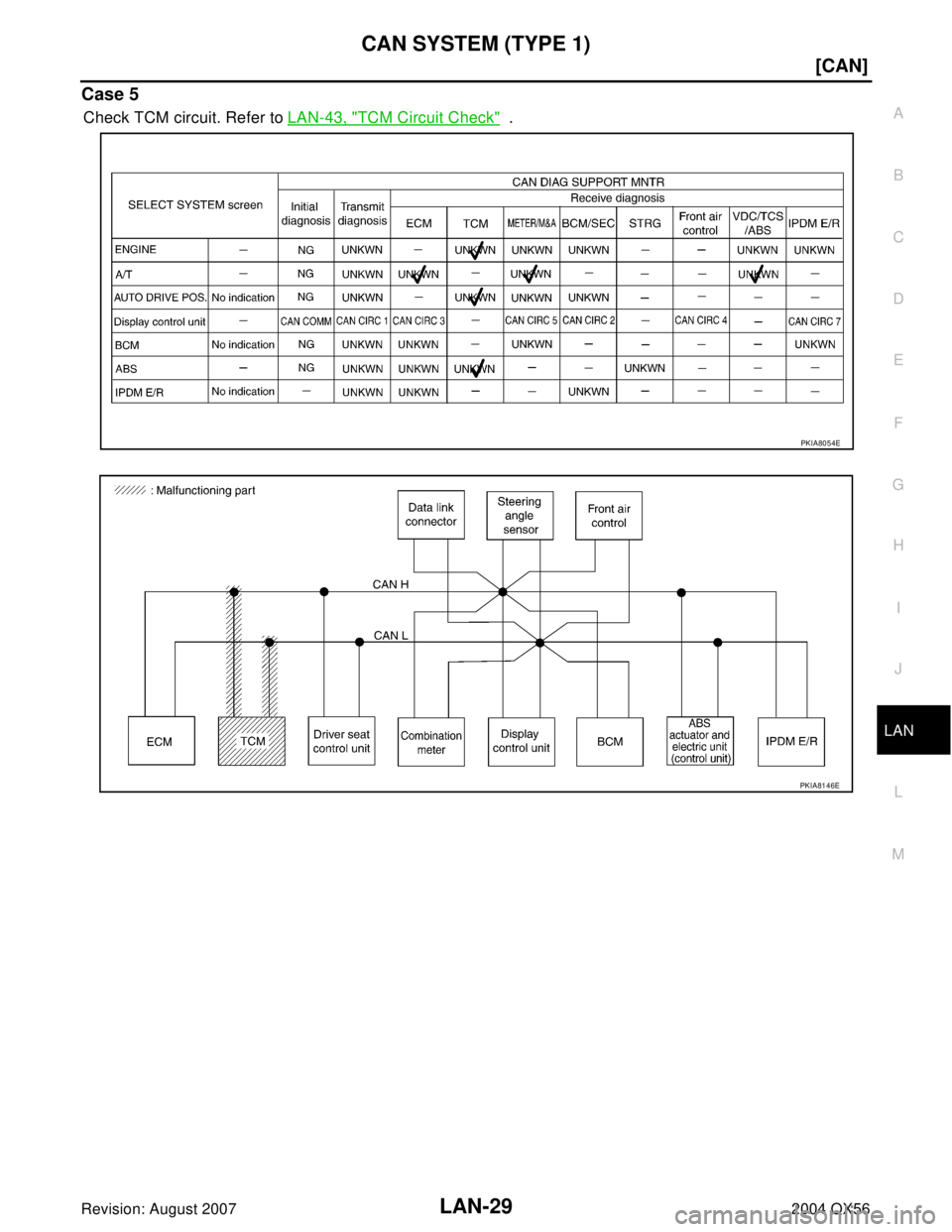

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-29 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 5 Check TCM circuit. Refer to LAN-43, "TCM Circuit Check" . PKIA8054E PKIA8146E

Page 2293 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-30 [CAN] CAN SYSTEM (TYPE 1) Revision: August 20072004 QX56 Case 6 Check driver seat control unit circuit. Refer to LAN-44, "Driver Seat Control Unit Circuit Check" . PKIA8055E PKIA8147E

Page 2294 of 3371

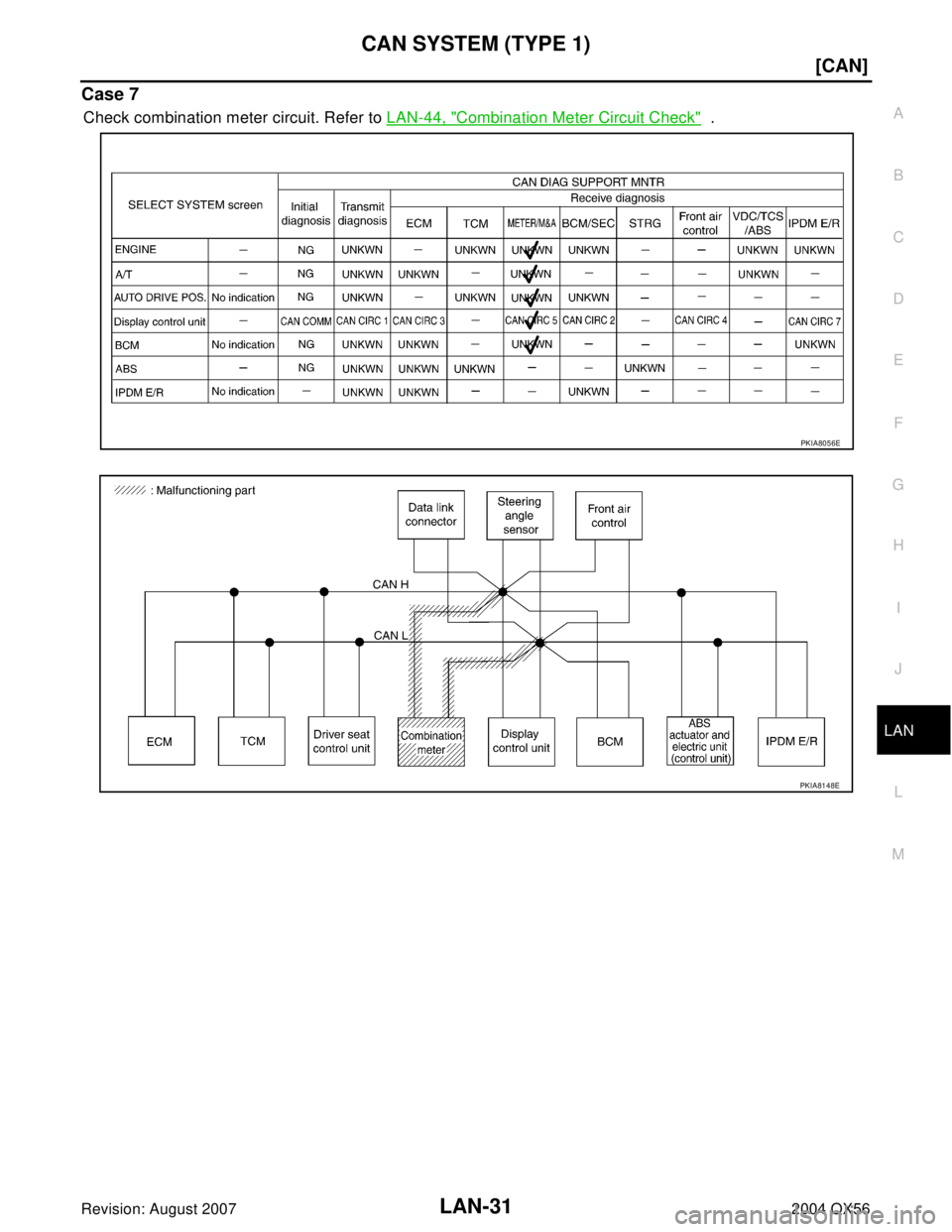

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-31 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 7 Check combination meter circuit. Refer to LAN-44, "Combination Meter Circuit Check" . PKIA8056E PKIA8

Page 2295 of 3371

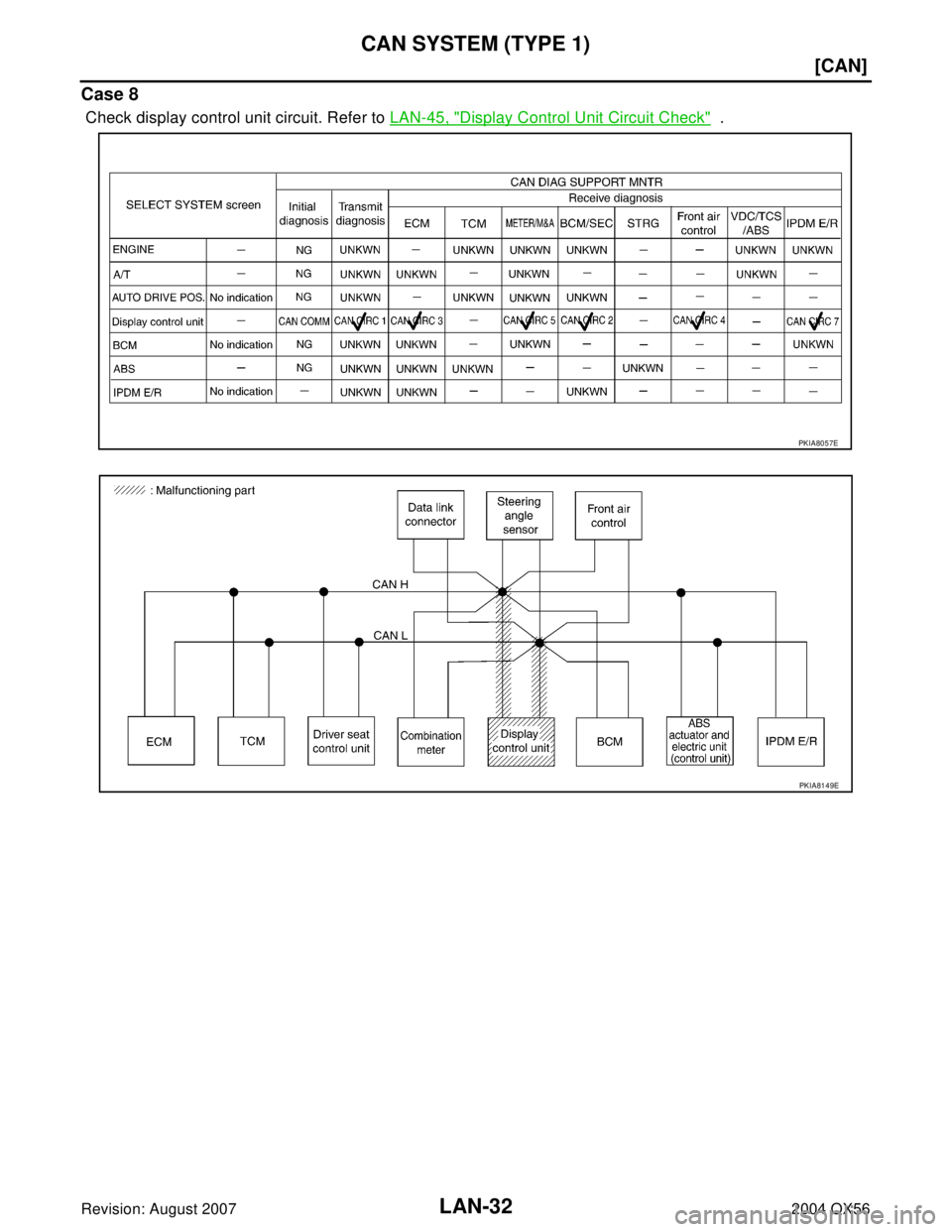

INFINITI QX56 2004 Factory Service Manual LAN-32 [CAN] CAN SYSTEM (TYPE 1) Revision: August 20072004 QX56 Case 8 Check display control unit circuit. Refer to LAN-45, "Display Control Unit Circuit Check" . PKIA8057E PKIA8149E

Page 2296 of 3371

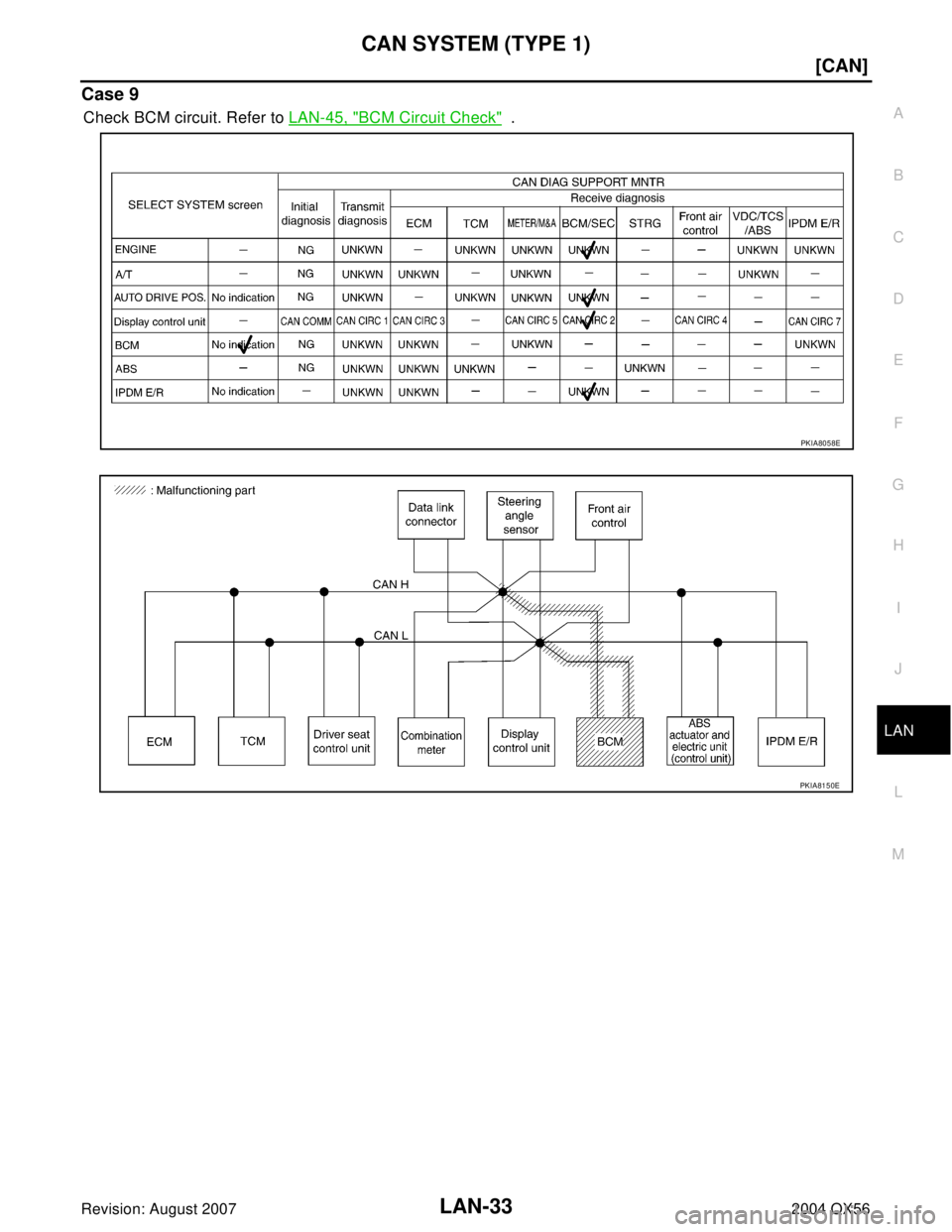

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-33 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 9 Check BCM circuit. Refer to LAN-45, "BCM Circuit Check" . PKIA8058E PKIA8150E
