Page 1913 of 3371

INFINITI QX56 2004 Factory Service Manual EM-30Revision: August 2007
FUEL INJECTOR AND FUEL TUBE
2004 QX56
7. Remove the fuel injector from the fuel tube using the following
steps.
a. Spread open and remove the clip.
b. Remove the fuel inject

Page 1914 of 3371

INFINITI QX56 2004 Factory Service Manual FUEL INJECTOR AND FUEL TUBE
EM-31
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
Handle O-ring with bare hands. Never wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-rin

FUEL INJECTOR AND FUEL TUBE
EM-31
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
Handle O-ring with bare hands. Never wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert O-ring straight into fuel tube. Do not angle or twist it.
3. Install the fuel injector to the fuel tube using the following steps.
a. Insert new clip into clip mounting groove on the fuel injector.
Insert clip so that lug “A” of fuel injector matches notch “A” of
the clip.
CAUTION:
Do not reuse clip. Replace it with a new one.
Do not allow the clip to interfere with the O-ring. If
interference occurs, replace the O-ring.
b. Insert the fuel injector into the fuel tube with the clip attached.
Insert it while matching it to the axial center.
Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of the clip.
Make sure that the fuel tube flange is securely fixed in the
flange fixing groove on the clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
Make sure that the protrusions of the fuel injectors are aligned
with the cutouts of the clips after installation.
4. Install the fuel tube and fuel injector assembly to the intake manifold.
CAUTION:
Do not let the tip of the injector nozzle come in contact with other parts.
Tighten fuel tube assembly bolts “a” to “b” in illustration in two
steps.
5. Install the fuel hose assembly.
Insert connectors straight, making sure that the axis is lined up with fuel tube side to prevent O-ring
from being damaged.
Tighten the bolts evenly in several steps.
Make sure that there is no gap between the flange and fuel tube after tightening the bolts.
CAUTION:

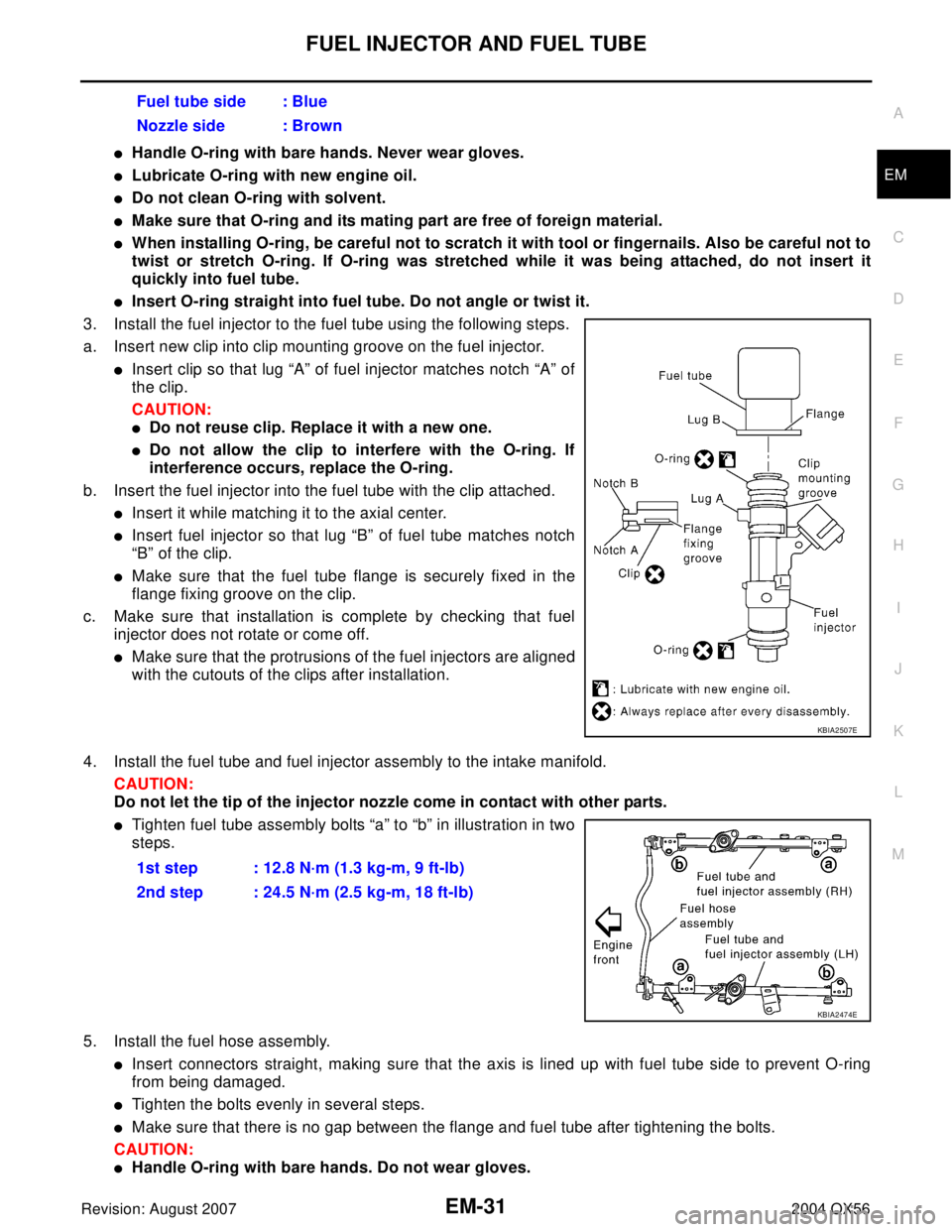

Handle O-ring with bare hands. Do not wear gloves.Fuel tube side : Blue
Nozzle side : Brown
KBIA2507E
1st step : 12.8 N·m (1.3 kg-m, 9 ft-lb)
2nd step : 24.5 N·m (2.5 kg-m, 18 ft-lb)
KBIA2474E

Page 1915 of 3371

INFINITI QX56 2004 Factory Service Manual EM-32Revision: August 2007
FUEL INJECTOR AND FUEL TUBE
2004 QX56
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreig

Page 1916 of 3371

INFINITI QX56 2004 Factory Service Manual ROCKER COVER
EM-33
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

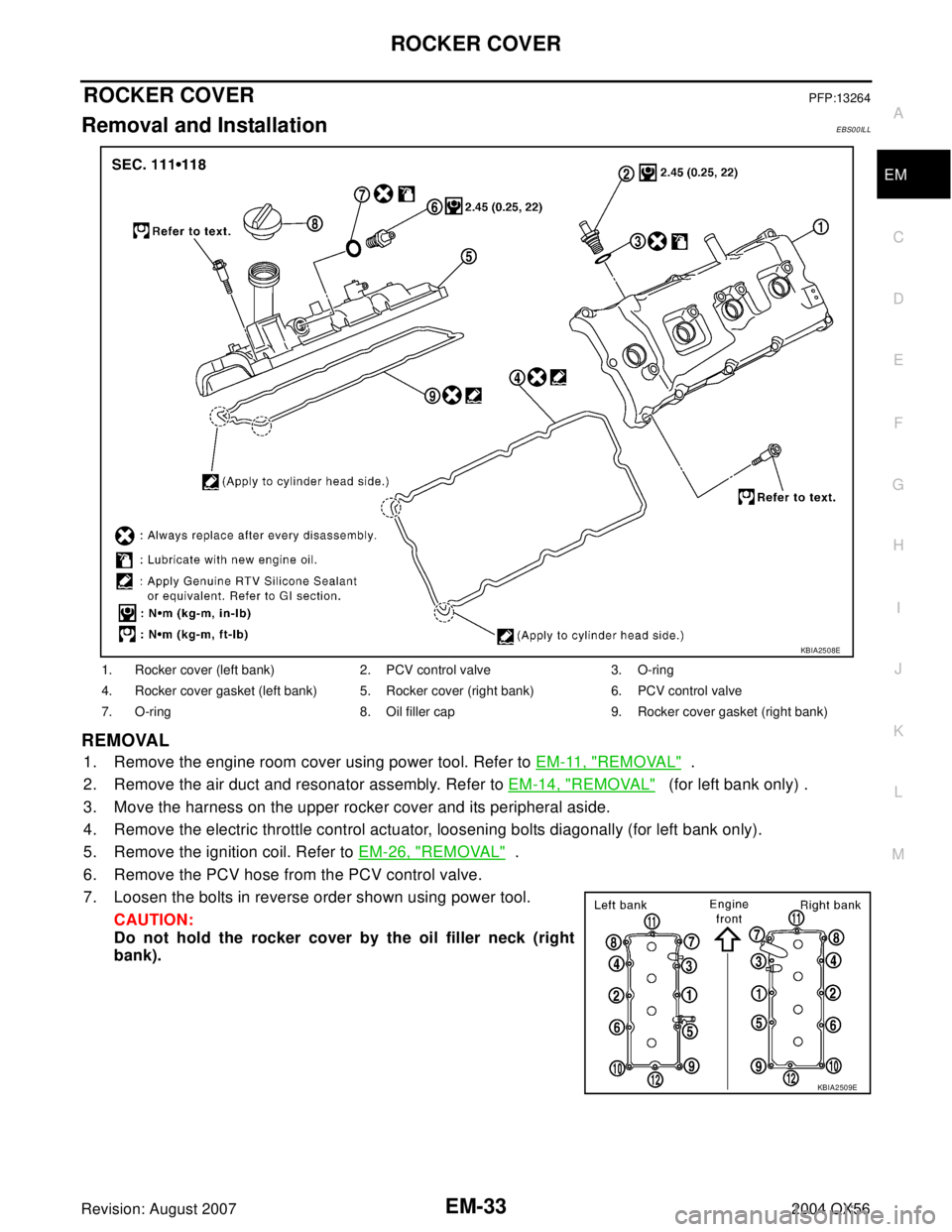

ROCKER COVERPFP:13264
Removal and InstallationEBS00ILL
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM

Page 1917 of 3371

INFINITI QX56 2004 Factory Service Manual EM-34Revision: August 2007
ROCKER COVER
2004 QX56
INSTALLATION

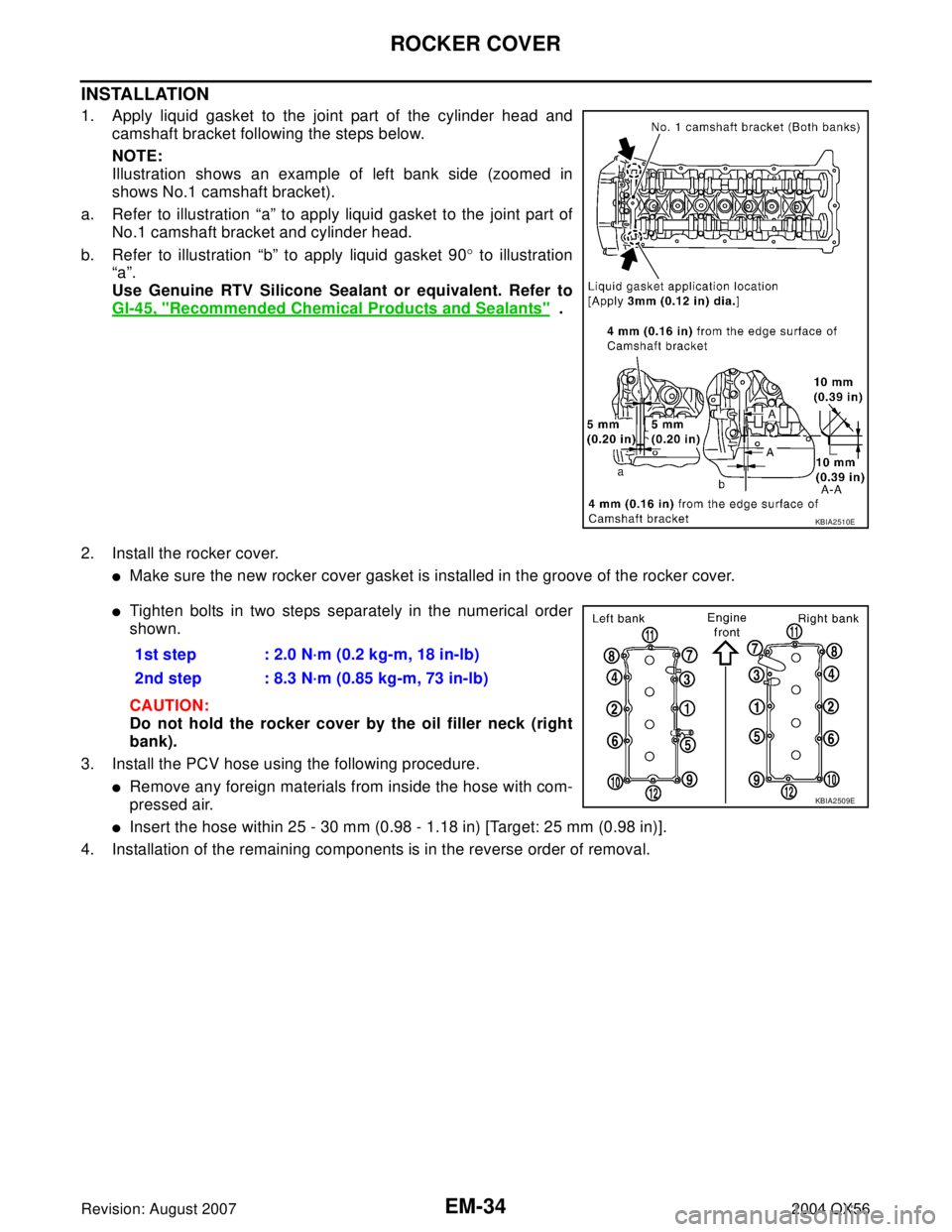

1. Apply liquid gasket to the joint part of the cylinder head and
camshaft bracket following the steps below.
NOTE:
Illustration shows an

Page 1918 of 3371

INFINITI QX56 2004 Factory Service Manual TIMING CHAIN
EM-35
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56

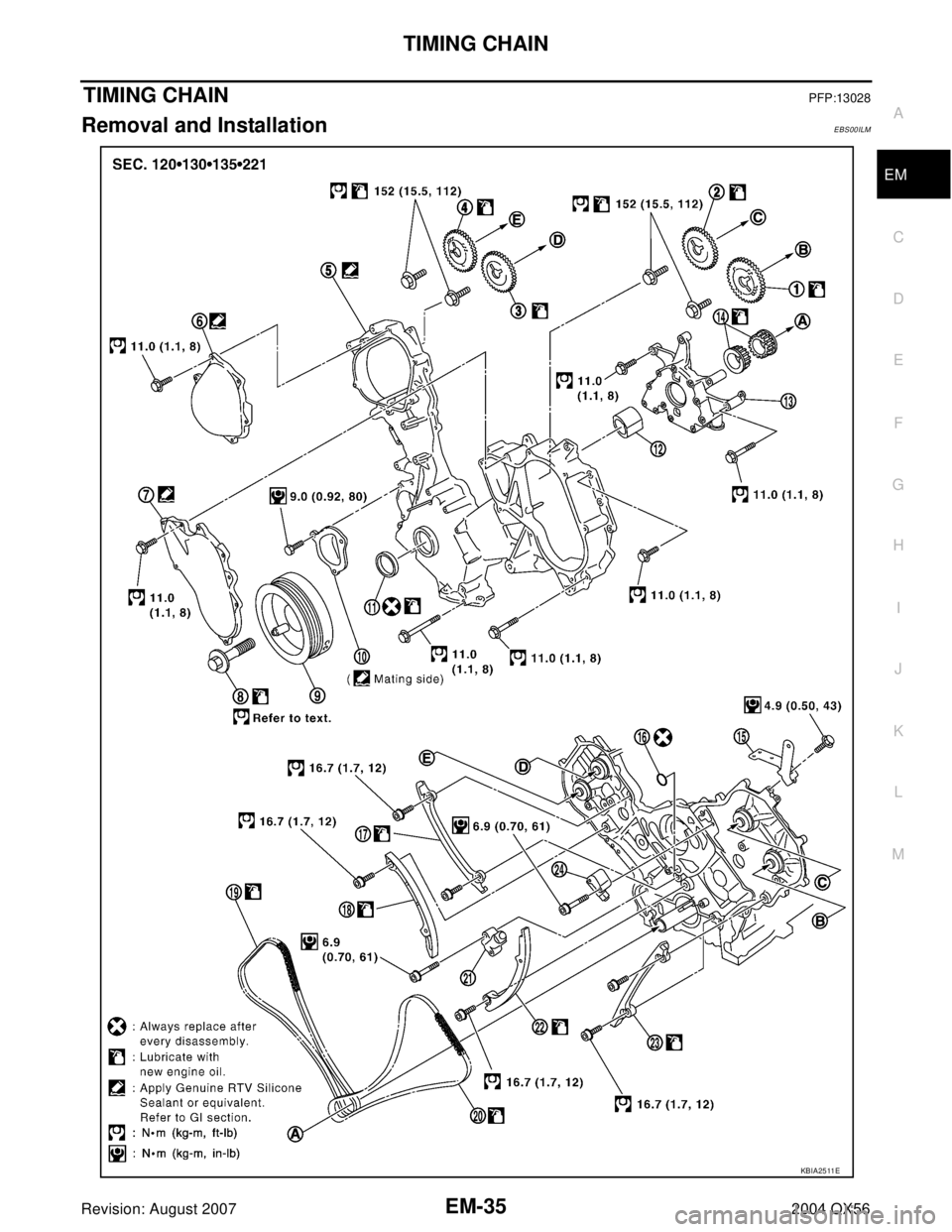

TIMING CHAINPFP:13028
Removal and InstallationEBS00ILM
KBIA25 11 E

Page 1919 of 3371

INFINITI QX56 2004 Factory Service Manual EM-36Revision: August 2007
TIMING CHAIN
2004 QX56
NOTE:
To remove timing chain and associated parts, start with those on the left bank. The procedure for remov-
ing parts on the right bank is omitted

EM-36Revision: August 2007
TIMING CHAIN
2004 QX56
NOTE:
To remove timing chain and associated parts, start with those on the left bank. The procedure for remov-
ing parts on the right bank is omitted because it is the same as that for removal on the left bank.
To install timing chain and associated parts, start with those on the right bank. The procedure for installing
parts on the left bank is omitted because it is the same as that for installation on the right bank.
REMOVAL
1. Remove the engine assembly from the vehicle. Refer to EM-70, "REMOVAL" .
2. Remove the following components and related parts:
Drive belt auto tensioner and idler pulley. Refer to EM-12, "DRIVE BELTS" .
Thermostat housing and water hose. Refer to CO-17, "Removal of Thermostat Housing, Water Outlet
and Heater Pipe" .
Power steering pump bracket. Refer to PS-26, "REMOVAL" .
Oil pan (lower), (upper) and oil strainer. Refer to EM-22, "OIL PAN AND OIL STRAINER" .
Ignition coil. Refer to EM-26, "IGNITION COIL" .
Rocker cover. Refer to EM-33, "ROCKER COVER" .
3. Remove the chain case cover (right bank) and (left bank).
a. Loosen and remove the bolts in the reverse order shown.
b. Cut the liquid gasket to remove covers using Tool.
CAUTION:
Do not damage mating surfaces.

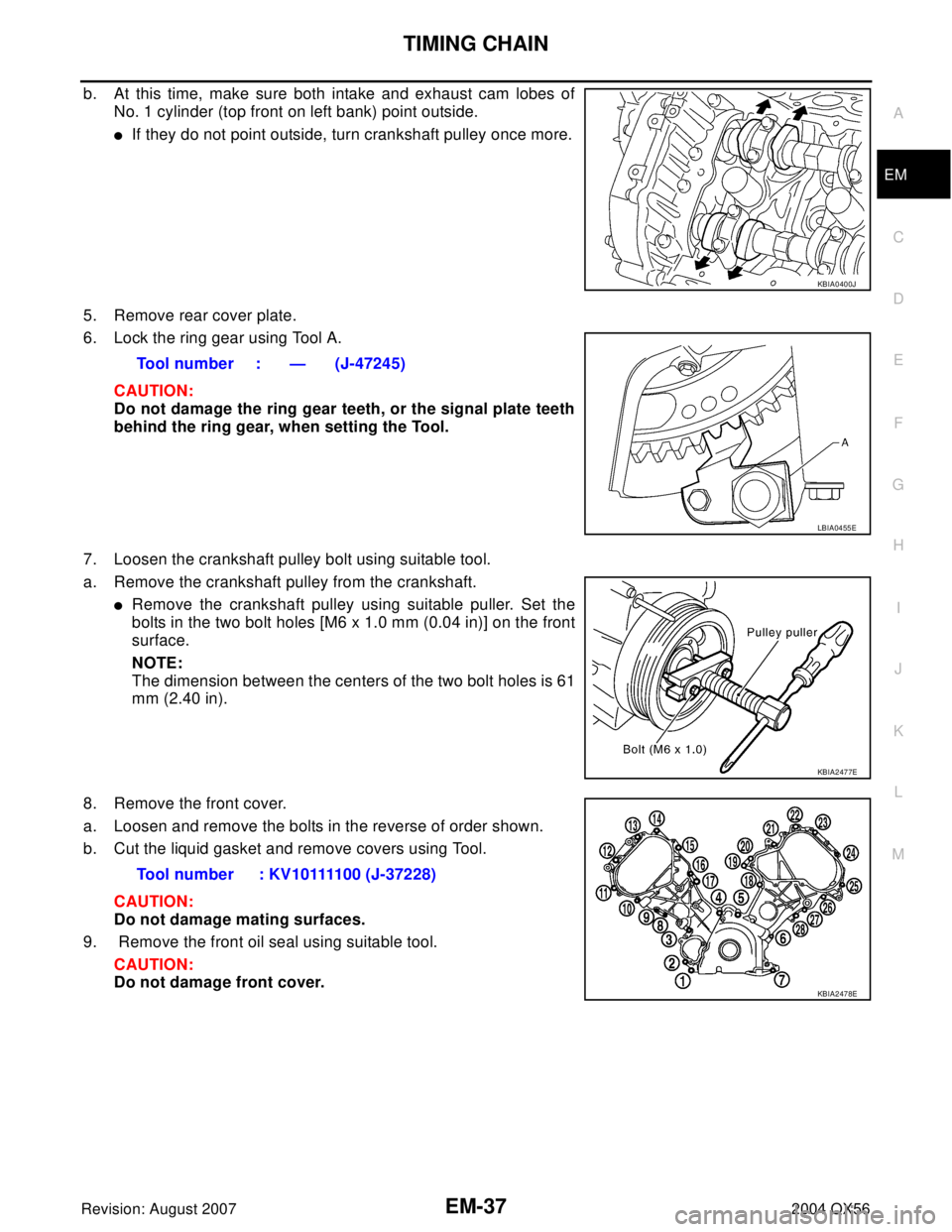

4. Obtain compression TDC of No. 1 cylinder as follows:
a. Turn crankshaft pulley clockwise to align the TDC identification
notch (without paint mark) with timing indicator on front cover.
1. Camshaft sprocket (left bank EXH) 2. Camshaft sprocket (left bank INT) 3. Camshaft sprocket (right bank INT)
4. Camshaft sprocket (right bank EXH) 5. Front cover 6. Chain case cover (right bank)
7. Chain case cover (left bank) 8. Crankshaft pulley bolt 9. Crankshaft pulley
10. Chain tensioner cover 11. Front oil seal 12. Oil pump drive spacer
13. Oil pump assembly 14. Crankshaft sprocket 15. Bracket
16. O-ring 17. Timing chain tension guide (right
bank)18. Timing chain slack guide (right bank)
19. Timing chain (right bank) 20. Timing chain (left bank) 21. Chain tensioner (right bank)
22. Timing chain slack guide (left bank) 23. Timing chain tension guide (left
bank)24. Chain tensioner (left bank)
Tool number: KV10111100 (J-37228)
KBIA2475E
KBIA2476E

Page 1920 of 3371

INFINITI QX56 2004 Factory Service Manual TIMING CHAIN
EM-37
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
b. At this time, make sure both intake and exhaust cam lobes of
No. 1 cylinder (top front on left bank) point outside.
If t
