Page 2329 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-66 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 8 Check ICC sensor circuit. Refer to LAN-83, "ICC Sensor Circuit Check" . PKIA8096E PKIA8807E

Page 2330 of 3371

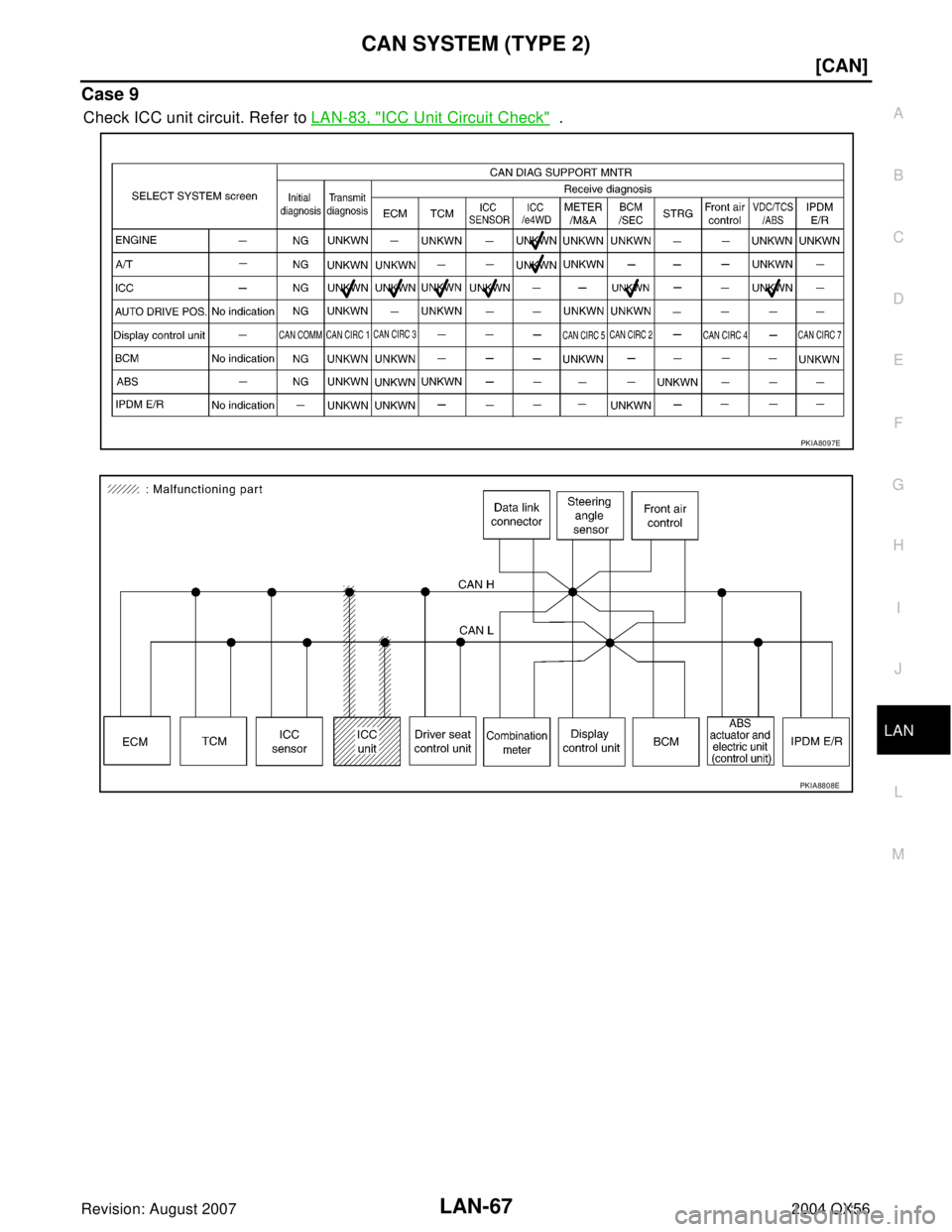

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-67 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 9 Check ICC unit circuit. Refer to LAN-83, "ICC Unit Circuit Check" . PKIA8097E PKIA8808E

Page 2331 of 3371

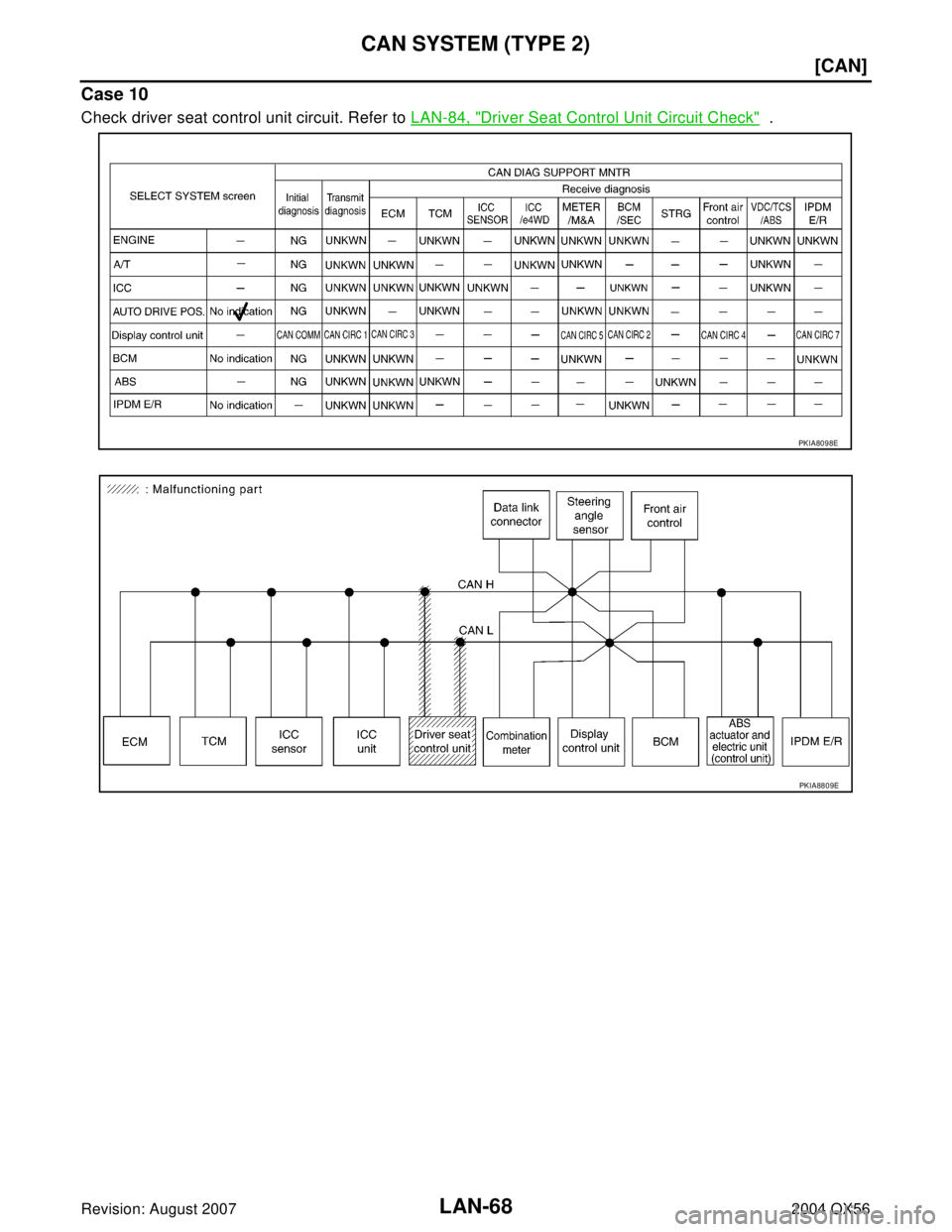

INFINITI QX56 2004 Factory Service Manual LAN-68 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 10 Check driver seat control unit circuit. Refer to LAN-84, "Driver Seat Control Unit Circuit Check" . PKIA8098E PKIA8809E

Page 2332 of 3371

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-69 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 11 Check combination meter circuit. Refer to LAN-84, "Combination Meter Circuit Check" . PKIA8099E PKIA

Page 2333 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-70 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 12 Check display control unit circuit. Refer to LAN-85, "Display Control Unit Circuit Check" . PKIA8100E PKIA88 11 E

Page 2334 of 3371

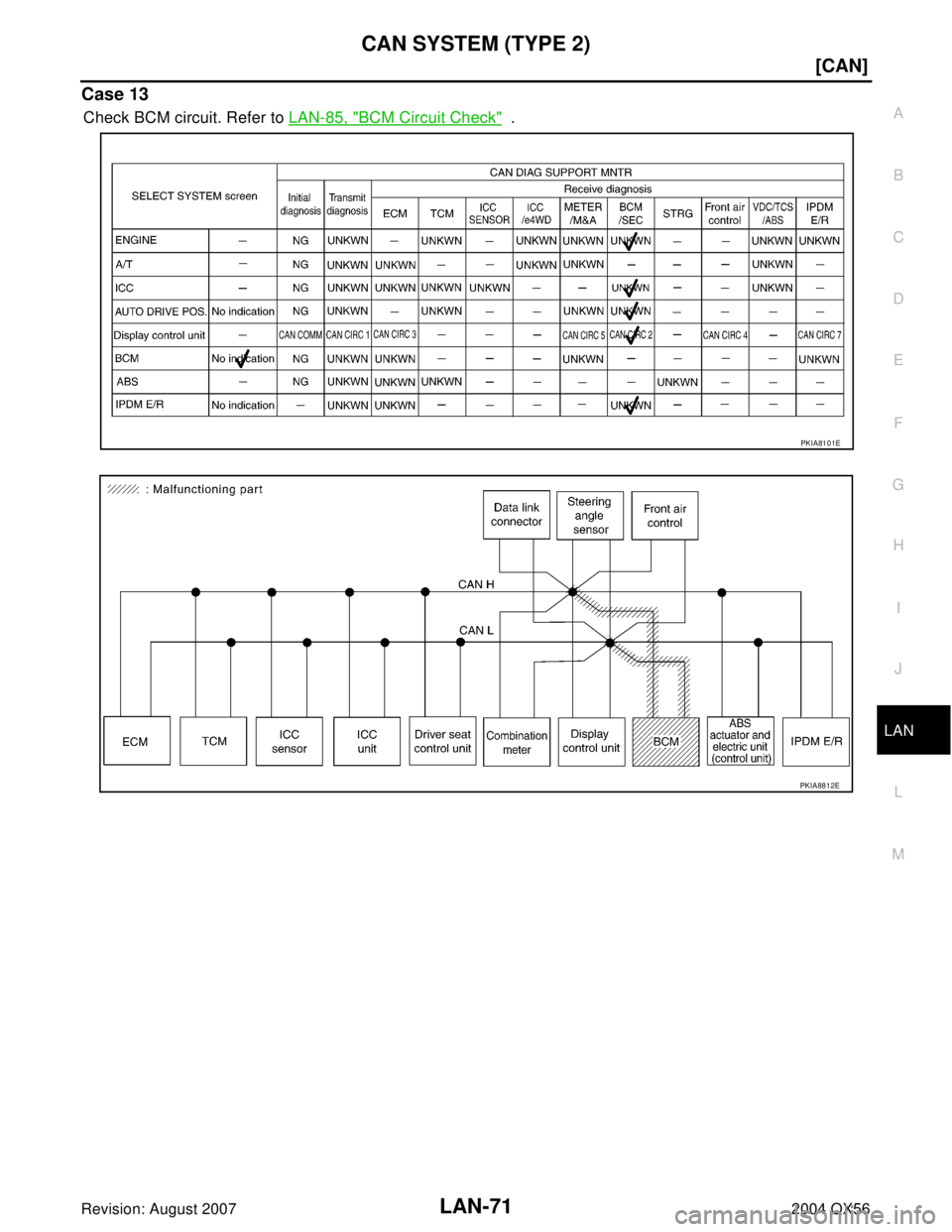

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-71 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 13 Check BCM circuit. Refer to LAN-85, "BCM Circuit Check" . PKIA8101E PKIA8812E

Page 2335 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-72 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 14 Check data link connector circuit. Refer to LAN-86, "Data Link Connector Circuit Check" . PKIA8102E PKIA8813E

Page 2336 of 3371

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-73 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 15 Check steering angle sensor circuit. Refer to LAN-86, "Steering Angle Sensor Circuit Check" . PKIA81
