COMPONENT INSPECTION
Water Valve R elay
Check continuity between terminals by supplying 12 volts and
ground to coil side terminals of relay.
WJIA0899E
Page 530 of 3371

TROUBLE DIAGNOSIS
ATC-125
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: August 20072004 QX56
Ambient Sensor CircuitEJS002CS
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is attached on the radiator core support (left
side). It detects ambient temperature and converts it into a value
which is then input into the front air control.
AMBIENT TEMPERATURE INPUT PROCESS
The front air control includes a processing circuit for the ambient sensor input. However, when the tempera-
ture detected by the ambient sensor increases quickly, the processing circuit retards the front air control func-
tion. It only allows the front air control to recognize an ambient temperature increase of 0.33°C (0.6°F) per 100
seconds.
This prevents constant adjustments due to momentary conditions, such as stopping after high speed driving.
Although the actual ambient temperature has not changed, the temperature detected by the ambient sensor
will increase. This is because the heat from the engine compartment can radiate to the front grille area, loca-
tion of the ambient sensor.
DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR
SYMPTOM: Ambient sensor circuit is open or shorted. (40 or 41 is
indicated as a result of conducting the front air control self-diagnosis)
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND
1. Disconnect ambient sensor connector E1.
2. Turn ignition switch ON.
3. Check voltage between ambient sensor harness connector E1
terminal 1 (P) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
WJIA0819E
WJIA0456E
1 - Ground : Approx. 5V
WJIA0966E
Page 531 of 3371

ATC-126
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
2. CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M49.
3. Check continuity between ambient sensor harness connector
E1 terminal 2 (V/R) and front air control harness connector M49
terminal 21 (V/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK AMBIENT SENSOR
Refer to ATC-127, "
Ambient Sensor" .
OK or NG
OK >> 1. Replace front air control. Refer to ATC-135, "FRONT AIR CONTROL" .
2. Go to self-diagnosis ATC-53, "
A/C System Self-diagnosis Function" and perform self-diagno-
sis.
NG >> 1. Replace ambient sensor. Refer to ATC-136, "
AMBIENT SENSOR" .
2. Go to self-diagnosis ATC-53, "
A/C System Self-diagnosis Function" and perform self-diagno-
sis.
4. CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M49.
3. Check continuity between ambient sensor harness connector
E1 terminal 1 (P) and front air control harness connector M49
terminal 17 (P).
4. Check continuity between ambient sensor harness connector
E1 terminal 2 (V/R) and ground.
OK or NG
OK >> 1. Replace front air control. Refer to ATC-135, "FRONT AIR CONTROL" .
2. Go to self-diagnosis ATC-53, "
A/C System Self-diagnosis Function" and perform self-diagno-
sis.
NG >> Repair harness or connector.2 - 21 : Continuity should exist.
WJIA0820E
1 - 17 : Continuity should exist.
1 - Ground : Continuity should not exist.
WJIA0967E
Page 532 of 3371
TROUBLE DIAGNOSIS
ATC-127
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: August 20072004 QX56
COMPONENT INSPECTION
Ambient Sensor
After disconnecting ambient sensor connector E1, measure resis-
tance between terminals 2 and 1 at sensor component side, using
the table below.
If NG, replace ambient sensor.
Temperature °C (°F) Resistance kΩ
−15 (5) 12.60
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
WJIA0821E
Page 533 of 3371
ATC-128
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
In-vehicle Sensor CircuitEJS002CT
COMPONENT DESCRIPTION
In-vehicle Sensor
The in-vehicle sensor is located on cluster lid D. It converts varia-
tions in temperature of passenger compartment air (drawn in through
the integrated fan) into a value. It is then input into the front air con-
trol.
WJIA0822E
WJIA0606E
Page 534 of 3371

TROUBLE DIAGNOSIS
ATC-129
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: August 20072004 QX56
DIAGNOSTIC PROCEDURE FOR IN-VEHICLE SENSOR
SYMPTOM: In-vehicle sensor circuit is open or shorted. (30 or 31 is
indicated as a result of conducting self-diagnosis.
1. CHECK IN-VEHICLE SENSOR CIRCUIT
Are diagnostic codes 44 or 46 present?
YES or NO
YES >> GO TO 6.
NO >> GO TO 2.
2. CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Disconnect in-vehicle sensor connector M32.
2. Turn ignition switch ON.
3. Check voltage between in-vehicle sensor harness connector
M32 terminal 4 (LG/R) and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M49.
3. Check continuity between in-vehicle sensor harness connector
M32 terminal 1 (V/R) and front air control harness connector
M49 terminal 21 (V/R).
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK IN-VEHICLE SENSOR
Refer to ATC-131, "
In-vehicle Sensor" .
OK or NG
OK >> 1. Replace front air control. Refer to ATC-135, "FRONT AIR CONTROL" .
2. Go to AT C - 5 3 , "
A/C System Self-diagnosis Function" and perform self-diagnosis.
NG >> 1. Replace in-vehicle sensor. Refer to ATC-137, "
IN-VEHICLE SENSOR" .
2. Go to AT C - 5 3 , "
A/C System Self-diagnosis Function" and perform self-diagnosis.
WJIA0460E
4 - Ground : Approx. 5V
LJIA0089E
1 - 21 : Continuity should exist.
LJIA0090E
Page 535 of 3371

ATC-130
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
5. CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M50.

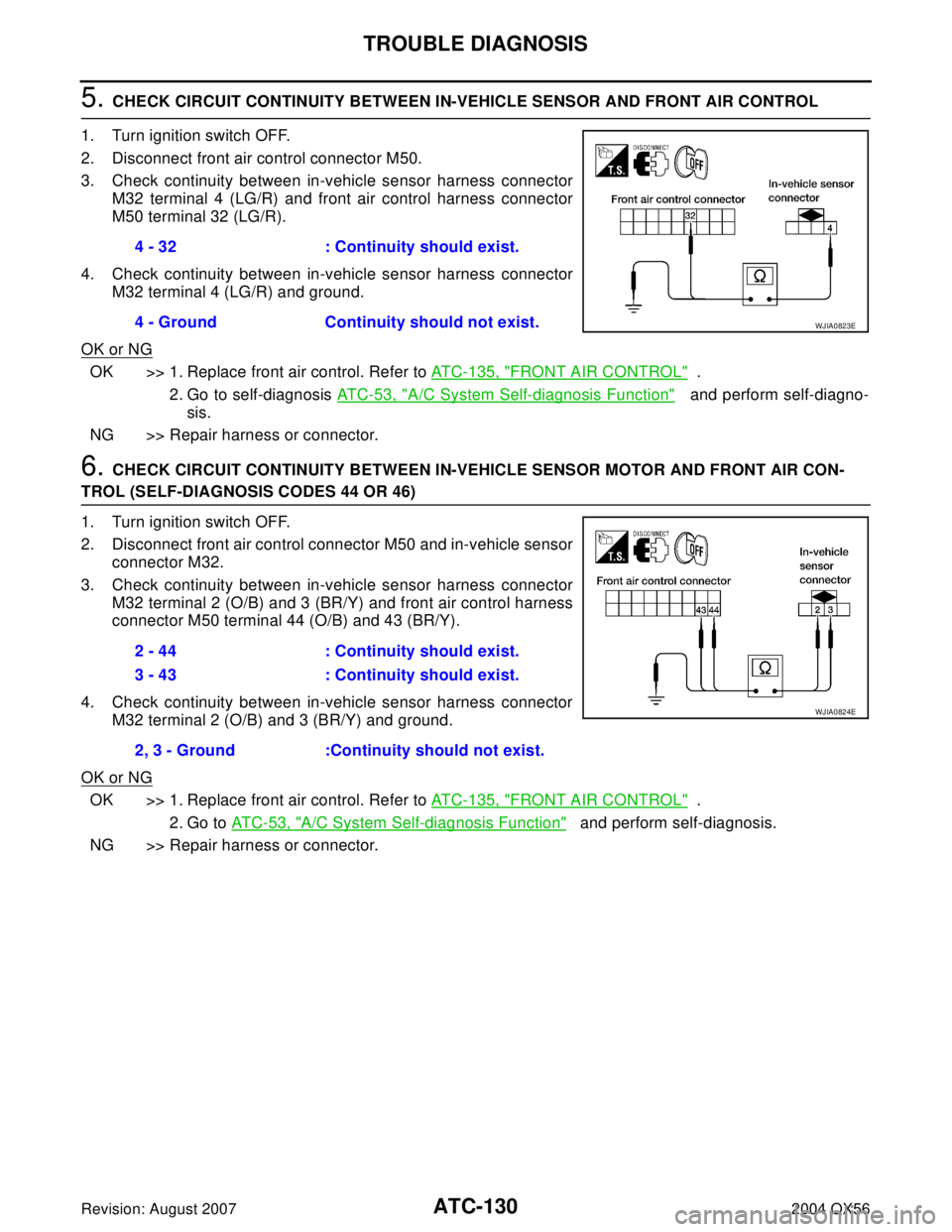

3. Check continuity between in-vehicle sensor harness connector
M32 terminal 4 (LG/R) and front air control harness connector
M50 terminal 32 (LG/R).
4. Check continuity between in-vehicle sensor harness connector
M32 terminal 4 (LG/R) and ground.
OK or NG
OK >> 1. Replace front air control. Refer to ATC-135, "FRONT AIR CONTROL" .
2. Go to self-diagnosis ATC-53, "
A/C System Self-diagnosis Function" and perform self-diagno-
sis.
NG >> Repair harness or connector.
6. CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR MOTOR AND FRONT AIR CON-
TROL (SELF-DIAGNOSIS CODES 44 OR 46)
1. Turn ignition switch OFF.
2. Disconnect front air control connector M50 and in-vehicle sensor
connector M32.
3. Check continuity between in-vehicle sensor harness connector
M32 terminal 2 (O/B) and 3 (BR/Y) and front air control harness
connector M50 terminal 44 (O/B) and 43 (BR/Y).
4. Check continuity between in-vehicle sensor harness connector
M32 terminal 2 (O/B) and 3 (BR/Y) and ground.
OK or NG
OK >> 1. Replace front air control. Refer to ATC-135, "FRONT AIR CONTROL" .
2. Go to ATC-53, "
A/C System Self-diagnosis Function" and perform self-diagnosis.
NG >> Repair harness or connector.4 - 32 : Continuity should exist.
4 - Ground Continuity should not exist.
WJIA0823E
2 - 44 : Continuity should exist.
3 - 43 : Continuity should exist.
2, 3 - Ground :Continuity should not exist.
WJIA0824E
Page 536 of 3371

TROUBLE DIAGNOSIS
ATC-131
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: August 20072004 QX56
COMPONENT INSPECTION
In-vehicle Sensor
After disconnecting in-vehicle sensor connector M32, measure resis-
tance between terminals 1 and 4 at sensor component side, using
the table below.
If NG, replace in-vehicle sensor.
Optical Sensor CircuitEJS002CU
COMPONENT DESCRIPTION
The optical sensor is located on the top center of the instrument
panel. It detects sunload entering through windshield by means of a
photo diode. The sensor converts the sunload into a current value
which is then input into the front air control.
OPTICAL INPUT PROCESS
The front air control includes a processing circuit which averages the variations in detected sunload over a
period of time. This prevents adjustments in the ATC system operation due to small or quick variations in
detected sunload.
For example, consider driving along a road bordered by an occasional group of large trees. The sunload
detected by the optical sensor will vary whenever the trees obstruct the sunlight. The processing circuit aver-
ages the detected sunload over a period of time, so that the (insignificant) effect of the trees momentarily
obstructing the sunlight does not cause any change in the ATC system operation. On the other hand, shortly
after entering a long tunnel, the system will recognize the change in sunload, and the system will react accord-
ingly.
Temperature °C (°F) Resistance kΩ
−15 (5) 21.40
−10 (14) 16.15
−5 (23) 12.29
0 (32) 9.41
5 (41) 7.27
10 (50) 5.66
15 (59) 4.45
20 (68) 3.51
25 (77) 2.79
30 (86) 2.24
35 (95) 1.80
40 (104) 1.45
45 (113) 1.18
WJIA0825E
WJIA0569E
