DTC P2127, P2128 APP SENSOR
2004 QX56
DTC P2127, P2128 APP SENSORPFP:18002
Component DescriptionUBS00HCC
The accelerator pedal position sensor is installed on the upper end

EC-562Revision: August 2007
DTC P2127, P2128 APP SENSOR
2004 QX56
DTC P2127, P2128 APP SENSORPFP:18002
Component DescriptionUBS00HCC
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeUBS00HCD
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage.
On Board Diagnosis LogicUBS00HCE
These self-diagnoses have the one trip detection logic.
FAIL -S AFE M OD E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
ACCEL SEN2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2127
2127Accelerator pedal position
sensor 2 circuit low inputAn excessively low voltage from the APP
sensor 2 is sent to ECM.
Harness or connectors
(APP sensor 2 circuit is open or shorted.)
(TP sensor circuit is shorted.)
Accelerator pedal position sensor
(Accelerator pedal position sensor 2)
Electric throttle control actuator
(TP sensor) P2128
2128Accelerator pedal position
sensor 2 circuit high inputAn excessively high voltage from the APP
sensor 2 is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1754 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-563
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

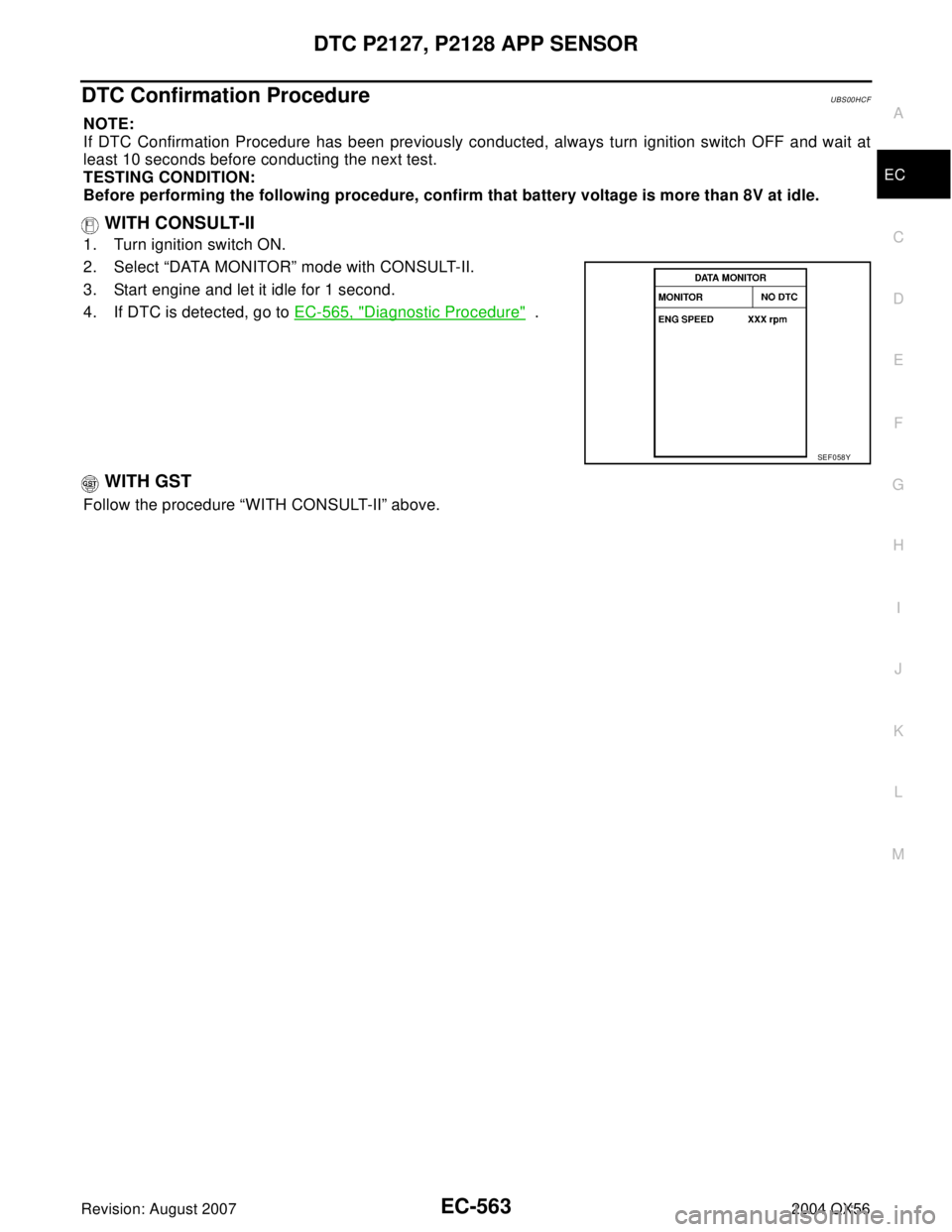

DTC Confirmation ProcedureUBS00HCF
NOTE:
If DTC Confirmation Procedure has been previously conducted, always

Page 1755 of 3371

INFINITI QX56 2004 Factory Service Manual EC-564Revision: August 2007
DTC P2127, P2128 APP SENSOR
2004 QX56

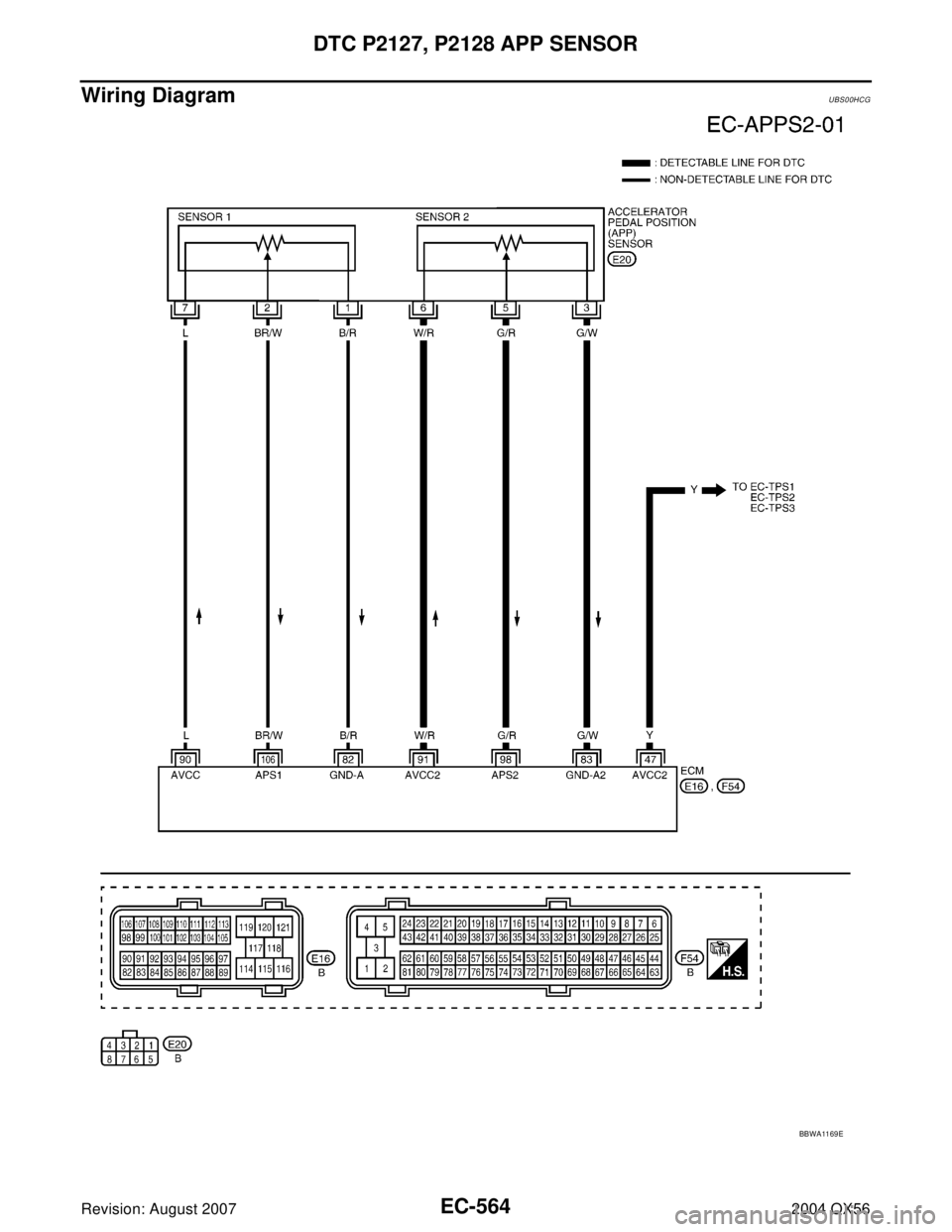

Wiring DiagramUBS00HCG
BBWA11 69 E

Page 1756 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-565
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

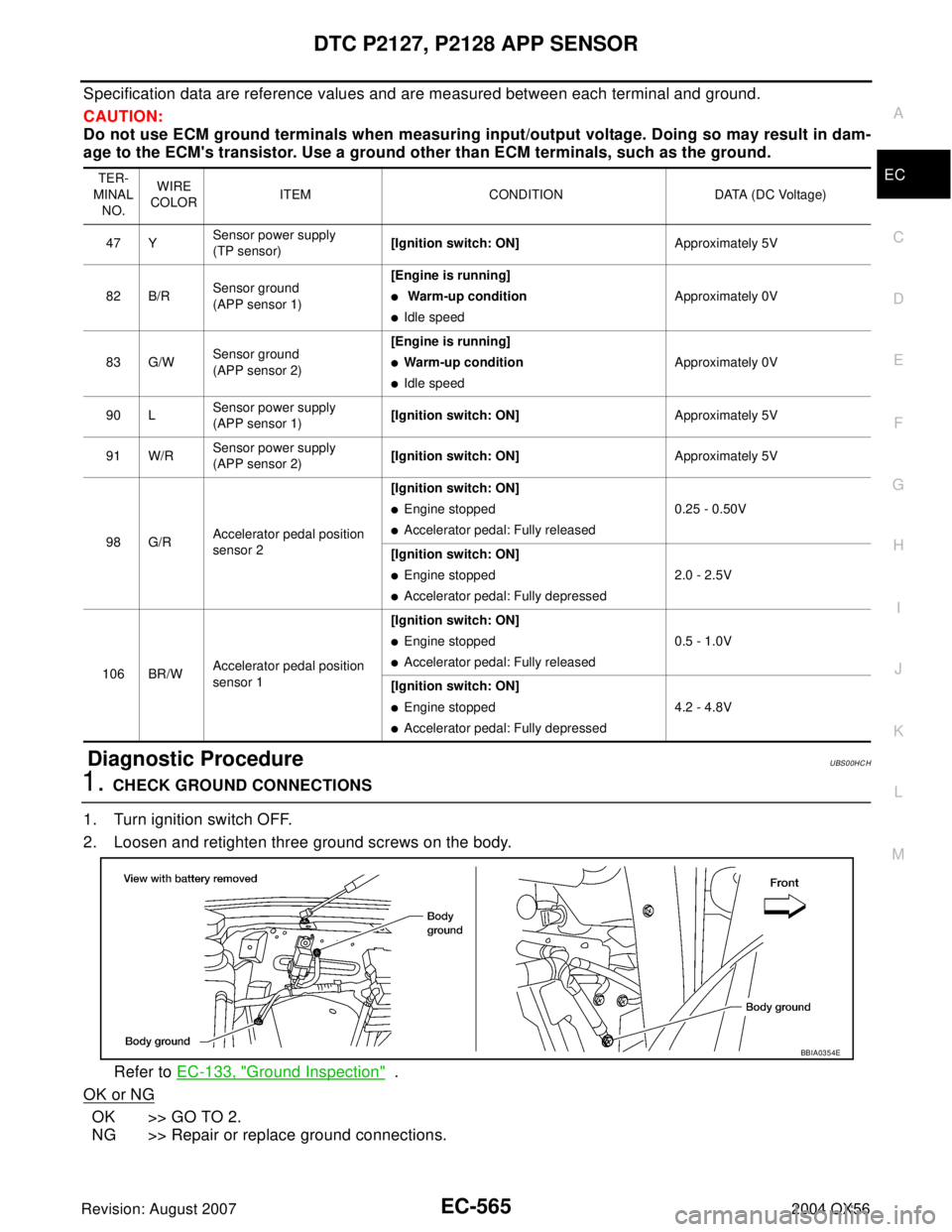

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not u

Page 1757 of 3371

INFINITI QX56 2004 Factory Service Manual EC-566Revision: August 2007
DTC P2127, P2128 APP SENSOR
2004 QX56
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition

Page 1758 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-567
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform

Page 1759 of 3371

INFINITI QX56 2004 Factory Service Manual EC-568Revision: August 2007
DTC P2127, P2128 APP SENSOR
2004 QX56

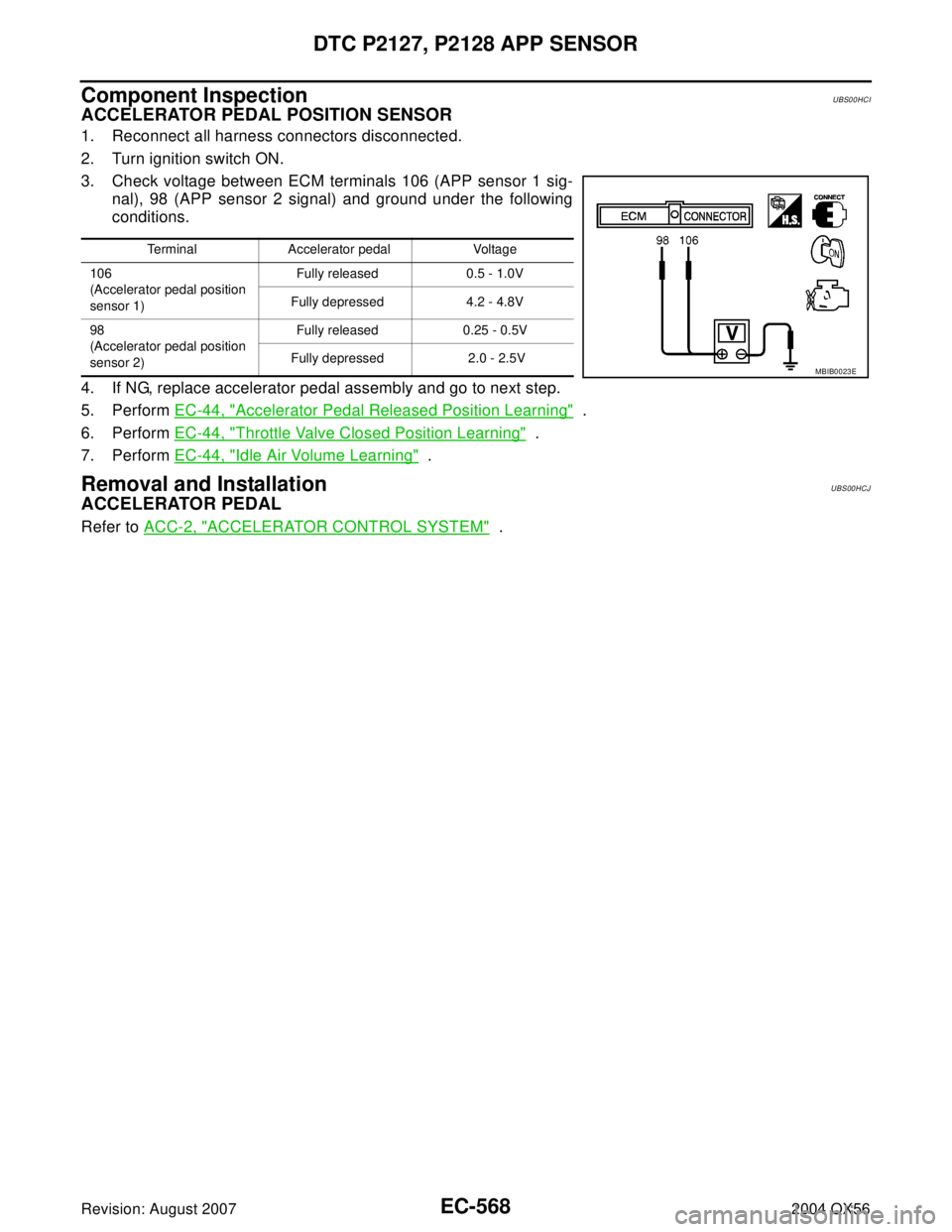

Component InspectionUBS00HCI
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition swit

Page 1760 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P2135 TP SENSOR
EC-569
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
DTC P2135 TP SENSORPFP:16119
Component DescriptionUBS00HCK
Electric throttle control actuator consists of throttle c

DTC P2135 TP SENSOR
EC-569
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
DTC P2135 TP SENSORPFP:16119
Component DescriptionUBS00HCK
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeUBS00HCL
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicUBS00HCM
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2*
Ignition switch: ON
(Engine stopped)
Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Throttle position sensor
circuit range/performance
problemRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.
Harness or connector
(TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1 and 2)
Accelerator pedal position sensor
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Load next 8 pages
