INFINITI QX56 2004 Factory Service Manual SRS-28
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
DIAGNOSTIC PROCEDURE 3
Final Check of SRS Using CONSULT-II—Diagnosis Mode
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONV

Page 3090 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
SRS-29
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
7. If no malfunction is detected on “SELF-DIAG [CURRENT]”,
repair of SRS is completed. Go to step 8.
If any malfu

Page 3091 of 3371

INFINITI QX56 2004 Factory Service Manual SRS-30
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)
Check SRS Repair History
1. CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS

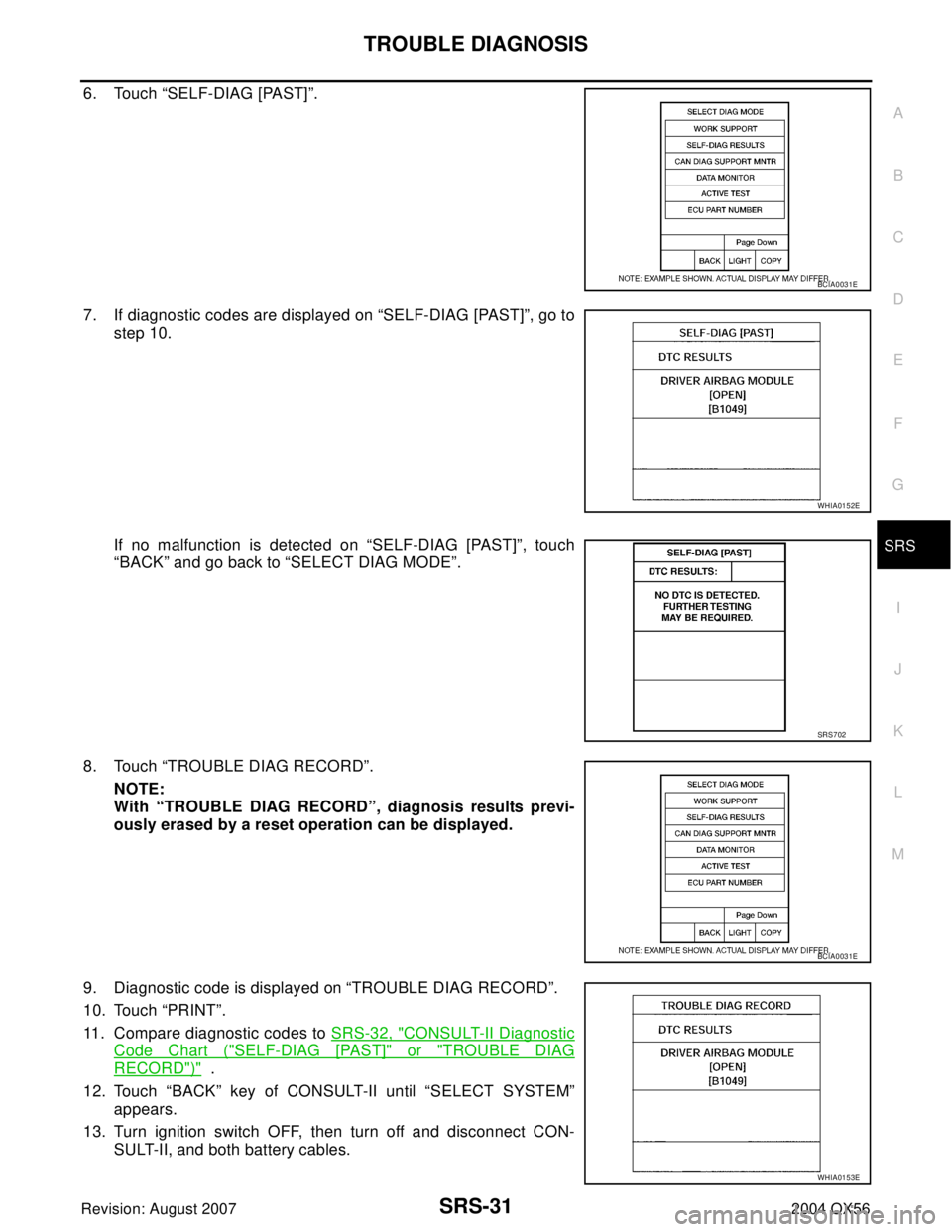

Page 3092 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
SRS-31
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
6. Touch “SELF-DIAG [PAST]”.
7. If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to
step 10.
If no

Page 3093 of 3371

INFINITI QX56 2004 Factory Service Manual SRS-32
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart”,
that corresponds to the sel

SRS-32
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart”,
that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the
Removal and Installation procedure for the appropriate component.
15. Go to SRS-28, "
DIAGNOSTIC PROCEDURE 3" , for final checking.
CONSULT-II Diagnostic Code Chart ("SELF-DIAG [PAST]" or "TROUBLE DIAG RECORD")
Diagnostic item ExplanationRepair order
Recheck SRS at each replacement
NO DTC IS DETECTEDWhen malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
Low battery voltage (Less than
9V)Go to SRS-28, "DIAGNOSTIC PRO-
CEDURE 3" .
Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased
after repair.
Intermittent malfunction has been
detected in the past.
Go to SRS-30, "DIAGNOSTIC PRO-
CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)" .
Go to SRS-30, "DIAGNOSTIC PRO-
CEDURE 5" .
No malfunction is detected. —
DRIVER AIRBAG MODULE
[OPEN]
[B1049] or [B1054]
Driver air bag module circuit is open (including the spiral
cable).1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
4. Replace the spiral cable.
5. Replace the air bag diagnosis sen-
sor unit.
6. Replace the related harness. DRIVER AIRBAG MODULE
[VB-SHORT]
[B1050] or [B1055]
Driver air bag module circuit is shorted to some power sup-
ply circuit (including the spiral cable).
DRIVER AIRBAG MODULE
[GND-SHORT]
[B1051] or [B1056]
Driver air bag module circuit is shorted to ground (including
the spiral cable).
DRIVER AIRBAG MODULE
[SHORT]
[B1052] or [B1057]
Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[OPEN]
[B1065] or [B1070]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
[B1066] or [B1071]
Front passenger air bag module circuit is shorted to some
power supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1067] or [B1072]
Front passenger air bag module circuit is shorted to
ground.
ASSIST A/B MODULE
[SHORT]
[B1068] or [B1073]
Front passenger air bag module circuits are shorted to
each other.
CRASH ZONE SEN
[UNIT FAIL]
[B1033] or [B1034]
CRASH ZONE SEN
[COMM FAIL]
[B1035]
Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the crash zone sensor.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.

Page 3094 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
con

TROUBLE DIAGNOSIS
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat back assem-
bly (front LH side air bag module).
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
[B1135]
Front LH side air bag module circuit is shorted to some
power supply circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]
Front LH side air bag module circuits are shorted to each
other.
SIDE MODULE RH
[OPEN]
[B1129]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat back assem-
bly (front RH side air bag module).
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
[B1130]
Front RH side air bag module circuit is shorted to some
power supply circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]
Front RH side air bag module circuits are shorted to each
other.
SATELLITE SENS LH
[UNIT FAIL]
[B1118] or [B1119]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
LH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (satel-
lite) sensor.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
SATELLITE SENS RH
[UNIT FAIL]
[B1113] or [B1114]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]
RH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (satel-
lite) sensor.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[OPEN]
[B1086]
The circuit for front LH seat belt pre-tensioner is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt pre-ten-
sioner.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
[B1087]
The circuit for front LH seat belt pre-tensioner is shorted to
some power supply circuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]
The circuit for front LH seat belt pre-tensioner is shorted to
ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]
The circuits for the front LH seat belt pre-tensioner are
shorted to each other. Diagnostic item ExplanationRepair order
Recheck SRS at each replacement

Page 3095 of 3371

INFINITI QX56 2004 Factory Service Manual SRS-34
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
PRE-TEN FRONT RH
[OPEN]
[B1081]The circuit for front RH seat belt pre-tensioner is open. 1. Visually check the wiring harness
connections.
2.

SRS-34
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
PRE-TEN FRONT RH
[OPEN]
[B1081]The circuit for front RH seat belt pre-tensioner is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt pre-ten-
sioner.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
[B1082]
The circuit for front RH seat belt pre-tensioner is shorted to
some power supply circuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]
The circuit for front RH seat belt pre-tensioner is shorted to
ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]
The circuits for the front RH seat belt pre-tensioner are
shorted to each other.
PRE-TEN2 FRONT LH
[OPEN]
[B1182]
The circuit for front LH seat belt buckle pre-tensioner is
open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt buckle
pre-tensioner.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. PRE-TEN2 FRONT LH
[VB-SHORT]
[B1183]
The circuit for front LH seat belt buckle pre-tensioner is
shorted to some power supply circuit.
PRE-TEN2 FRONT LH
[GND-SHORT]
[B1184]
The circuit for front LH seat belt buckle pre-tensioner is
shorted to ground.
PRE-TEN2 FRONT LH
[SHORT]
[B1185]
The circuits for the front LH seat belt buckle pre-tensioner
are shorted to each other.
PRE-TEN2 FRONT RH
[OPEN]
[B1177]
The circuit for front RH seat belt buckle pre-tensioner is
open.1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt buckle
pre-tensioner.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. PRE-TEN2 FRONT RH
[VB-SHORT]
[B1178]
The circuit for front RH seat belt buckle pre-tensioner is
shorted to some power supply circuit.
PRE-TEN2 FRONT RH
[GND-SHORT]
[B1179]
The circuit for front RH seat belt buckle pre-tensioner is
shorted to ground.
PRE-TEN2 FRONT RH
[SHORT]
[B1180]
The circuits for the front RH seat belt buckle pre-tensioner
are shorted to each other.
FR CURTN MODULE LH
[OPEN]
[B1198]
The LH side front curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace LH side curtain air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. FR CURTN MODULE LH
[VB-SHORT]
[B1199]
The LH side front curtain air bag module circuit is shorted
to some power supply circuits.
FR CURTN MODULE LH
[GND-SHORT]
[B1200]
The LH side front curtain air bag module circuit is shorted
to ground.
FR CURTN MODULE LH
[SHORT]
[B1201]
The circuits for the LH side front curtain air bag module are
shorted to each other. Diagnostic item ExplanationRepair order
Recheck SRS at each replacement

Page 3096 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
FR CURTN MODULE RH
[OPEN]
[B1193]The RH side front curtain air bag module circuit is open. 1. Visually check the wir

TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
FR CURTN MODULE RH
[OPEN]
[B1193]The RH side front curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. FR CURTN MODULE RH
[VB-SHORT]
[B1194]
The RH side front curtain air bag module circuit is shorted
to some power supply circuits.
FR CURTN MODULE RH
[GND-SHORT]
[B1195]
The RH side front curtain air bag module circuit is shorted
to ground.
FR CURTN MODULE RH
[SHORT]
[B1196]
The circuits for the RH side front curtain air bag module are
shorted to each other.
CURTAIN MODULE LH
[OPEN]
[B1150]
The LH side rear curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace LH side curtain air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. CURTAIN MODULE LH
[VB-SHORT]
[B1151]
The LH side rear curtain air bag module circuit is shorted to
some power supply circuits.
CURTAIN MODULE LH
[GND-SHORT]
[B1152]
The LH side rear curtain air bag module circuit is shorted to
ground.
CURTAIN MODULE LH
[SHORT]
[B1153]
The circuits for the LH side rear curtain air bag module are
shorted to each other.
CURTAIN MODULE RH
[OPEN]
[B1145]
The RH side rear curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness. CURTAIN MODULE RH
[VB-SHORT]
[B1146]
The RH side rear curtain air bag module circuit is shorted
to some power supply circuits.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]
The RH side rear curtain air bag module circuit is shorted
to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]
The circuits for the RH side rear curtain air bag module are
shorted to each other.
CONTROL UNIT
[B1XXX]
Air bag diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the diagnosis sensor unit.
OCCUPANT SENS C/U
[UNIT FAIL]
[B1017], [B1020] or [B1021]
Occupant classification system is malfunctioning. 1. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
OCCUPANT SENS C/U
[COMM FAIL]
[B1022]
Communication between the occupant classification sys-
tem control unit and air bag diagnosis sensor unit is inter-
rupted.1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
OCCUPANT SENS
[UNIT FAIL]
[B1018]
Occupant classification sensor is malfunctioning. 1. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly. Diagnostic item ExplanationRepair order
Recheck SRS at each replacement

Load next 8 pages

Page: < prev 1-10 ... 3057-3064 3065-3072 3073-3080 3081-3088 3089-3096 3097-3104 3105-3112 3113-3120 3121-3128 ... 3376 next >

OBD port instrument cluster engine navigation apple carplay bluetooth
