INFINITI QX56 2004 Factory Service Manual SB-14
TOP TETHER STRAP CHILD RESTRAINT
Revision: August 20072004 QX56
TOP TETHER STRAP CHILD RESTRAINTPFP:88000
Removal and InstallationEHS000VX
1. Remove luggage room rear lower finisher. Refer to EI

Page 2922 of 3371

INFINITI QX56 2004 Factory Service Manual SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Pre

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Wiring Diagrams and Trouble Diagnosis .................. 2
PREPARATION ........................................................... 3
Special Service Tool ................................................. 3
Commercial Service Tools ........................................ 3
BATTERY .................................................................... 4
How to Handle Battery ............................................. 4
METHODS OF PREVENTING OVER-DIS-
CHARGE ............................................................... 4
CHECKING ELECTROLYTE LEVEL .................... 4
SPECIFIC GRAVITY CHECK ............................... 5
CHARGING THE BATTERY ................................. 6
Trouble Diagnoses with Battery/Starting/Charging
System Tester .......................................................... 6
DIAGNOSTIC RESULT ITEM CHART .................. 8
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
STARTING SYSTEM ................................................ 10
System Description ................................................ 10
Wiring Diagram — START — ..................................11
Trouble Diagnoses with Battery/Starting/Charging
System Tester ........................................................ 12
DIAGNOSTIC RESULT ITEM CHART ................ 12
WORK FLOW ...................................................... 13DIAGNOSTIC PROCEDURE 1 ........................... 14
DIAGNOSTIC PROCEDURE 2 ........................... 15
MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ......................................................... 16
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
CHARGING SYSTEM ............................................... 17
System Description ................................................. 17
Wiring Diagram — CHARGE — ............................. 18
Trouble Diagnoses with Battery/Starting/Charging
System Tester ......................................................... 19
DIAGNOSTIC RESULT ITEM CHART ................ 20
WORK FLOW ...................................................... 21
DIAGNOSTIC PROCEDURE 1 ........................... 22
DIAGNOSTIC PROCEDURE 2 ........................... 23
DIAGNOSTIC PROCEDURE 3 ........................... 23
DIAGNOSTIC PROCEDURE 4 ........................... 25
DIAGNOSTIC PROCEDURE 5 ........................... 26
MALFUNCTION INDICATOR .............................. 27
Removal and Installation ........................................ 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 28
Battery .................................................................... 28
Starter ..................................................................... 28
Generator ............................................................... 28

Page 2923 of 3371

INFINITI QX56 2004 Factory Service Manual SC-2
PRECAUTIONS
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00791
The Supplemental Rest

Page 2924 of 3371

INFINITI QX56 2004 Factory Service Manual PREPARATION
SC-3
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: August 20072004 QX56
PREPARATIONPFP:00002

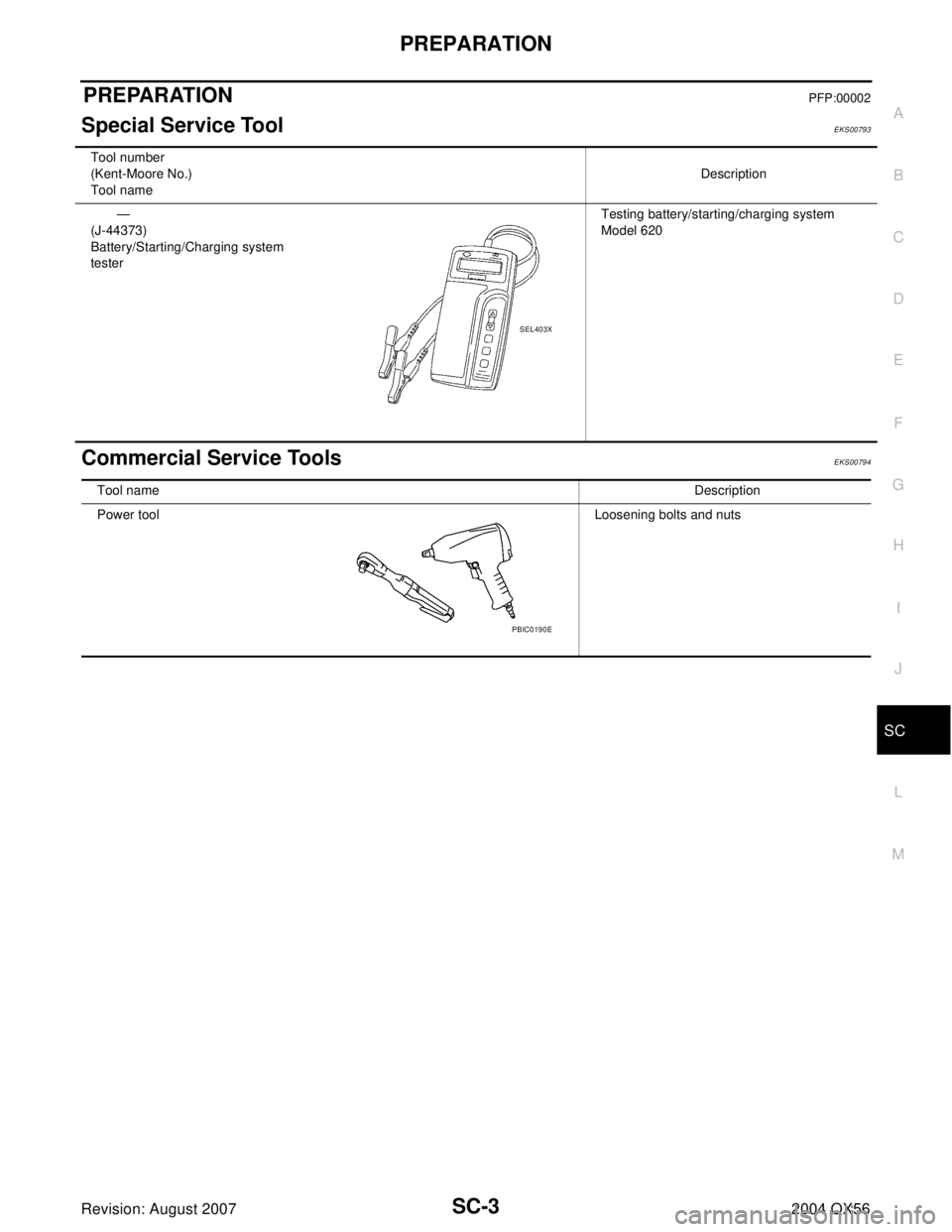

Special Service ToolEKS00793
Commercial Service ToolsEKS00794
Tool number
(Kent-Moore No.)
Tool nameDescr

Page 2925 of 3371

INFINITI QX56 2004 Factory Service Manual SC-4
BATTERY
Revision: August 20072004 QX56
BATTERYPFP:AYBGL
How to Handle BatteryEKS00795

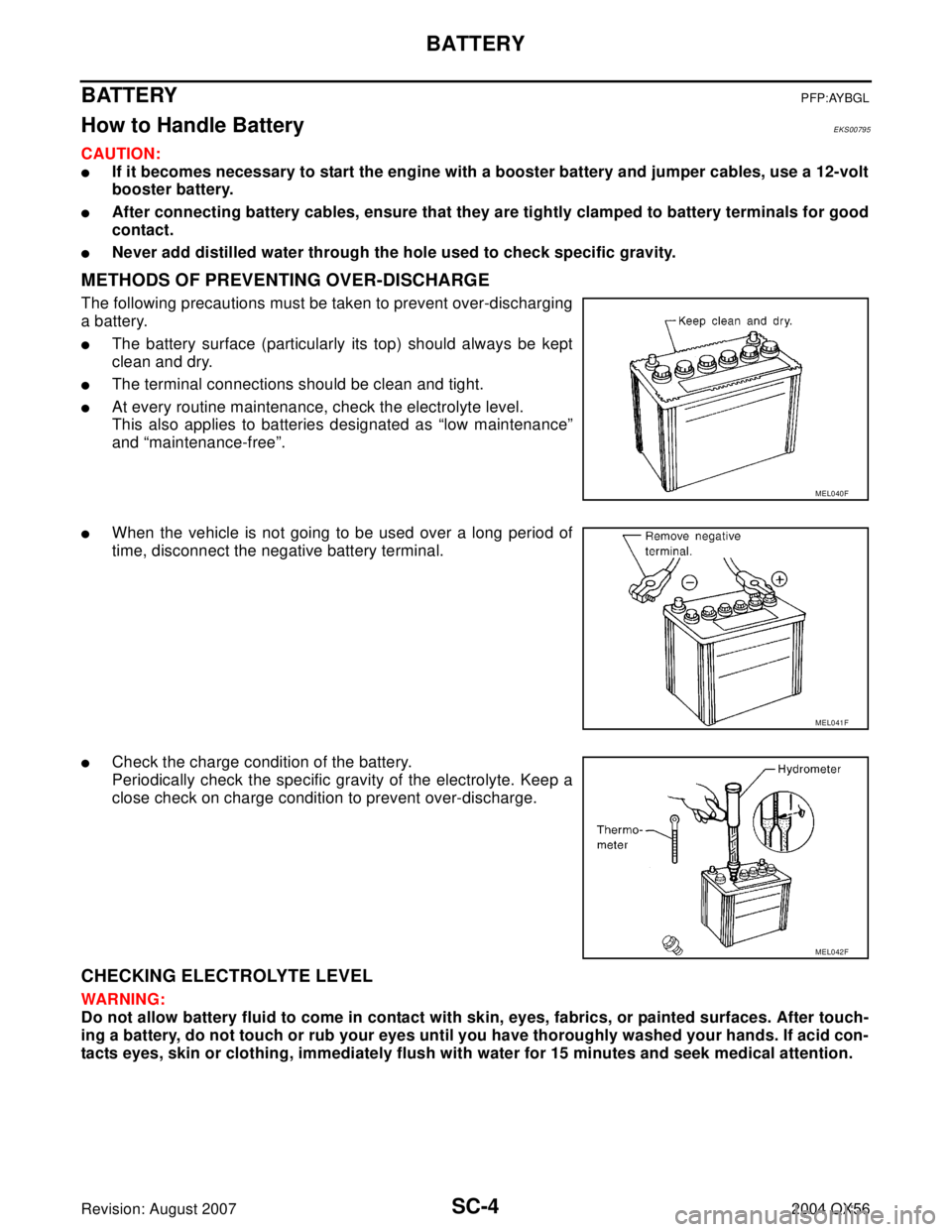

CAUTION:
If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt

Page 2926 of 3371

INFINITI QX56 2004 Factory Service Manual BATTERY
SC-5
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: August 20072004 QX56

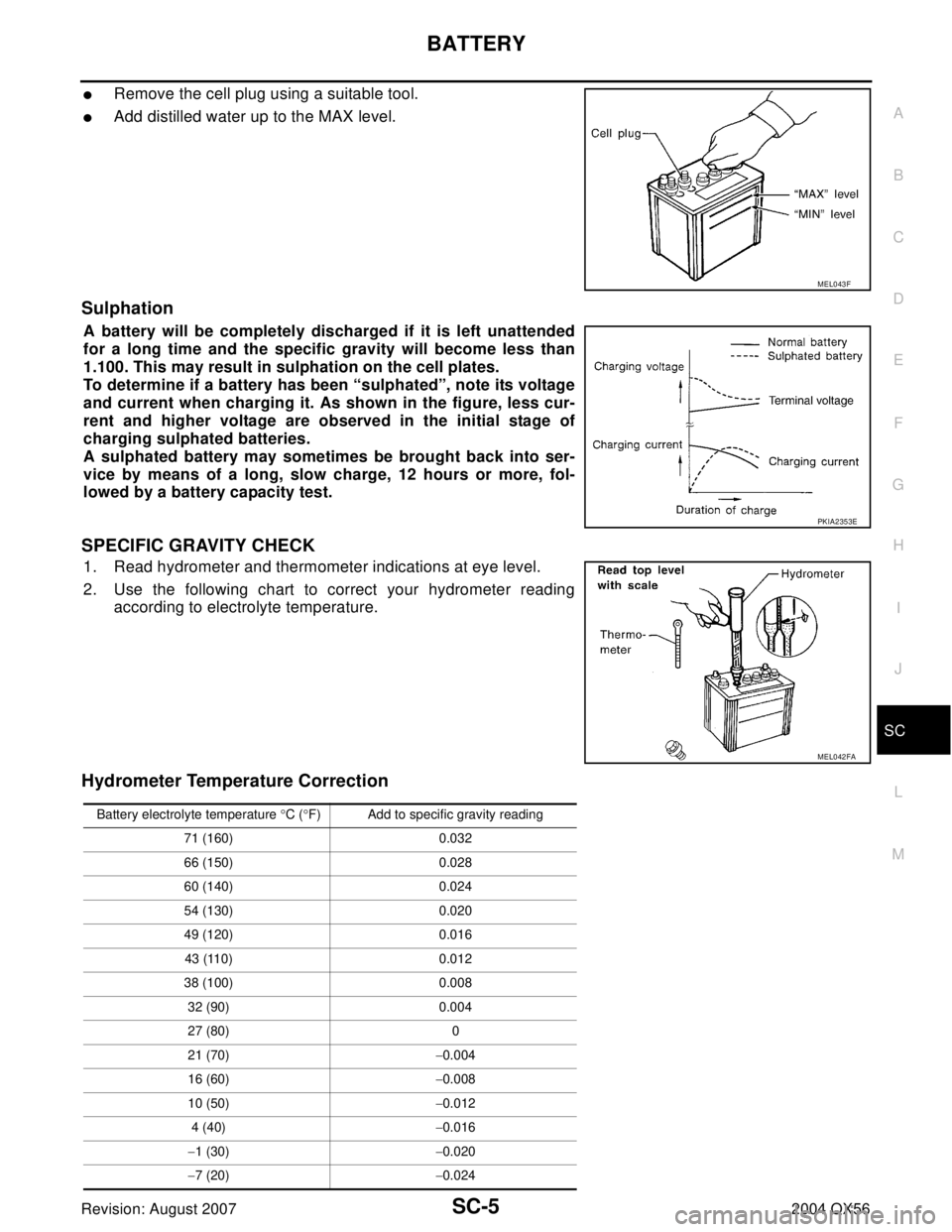

Remove the cell plug using a suitable tool.
Add distilled water up to the MAX level.
Sulphation
A battery will be completely dis

Page 2927 of 3371

INFINITI QX56 2004 Factory Service Manual SC-6
BATTERY
Revision: August 20072004 QX56
CHARGING THE BATTERY
CAUTION:
Do not “quick charge” a fully discharged battery.
Keep the battery away from open flame while it is being charged.
When

Page 2928 of 3371

INFINITI QX56 2004 Factory Service Manual BATTERY
SC-7
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: August 20072004 QX56

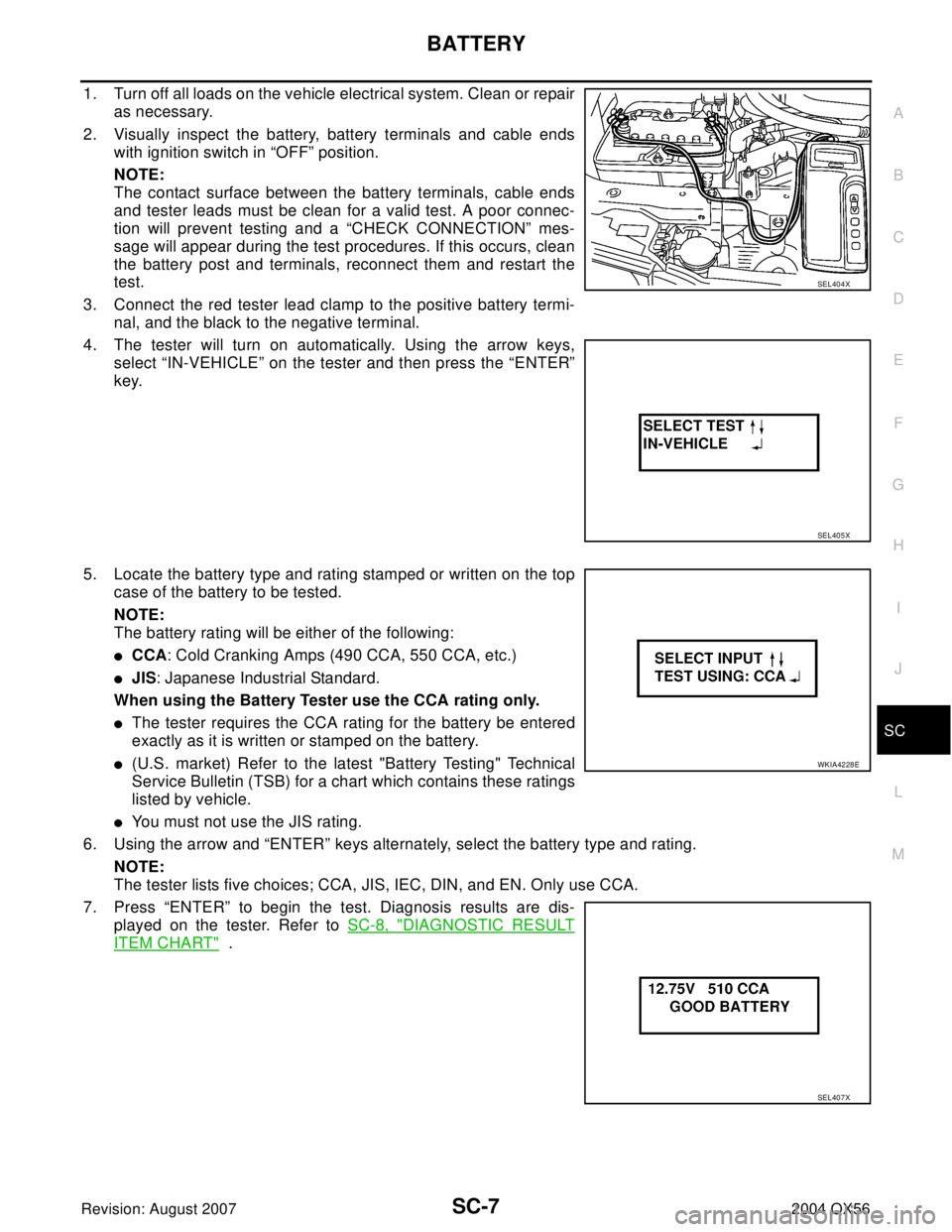

1. Turn off all loads on the vehicle electrical system. Clean or repair
as necessary.
2. Visually inspect the battery, battery ter
