RSU-6
CAN COMMUNICATION
Revision: August 20072004 QX56
CAN COMMUNICATIONPFP:23710
System DescriptionEES00112
Refer to LAN-5, "CAN COMMUNICATION" .
Page 2866 of 3371

TROUBLE DIAGNOSIS
RSU-7
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: August 20072004 QX56
TROUBLE DIAGNOSISPFP:00000
How to Perform Trouble Diagnoses for Quick and Accurate RepairEES00113
INTRODUCTION
The rear load leveling air suspension system uses an electronic con-
trol unit to control major functions. The control unit accepts input sig-
nals from the height sensor and controls compressor and exhaust
valve operation.
It is much more difficult to diagnose a rear load leveling air suspen-
sion system problem that occurs intermittently rather than continu-
ously. Most intermittent problems are caused by poor electrical
connections or faulty wiring. In this case, careful checking of suspi-
cious circuits may help prevent the replacement of good parts.
Before undertaking actual checks, take just a few minutes to talk with
a customer who approaches with an air suspension system com-
plaint. The customer is a very good source of information on such
problems, especially intermittent ones. Through discussion with the
customer, find out what symptoms are present and under what con-
ditions they occur.
Start your diagnosis by looking for basic mechanical problems first.
This is one of the best ways to troubleshoot concerns on an air sus-
pension system equipped vehicle. Also check related Service Bulle-
tins for information.
CLARIFY CONCERN
A customer's description of a vehicle concern may vary depend-
ing on the individual. It is important to clarify the customer's con-
cern.
Ask the customer about what symptoms are present under what
conditions. Use this information to reproduce the symptom.
SEF 2 33 G
SEF 2 34 G
SBR3 39 B
Page 2867 of 3371
RSU-8
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56

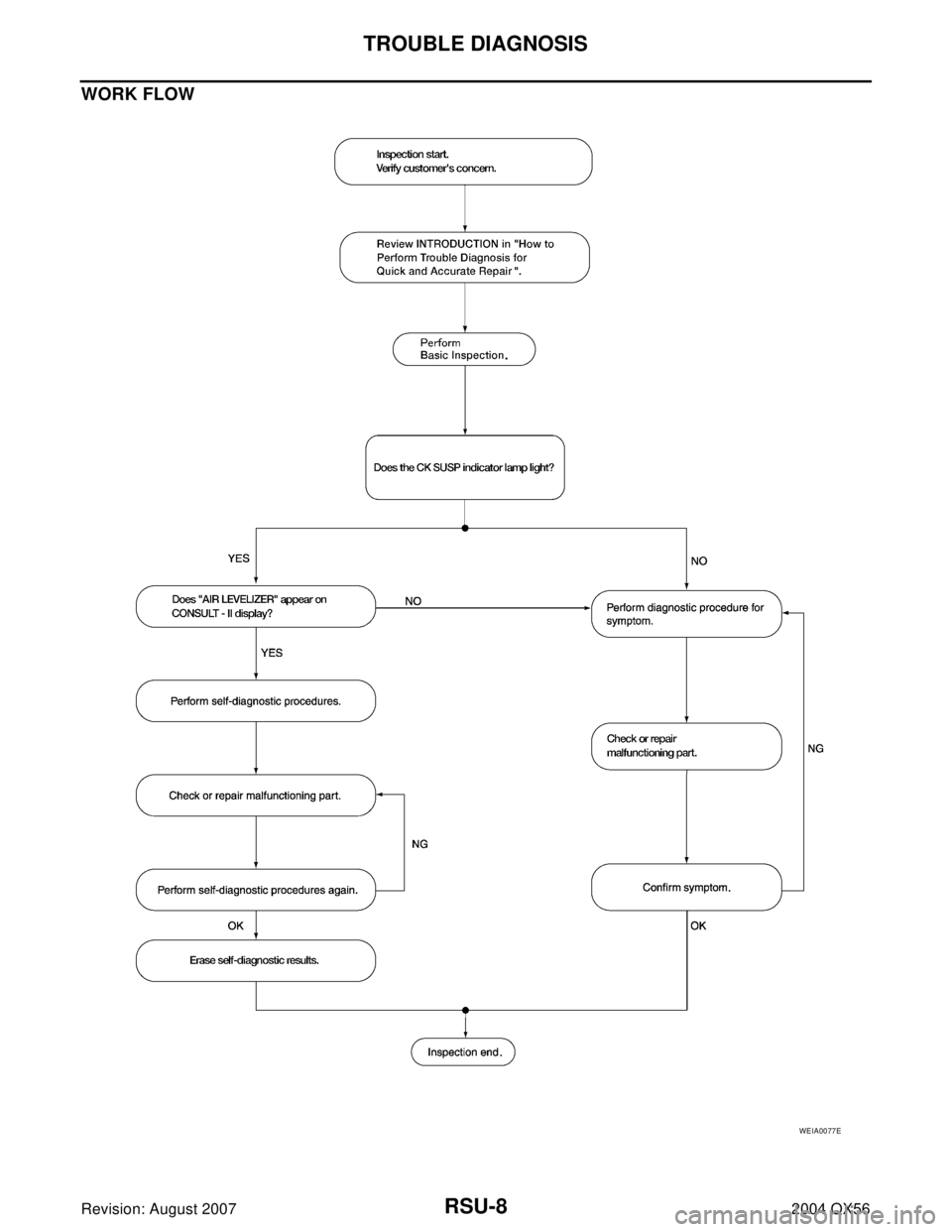

WORK FLOW
WEIA0077E
Page 2868 of 3371
TROUBLE DIAGNOSIS
RSU-9
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: August 20072004 QX56

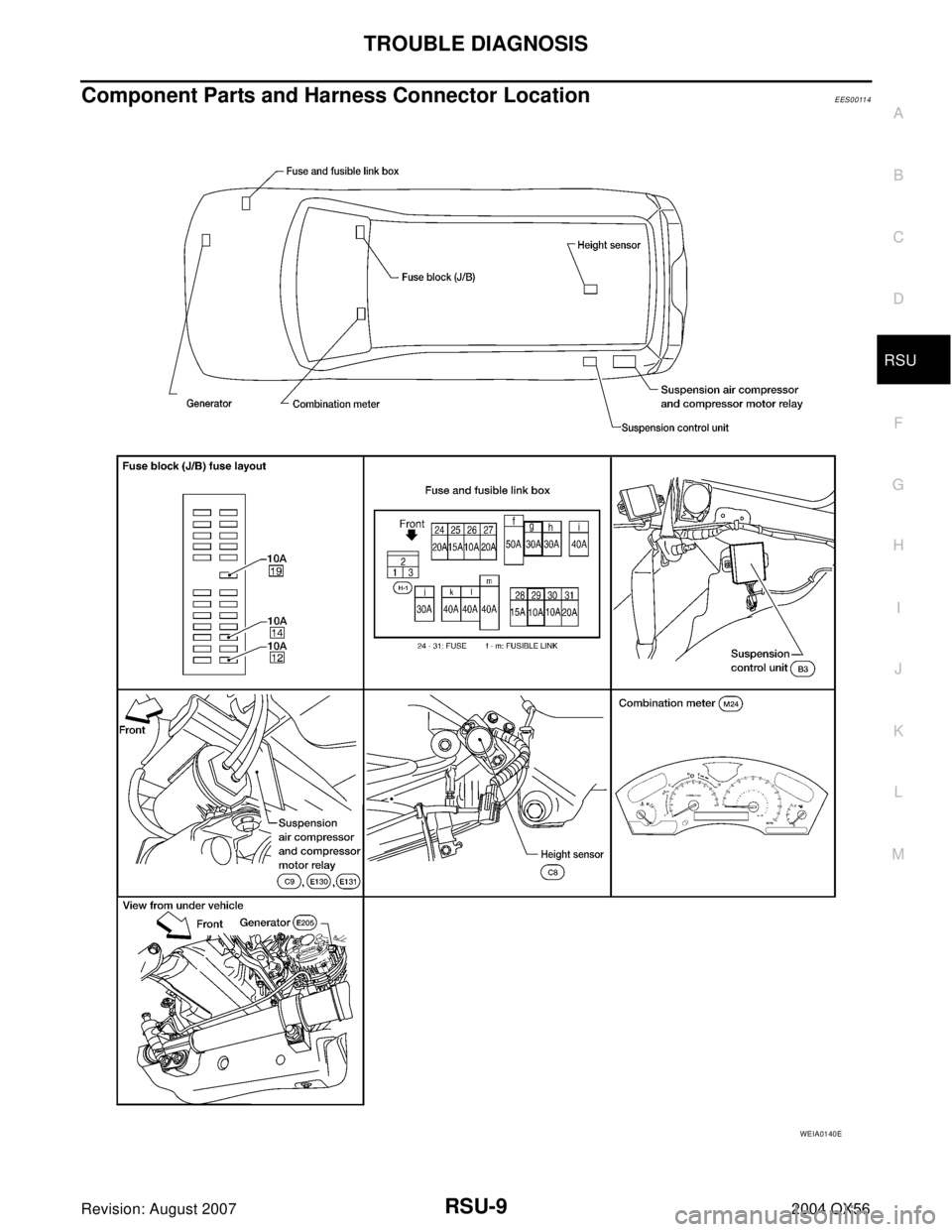

Component Parts and Harness Connector LocationEES00114
WEIA0140E
Page 2869 of 3371
RSU-10
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56

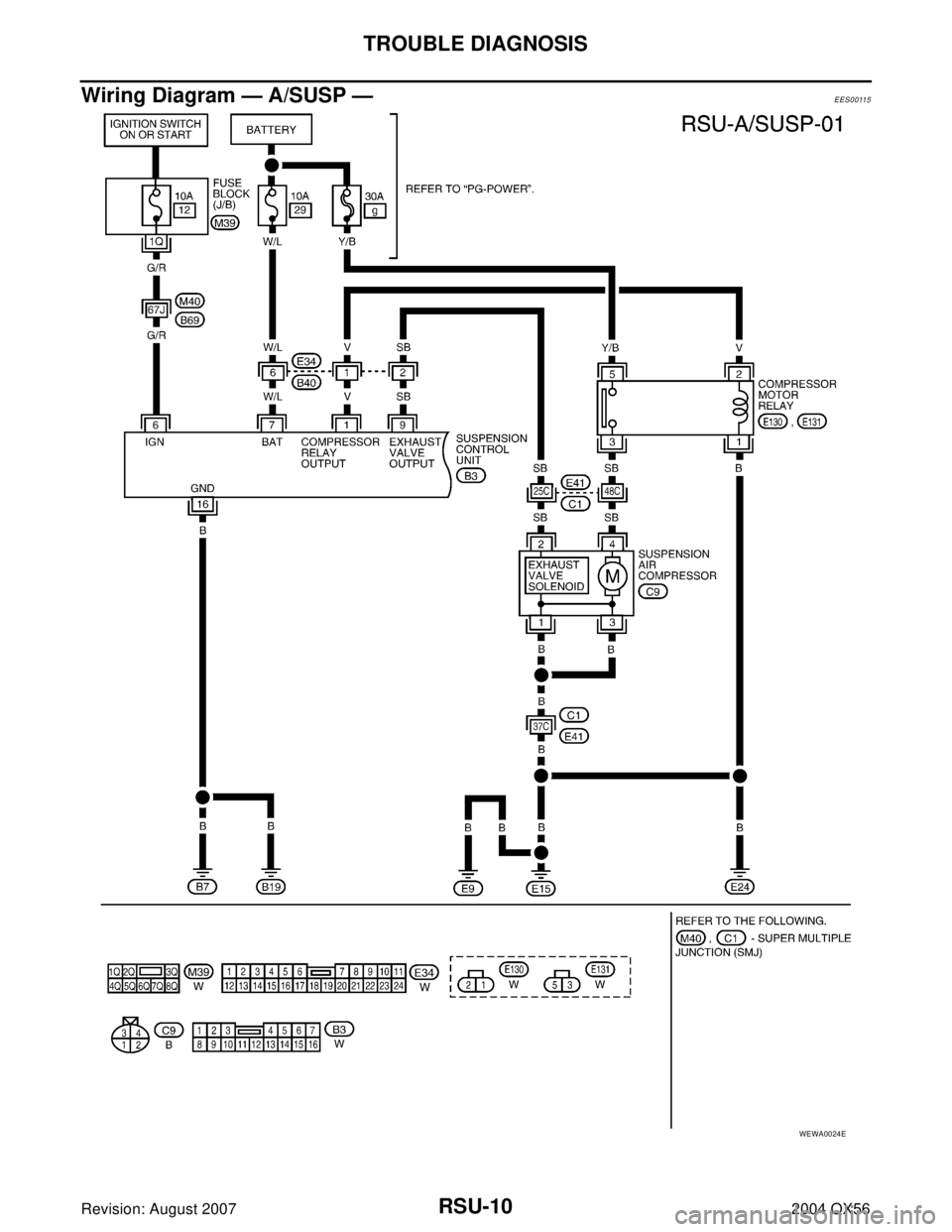

Wiring Diagram — A/SUSP —EES00115
WEWA0024E
Page 2870 of 3371
TROUBLE DIAGNOSIS
RSU-11
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: August 20072004 QX56

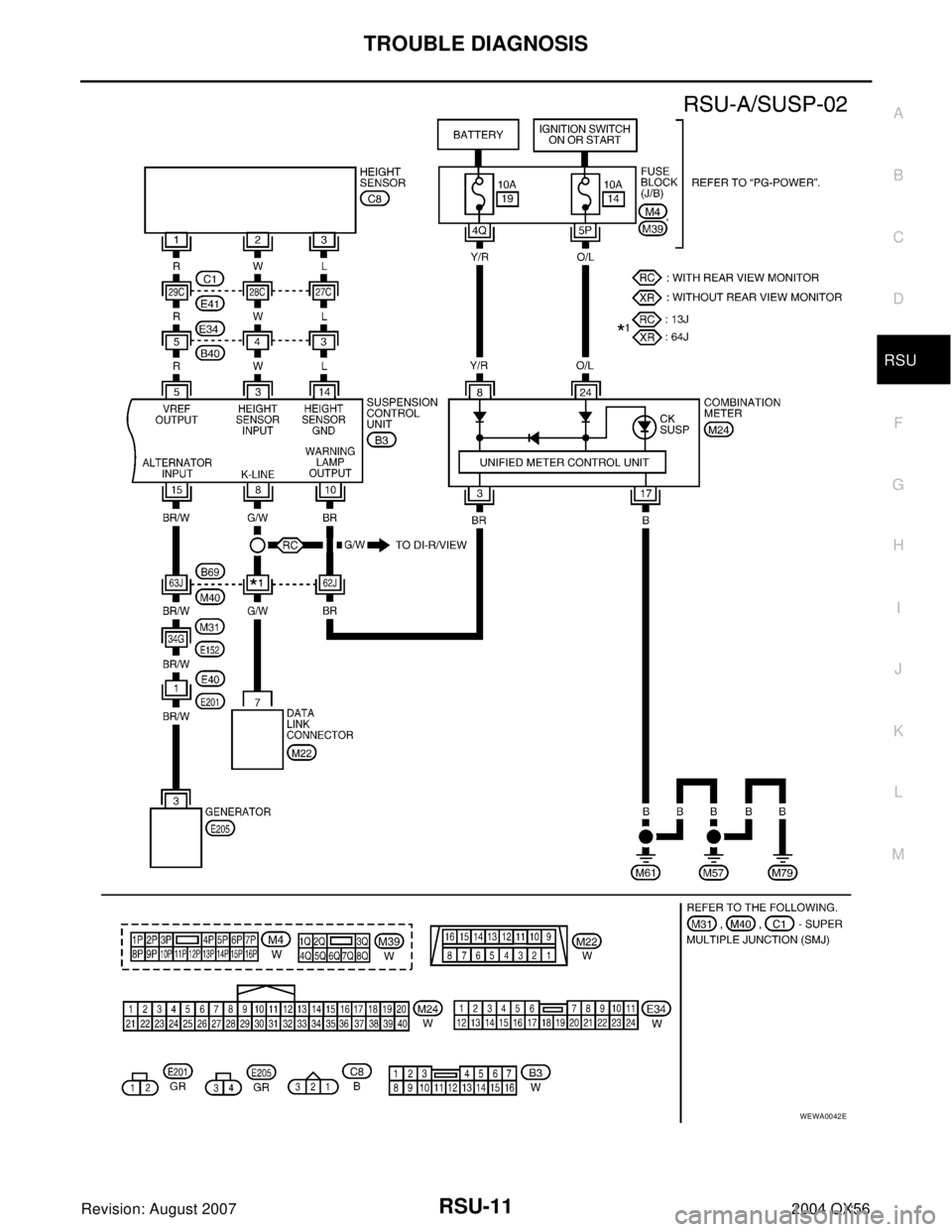

WEWA0042E
Page 2871 of 3371

RSU-12
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
Basic InspectionEES00116
AIR HOSES
1. Check for pinched or damaged air hoses between the suspension air reservoir and each load leveling rear
air suspension shock absorber. Reposition, repair or replace hoses as necessary.
2. Check the air hose connections at the suspension air reservoir and at the shock absorbers for leaks. If
connections are leaking, repair or replace hoses as necessary.
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.
CK SUSP INDICATOR LAMP INSPECTION
1. Make sure the CK SUSP indicator lamp turns on for approximately 2 seconds when the ignition switch is
turned ON. If it does not, check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
2. Make sure the lamp turns off approximately 2 seconds after the ignition switch is turned ON. If the lamp
does not turn off, conduct self-diagnosis of the suspension control unit.
3. After conducting the self-diagnosis, be sure to erase the error memory. Refer to RSU-13, "
CONSULT-II
Function (AIR LEVELIZER)" .
CK SUSP Indicator Lamp TimingEES00117
X: ON
—: OFF
Control Unit Input/Output Signal StandardEES00118
( ): Wire colorConditionCK SUSP
indicator lampRemarks
Ignition switch OFF – –
Ignition switch ON X Turns off after approximately 2 seconds.
Te r m i n a l
Item ConditionVoltage (V)
(Approx.)
+–
1 (V)
GroundCompressor relay output
Ignition switch ON or STARTBattery voltage
3 (W) Height sensor signal input 0.2V - 4.8V
5 (R) Reference voltage 5V
6 (G/R) Ignition power
Battery voltage
7 (W/L) Battery power —
8 (G/W) Diagnostic K-line — —
9 (SB) Exhaust valve output Ignition switch ON or START Battery voltage
10 (BR) Warning lamp output — —
14 (L) Height sensor ground — —
15 (BR/W) Alternator L signal input Engine running —
16 (B) Suspension control unit ground — 0V
Page 2872 of 3371

TROUBLE DIAGNOSIS
RSU-13
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: August 20072004 QX56
CONSULT-II Function (AIR LEVELIZER)EES00119
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

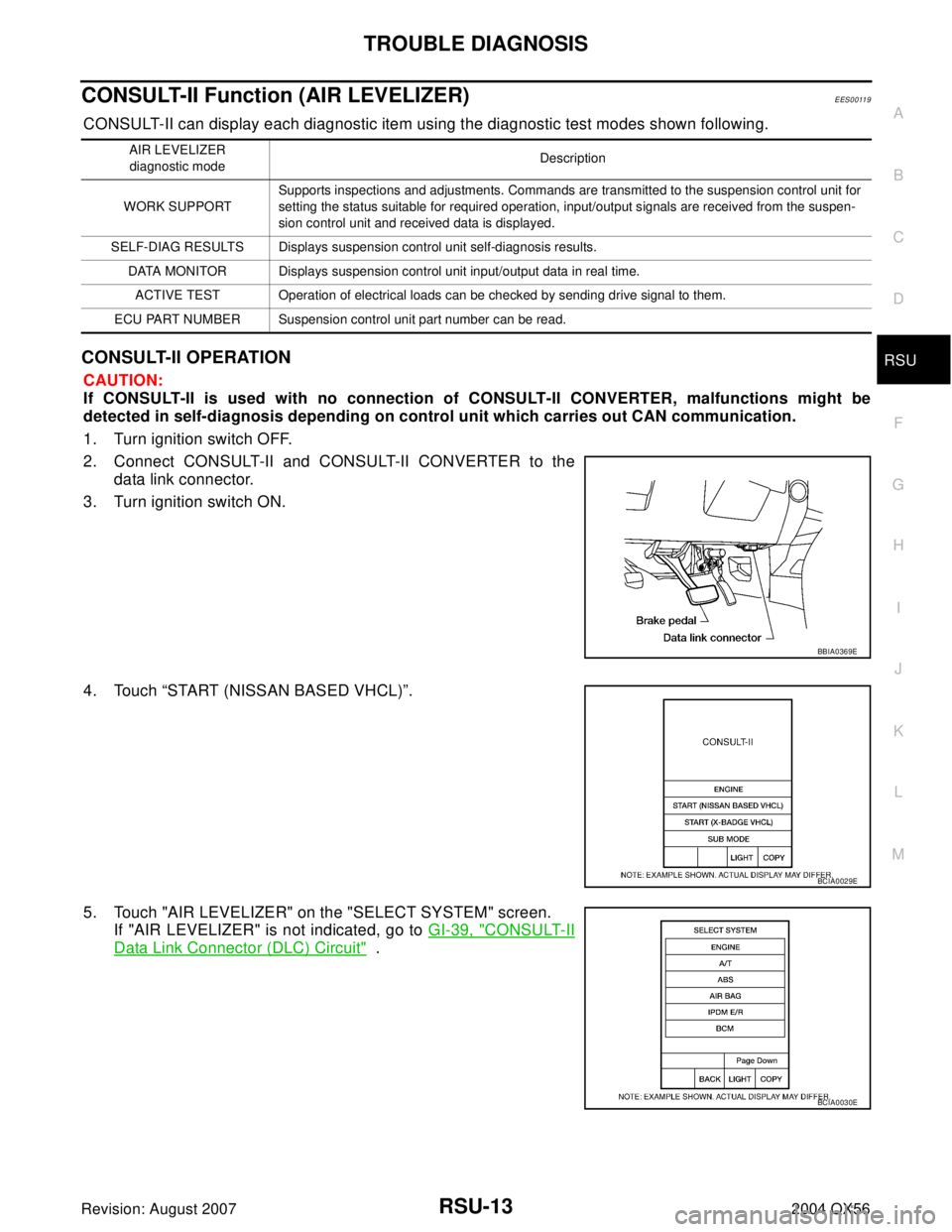

1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch "AIR LEVELIZER" on the "SELECT SYSTEM" screen.
If "AIR LEVELIZER" is not indicated, go to GI-39, "
CONSULT-II
Data Link Connector (DLC) Circuit" .
AIR LEVELIZER
diagnostic modeDescription
WORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the suspension control unit for
setting the status suitable for required operation, input/output signals are received from the suspen-
sion control unit and received data is displayed.
SELF-DIAG RESULTS Displays suspension control unit self-diagnosis results.
DATA MONITOR Displays suspension control unit input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
ECU PART NUMBER Suspension control unit part number can be read.
BBIA0369E
BCIA0029E
BCIA0030E
