A/T Indicator Does Not IlluminateEKS007ED
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
OK or NG
OK >> GO TO 2.
NG >> Replace the combination meter. Refer to DI-25, "
Removal and Installation of Combination Meter"
.
2. CHECK TCM
Perform self-diagnosis of TCM. Refer to AT - 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >> Replace the combination meter. Refer to DI-25, "Removal and Installation of Combination Meter"
.
NG >> Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
DI-44
WARNING CHIME
Revision: August 20072004 QX56

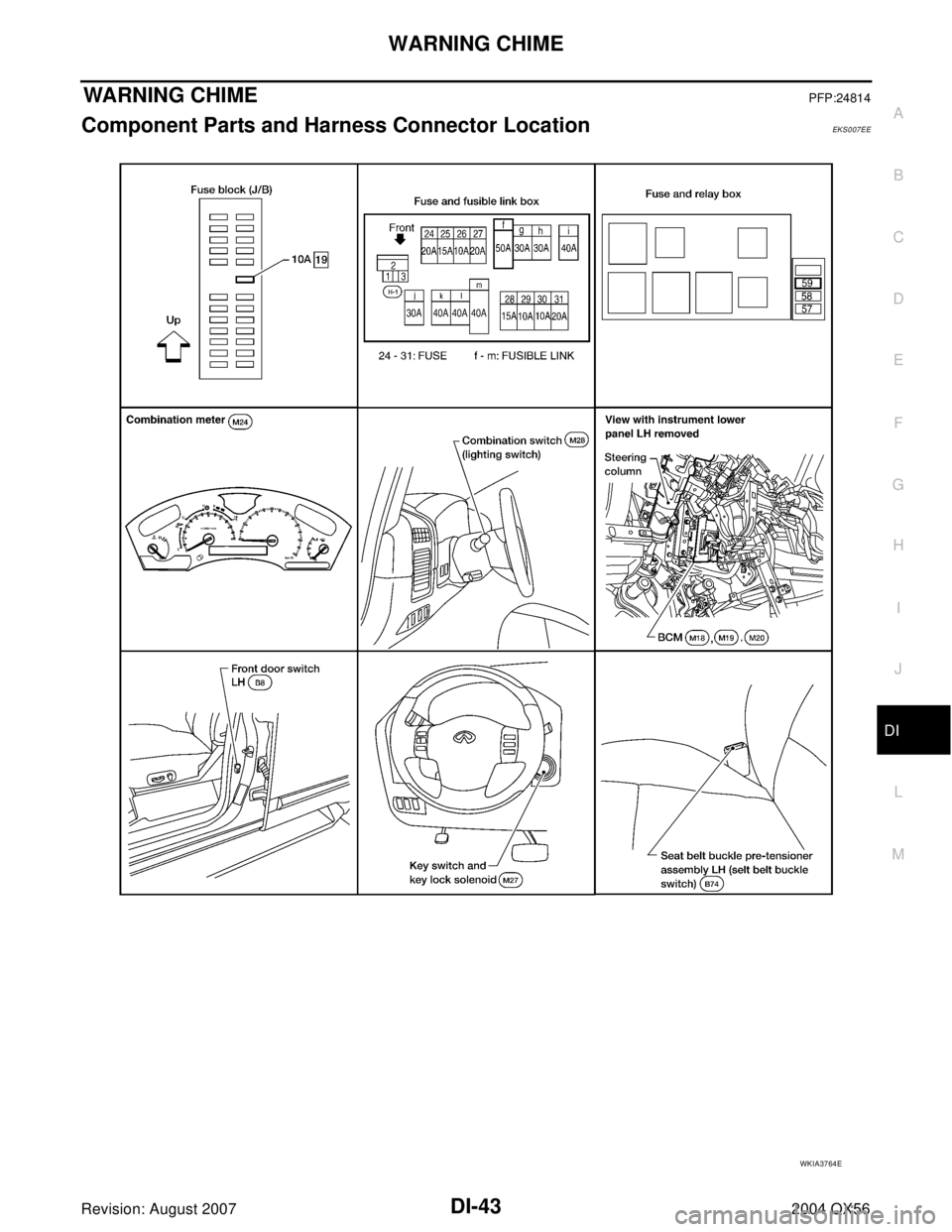

System DescriptionEKS007EF
FUNCTION
Power is supplied at all times
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70, and
through 10A fuse [No. 19, located in the fuse block (J/B)]
to key switch and key lock solenoid terminal 3.
With ignition switch in ON or START position, power is supplied
through 10A fuse [No. 59, located in the fuse and relay box)
to BCM terminal 38.
Ground is supplied
to BCM terminal 67
through body grounds M57, M61, and M79.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime are required at the same
time, the priorities for each chime are the following.
1. Light warning chime
2. Ignition key warning chime
3. Seat belt warning chime
IGNITION KEY WARNING CHIME
With the key inserted in the ignition switch, the ignition switch in OFF position, and the driver's door open, the
warning chime will sound.
Power is supplied
through key switch and key lock solenoid terminal 4
to BCM terminal 37.
Ground is supplied
to BCM terminal 47
through front door switch LH terminal 2.
Front door switch LH is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter via CAN
communication lines. When the combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch, the driver's door open, and the lighting switch (part of the com-
bination switch) in 1st or 2nd position, the warning chime will sound. [Except when headlamp battery saver
control operates (5 minutes after ignition switch is turned to OFF or ACC position) and headlamps do not illu-
minate.]
Signal is supplied

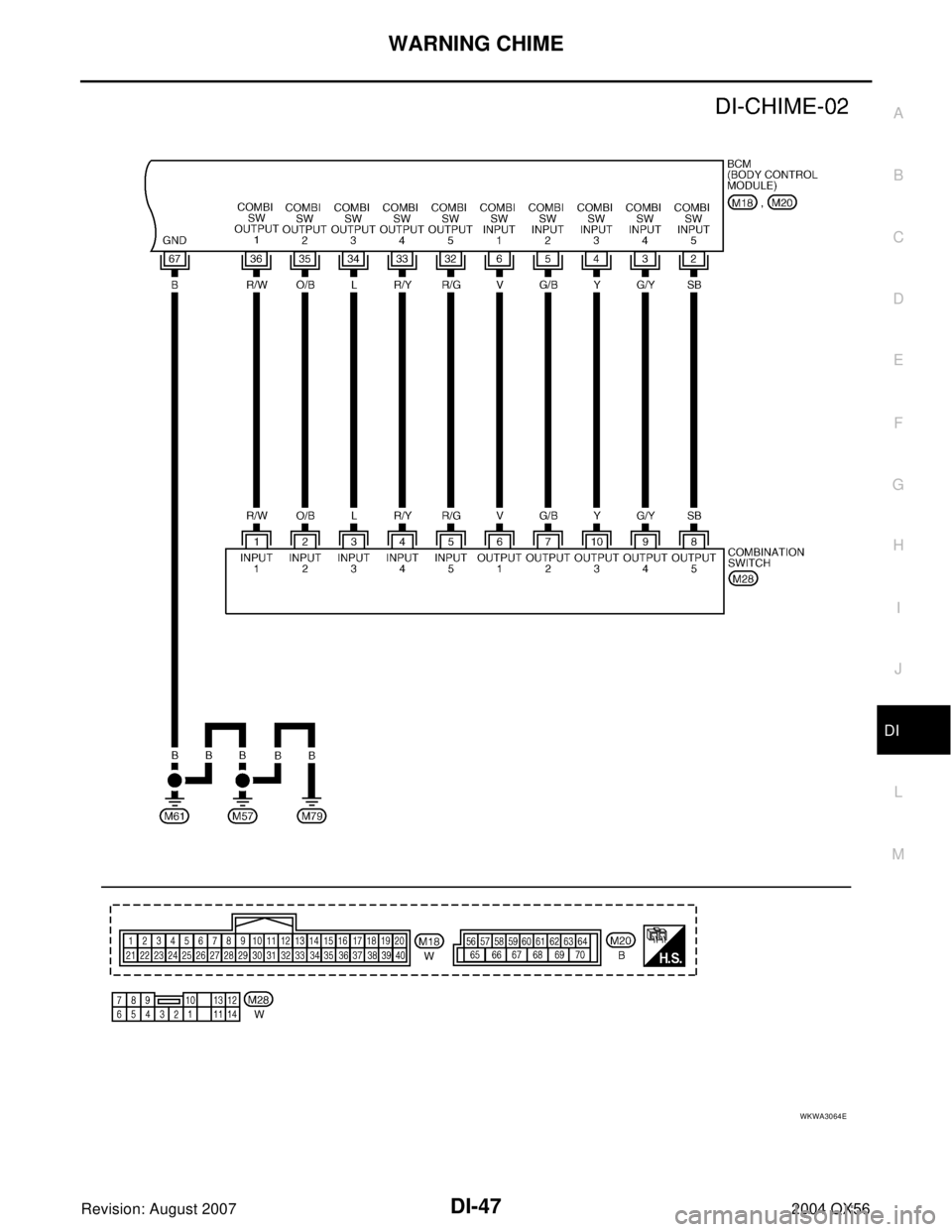

from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10
to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position. Refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied
to BCM terminal 47
through front door switch LH terminal 2.
Front door switch LH is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to combination meter CAN communi-
cation lines. When the combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
When the ignition switch is turned ON with the seat belt unfastened (seat belt buckle switch LH unfastened),
warning chime will sound for approximately 6 seconds.
WARNING CHIME
DI-45
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: August 20072004 QX56
Ground is supplied
to combination meter terminal 27
through seat belt buckle pre-tensioner assembly LH (seat belt buckle switch) terminal 1.
Seat belt buckle pre-tensioner assembly LH (seat belt buckle switch) terminal 2 is grounded through body
grounds B7 and B19.
The combination meter sends seat belt buckle switch LH unfastened signal to BCM via CAN communication
line.
BCM receives seat belt buckle switch LH unfastened signal from combination meter via CAN communication
line, and sends seat belt warning signal to the combination meter via CAN communication line. When the
combination meter receives the seat belt warning signal, it sounds the warning chime. The BCM controls the
(6 second) duration of the seat belt warning chime.
CAN Communication System DescriptionEKS007EG
Refer to LAN-5, "CAN COMMUNICATION" .
DI-48
WARNING CHIME
Revision: August 20072004 QX56
Terminals and Reference Value for BCMEKS007EI
Terminal
No.Wire
colorItem Condition
Reference value (V)
(Approx.) Ignition
switchMeasurement method
2 SB Combination switch input 5 ON
Light switch and wiper switch
OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON
Light switch and wiper switch
OFF
Wiper dial position 4
4 Y Combination switch input 3 ON
Light switch and wiper switch
OFF
Wiper dial position 4
5 G/B Combination switch input 2
ON
Light switch and wiper switch
OFF
Wiper dial position 4 6 V Combination switch input 1
32 R/G Combination switch output 5 ON
Light switch and wiper switch
OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON
Light switch and wiper switch
OFF
Wiper dial position 4
34 L Combination switch output 3 ON
Light switch and wiper switch
OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
WARNING CHIME
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: August 20072004 QX56
Terminals and Reference Value for Combination MeterEKS007EJ
How to Proceed With Trouble DiagnosisEKS007EK
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to DI-44, "
System Description" .
3. Perform the preliminary check. Refer to DI-49, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the warning chime operate properly? If so, go to 6. If not, go to 3.
6. Inspection End.
Preliminary CheckEKS007EL
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSE AND FUSIBLE LINK
Check for blown BCM fuse or fusible link.

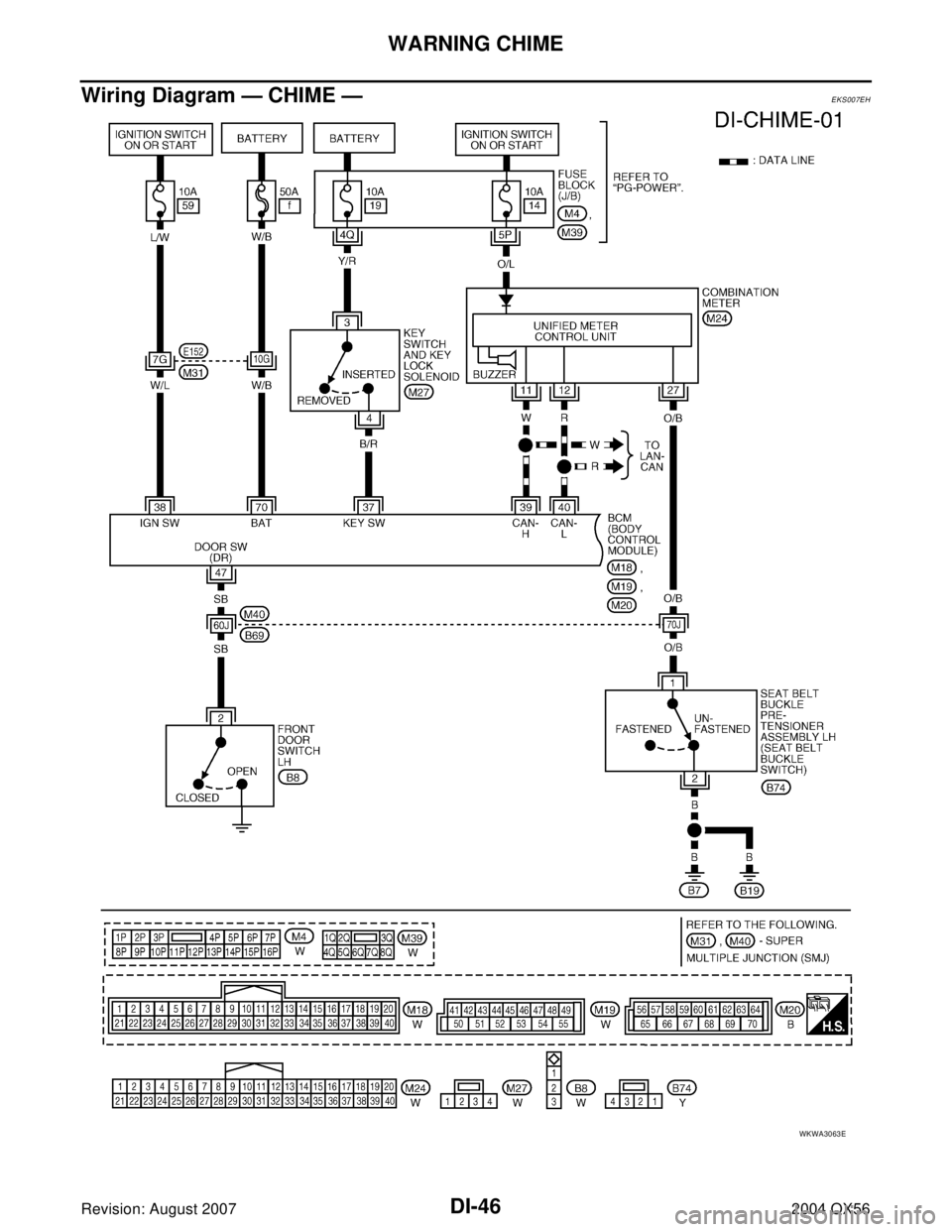

Refer to DI-46, "Wiring Diagram — CHIME —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
35 O/B Combination switch output 2
ON
Light switch and wiper switch
OFF
Wiper dial position 4 36 R/W Combination switch output 1
37 B/R Key switch signal OFFKey is removed 0
Key is inserted Battery voltage
38 W/L Ignition switch ON or START ON — Battery voltage
39 W CAN-H — — —
40 R CAN-L — — —
47 SB Front door switch LH signal OFFON (open) 0
OFF (closed) 5
67 B Ground OFF — 0
70 W/B Battery power supply OFF — Battery voltage Te r m i n a l
No.Wire
colorItem Condition
Reference value (V)
(Approx.) Ignition
switchMeasurement method
SKIA5292E
Te r m i n a l
No.Wire
colorItem Condition
Reference value (V)
(Approx.) Ignition
switchMeasurement method
11 W C A N - H — — —
12 R CAN-L — — —
27 O/B Seat belt buckle switch LH ONUnfastened (ON) 0
Fastened (OFF) Battery voltage
Unit Power source Fuse or fusible link No.
BCMBatteryf
Ignition switch ON or START 59
