Page 2321 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 PKIA8088E

Page 2322 of 3371

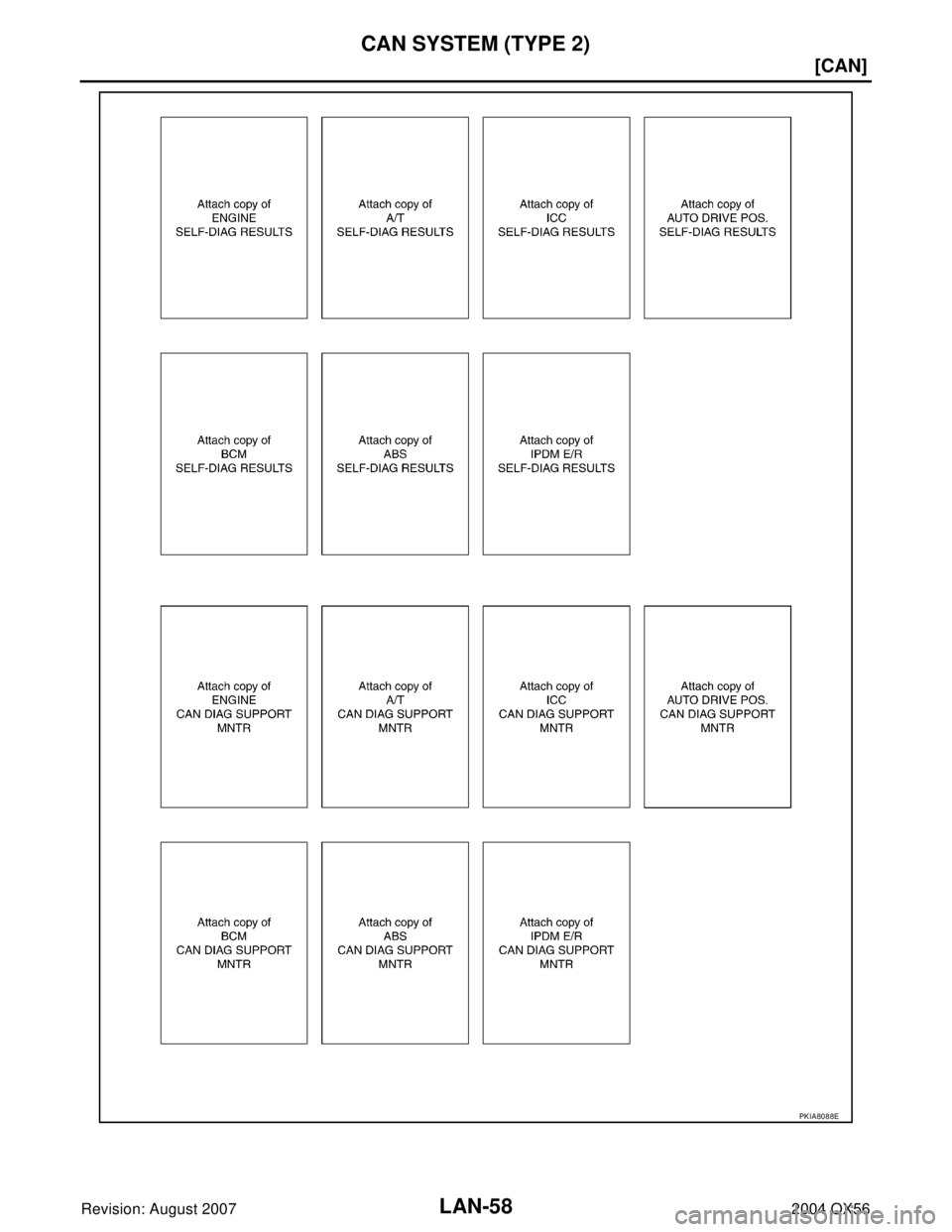

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-59 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “

Page 2323 of 3371

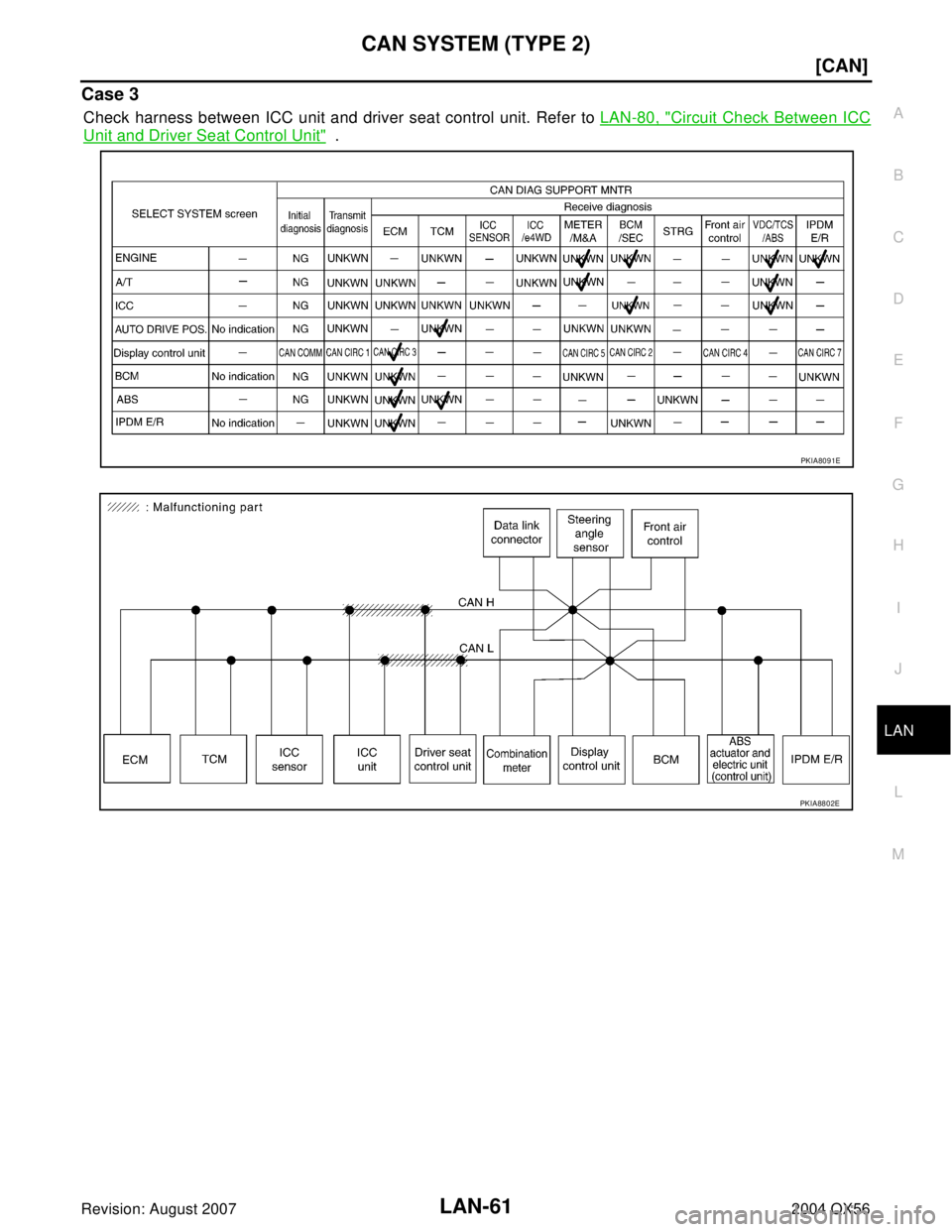

INFINITI QX56 2004 Factory Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 2 Check harness between ICC sensor and ICC unit. Refer to LAN-79, "Circuit Check Between ICC Sensor and ICC Unit" . PKIA8090E PKIA

Page 2324 of 3371

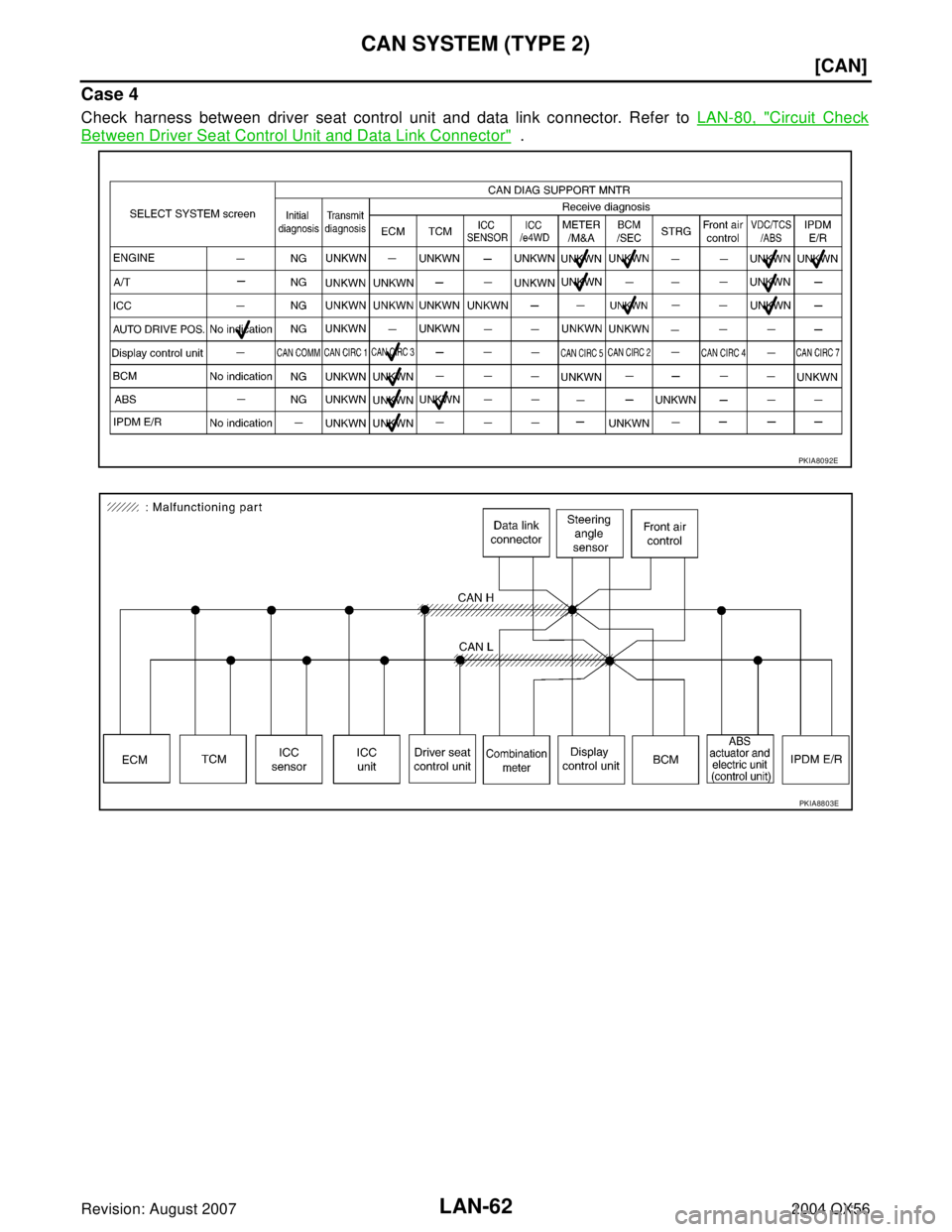

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-61 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 3 Check harness between ICC unit and driver seat control unit. Refer to LAN-80, "Circuit Check Between I

Page 2325 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-62 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 4 Check harness between driver seat control unit and data link connector. Refer to LAN-80, "Circuit Check Between Driver Seat Contr

Page 2326 of 3371

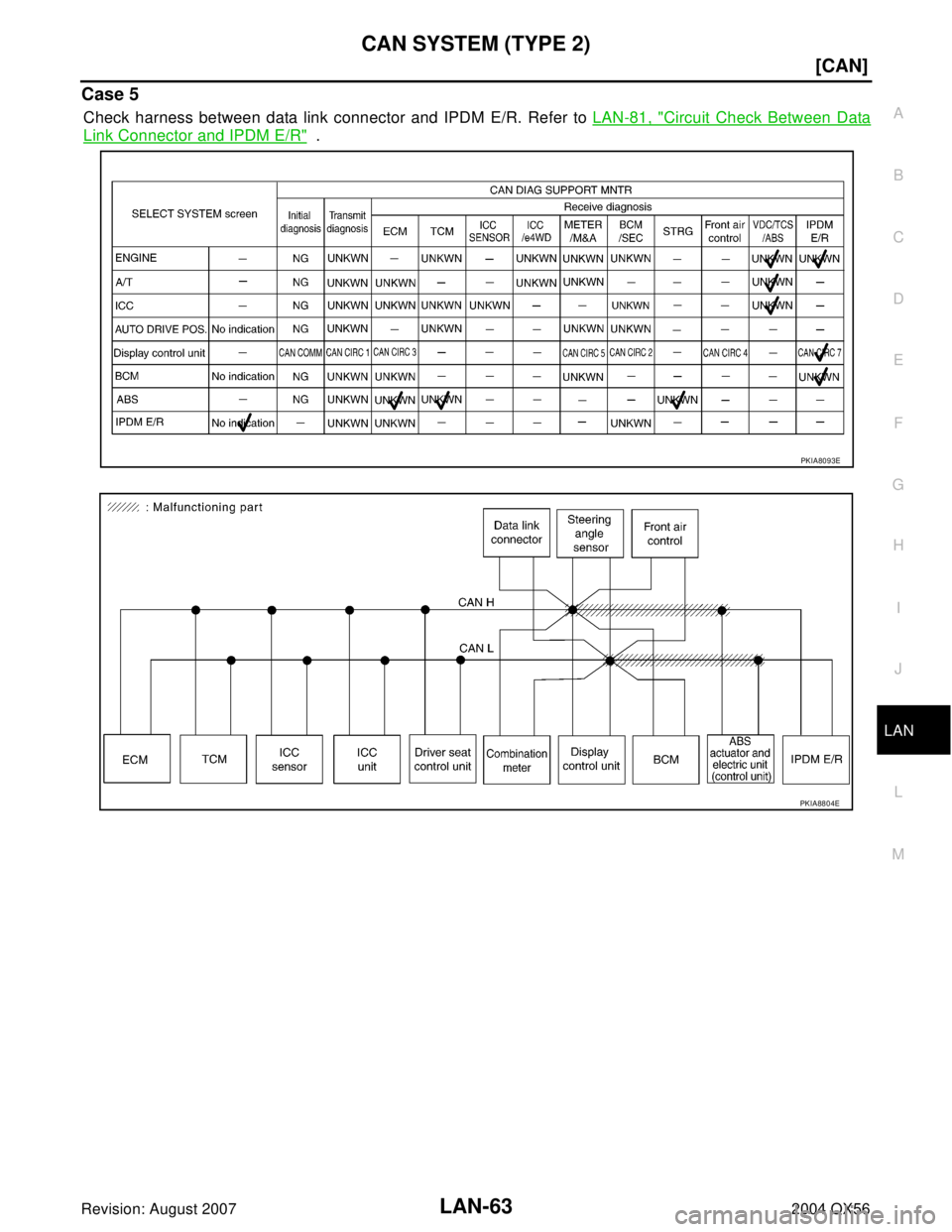

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-63 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 5 Check harness between data link connector and IPDM E/R. Refer to LAN-81, "Circuit Check Between Data L

Page 2327 of 3371

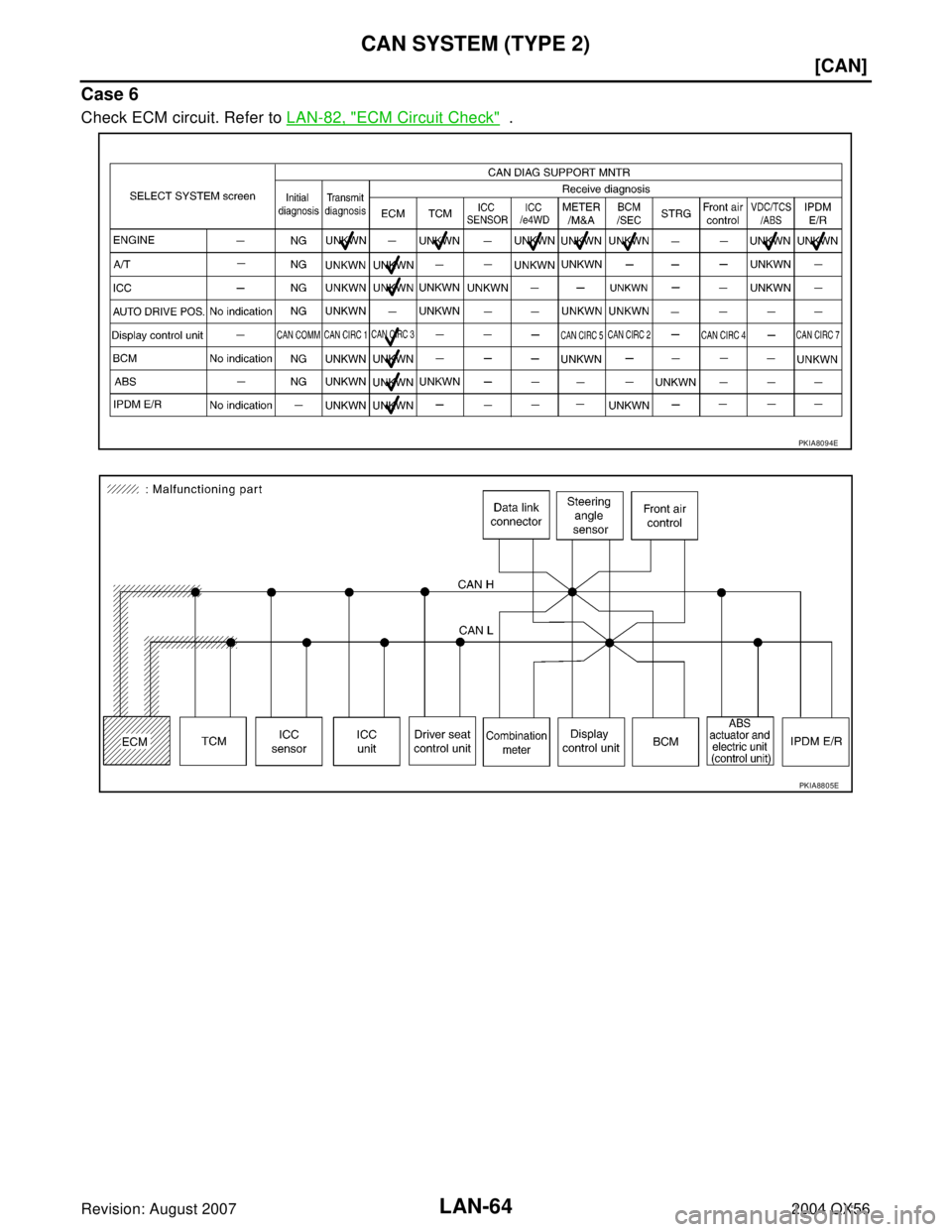

INFINITI QX56 2004 Factory Service Manual LAN-64 [CAN] CAN SYSTEM (TYPE 2) Revision: August 20072004 QX56 Case 6 Check ECM circuit. Refer to LAN-82, "ECM Circuit Check" . PKIA8094E PKIA8805E

Page 2328 of 3371

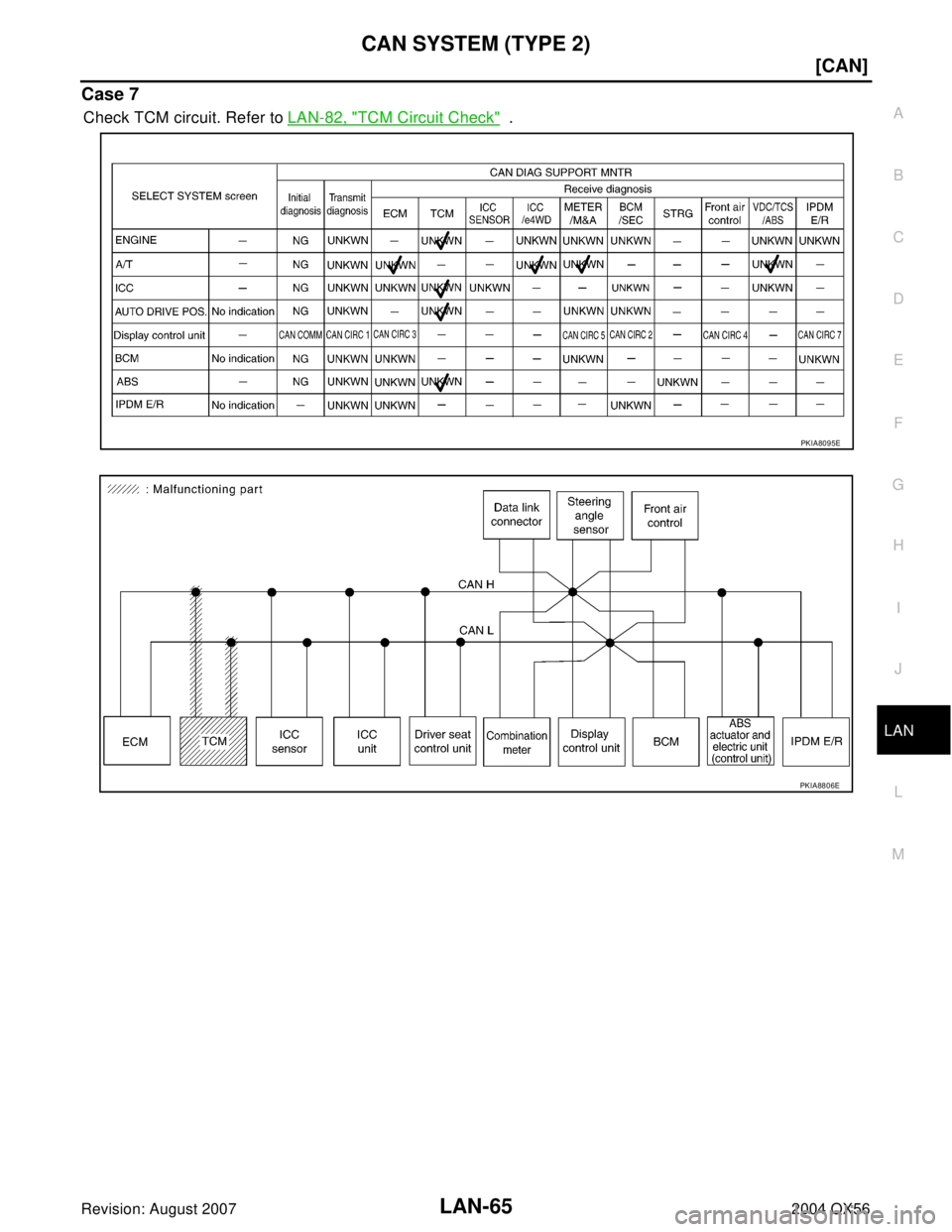

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-65 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 7 Check TCM circuit. Refer to LAN-82, "TCM Circuit Check" . PKIA8095E PKIA8806E
