COMBINATION SWITCH
Revision: August 20072004 QX56
Combination Switch Reading FunctionEKS007C1
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CONSULT-II Function (BCM)EKS007C2
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2530 of 3371

COMBINATION SWITCH
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
4. Touch “COMB SW” on “SELECT TEST ITEM” screen.
DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. Touch “START”.
5. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all the signals will be monitored.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
LKIA0283E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item name
“OPERATION OR UNIT”Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF” Displays “Headlamp switch 1 (ON)/Other (OFF)” status, determined from lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from lighting
switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF” Displays “Front fog lamp switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “Rear Wiper (ON)/(OFF)” status, determined from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “Rear Wiper INT (ON)/(OFF)” status, determined from wiper switch signal.
RR WASHER SW "ON/OFF" Displays "Rear Washer (ON)/(OFF)" status, determined from wiper switch signal.
Page 2531 of 3371

LT-100
COMBINATION SWITCH
Revision: August 20072004 QX56
Combination Switch InspectionEKS007C3
1. SYSTEM CHECK
1. Referring to table below, check which system the malfunctioning switch belongs.
>> GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Connect CONSULT-II, and select “COMB SW” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in malfunction-
ing system operate normally.
Example: When auto light switch is malfunctioning, confirm that
“FRONT WIPER LOW” and “FRONT WIPER INT” in System 3,
to which the auto light switch belongs, turn ON-OFF normally.
Without CONSULT-II
Operate combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER
INT" in System 3, to which the auto light switch belongs, operate normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP1
INT VOLUME 1 RR WASHER — HEAD LAMP2 HI BEAM
RR WIPER INT INT VOLUME 3 AUTO LIGHT — TAIL LAMP
INT VOLUME 2 RR WIPER ON — FR FOG —
SKIA7075E
Page 2532 of 3371

COMBINATION SWITCH
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch connector terminals.
4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system
and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
systemTe r m i n a l s
Continuity BCM Combination switch
ConnectorTe r m i n a l
(wire color)ConnectorTe r m i n a l
(wire color)
1
M18Input 1 6 (V)
M286 (V)
Ye s Output 1 36 (R/W) 1 (R/W)
2Input 2 5 (G/B) 7 (G/B)
Output 2 35 (O/B) 2 (O/B)
3Input 3 4 (Y) 10 (Y)
Output 3 34 (L) 3 (L)
4Input 4 3 (G/Y) 9 (G/Y)
Output 4 33 (R/Y) 4 (R/Y)
5Input 5 2 (SB) 8 (SB)
Output 5 32 (R/G) 5 (R/G)
Suspect
systemTe r m i n a l s
Continuity BCM
Connector Terminal (wire color)
1
M18Input 1 6 (V)
Ground No Output 1 36 (R/W)
2Input 2 5 (G/B)
Output 2 35 (O/B)
3Input 3 4 (Y)
Output 3 34 (L)
4Input 4 3 (G/Y)
Output 4 33 (R/Y)
5Input 5 2 (SB)
Output 5 32 (R/G)
LKIA0284E
Page 2533 of 3371

LT-102
COMBINATION SWITCH
Revision: August 20072004 QX56
4. BCM OUTPUT TERMINAL INSPECTION
1. Turn lighting switch and wiper switch to OFF.
2. Set wiper dial to position 4.
3. Connect BCM and combination switch connectors.
4. Turn ignition switch ON, and check combination switch input
(BCM output) terminal voltage waveform of suspect malfunction-
ing system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installa-
tion of BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> Inspection End.
Removal and InstallationEKS007C4
For details, refer to LT- 9 5 , "Removal and Installation" .
Switch Circuit InspectionEKS007C5
For details, refer to LT-100, "Combination Switch Inspection" .
Suspect systemCombination switch
(+)
Connector Terminal (wire color)
1
M28Input 1 1 (R/W)
2 Input 2 2 (O/B)
3 Input 3 3 (L)
4 Input 4 4 (R/Y)
5 Input 5 5 (R/G)
SKIA4976E
Procedure
12 345 67
Replace
lighting
switch.Confirm
check
results.OK INSPECTION END
Confirm
check
results.OK INSPECTION END
Confirm
check
results.OK INSPECTION END
NGReplace wiper
switch.NGReplace switch
base.NGConfirm symptom
again.
Page 2534 of 3371
STOP LAMP
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
STOP LAMPPFP:26550
System DescriptionEKS007C6
Power is supplied at all times
through 10A fuse [No. 20, located in fuse block (J/B)]
to stop lamp switch terminal 3 and
to stop lamp relay terminal 1.
When the brake pedal is pressed, the stop lamp switch is closed and power is supplied
through stop lamp switch terminal 4
to stop lamp relay terminal 3
through stop lamp relay terminal 4
to rear combination lamp LH and RH terminal 2 and
to high-mounted stop lamp terminal +.
Ground is supplied
to rear combination lamp LH terminal 1 and
to high-mounted stop lamp terminal –
through grounds B7 and B19, and
to rear combination lamp RH terminal 1
through grounds B117 and B132.
With power and ground supplied, the stop lamps illuminate.
Page 2535 of 3371
LT-104
STOP LAMP
Revision: August 20072004 QX56

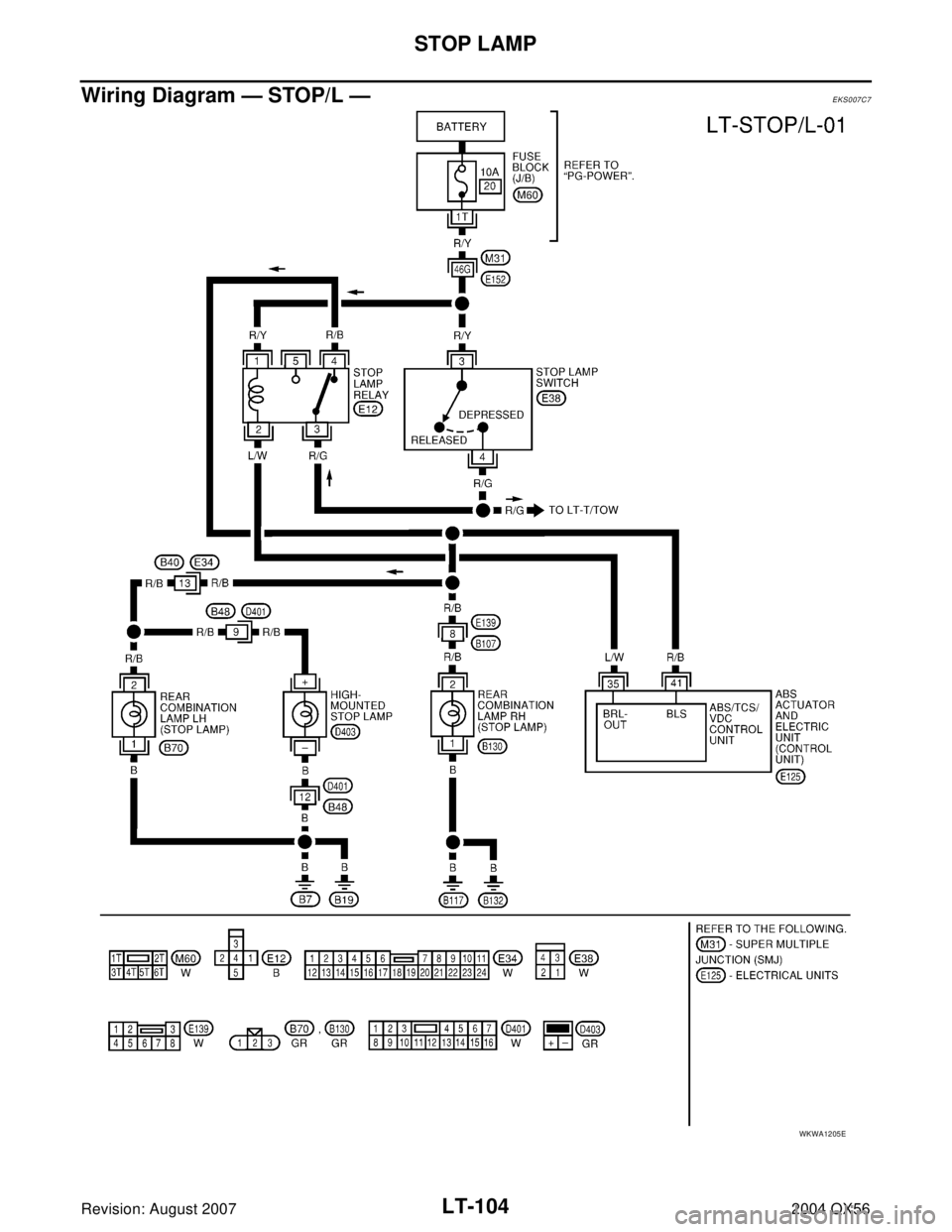

Wiring Diagram — STOP/L —EKS007C7
