Page 1305 of 3371

INFINITI QX56 2004 Factory Service Manual EC-114Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by t

Page 1306 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
EC-115
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Operation

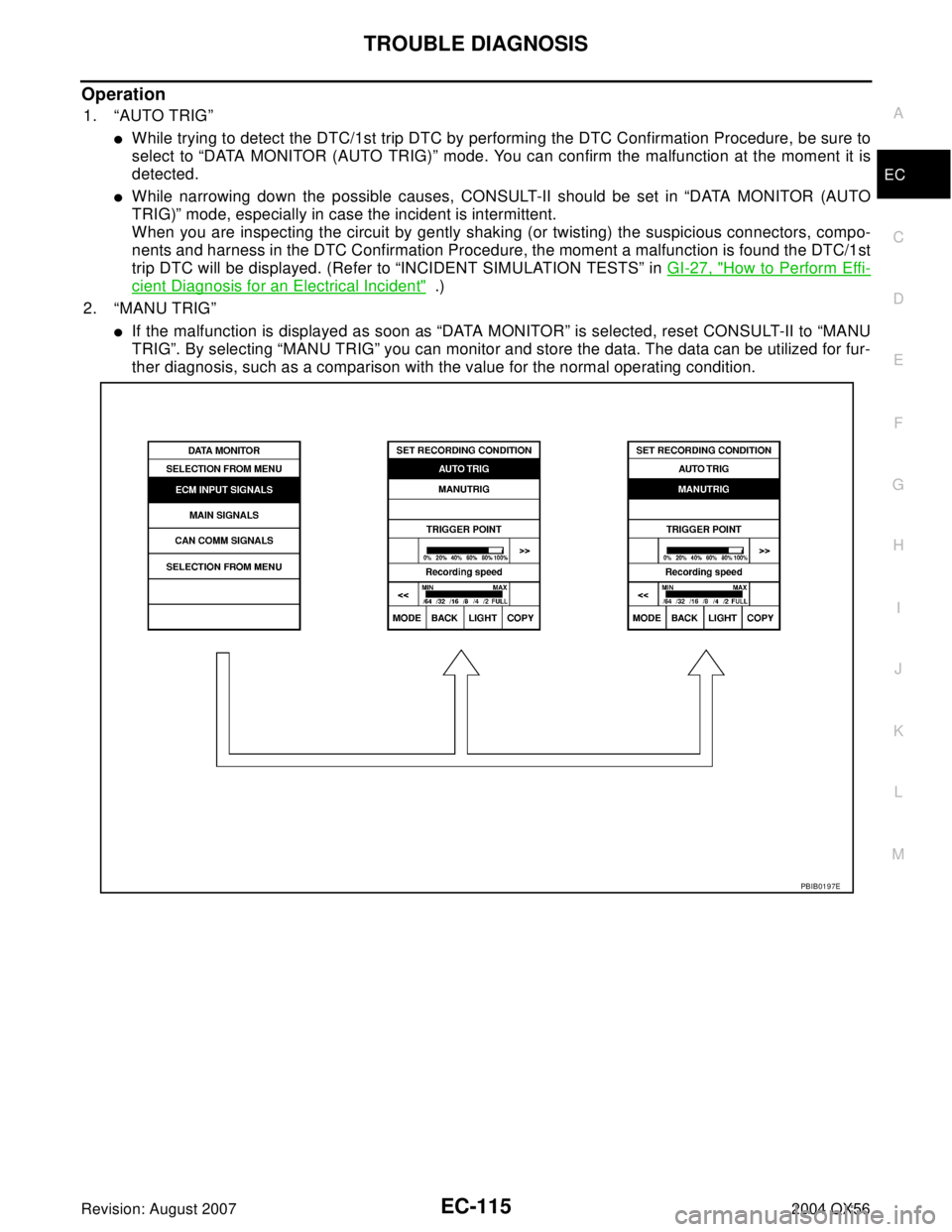

1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure

Page 1307 of 3371

INFINITI QX56 2004 Factory Service Manual EC-116Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
Generic Scan Tool (GST) FunctionUBS00H06
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions expl

EC-116Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
Generic Scan Tool (GST) FunctionUBS00H06
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name “GST” or “Generic Scan Tool” is used in this service man-
ual.
FUNCTION
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
SEF 1 39 P
Diagnostic test mode Function
MODE 1 READINESS TESTSThis mode gains access to current emission-related data values, including analog inputs
and outputs, digital inputs and outputs, and system status information.
MODE 2 (FREEZE DATA)This mode gains access to emission-related data value which were stored by ECM during
the freeze frame. For details, refer to EC-54, "
FREEZE FRAME DATA AND 1ST TRIP
FREEZE FRAME DATA" .
MODE 3 DTCsThis mode gains access to emission-related power train trouble codes which were stored
by ECM.
MODE 4 CLEAR DIAG INFOThis mode can clear all emission-related diagnostic information. This includes:
Clear number of diagnostic trouble codes (MODE 1)
Clear diagnostic trouble codes (MODE 3)
Clear trouble code for freeze frame data (MODE 1)
Clear freeze frame data (MODE 2)
Reset status of system monitoring test (MODE 1)
Clear on board monitoring test results (MODE 6 and 7)
MODE 6 (ON BOARD TESTS)This mode accesses the results of on board diagnostic monitoring tests of specific com-
ponents/systems that are not continuously monitored.
MODE 7 (ON BOARD TESTS)This mode enables the off board test drive to obtain test results for emission-related pow-
ertrain components/systems that are continuously monitored during normal driving condi-
tions.
MODE 8 —This mode can close EVAP system in ignition switch ON position (Engine stopped). When
this mode is performed, the following parts can be opened or closed.
EVAP canister vent control valve open
In the following conditions, this mode cannot function.
Low ambient temperature
Low battery voltage
Engine running
Ignition switch OFF
Low fuel temperature
Too much pressure is applied to EVAP system
MODE 9 (CALIBRATION ID)This mode enables the off-board test device to request specific vehicle information such
as Vehicle Identification Number (VIN) and Calibration IDs.

Page 1308 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
EC-117
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
2. Connect GST to data link connector, which is located under LH
dash panel near the center console.
3. Turn ignition

Page 1309 of 3371

INFINITI QX56 2004 Factory Service Manual EC-118Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
CONSULT-II Reference Value in Data MonitorUBS00H07
Remarks:
Specification data are reference values.
Specification data are output/input val

EC-118Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
CONSULT-II Reference Value in Data MonitorUBS00H07
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data i n
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare the CONSULT-II value with tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle Approx. 1.1 - 1.4V
2,500 rpm Approx. 1.7 - 2.0V
B/FUEL SCHDL
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle 3.0 - 4.2 msec
2,000 rpm 3.0 - 4.2 msec
A/F ALPHA-B1
A/F ALPHA-B2
Engine: After warming upMaintaining engine speed at 2,000
rpm54% - 155%
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpmFluctuated around 1.5V
HO2S2 (B1)
HO2S2 (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.Revving engine from idle to 3,000 rpm
quickly.0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.Revving engine from idle to 3,000 rpm
quickly.LEAN ←→ RICH
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN1
THRTL SEN2*
Ignition switch: ON
(Engine stopped)
Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF

Page 1310 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
EC-119
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
PW/ST SIGNALEngine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
S

TROUBLE DIAGNOSIS
EC-119
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
PW/ST SIGNALEngine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.ON
Rear window defogger switch is OFF
and lighting switch is OFF.OFF
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engineHeater fan is operating. ON
Heater fan is not operating OFF
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle 2.0 - 2.8 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle 14° - 18° BTDC
2,000 rpm 25° - 45° BTDC
CAL/LD VALUE
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle 3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
PURG VOL C/V
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
no loadIdle
(Accelerator pedal is not depressed
even slightly, after starting engine)0%
2,000 rpm —
AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY
For 1 second after turning ignition switch ON
Engine running or crankingON
Except above conditions OFF
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant temperature is 99°C
(210°F) or lessOFF
Engine coolant temperature is
between 100°C (212°F) and 104°C
(219°F) at vehicle speed less than 40
km/h (25 MPH)ON
Engine coolant temperature is 105°C
(221°F) or moreON MONITOR ITEM CONDITION SPECIFICATION

Page 1311 of 3371

INFINITI QX56 2004 Factory Service Manual EC-120Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM

EC-120Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no loadON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as the
tachometer indication
VEHICLE SPEED
Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ONVehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 miles)
AC PRESS SEN
Ignition switch: ON (Engine stopped) Approx. 0V
Engine: Idle
Air conditioner switch: OFF1.0 - 4.0V
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
SET VHCL SPD
Engine: Running ASCD: Operating.The preset vehicle speed is
displayed.
MAIN SW
Ignition switch: ONON/OFF(MAIN) switch: Pressed ON
ON/OFF(MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
BRAKE SW1
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP
Ignition switch: ONON/OFF(MAIN) switch: Pressed at the
1st time → at the 2nd timeON → OFF
SET LAMP
CRUISE switch: ON
When vehicle switch is between
40 km/h (25 MPH) and 144 km/h
(89 MPH).COAST/SET switch: Pressed ON
COAST/SET switch: Released OFF MONITOR ITEM CONDITION SPECIFICATION

Page 1312 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
EC-121
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Major Sensor Reference Graph in Data Monitor ModeUBS00H08

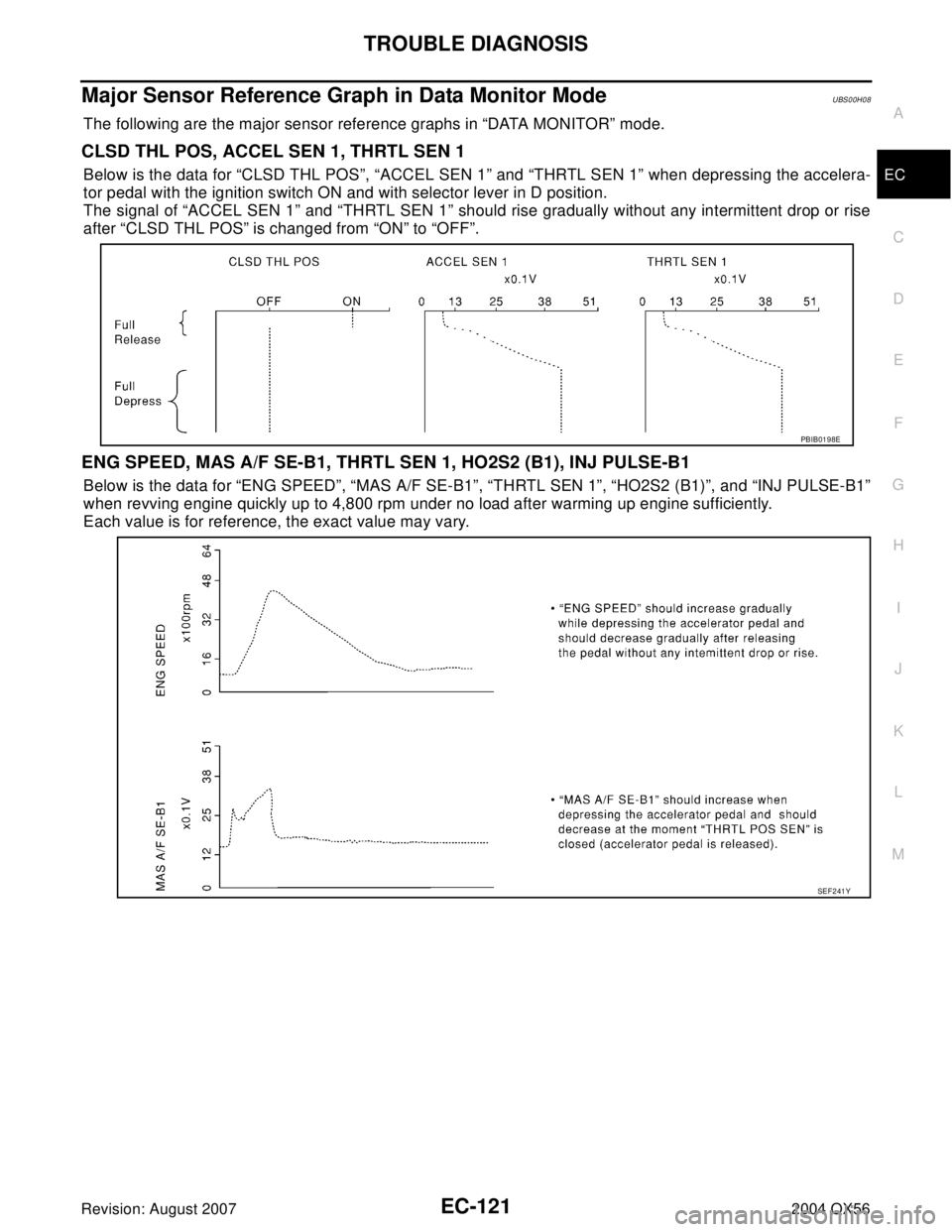

The following are the major sensor reference graphs in “DA

Load next 8 pages

Page: < prev 1-10 ... 1273-1280 1281-1288 1289-1296 1297-1304 1305-1312 1313-1320 1321-1328 1329-1336 1337-1344 ... 3376 next >

trailer open bonnet dashboard warning lights seats jump start terminals height adjustment
