FRONT DOOR LOCK
Revision: August 20072004 QX56
FRONT DOOR LOCKPFP:80502
Component StructureEIS002TF
Removal and InstallationEIS006BK
REMOVAL
1. Remove the front door glass regulator. Refer to GW-70, "FRONT DOOR GLASS REGULATOR" .
2. Remove the front door window rear glass run.
3. Remove the door side grommet, and the bolt (TORX T30) from
the grommet hole.
4. While pulling the outside handle, remove the door key cylinder
assembly or escutcheon.
1. Grommet 2. Front door striker 3. Door lock assembly
4. Outside handle cable 5. Inside handle assembly 6. Inside handle cable
7. Door lock cable 8. Key cylinder rod (Driver side only) 9. Door lock cylinder
10. Outside handle bracket 11. Front gasket 12. Outside handle
13. Door key cylinder escutcheon
(Driver side) Outside handle
escutcheon (Passenger side)14. Rear gasket
LIIA1728E
Torx bolt 5.3 N·m (0.54 kg-m, 47 in-lb)
PIIA3553E
PIIA3554E
Page 898 of 3371
FRONT DOOR LOCK
BL-133
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
5. Separate the key cylinder rod from the door key cylinder assembly (if equipped).
6. While pulling the outside handle, slide it toward rear of vehicle to
remove.
7. Remove the front and rear gaskets.
8. Remove the TORX bolts (T30), and the door lock assembly.
9. While pulling the outside handle bracket, slide it toward the rear
of vehicle to remove it and the door lock assembly.
10. Disconnect the door lock actuator electrical connector.
LIIA0532E
PIIA3557E
Door lock assembly bolts 7.5 N·m (0.77 kg-m, 66 in-lb)
PIIA1090E
PIIA3558E
Page 899 of 3371
BL-134
FRONT DOOR LOCK
Revision: August 20072004 QX56
11. Separate the outside handle cable connection from the outside
handle bracket.
INSTALLATION
Installation in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
Disassembly and AssemblyEIS006BL
DOOR KEY CYLINDER ASSEMBLY
Remove the key cylinder escutcheon pawl and remove the door key cylinder.
PIIA5059E
PIIA4136E
Page 900 of 3371
REAR DOOR LOCK
BL-135
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
REAR DOOR LOCKPFP:82502
Component StructureEIS002TI
Removal and InstallationEIS002TJ
REMOVAL
1. Remove the rear door glass regulator. Refer to GW-73, "REAR DOOR GLASS REGULATOR" .
2. Remove door grommets, and the outside handle nuts from grommet hole.
3. Remove outside handle.
4. Disconnect the outside handle cable connection.
5. Remove the inside door handle actuator.
6. Disconnect the door lock actuator connector.
7. Remove the door lock actuator assembly.
INSTALLATION
Installation is in the reverse order of removal.
LIIA1465E
Page 901 of 3371
BL-136
BACK DOOR LOCK
Revision: August 20072004 QX56
BACK DOOR LOCKPFP:90504
Power Back Door OpenerEIS0 02 TK
REMOVAL
1. Remove the LH luggage side upper. Refer to EI-39, "LUGGAGE FLOOR TRIM" .
2. Disconnect the power back door motor electrical connector.
3. Disconnect the ball socket from the back door.
4. Remove the power back door motor assembly.
INSTALLATION
Installation is in the reverse order of removal.
WIIA0613E
Page 902 of 3371
BACK DOOR LOCK
BL-137
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Door Lock AssemblyEIS005W3
REMOVAL
1. Remove the lower back door trim panel. Refer to EI-41, "BACK DOOR TRIM" .
2. Remove the weathershields.
3. Disconnect the back door lock electrical connectors.
4. Remove the back door lock assembly.
5. Disconnect the back door glass lock electrical connector.
6. Remove the back door glass lock.
INSTALLATION
Installation is in the reverse order of removal.
WIIA0614E
Page 903 of 3371
BL-138
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591

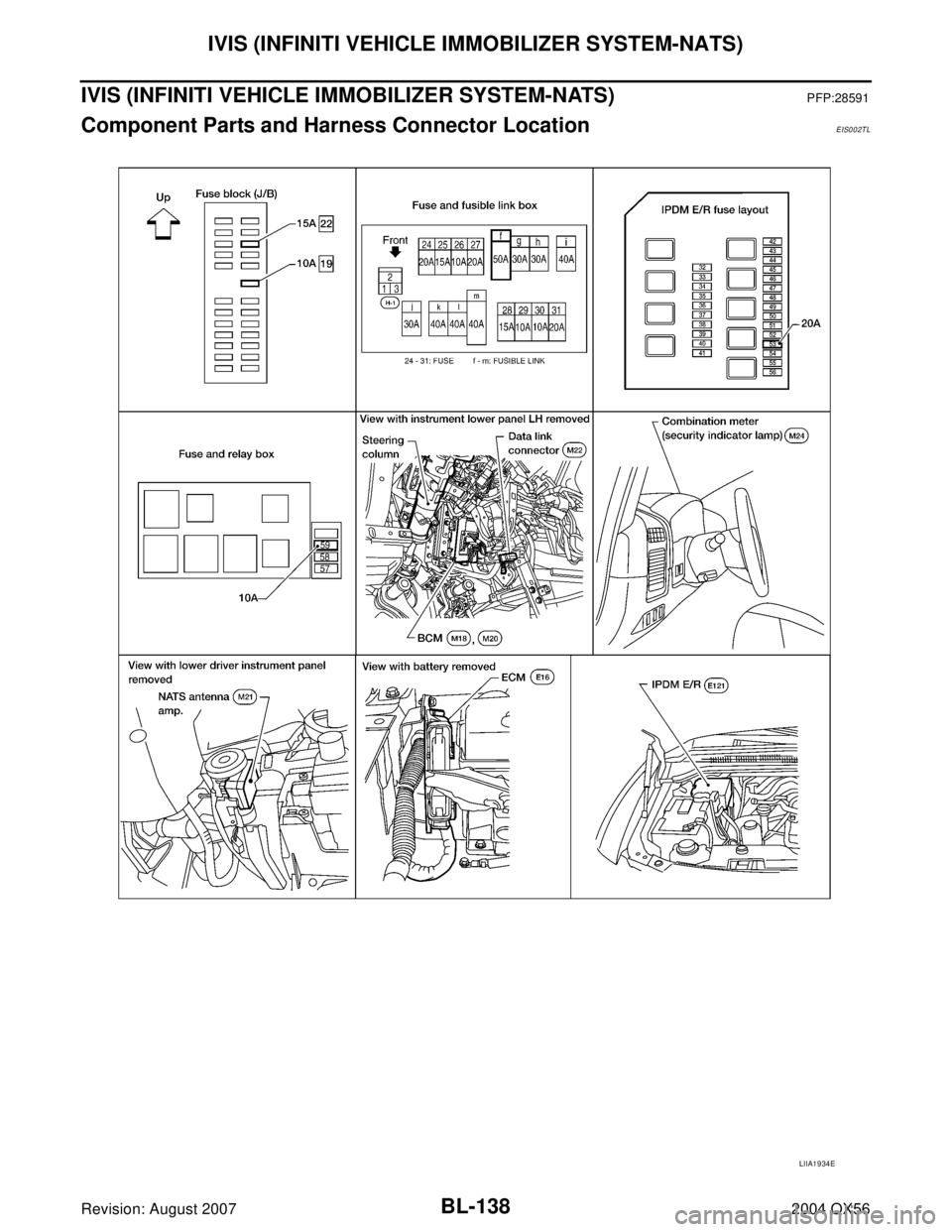

Component Parts and Harness Connector LocationEIS002TL
LIIA1934E
Page 904 of 3371

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-139
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
System DescriptionEIS002TM
IVIS (Infiniti Vehicle Immobilizer System-NATS) has the following immobilizer functions:
Since only IVIS (NATS) ignition keys, whose IDs have been registered into the ECM and BCM, allow the
engine to run, operation of a stolen vehicle without an IVIS (NATS) registered key is prevented by IVIS
(NATS).
IVIS (NATS) will immobilize the engine if someone tries to start it without the registered key of IVIS
(NATS).
All of the originally supplied ignition key IDs have been IVIS (NATS) registered.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the IVIS (NATS) com-
ponents.
The security indicator blinks when the ignition switch is in OFF or ACC position. IVIS (NATS) warns out-
siders that the vehicle is equipped with the anti-theft system.
When IVIS (NATS) detects a malfunction, the security indicator lamp lights up while ignition key is in the
ON position.
IVIS (NATS) trouble diagnoses, system initialization and additional registration of other IVIS (NATS) igni-
tion key IDs must be carried out using CONSULT-II hardware and CONSULT-II IVIS (NATS) software.
When IVIS (NATS) initialization has been completed, the ID of the inserted ignition key is automatically
IVIS (NATS) registered. Then, if necessary, additional registration of other IVIS (NATS) ignition key IDs
can be carried out.
Regarding the procedures of IVIS (NATS) initialization and IVIS (NATS) ignition key ID registration, refer
to CONSULT-II Operation Manual NATS-IVIS/NVIS.
When servicing a malfunction of the IVIS (NATS) (indicated by lighting up of Security Indicator
Lamp) or registering another IVIS (NATS) ignition key ID, it may be necessary to re-register origi-
nal key identification. Therefore, be sure to receive ALL KEYS from vehicle owner.
System CompositionEIS0 02 T N
The immobilizer function of the IVIS (NATS) consists of the following:
NATS ignition key
NATS antenna amp. located in the ignition key cylinder
Body control module (BCM)
Engine control module (ECM)
Security indicator
NOTE:
The communication between ECM and BCM uses the CAN communication system.
PIIA1121E
