Page 2737 of 3371
PG-78

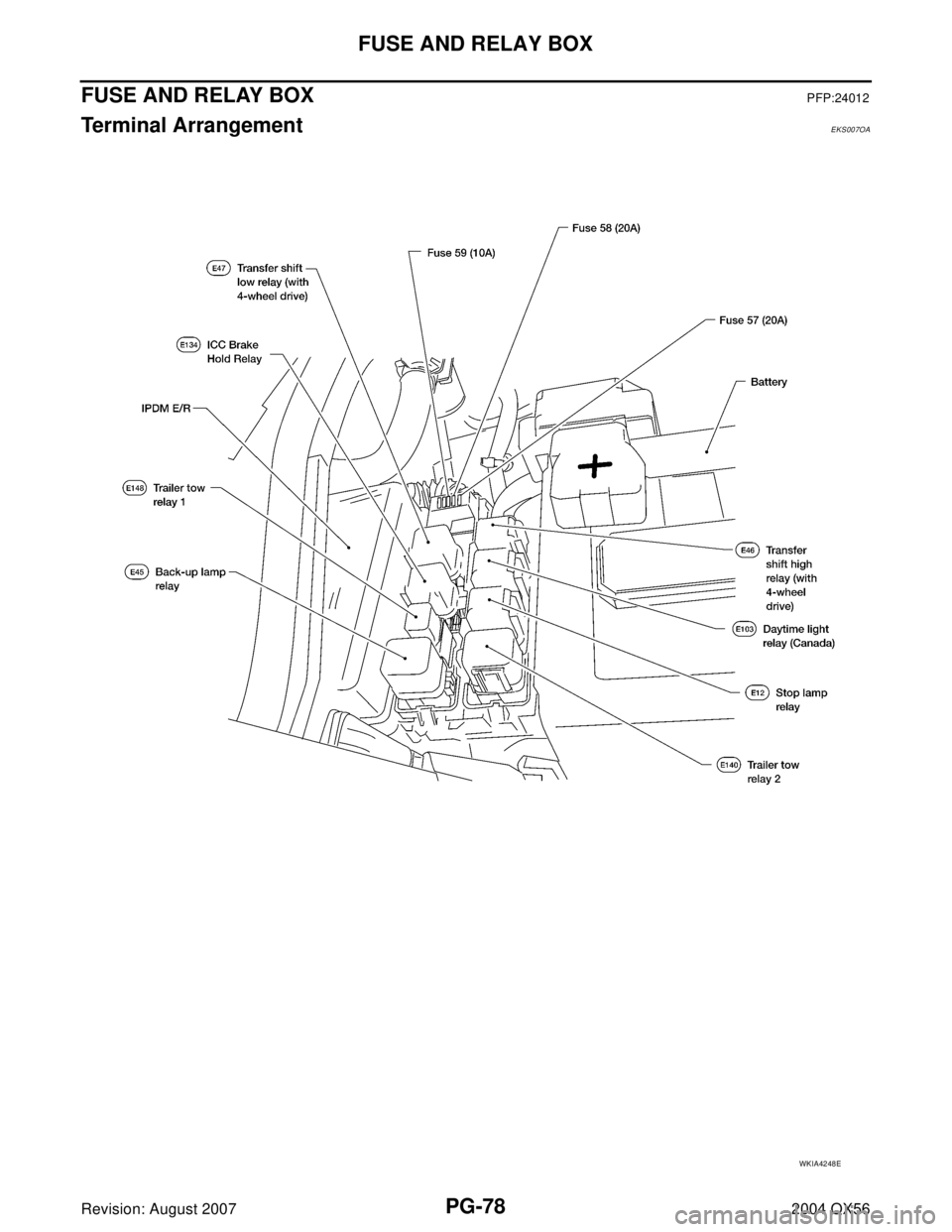

FUSE AND RELAY BOX
Revision: August 20072004 QX56
FUSE AND RELAY BOXPFP:24012
Terminal ArrangementEKS007OA
WKIA4248E
Page 2738 of 3371

PR-1
PROPELLER SHAFT
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION PR
A
B
PR
Revision: August 20072004 QX56 PREPARATION ........................................................... 2
Commercial Service Tools ........................................ 2
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 3
NVH Troubleshooting Chart ..................................... 3
FRONT PROPELLER SHAFT .................................... 4
On-Vehicle Service ................................................... 4
PROPELLER SHAFT VIBRATION ........................ 4
INSPECTION ........................................................ 4
Removal and Installation .......................................... 4
REMOVAL ............................................................. 5
INSPECTION AFTER REMOVAL ......................... 5
INSTALLATION ..................................................... 5
Disassembly and Assembly ..................................... 5
DISASSEMBLY ..................................................... 5
ASSEMBLY ........................................................... 6REAR PROPELLER SHAFT ...................................... 8
On-Vehicle Service ................................................... 8
PROPELLER SHAFT VIBRATION ........................ 8
INSPECTION ........................................................ 8
Removal and Installation .......................................... 8
REMOVAL ............................................................. 9
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
Disassembly and Assembly .................................... 10
DISASSEMBLY ................................................... 10
ASSEMBLY ......................................................... 11
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 12
General Specifications ............................................ 12
Snap Ring ............................................................... 13
Page 2739 of 3371
PR-2
PREPARATION
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Commercial Service ToolsEDS002JX
Tool nameDescription
Power toolLoosening bolts and nuts
PBIC0190E
Page 2740 of 3371

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
PR-3
C
E
F
G
H
I
J
K
L
MA
B
PR
Revision: August 20072004 QX56
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartEDS002JY
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
PR-4
(front)
PR-8 (rear)
PR-4 (front)
PR-8 (rear)
PR-4 (front)
PR-8 (rear)
FFD-7, "
NVH Troubleshooting Chart
" (front)
RFD-5, "
NVH Troubleshooting Chart
" (rear)
FA X-4, "
NVH Troubleshooting Chart
" (front)
RAX-4, "
NVH Troubleshooting Chart
" (rear)
FSU-4, "
NVH Troubleshooting Chart
" (front)
RSU-5, "
NVH Troubleshooting Chart
" (rear)
WT-3, "
NVH Troubleshooting Chart
"
WT-3, "
NVH Troubleshooting Chart
"
FA X-4, "
NVH Troubleshooting Chart
" (front)
RAX-4, "
NVH Troubleshooting Chart
" (rear)
BR-5, "
NVH Troubleshooting Chart
"
PS-5, "
NVH Troubleshooting Chart
"
Possible cause and suspected parts
Uneven rotation torque
Rotation imbalance
Excessive run out
Differential
Axle
Suspension
Tire s
Road wheel
Drive shaft
Brakes
Steering
SymptomNoise×××××××××××
Shake×××××××
Vibration××× ××× × ×
Page 2741 of 3371

PR-4
FRONT PROPELLER SHAFT
Revision: August 20072004 QX56
FRONT PROPELLER SHAFTPFP:37200
On-Vehicle ServiceEDS002JZ
PROPELLER SHAFT VIBRATION
NOTE:
If a vibration is present at high speed, inspect the propeller shaft run out first.
1. Measure the run out of the propeller shaft tube at several points
by rotating the final drive companion flange with your hands.
2. If the run out still exceeds specifications, disconnect the propel-
ler shaft at the final drive companion flange; then rotate the com-
panion flange 90°, 180°, 270° degrees and reconnect the
propeller shaft.
3. Check the run out again. If the run out still exceeds specifica-
tions, replace the propeller shaft assembly.
4. After installation, check for vibration by driving the vehicle.
INSPECTION
Inspect the propeller shaft tube for dents or cracks. If damaged, replace the propeller shaft assembly.
Removal and InstallationEDS002K0
Model 2F1310
Propeller shaft run out limit : 0.6 mm (0.024 in) or less
SDIA1759E
WDIA0047E
1. Propeller shaft tube 2. Snap ring 3. Journal bearing
4. Journal 5. Flange yoke
Page 2742 of 3371

FRONT PROPELLER SHAFT
PR-5
C
E
F
G
H
I
J
K
L
MA
B
PR
Revision: August 20072004 QX56
REMOVAL
1. Put matching marks on the front propeller shaft flange yoke and
the companion flange of the front final drive as shown.
CAUTION:
For matching marks, use paint. Never damage the flange
yoke and companion flange of the front final drive.
2. Remove the bolts and then remove the front propeller shaft from
the front final drive and transfer.
INSPECTION AFTER REMOVAL
Inspect the propeller shaft run out. If run out exceeds the limit,
replace the propeller shaft assembly.
While holding the flange yoke on one side, check axial play of
the joint as shown. If the journal axial play exceeds the specifi-
cation, replace the propeller shaft assembly.
Check the propeller shaft for bend and damage. If damage is
detected, replace the propeller shaft assembly.
INSTALLATION
Installation is in the reverse order of removal.
After installation, check for vibration by driving the vehicle. Refer to PR-3, "NVH Troubleshooting Chart" .
CAUTION:
Do not reuse the bolts and nuts. Always install new ones.
Disassembly and AssemblyEDS002K1
DISASSEMBLY
Journal
1. Put matching marks on the front propeller shaft and flange yoke
as shown.
CAUTION:
For matching marks, use paint. Never damage the front pro-
peller shaft or flange yoke.
SDIA2046E
Run out limit : 0.6 mm (0.024 in) or less
LDIA0118E
Journal axial play : 0.02 mm (0.0008 in) or less
LDIA0117E
SPD1 28
Page 2743 of 3371
PR-6
FRONT PROPELLER SHAFT
Revision: August 20072004 QX56
2. Remove the snap ring.
3. Push out and remove the journal bearing by lightly tapping the
yoke with a hammer, taking care not to damage the journal or
yoke hole.
4. Remove the bearing at the opposite side in above operation.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.
ASSEMBLY
Journal
1. Assemble the journal bearings. Apply multipurpose grease on
the bearing inner surface.
NOTE:
During assembly, use caution so that the needle bearings do not
fall down.
APD0 11
SPD7 32
SPD1 31
WPD019
Page 2744 of 3371
FRONT PROPELLER SHAFT
PR-7
C
E
F
G
H
I
J
K
L
MA
B
PR
Revision: August 20072004 QX56
2. Select snap rings that will provide the specified play in an axial
direction of the journal, and install them. Refer to PR-13, "
Snap
Ring" .
NOTE:
Select snap rings with a difference in thickness at both sides
within 0.02 mm (0.0008 in).
3. Adjust the thrust clearance between the bearing and snap ring
to zero by tapping the yoke.
4. Make sure that the journal moves smoothly and is below the
joint flex effort specification.
APD0 12
SPD7 32
Joint flex effort : 1.96 N·m (0.20 kg-m, 17 in-lb) or less
LDIA0119E
