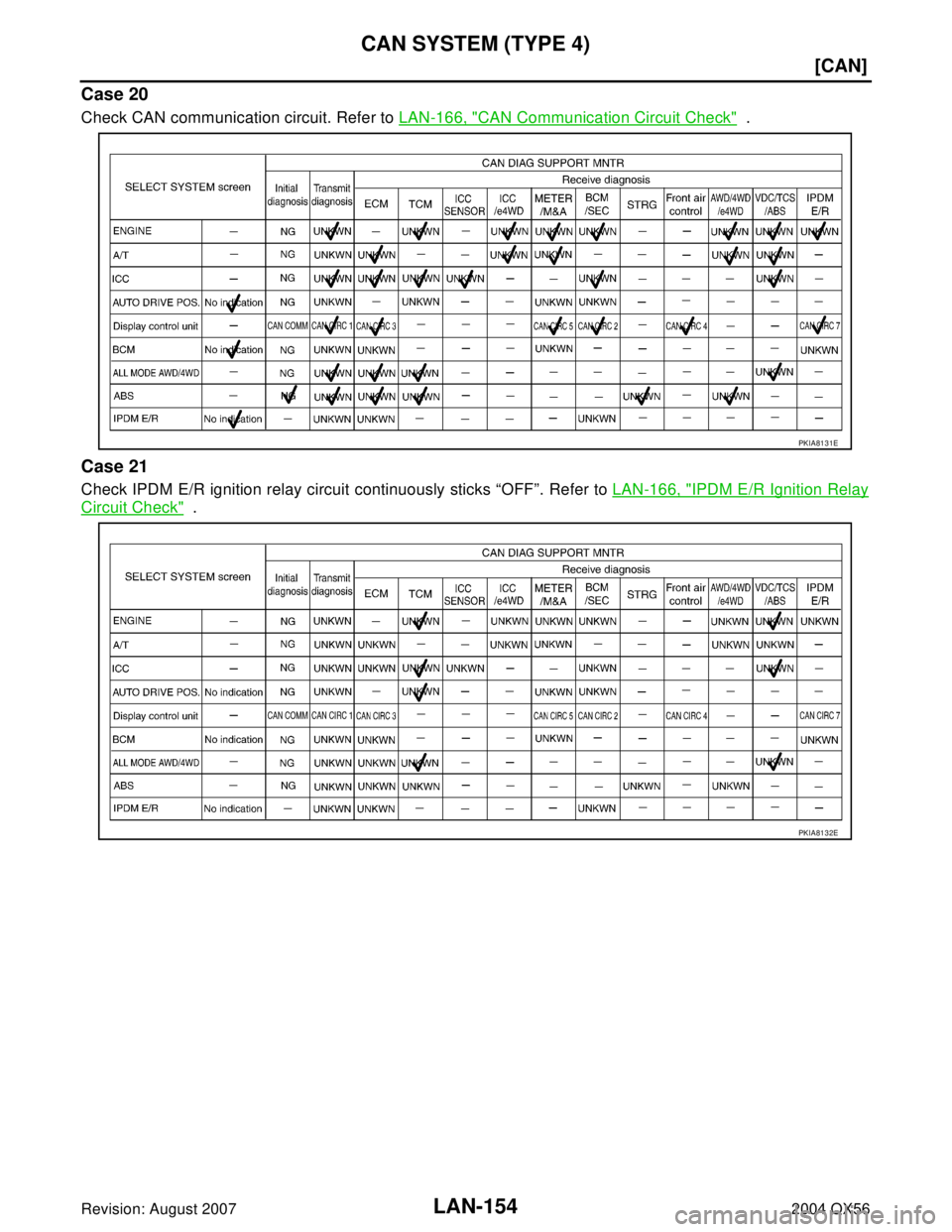

LAN-154
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
Case 20
Check CAN communication circuit. Refer to LAN-166, "CAN Communication Circuit Check" .
Case 21
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-166, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA8131E
PKIA8132E
Page 2418 of 3371

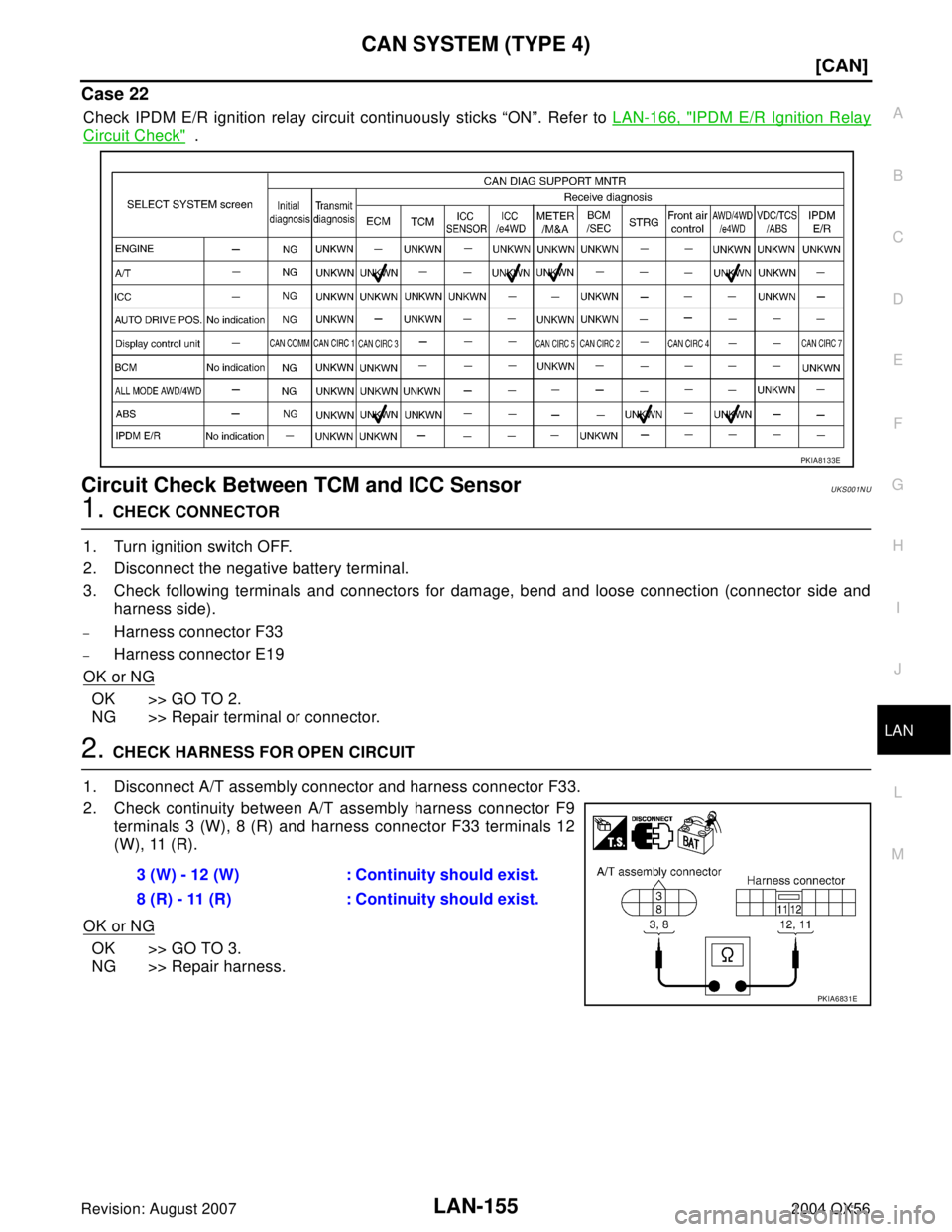

CAN SYSTEM (TYPE 4)
LAN-155
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 22
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-166, "IPDM E/R Ignition Relay
Circuit Check" .
Circuit Check Between TCM and ICC SensorUKS001NU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector F33
–Harness connector E19
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector and harness connector F33.
2. Check continuity between A/T assembly harness connector F9
terminals 3 (W), 8 (R) and harness connector F33 terminals 12
(W), 11 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIA8133E
3 (W) - 12 (W) : Continuity should exist.
8 (R) - 11 (R) : Continuity should exist.
PKIA6831E
Page 2419 of 3371
![INFINITI QX56 2004 Factory Service Manual LAN-156
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check continuity between harness connector E19 terminals 12
(W INFINITI QX56 2004 Factory Service Manual LAN-156
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check continuity between harness connector E19 terminals 12
(W](/manual-img/42/57034/w960_57034-2418.png)

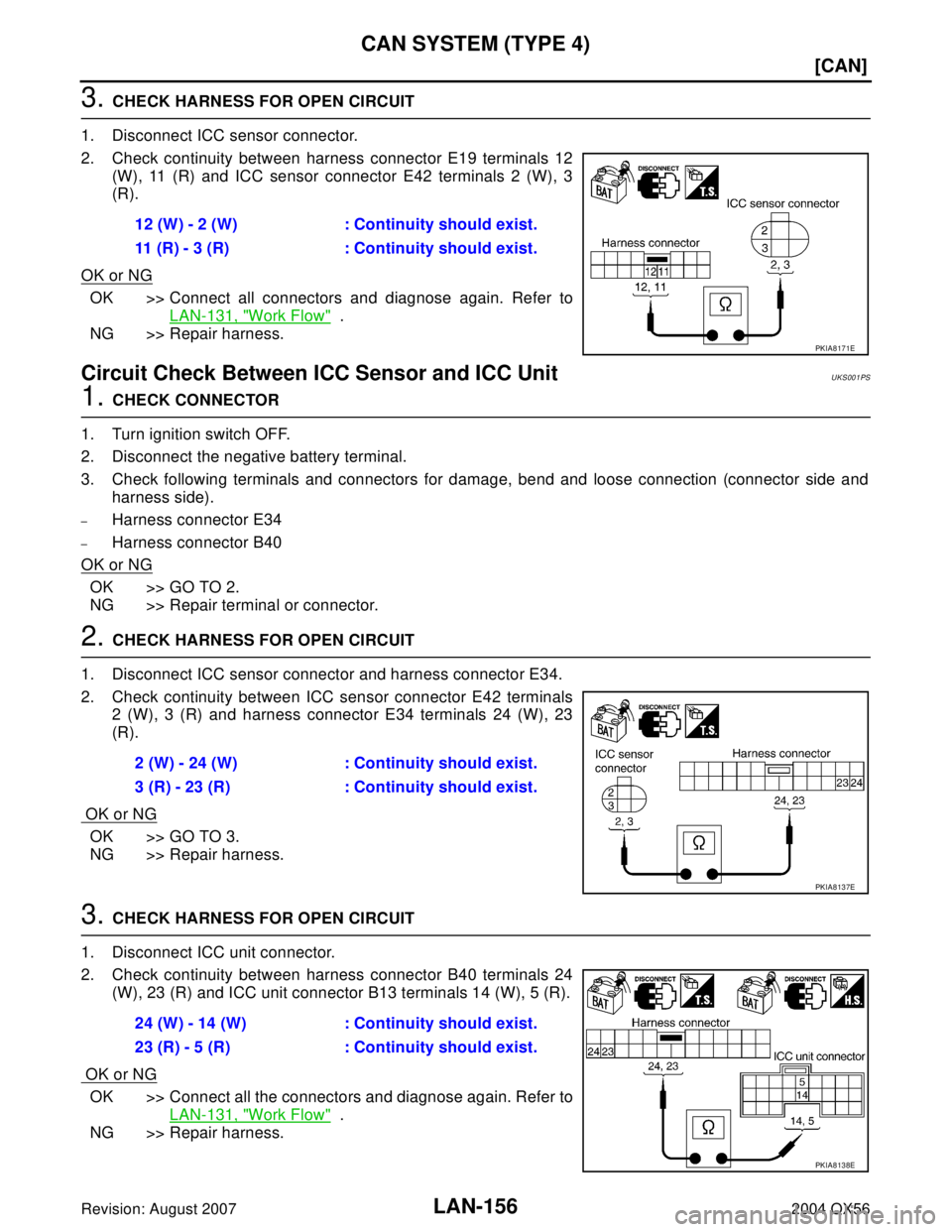

LAN-156
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check continuity between harness connector E19 terminals 12
(W), 11 (R) and ICC sensor connector E42 terminals 2 (W), 3
(R).
OK or NG
OK >> Connect all connectors and diagnose again. Refer to
LAN-131, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between ICC Sensor and ICC UnitUKS001PS
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E34
–Harness connector B40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector and harness connector E34.
2. Check continuity between ICC sensor connector E42 terminals
2 (W), 3 (R) and harness connector E34 terminals 24 (W), 23
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check continuity between harness connector B40 terminals 24
(W), 23 (R) and ICC unit connector B13 terminals 14 (W), 5 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-131, "
Work Flow" .
NG >> Repair harness.12 (W) - 2 (W) : Continuity should exist.
11 (R) - 3 (R) : Continuity should exist.
PKIA8171E
2 (W) - 24 (W) : Continuity should exist.
3 (R) - 23 (R) : Continuity should exist.
PKIA8137E
24 (W) - 14 (W) : Continuity should exist.
23 (R) - 5 (R) : Continuity should exist.
PKIA8138E
Page 2420 of 3371
![INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-157
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Circuit Check Between ICC Unit and Driver Seat Control UnitUKS001PT
1. CHECK CONNECTOR
1. Turn ignition swit INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-157
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Circuit Check Between ICC Unit and Driver Seat Control UnitUKS001PT
1. CHECK CONNECTOR
1. Turn ignition swit](/manual-img/42/57034/w960_57034-2419.png)

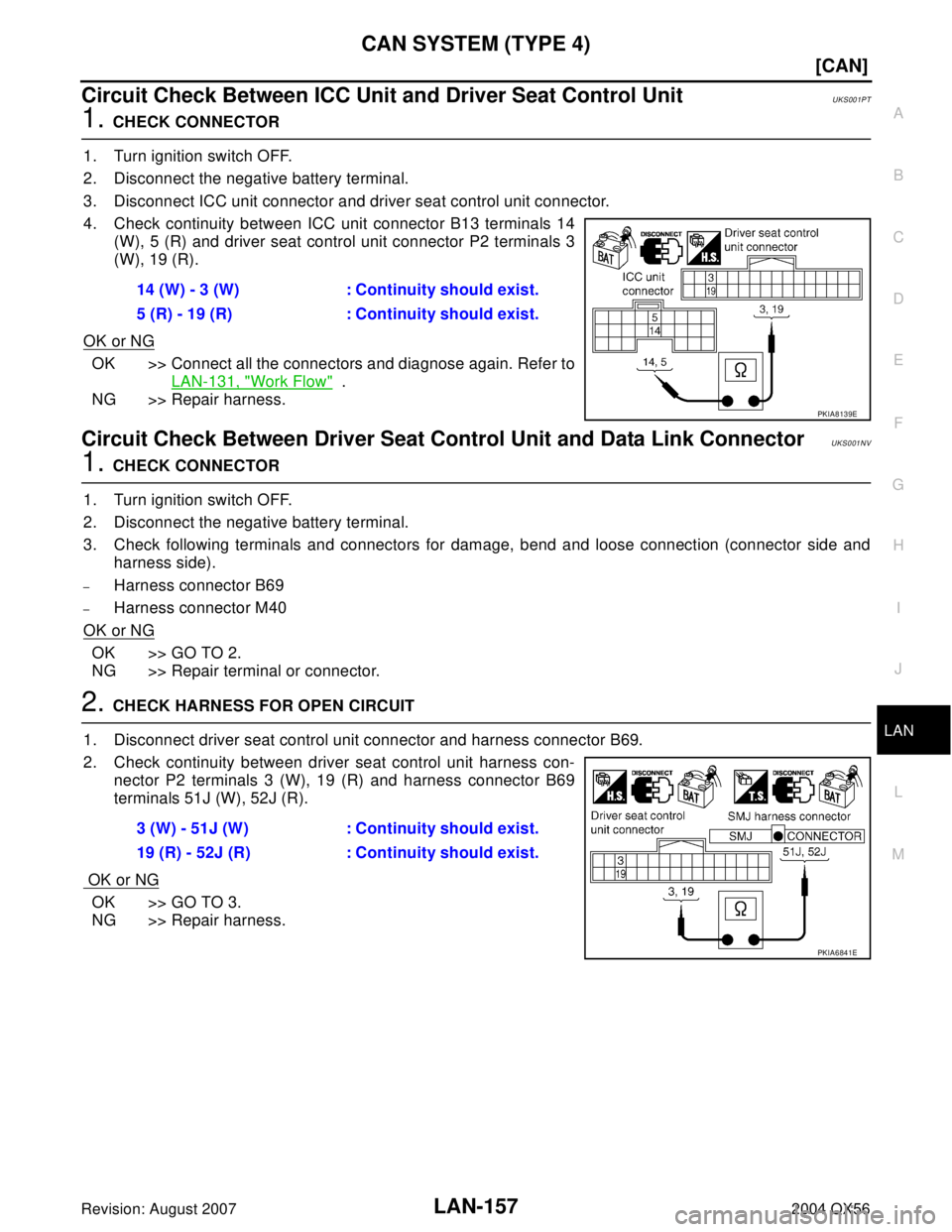

CAN SYSTEM (TYPE 4)
LAN-157
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Circuit Check Between ICC Unit and Driver Seat Control UnitUKS001PT
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ICC unit connector and driver seat control unit connector.
4. Check continuity between ICC unit connector B13 terminals 14
(W), 5 (R) and driver seat control unit connector P2 terminals 3
(W), 19 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-131, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Driver Seat Control Unit and Data Link ConnectorUKS001NV
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B69
–Harness connector M40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector and harness connector B69.
2. Check continuity between driver seat control unit harness con-
nector P2 terminals 3 (W), 19 (R) and harness connector B69
terminals 51J (W), 52J (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.14 (W) - 3 (W) : Continuity should exist.
5 (R) - 19 (R) : Continuity should exist.
PKIA8139E
3 (W) - 51J (W) : Continuity should exist.
19 (R) - 52J (R) : Continuity should exist.
PKIA6841E
Page 2421 of 3371
![INFINITI QX56 2004 Factory Service Manual LAN-158
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector M40 terminals 51J
(W), 52J (R) and data link connector M22 INFINITI QX56 2004 Factory Service Manual LAN-158
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector M40 terminals 51J
(W), 52J (R) and data link connector M22](/manual-img/42/57034/w960_57034-2420.png)

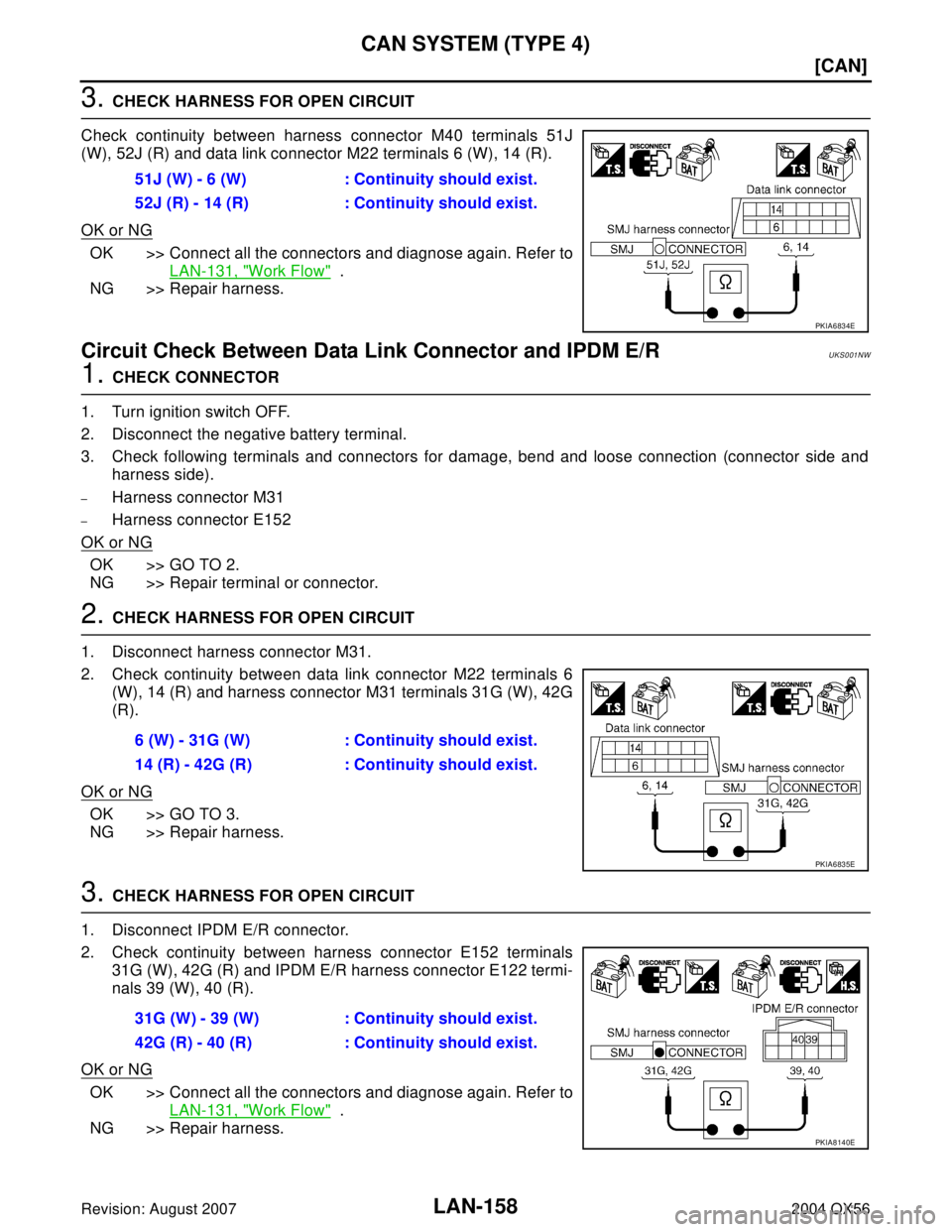

LAN-158
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector M40 terminals 51J
(W), 52J (R) and data link connector M22 terminals 6 (W), 14 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-131, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Data Link Connector and IPDM E/RUKS001NW
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M31
–Harness connector E152
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M31.
2. Check continuity between data link connector M22 terminals 6
(W), 14 (R) and harness connector M31 terminals 31G (W), 42G
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between harness connector E152 terminals
31G (W), 42G (R) and IPDM E/R harness connector E122 termi-
nals 39 (W), 40 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-131, "
Work Flow" .
NG >> Repair harness.51J (W) - 6 (W) : Continuity should exist.
52J (R) - 14 (R) : Continuity should exist.
PKIA6834E
6 (W) - 31G (W) : Continuity should exist.
14 (R) - 42G (R) : Continuity should exist.
PKIA6835E
31G (W) - 39 (W) : Continuity should exist.
42G (R) - 40 (R) : Continuity should exist.
PKIA8140E
Page 2422 of 3371
![INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
ECM Circuit CheckUKS001NX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
ECM Circuit CheckUKS001NX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery](/manual-img/42/57034/w960_57034-2421.png)

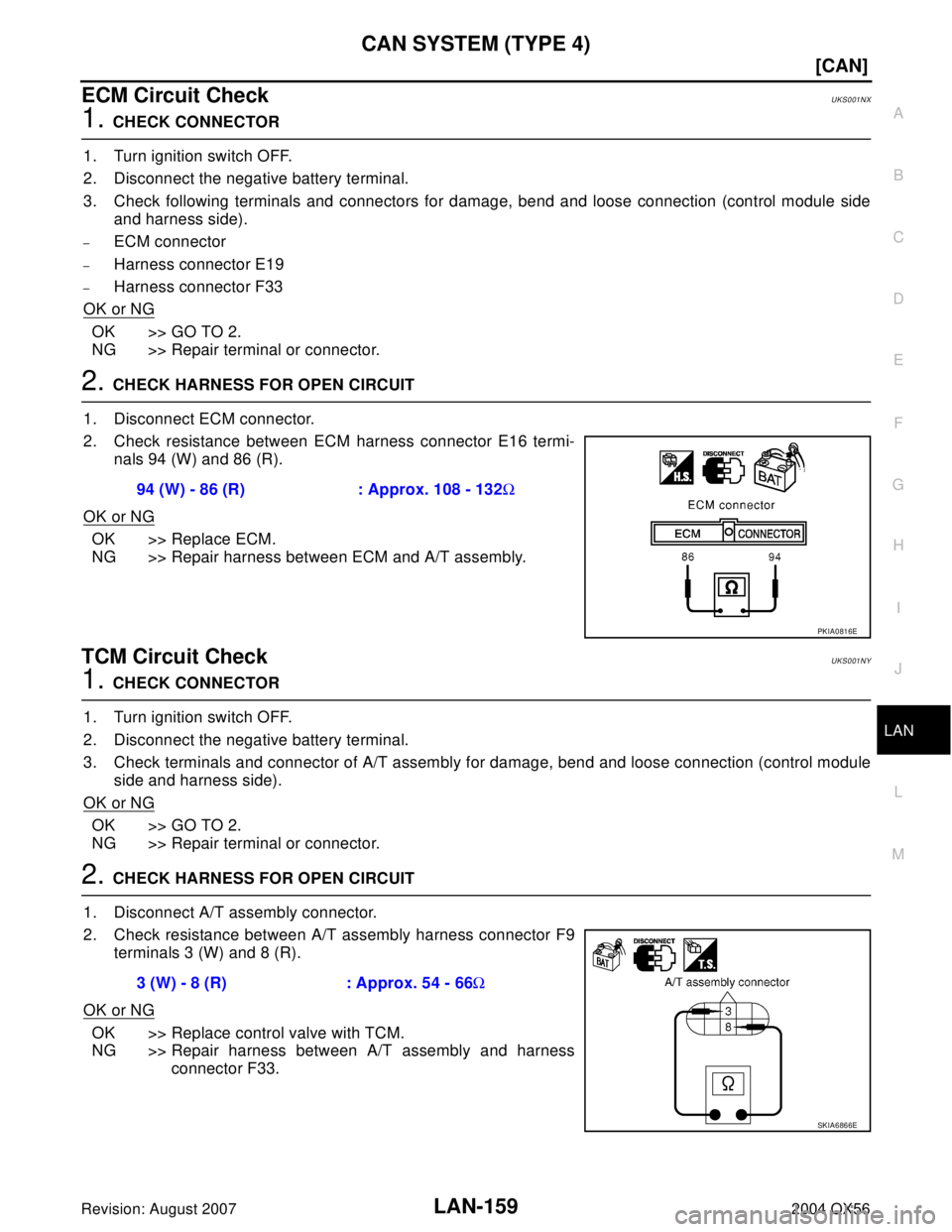

CAN SYSTEM (TYPE 4)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
ECM Circuit CheckUKS001NX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–ECM connector
–Harness connector E19
–Harness connector F33
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector E16 termi-
nals 94 (W) and 86 (R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and A/T assembly.
TCM Circuit CheckUKS001NY
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of A/T assembly for damage, bend and loose connection (control module
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector F9
terminals 3 (W) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and harness
connector F33. 94 (W) - 86 (R) : Approx. 108 - 132Ω
PKIA0816E
3 (W) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E
Page 2423 of 3371
![INFINITI QX56 2004 Factory Service Manual LAN-160
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
ICC Sensor Circuit CheckUKS001PU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check INFINITI QX56 2004 Factory Service Manual LAN-160
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
ICC Sensor Circuit CheckUKS001PU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check](/manual-img/42/57034/w960_57034-2422.png)
LAN-160
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
ICC Sensor Circuit CheckUKS001PU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC sensor for damage, bend and loose connection (sensor side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E42
terminals 2 (W) and 3 (R).
OK or NG
OK >> Replace ICC sensor.
NG >> Repair harness between ICC sensor and harness con-
nector E34.
ICC Unit Circuit CheckUKS001PV
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (control unit side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.

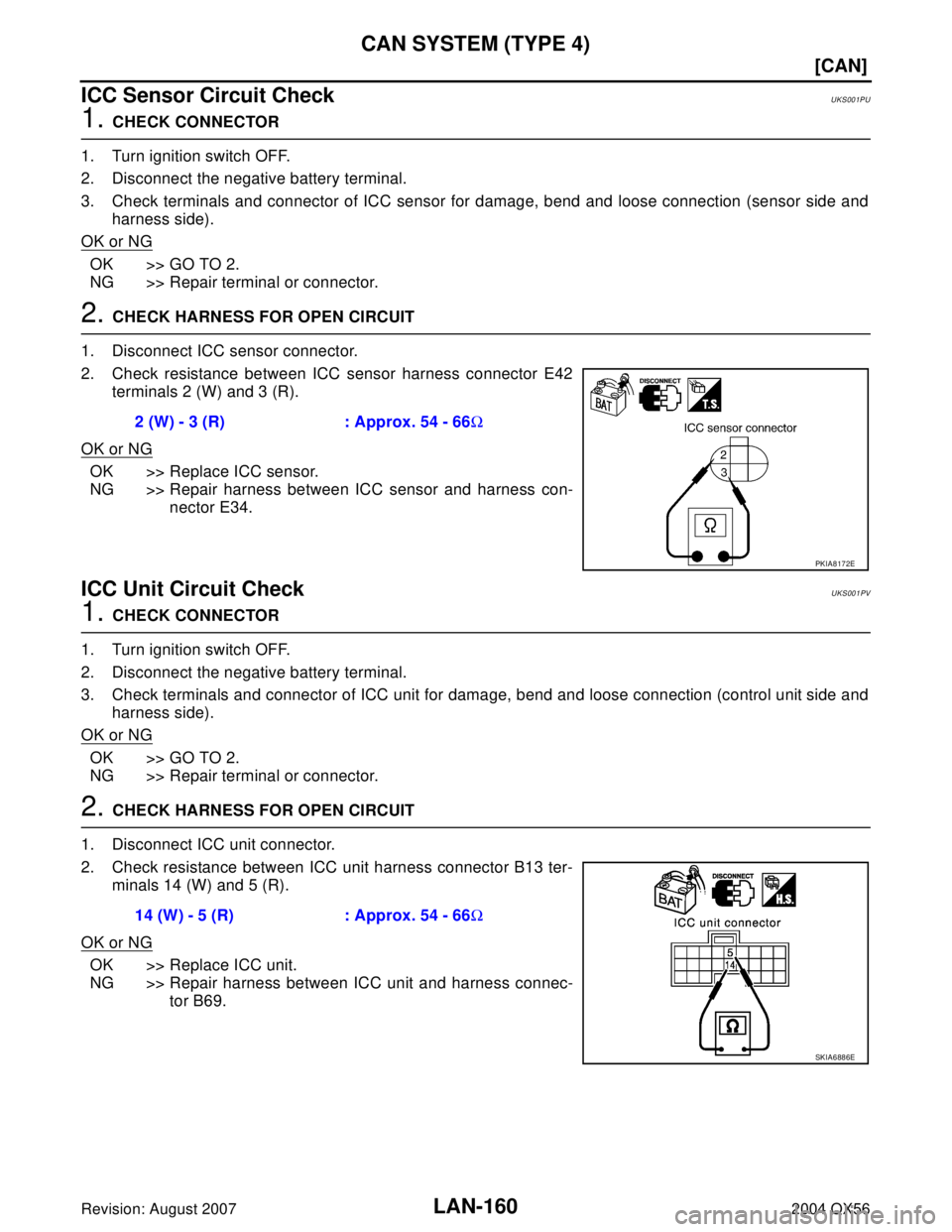

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector B13 ter-
minals 14 (W) and 5 (R).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor B69. 2 (W) - 3 (R) : Approx. 54 - 66Ω
PKIA8172E
14 (W) - 5 (R) : Approx. 54 - 66Ω
SKIA6886E
Page 2424 of 3371
![INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS001NZ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS001NZ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect](/manual-img/42/57034/w960_57034-2423.png)
CAN SYSTEM (TYPE 4)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS001NZ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector P1
–Harness connector B37
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.

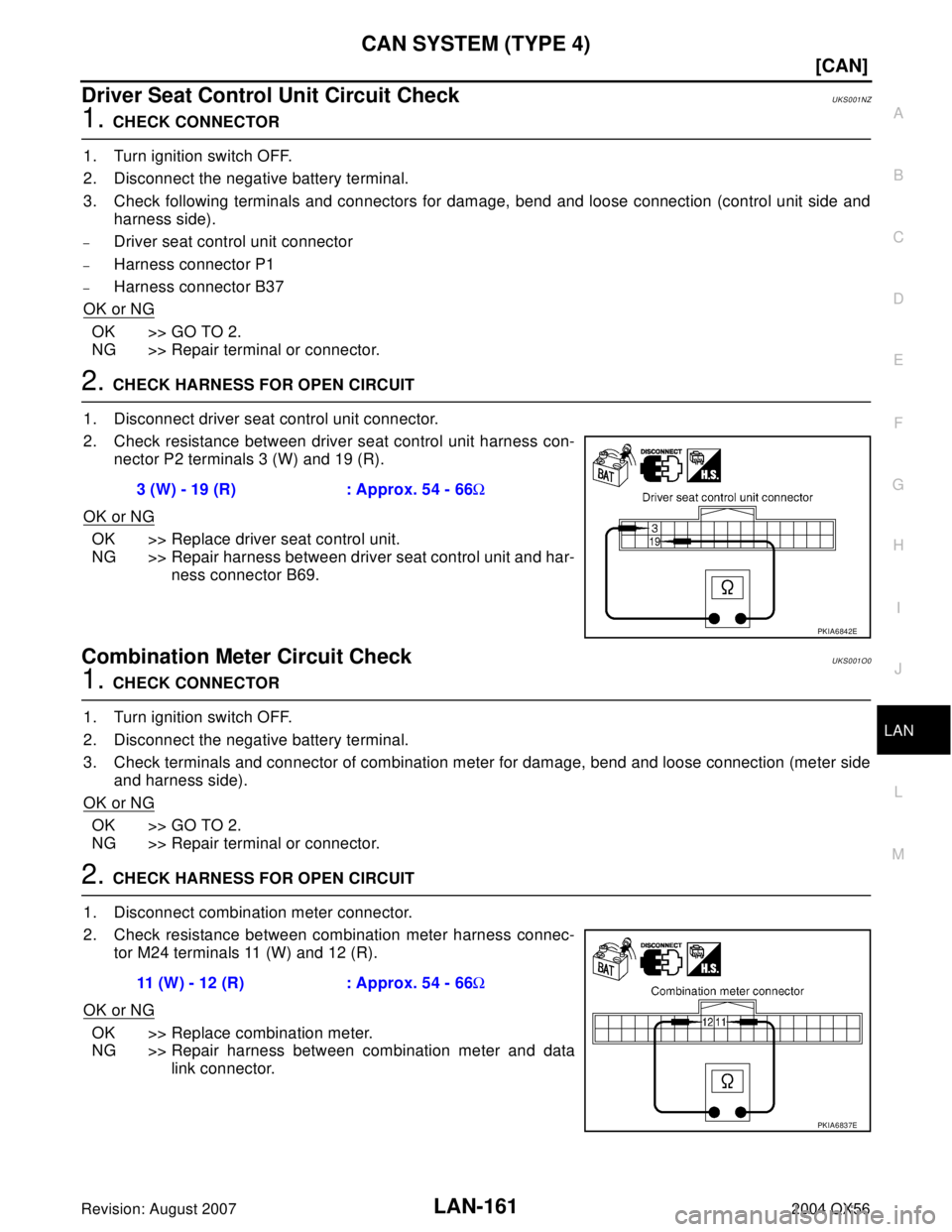

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector P2 terminals 3 (W) and 19 (R).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B69.
Combination Meter Circuit CheckUKS001O0
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M24 terminals 11 (W) and 12 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and data
link connector. 3 (W) - 19 (R) : Approx. 54 - 66Ω
PKIA6842E
11 (W) - 12 (R) : Approx. 54 - 66Ω
PKIA6837E
