Page 3041 of 3371

INFINITI QX56 2004 Factory Service Manual SE-92
HEATED SEAT
Revision: August 20072004 QX56
WIWA0588E

Page 3042 of 3371

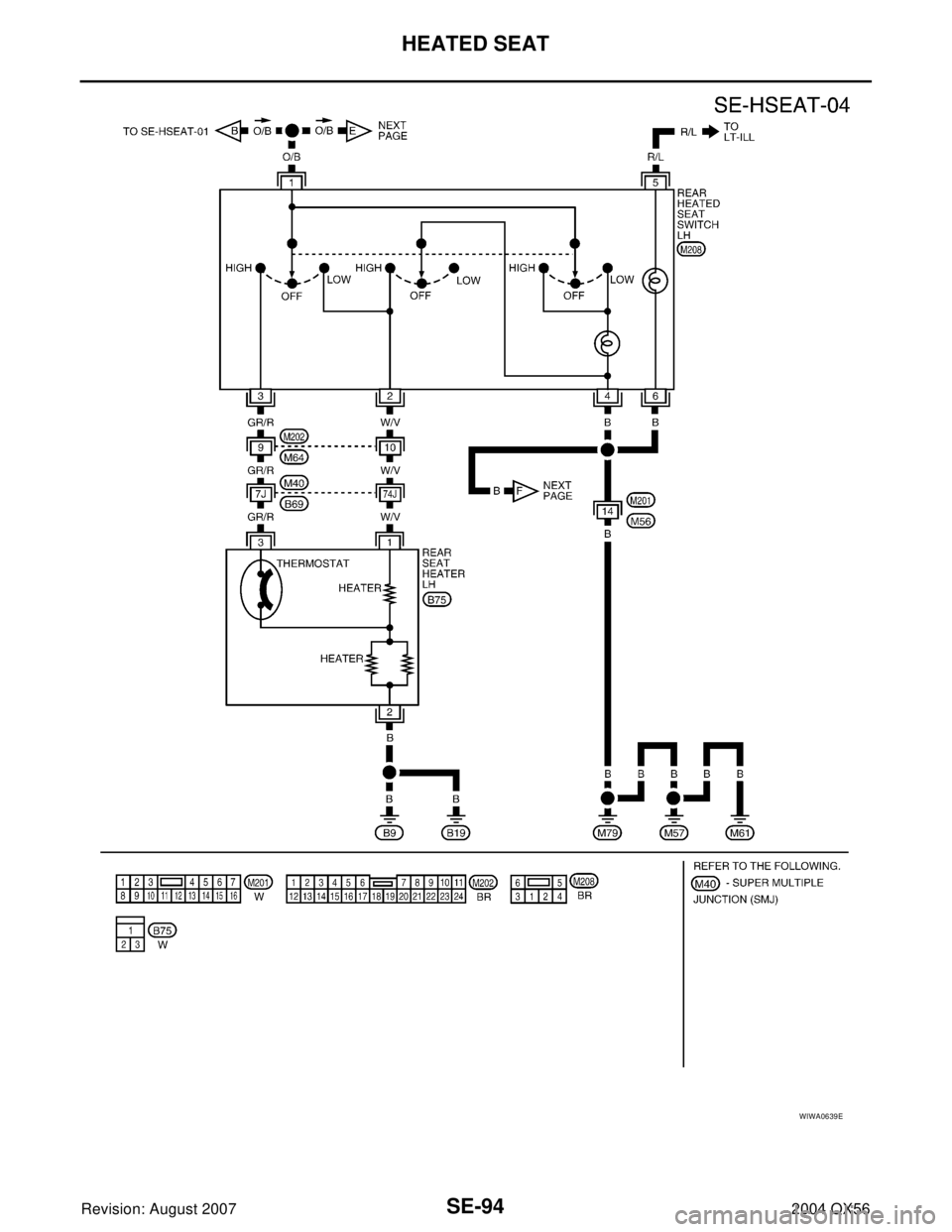

INFINITI QX56 2004 Factory Service Manual HEATED SEAT
SE-93
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
WIWA0589E

Page 3043 of 3371

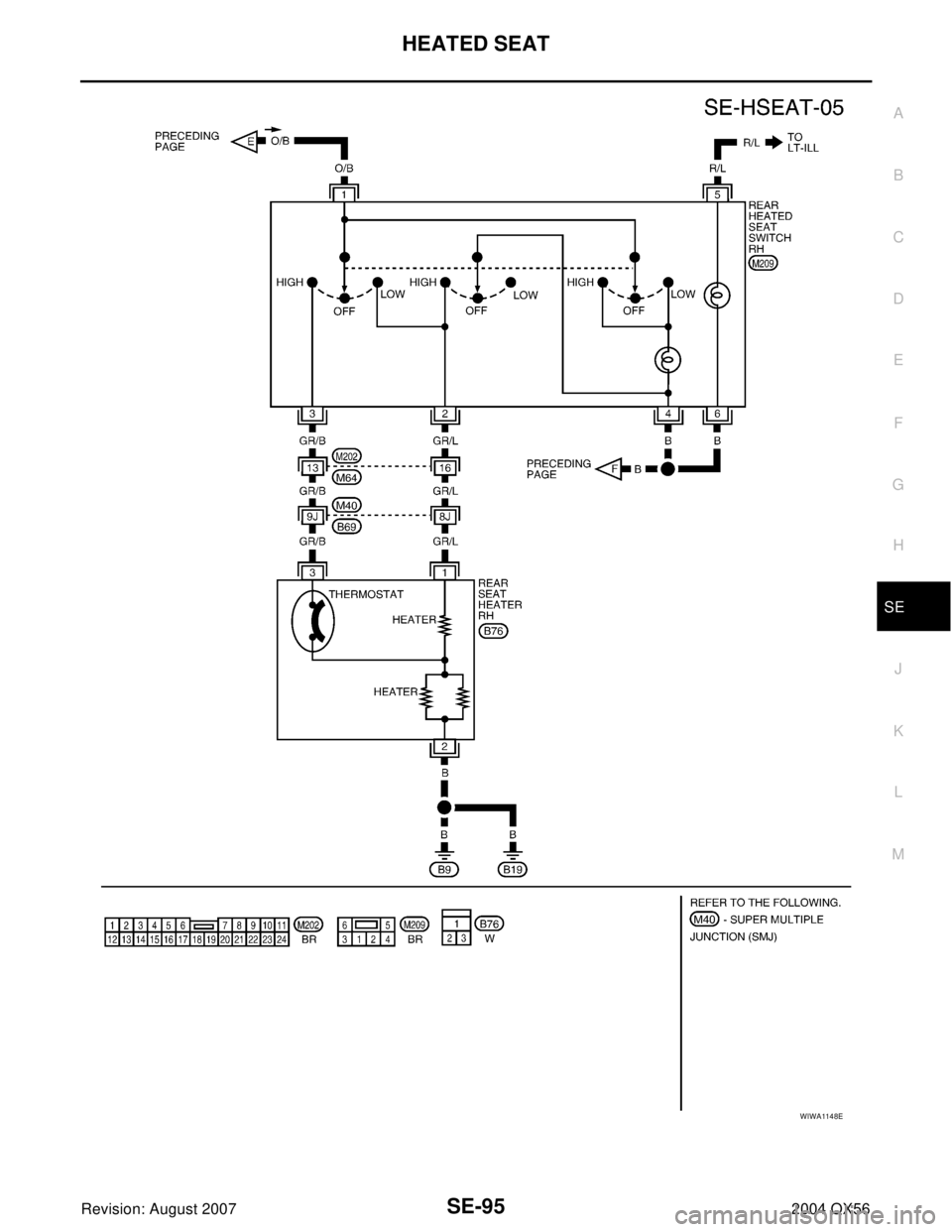

INFINITI QX56 2004 Factory Service Manual SE-94
HEATED SEAT
Revision: August 20072004 QX56
WIWA0639E

Page 3044 of 3371

INFINITI QX56 2004 Factory Service Manual HEATED SEAT
SE-95
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
WIWA1148E

Page 3045 of 3371

INFINITI QX56 2004 Factory Service Manual SE-96
FRONT SEAT
Revision: August 20072004 QX56
FRONT SEATPFP:87000
Components EIS002ZI

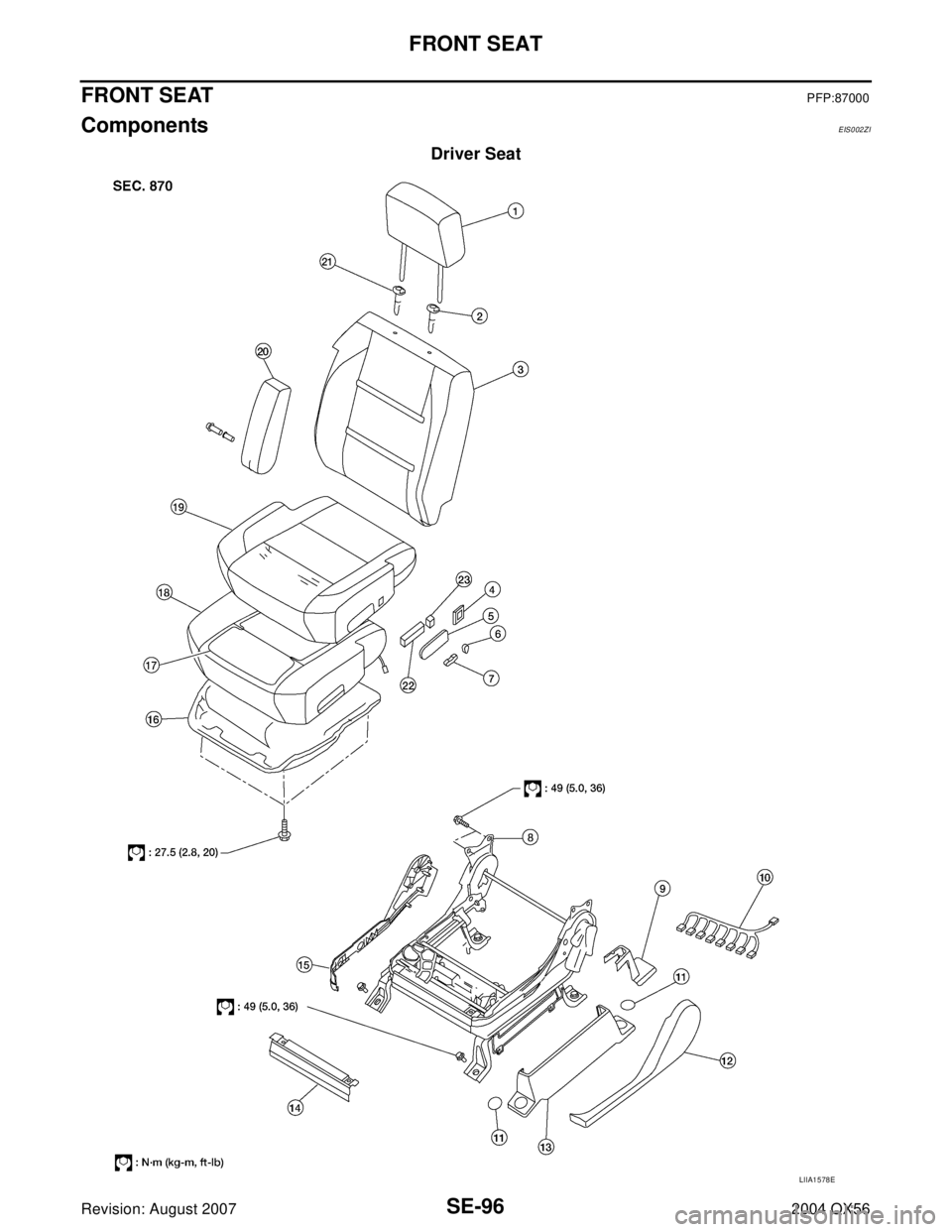

Driver Seat
LIIA1578E

Page 3046 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT SEAT
SE-97
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback assembly
4. Lumbar switch bezel 5. Power seat switch esc

Page 3047 of 3371

INFINITI QX56 2004 Factory Service Manual SE-98
FRONT SEAT
Revision: August 20072004 QX56

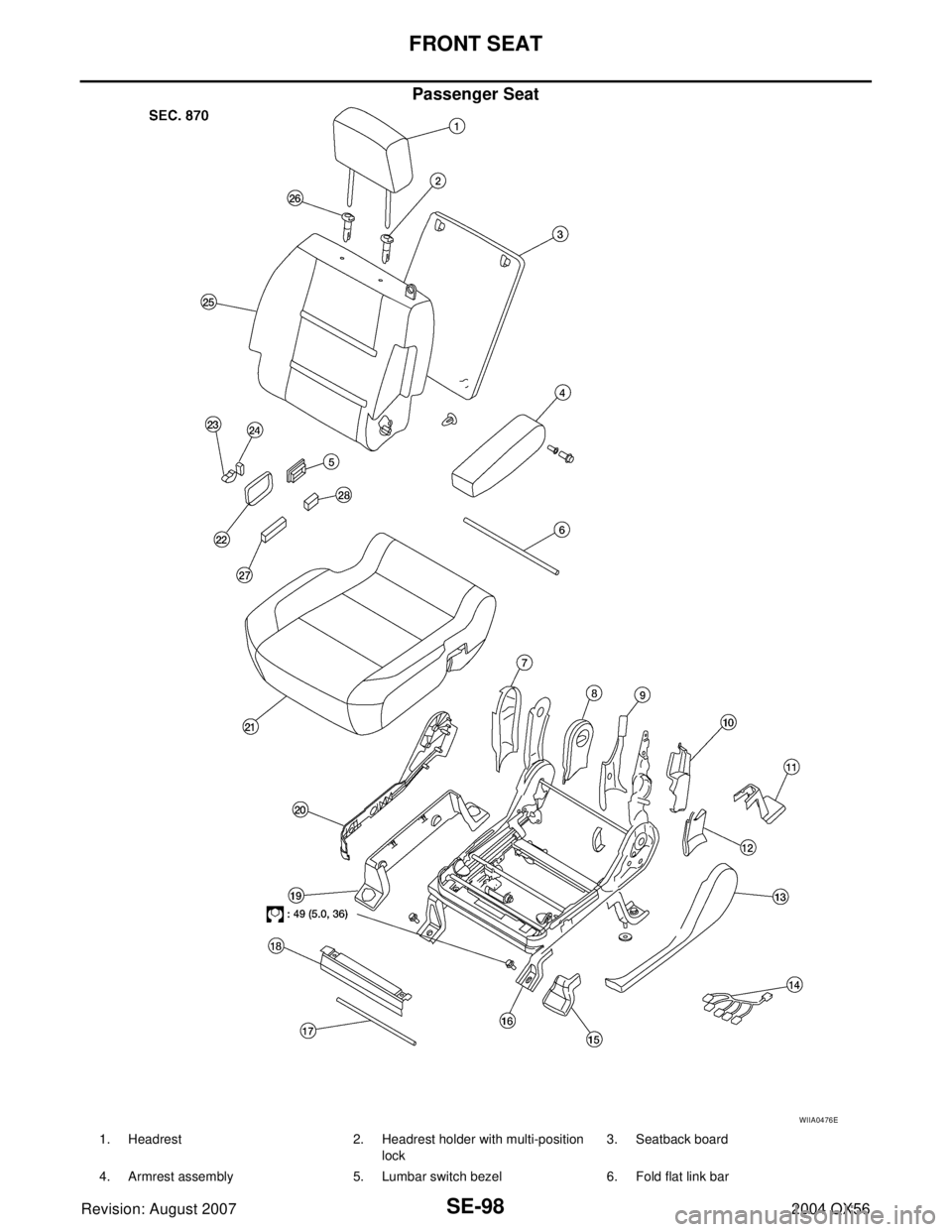

Passenger Seat
WIIA0476E
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback board
4. Armrest assembly 5. Lumbar switch bezel 6. Fold

Page 3048 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT SEAT
SE-99
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
Removal and InstallationEIS007N5
REMOVAL
NOTE:
When removing or installing the seat trim, handle it carefully to keep dirt out

FRONT SEAT
SE-99
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
Removal and InstallationEIS007N5
REMOVAL
NOTE:
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
CAUTION:
Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait at least 3 minutes.
When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.
Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with
care.
After front side air bag module inflates, front seatback assembly must be replaced.
Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.
Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four body mounting bolts are visible and a tool can be inserted.
NOTE:
If disassembling the seat after removal, set the front/rear cushion lifters to the top position.
2. Disconnect both battery cables and wait at least 3 minutes.
3. Disconnect the side air bag module harness connector.
4. Remove the four body mounting bolts.
5. Disconnect the power seat harness connectors and remove the seat from the vehicle.
NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.
INSTALLATION
Installation is in the reverse order of removal.
Disassembly and AssemblyEIS002ZJ
SEATBACK TRIM AND PAD
Disassembly
NOTE:
Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.
NOTE:
Be sure to set the front/rear cushion lifter to the top position.
Driver Seat
1. Remove the headrest.
7. Outboard reclining arm outer cover 8. Outboard reclining arm inner cover 9. Inboard reclining arm inner cove
10. Latch cover 11. LH outer leg cover 12. Outboard reclining arm inner cover
13. Seat cushion inner cover 14. Passenger seat wiring harness 15. Inner front leg cover
16. Power seat frame assembly 17. NVH assembly 18. Seat cushion front finisher
19. Outer pedestal finisher 20. Seat cushion outer finisher 21. Seat cushion assembly
22. Power seat switch escutcheon 23. Slide switch knob 24. Recliner switch knob
25. Seatback assembly 26. Headrest holder 27. Seat slide/ recline switch
28. Power lumbar switch
