Page 1273 of 3371

INFINITI QX56 2004 Factory Service Manual EC-82Revision: August 2007 TROUBLE DIAGNOSIS 2004 QX56 10. CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END NG >> GO TO 11. 11 .

Page 1274 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS EC-83 C D E F G H I J K L MA EC Revision: August 20072004 QX56 15. CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSP

Page 1275 of 3371

INFINITI QX56 2004 Factory Service Manual EC-84Revision: August 2007 TROUBLE DIAGNOSIS 2004 QX56 Symptom Matrix ChartUBS00H00 SYSTEM — BASIC ENGINE CONTROL SYSTEM SYMPTOM Reference page HARD/NO START/RESTART (EXCP. HA) ENGINE STALL HESITAT

Page 1276 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS EC-85 C D E F G H I J K L MA EC Revision: August 20072004 QX56 1 - 6: The numbers refer to the order of inspection. (continued on next page) SYSTEM — ENGINE MECHANICAL & OTHER Vehi

Page 1277 of 3371

INFINITI QX56 2004 Factory Service Manual EC-86Revision: August 2007 TROUBLE DIAGNOSIS 2004 QX56 Air Air duct 55555 5EM-14 Air cleanerEM-14 Air leakage from air duct (Mass air flow sensor — electric throttle control actuator) 5555EM-14 Ele

Page 1278 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS EC-87 C D E F G H I J K L MA EC Revision: August 20072004 QX56 1 - 6: The numbers refer to the order of inspection.Cooling Radiator/Hose/Radiator filler cap 55555 55 45CO-10 Thermost

Page 1279 of 3371

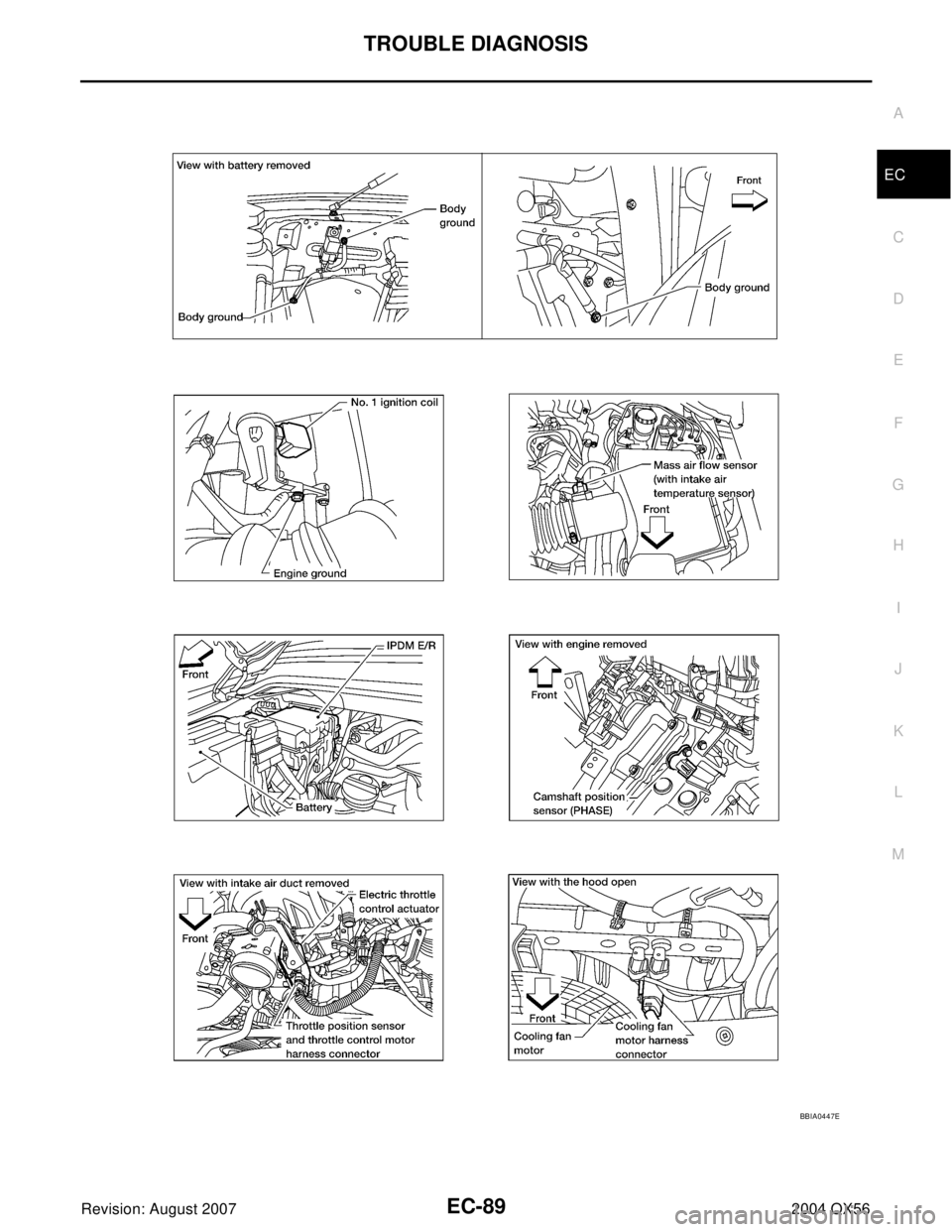

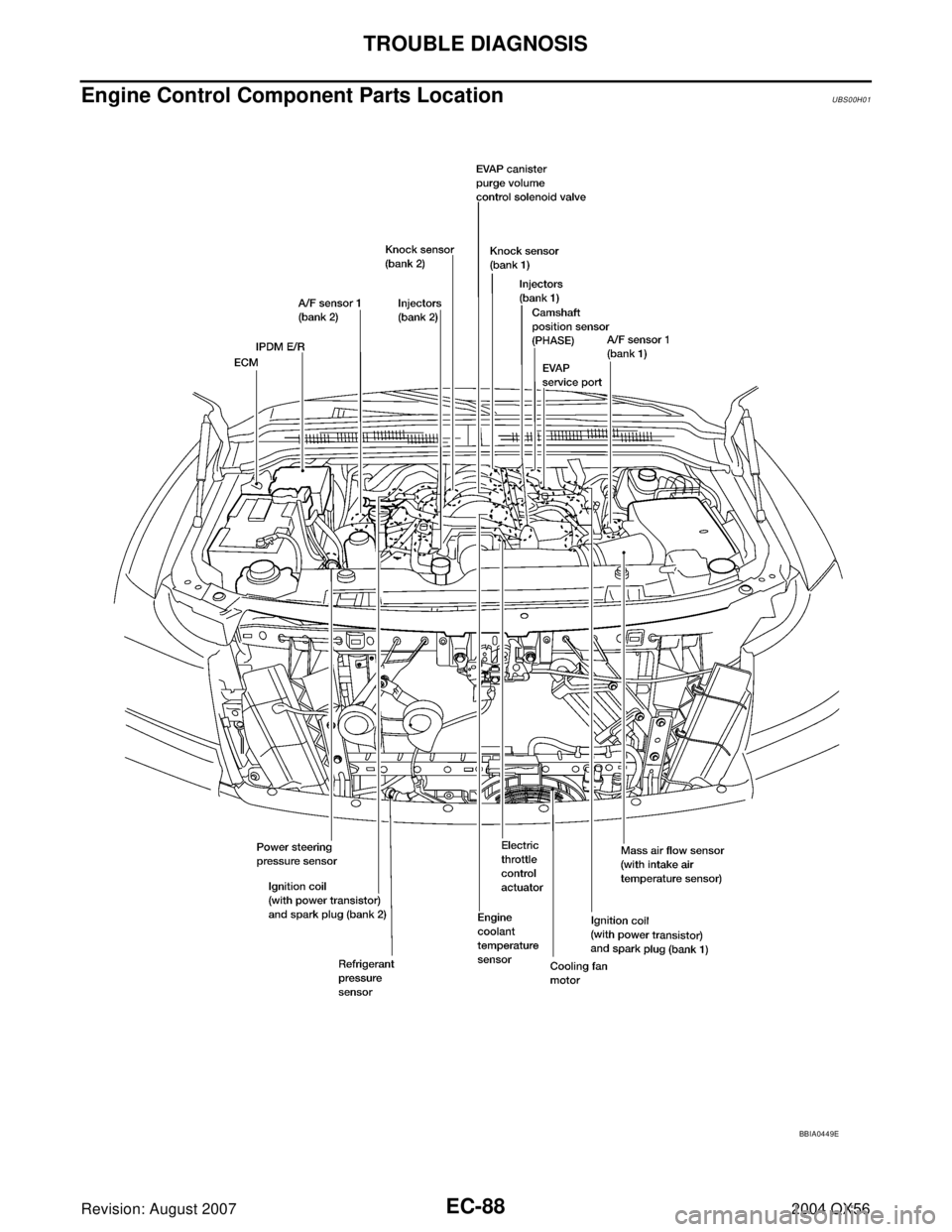

INFINITI QX56 2004 Factory Service Manual EC-88Revision: August 2007 TROUBLE DIAGNOSIS 2004 QX56 Engine Control Component Parts LocationUBS00H01 BBIA0449E

Page 1280 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS EC-89 C D E F G H I J K L MA EC Revision: August 20072004 QX56 BBIA0447E
