Page 2401 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-138 [CAN] CAN SYSTEM (TYPE 4) Revision: August 20072004 QX56 Case 4 Check harness between driver seat control unit and data link connector. Refer to LAN-157, "Circuit Check Between Driver Seat Con

Page 2402 of 3371

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-139 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 5 Check harness between data link connector and IPDM E/R. Refer to LAN-158, "Circuit Check Between Data

Page 2403 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-140 [CAN] CAN SYSTEM (TYPE 4) Revision: August 20072004 QX56 Case 6 Check ECM circuit. Refer to LAN-159, "ECM Circuit Check" . PKIA8117E PKIA8823E

Page 2404 of 3371

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-141 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 7 Check TCM circuit. Refer to LAN-159, "TCM Circuit Check" . PKIA8118E PKIA8824E

Page 2405 of 3371

INFINITI QX56 2004 Factory Service Manual LAN-142 [CAN] CAN SYSTEM (TYPE 4) Revision: August 20072004 QX56 Case 8 Check ICC sensor circuit. Refer to LAN-160, "ICC Sensor Circuit Check" . PKIA8119E PKIA8825E

Page 2406 of 3371

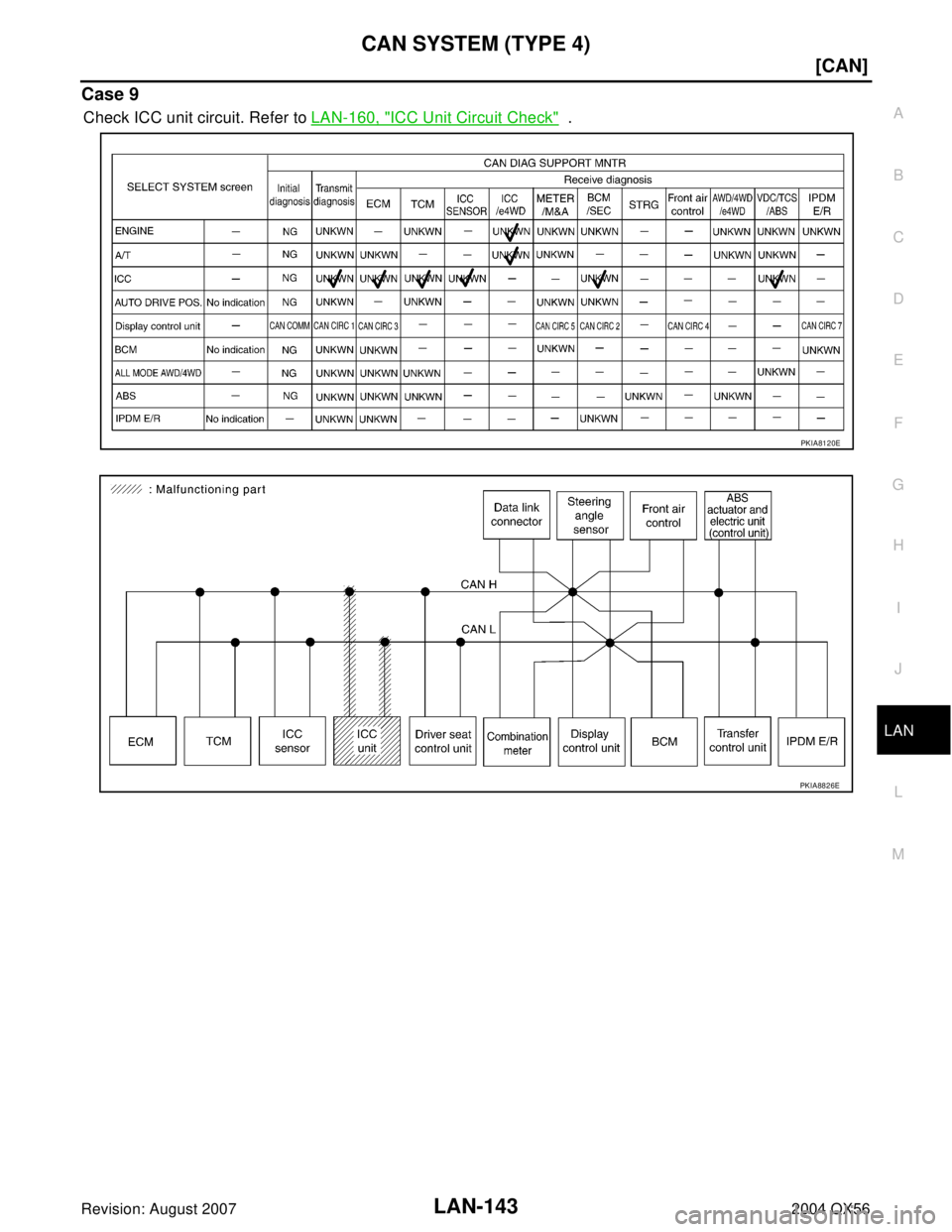

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-143 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 9 Check ICC unit circuit. Refer to LAN-160, "ICC Unit Circuit Check" . PKIA8120E PKIA8826E

Page 2407 of 3371

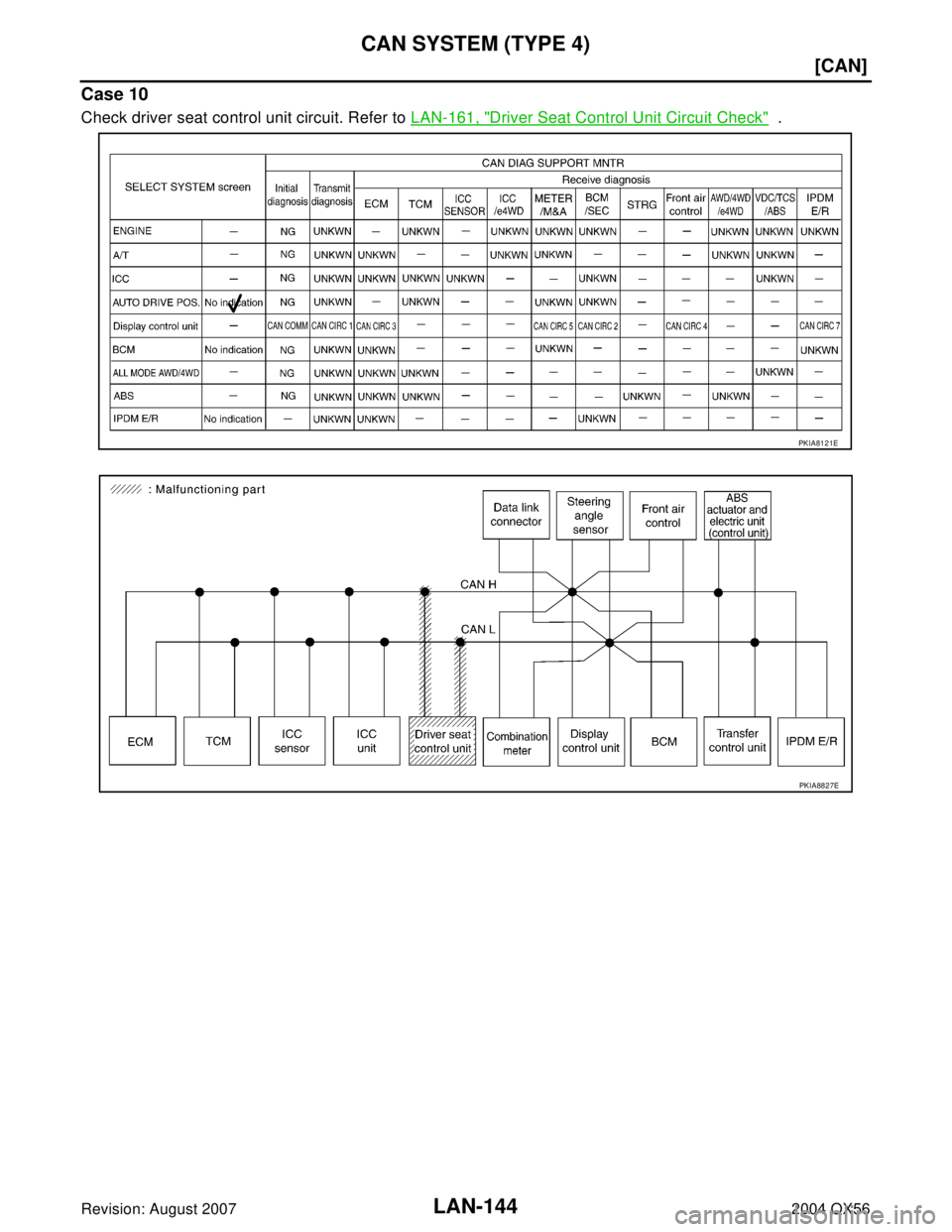

INFINITI QX56 2004 Factory Service Manual LAN-144 [CAN] CAN SYSTEM (TYPE 4) Revision: August 20072004 QX56 Case 10 Check driver seat control unit circuit. Refer to LAN-161, "Driver Seat Control Unit Circuit Check" . PKIA8121E PKIA8827E

Page 2408 of 3371

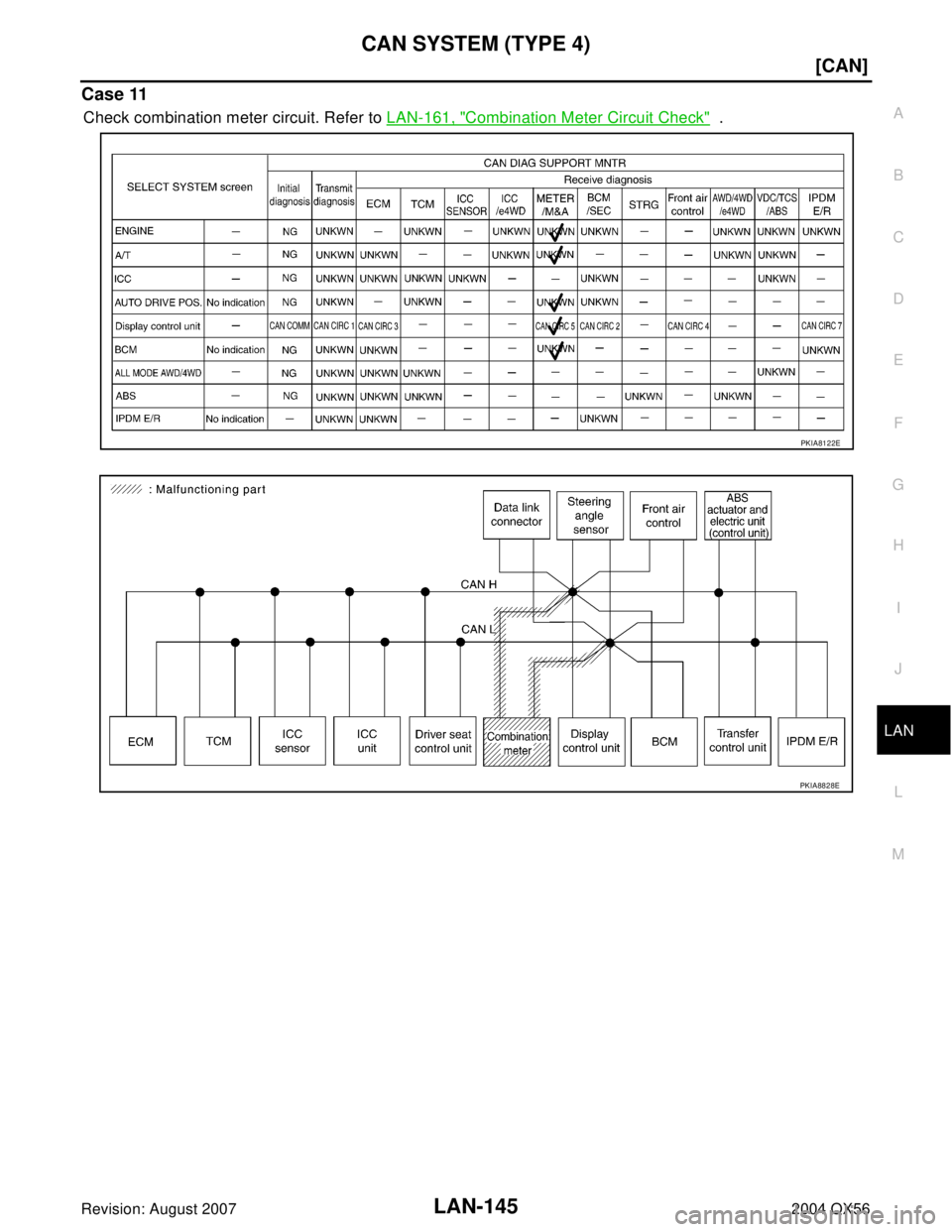

INFINITI QX56 2004 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-145 [CAN] C D E F G H I J L MA B LAN Revision: August 20072004 QX56 Case 11 Check combination meter circuit. Refer to LAN-161, "Combination Meter Circuit Check" . PKIA8122E PK
