Page 2337 of 6000

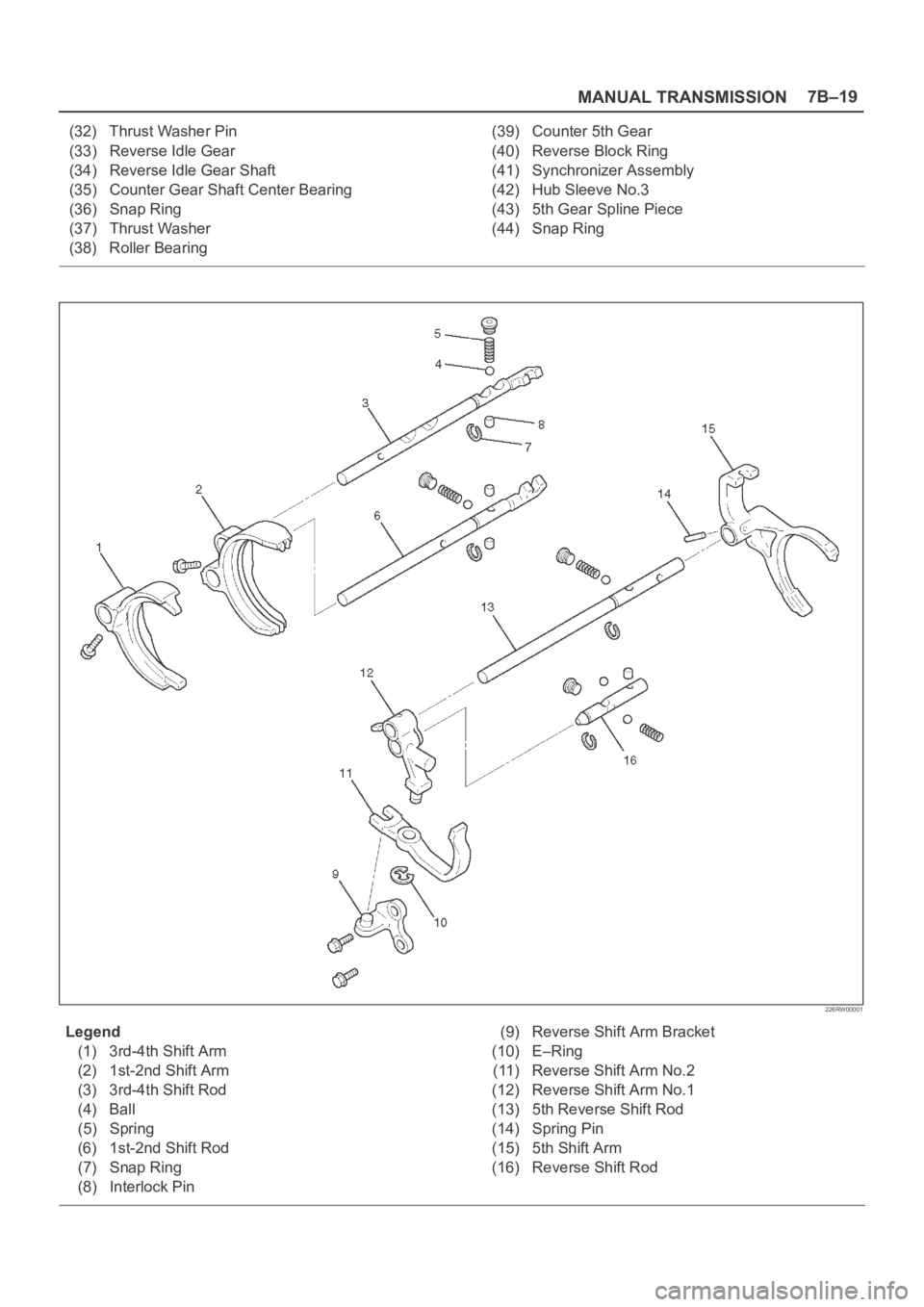

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–19 (32) Thrust Washer Pin (33) Reverse Idle Gear (34) Reverse Idle Gear Shaft (35) Counter Gear Shaft Center Bearing (36) Snap Ring (37) Thrust Washer (38) Roller Bearing(39) C

Page 2338 of 6000

OPEL FRONTERA 1998 Workshop Manual 7B–20MANUAL TRANSMISSION 220RW095 Legend (1) Release Bearing and Shift Fork (2) Clutch Housing (3) Front Cover (4) Snap Ring (5) Snap Ring (6) 1st and 2nd Switch (7) Drain Plug (8) Backup Light Swit

Page 2339 of 6000

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–21 Disassembly 1. Remove the drain plug and filler plug. 1. Remove the drain plug (1) and gasket. 2. Remove the filler plug (2) and gasket. (6VE1) 220RW007 2. Remove the clutch

Page 2340 of 6000

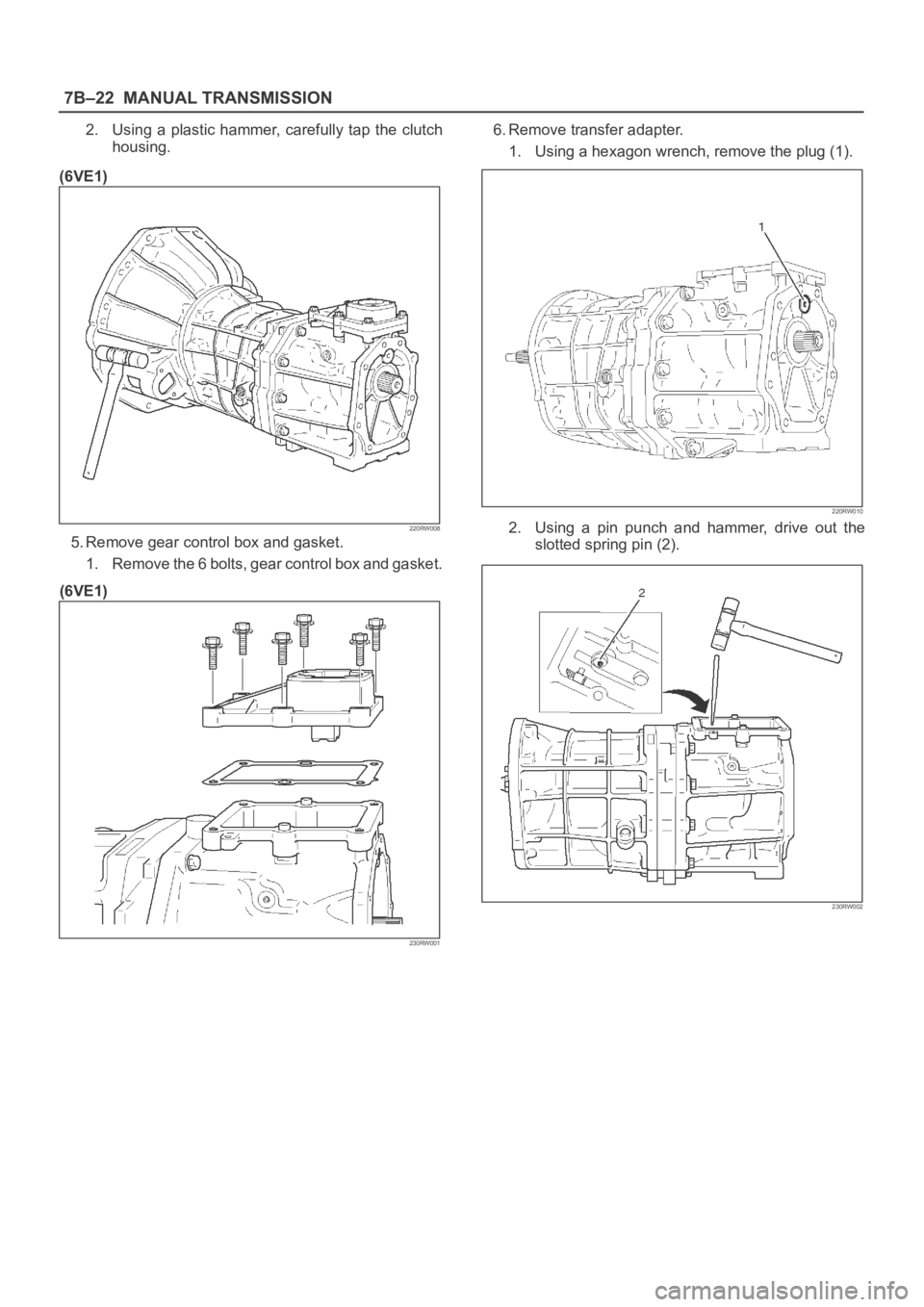

OPEL FRONTERA 1998 Workshop Manual 7B–22MANUAL TRANSMISSION 2. Using a plastic hammer, carefully tap the clutch housing. (6VE1) 220RW008 5. Remove gear control box and gasket. 1. Remove the 6 bolts, gear control box and gasket

Page 2341 of 6000

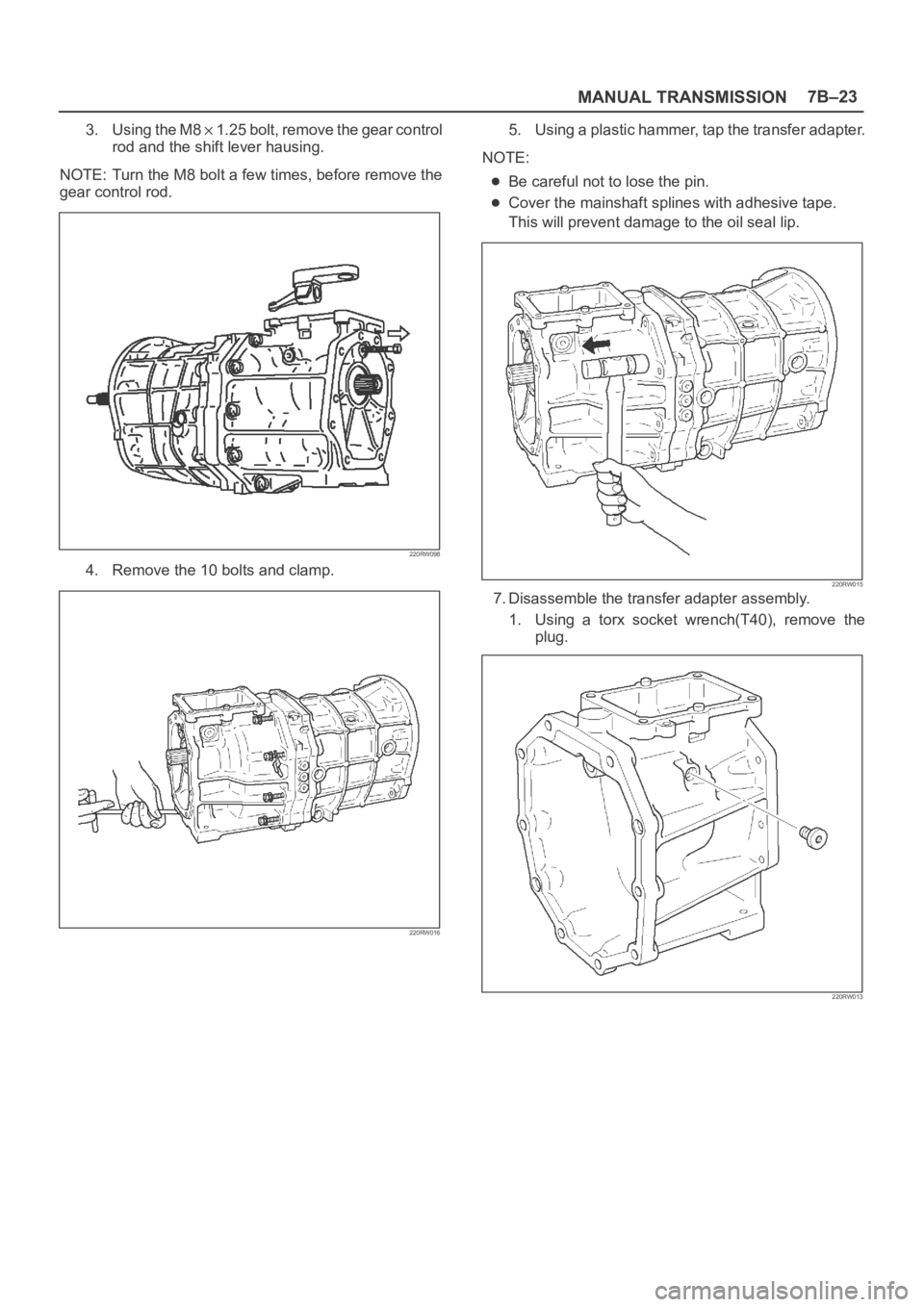

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–23 3. Using the M8 1.25 bolt, remove the gear control rod and the shift lever hausing. NOTE: Turn the M8 bolt a few times, before remove the gear control rod. 220RW098 4. Remo

Page 2342 of 6000

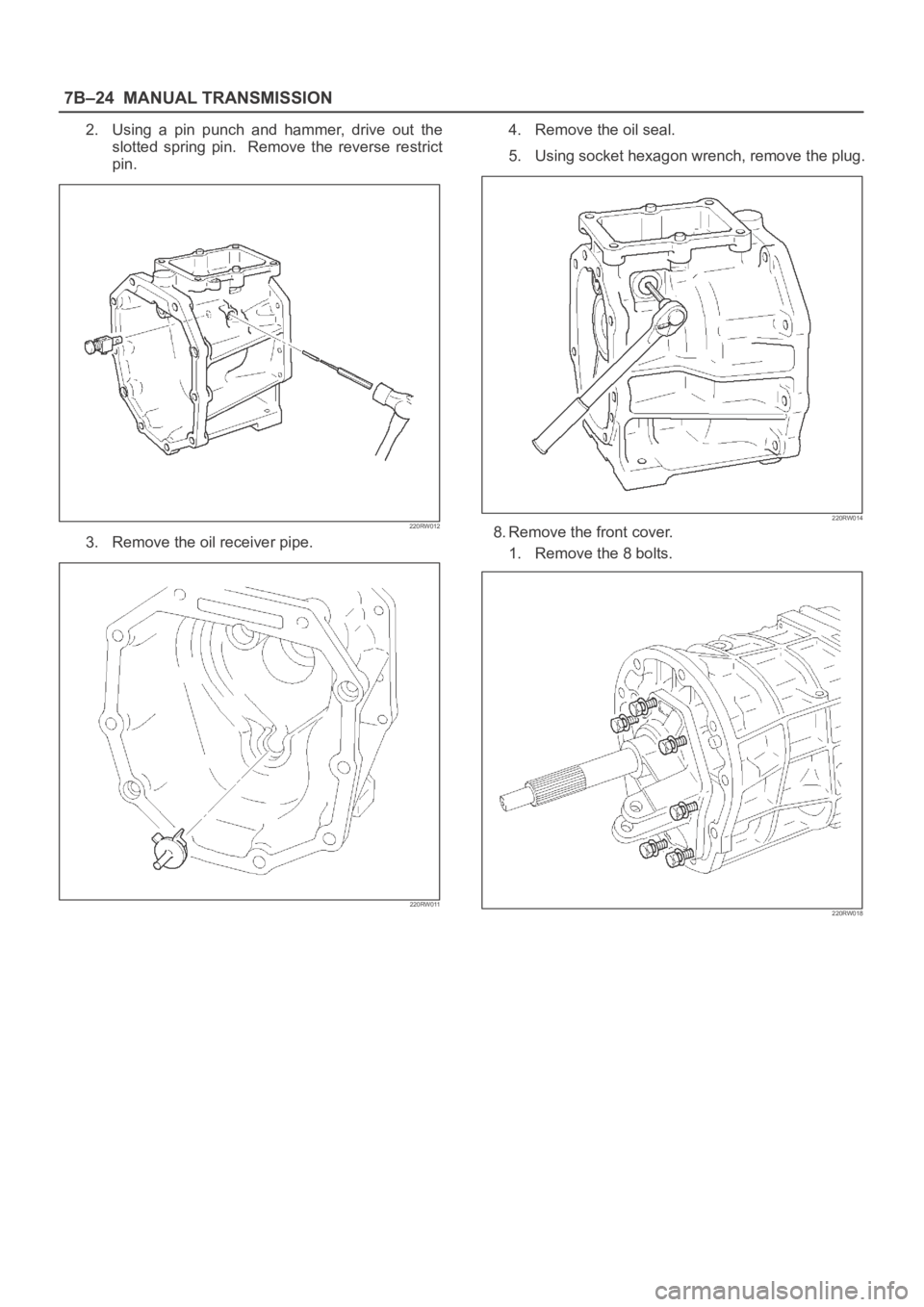

OPEL FRONTERA 1998 Workshop Manual 7B–24MANUAL TRANSMISSION 2. Using a pin punch and hammer, drive out the slotted spring pin. Remove the reverse restrict pin. 220RW012 3. Remove the oil receiver pipe. 220RW011 4. Rem

Page 2343 of 6000

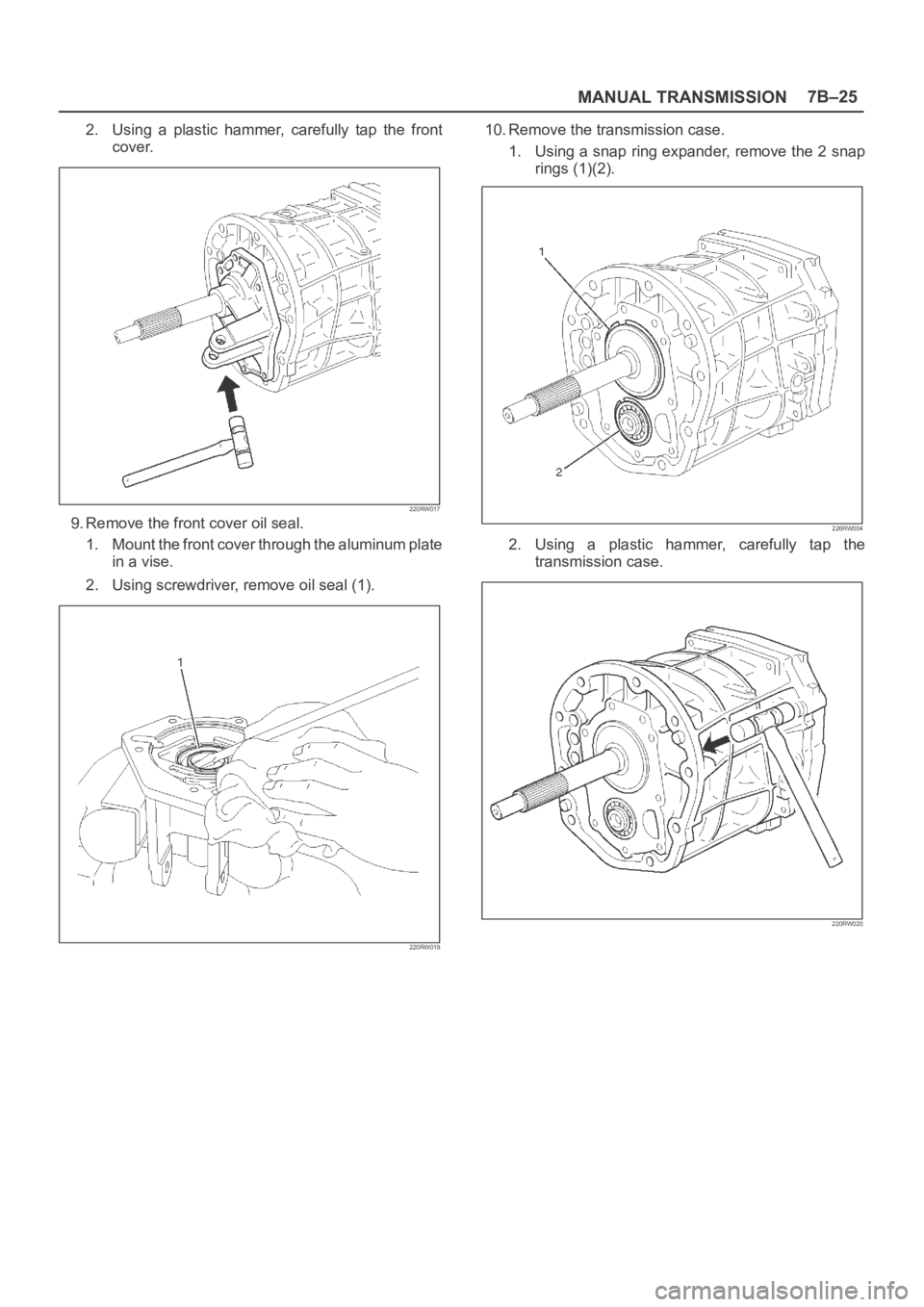

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–25 2. Using a plastic hammer, carefully tap the front cover. 220RW017 9. Remove the front cover oil seal. 1. Mount the front cover through the aluminum plate in a vise.

Page 2344 of 6000

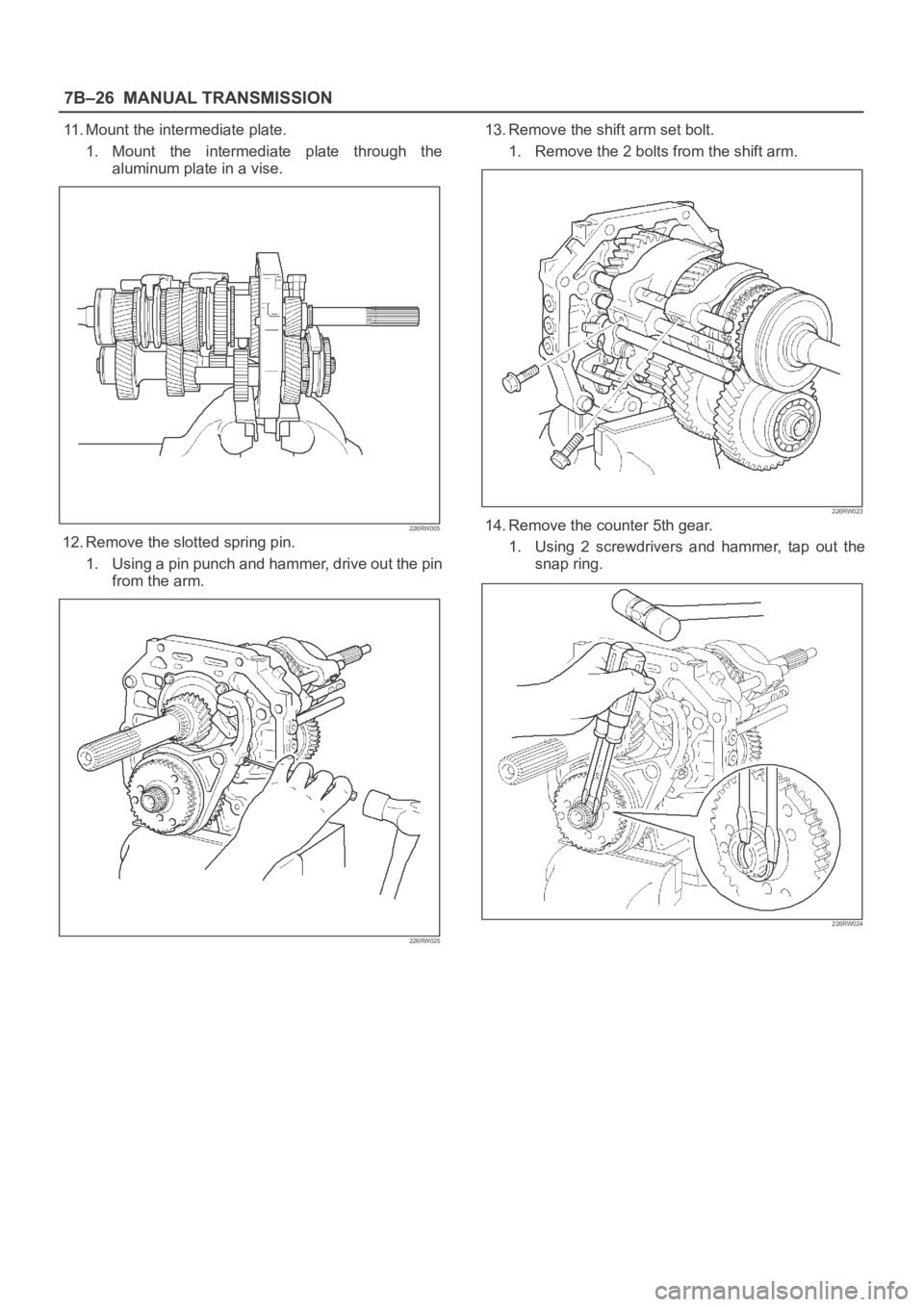

OPEL FRONTERA 1998 Workshop Manual 7B–26MANUAL TRANSMISSION 11. Mount the intermediate plate. 1. Mount the intermediate plate through the aluminum plate in a vise. 226RW005 12. Remove the slotted spring pin. 1. Using a pin punch
