Page 2233 of 6000

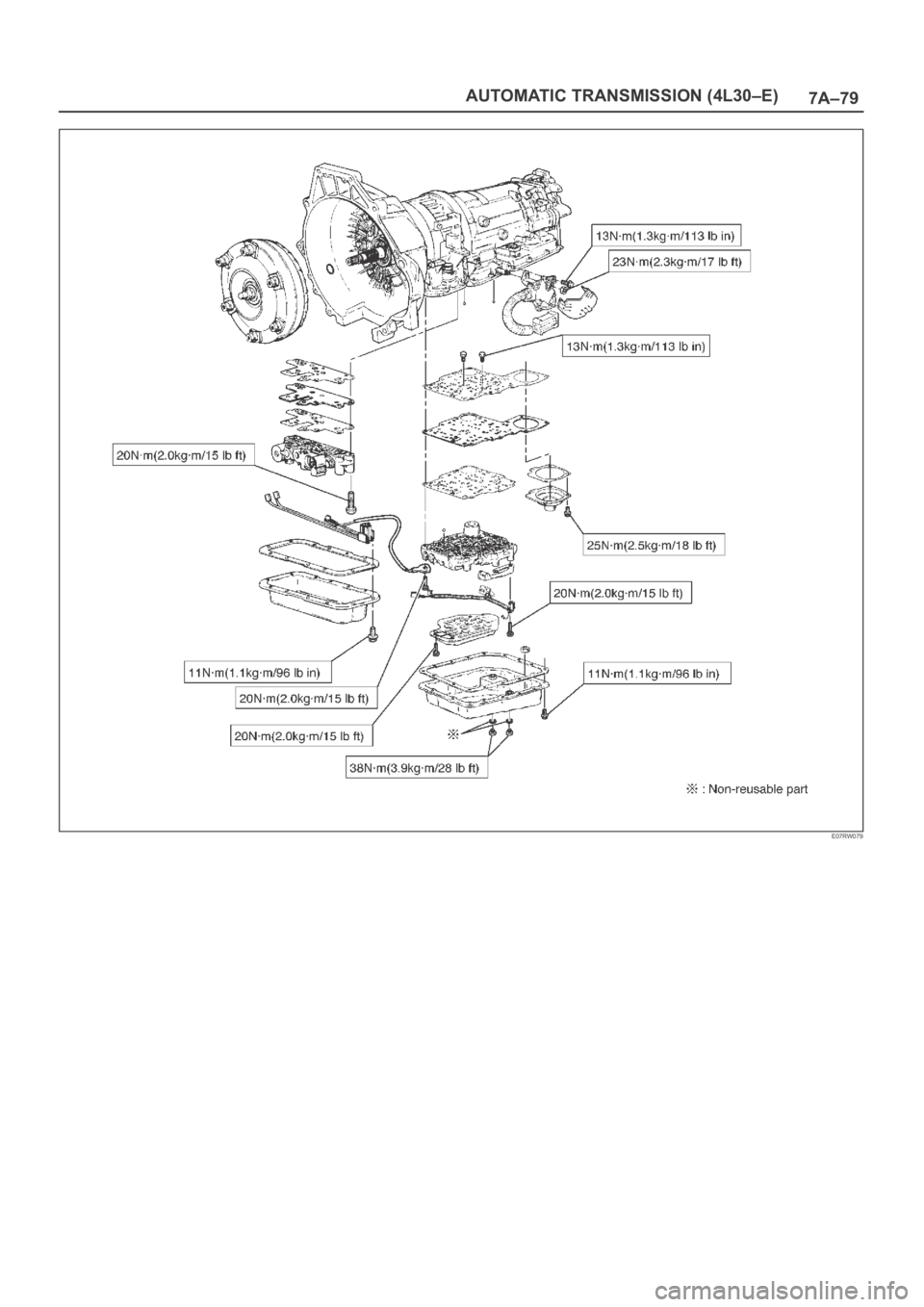

OPEL FRONTERA 1998 Workshop Manual 7A–79 AUTOMATIC TRANSMISSION (4L30–E) E07RW079

Page 2234 of 6000

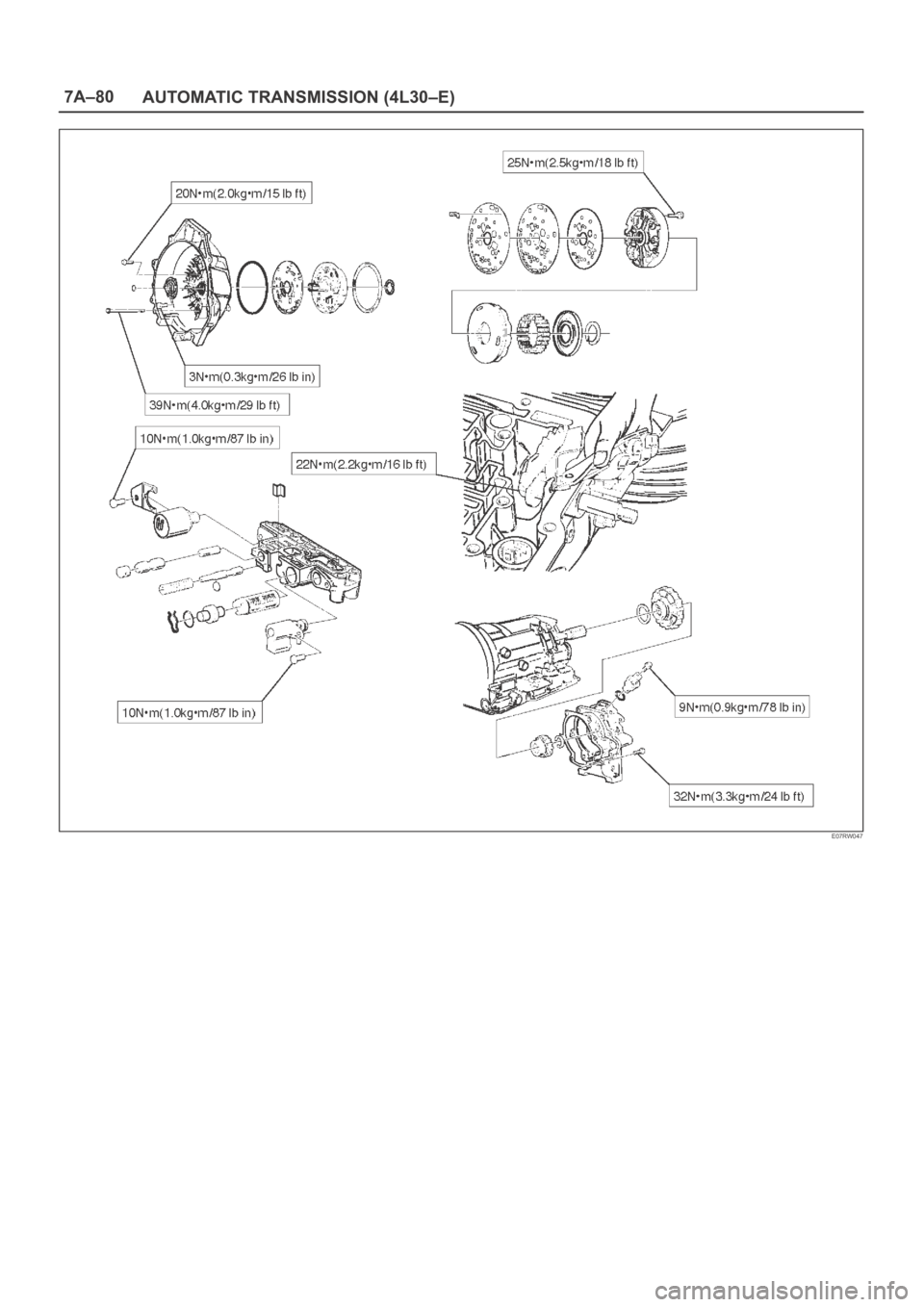

OPEL FRONTERA 1998 Workshop Manual 7A–80 AUTOMATIC TRANSMISSION (4L30–E) E07RW047

Page 2235 of 6000

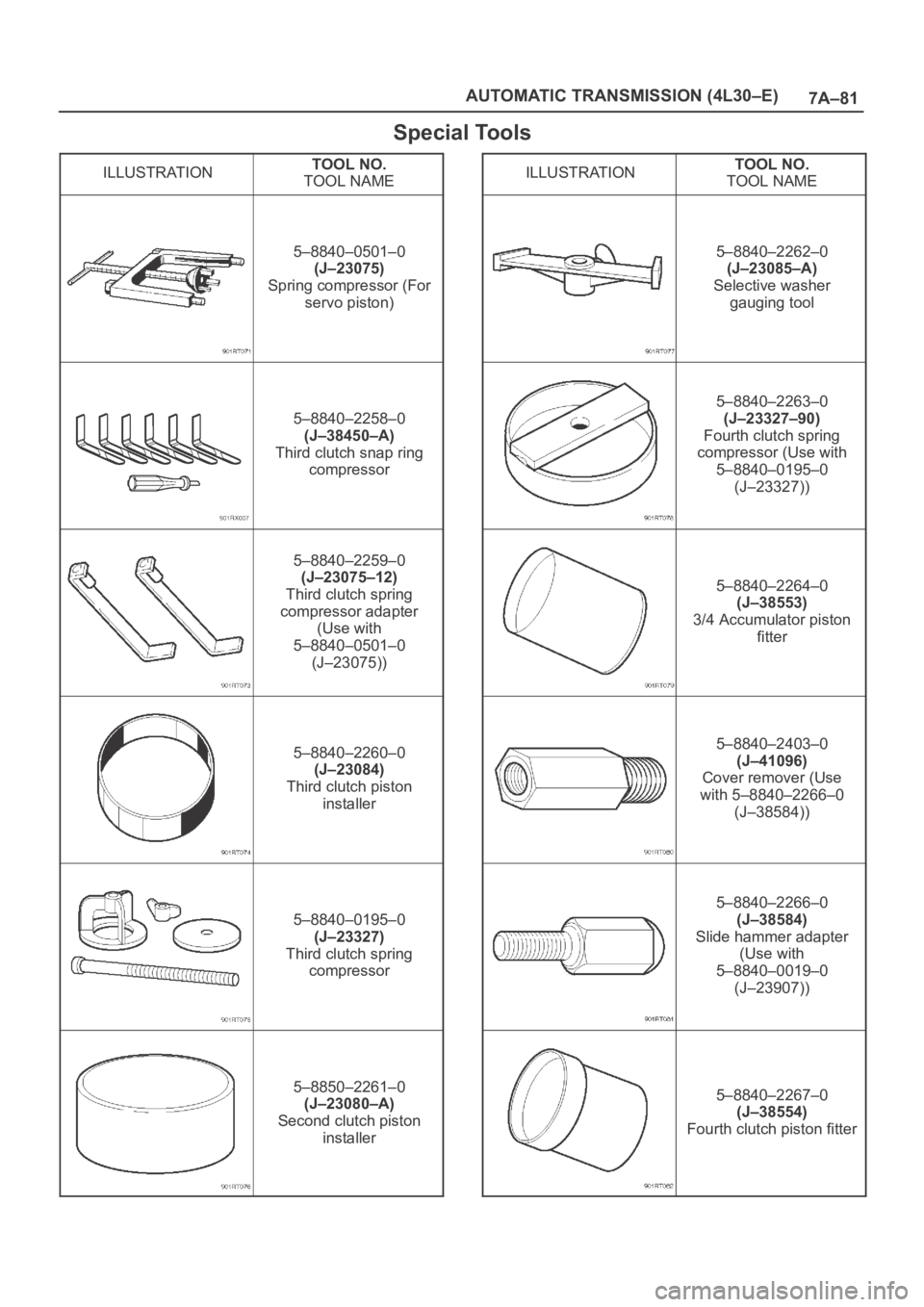

OPEL FRONTERA 1998 Workshop Manual 7A–81 AUTOMATIC TRANSMISSION (4L30–E) Special Tools ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–0501–0 (J–23075) Spring compressor (For servo piston) 5–8840–2258–0 (J–38450–A) Third cl

Page 2236 of 6000

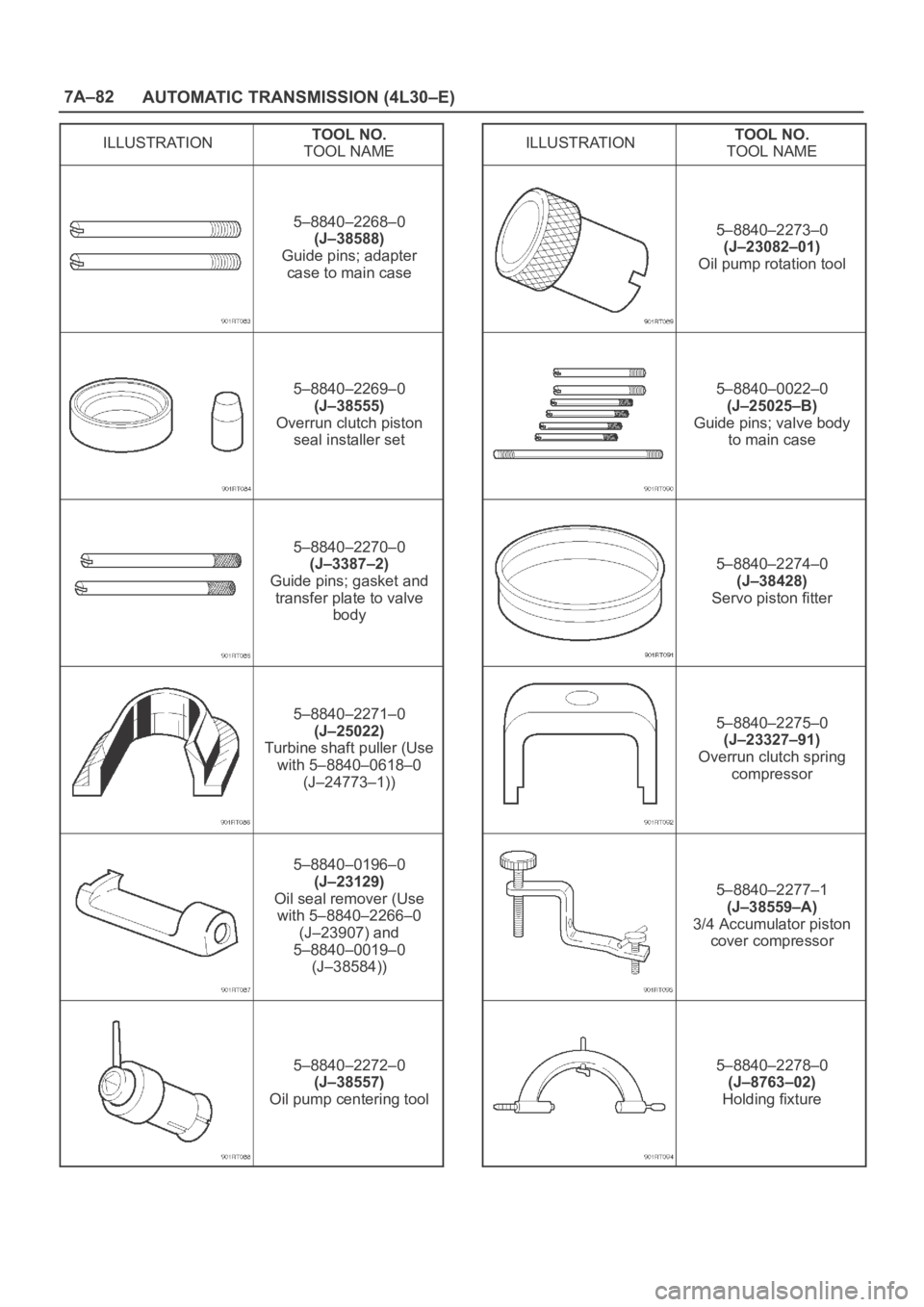

OPEL FRONTERA 1998 Workshop Manual 7A–82 AUTOMATIC TRANSMISSION (4L30–E) ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–2268–0 (J–38588) Guide pins; adapter case to main case 5–8840–2269–0 (J–38555) Overrun clutch piston sea

Page 2237 of 6000

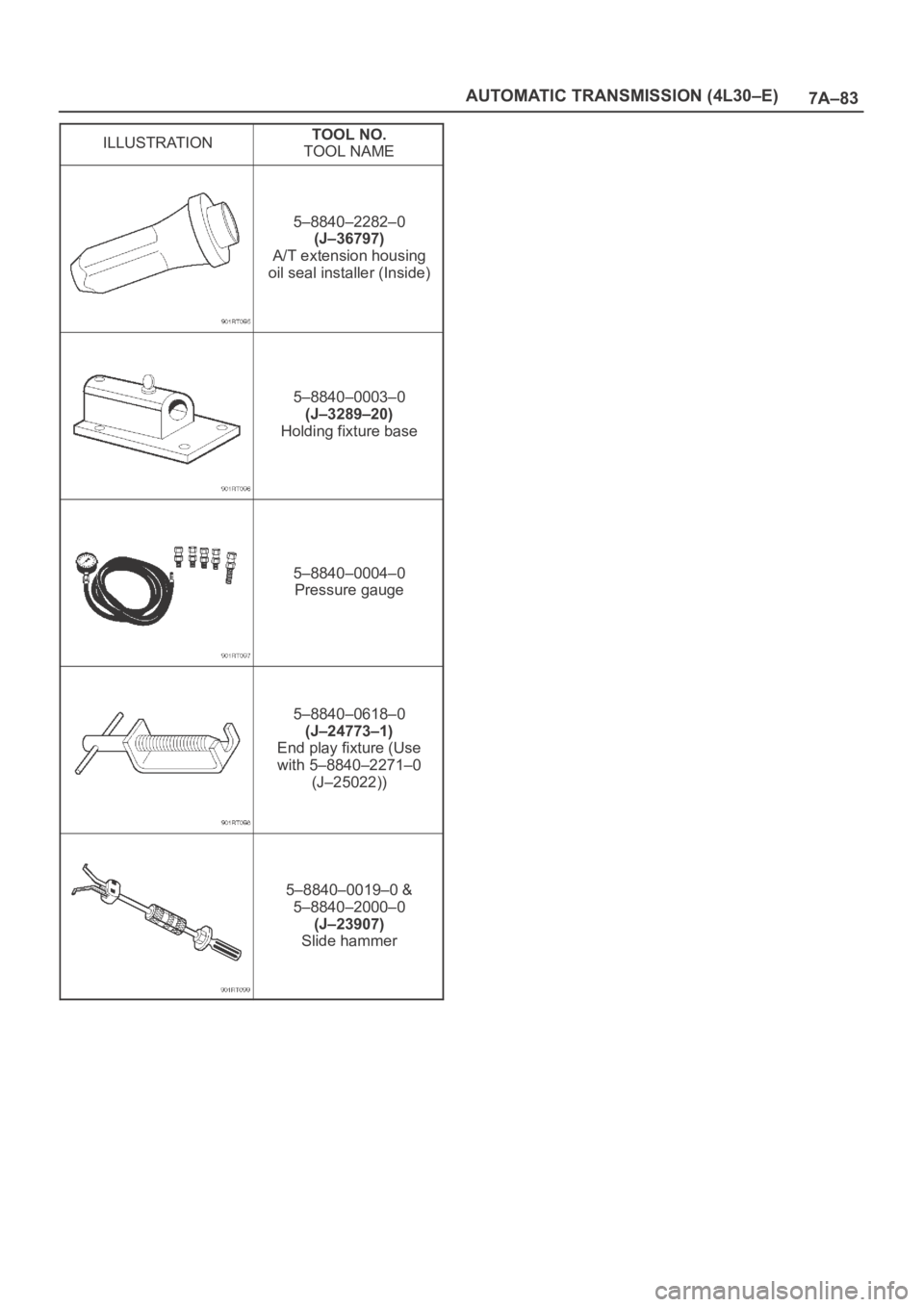

OPEL FRONTERA 1998 Workshop Manual 7A–83 AUTOMATIC TRANSMISSION (4L30–E) ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–2282–0 (J–36797) A/T extension housing oil seal installer (Inside) 5–8840–0003–0 (J–3289–20) Holding f

Page 2238 of 6000

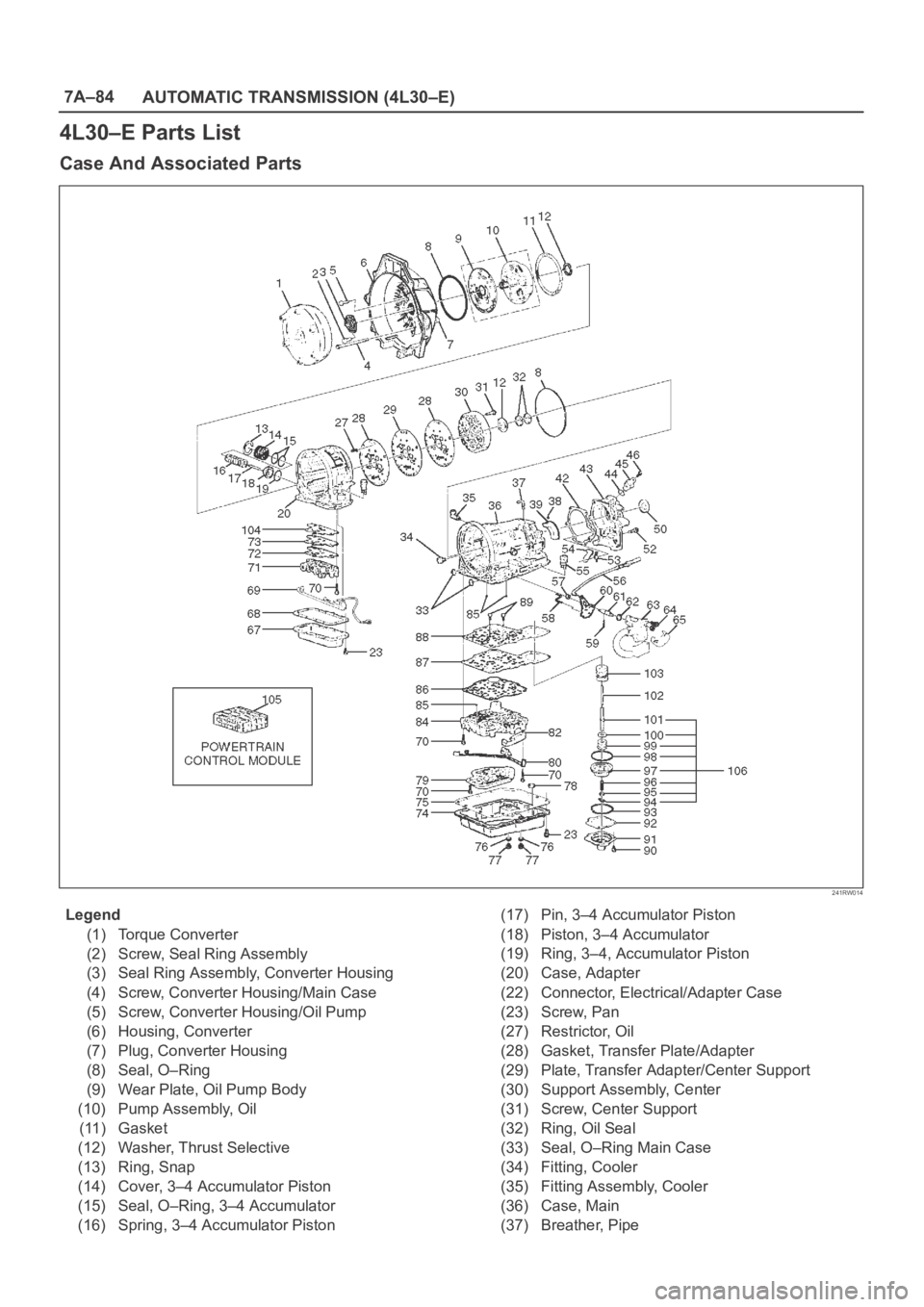

OPEL FRONTERA 1998 Workshop Manual 7A–84 AUTOMATIC TRANSMISSION (4L30–E) 4L30–E Parts List Case And Associated Parts 241RW014 Legend (1) Torque Converter (2) Screw, Seal Ring Assembly (3) Seal Ring Assembly, Converter Housing (4)

Page 2239 of 6000

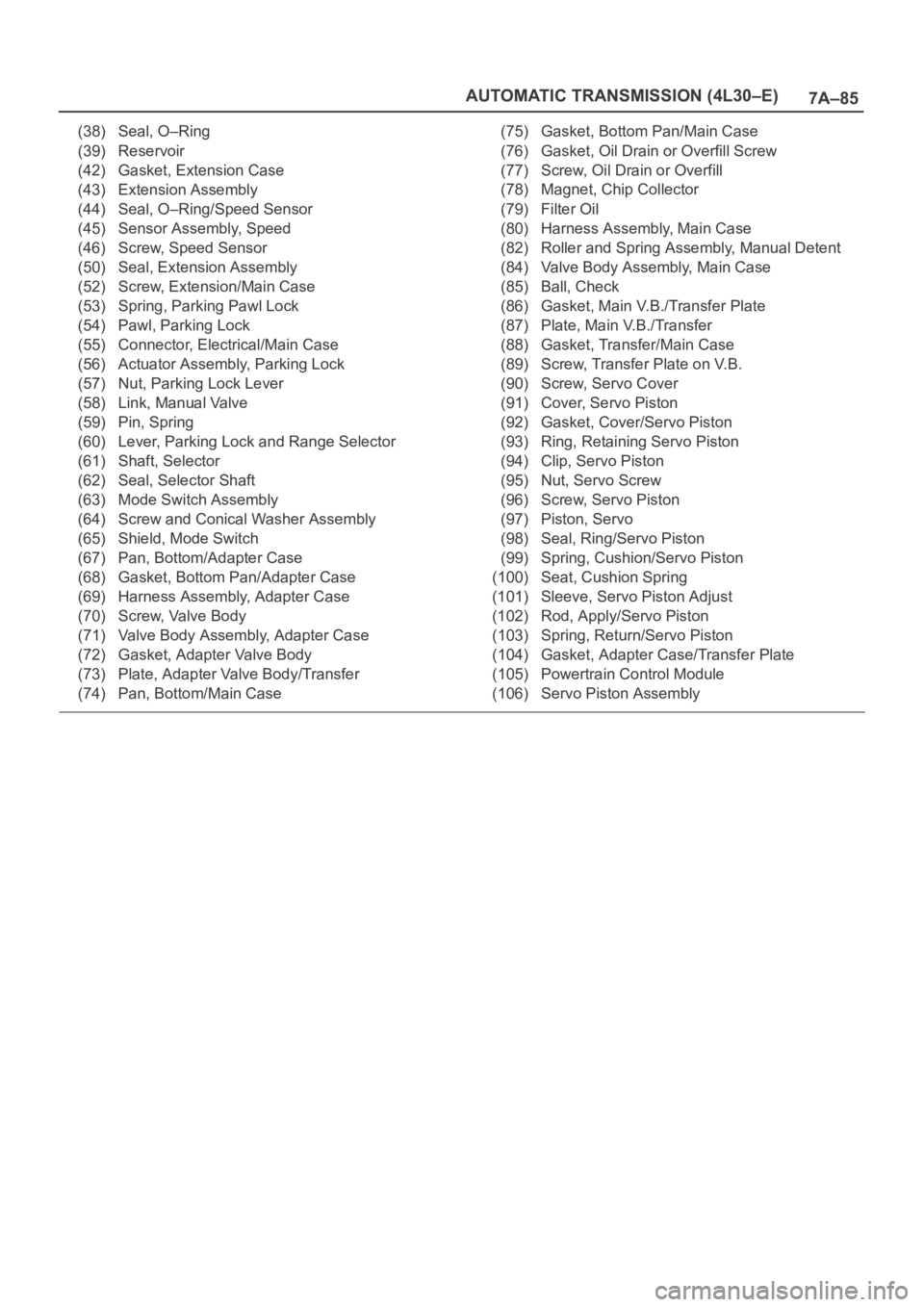

OPEL FRONTERA 1998 Workshop Manual 7A–85 AUTOMATIC TRANSMISSION (4L30–E) (38) Seal, O–Ring (39) Reservoir (42) Gasket, Extension Case (43) Extension Assembly (44) Seal, O–Ring/Speed Sensor (45) Sensor Assembly, Speed (46) Screw

Page 2240 of 6000

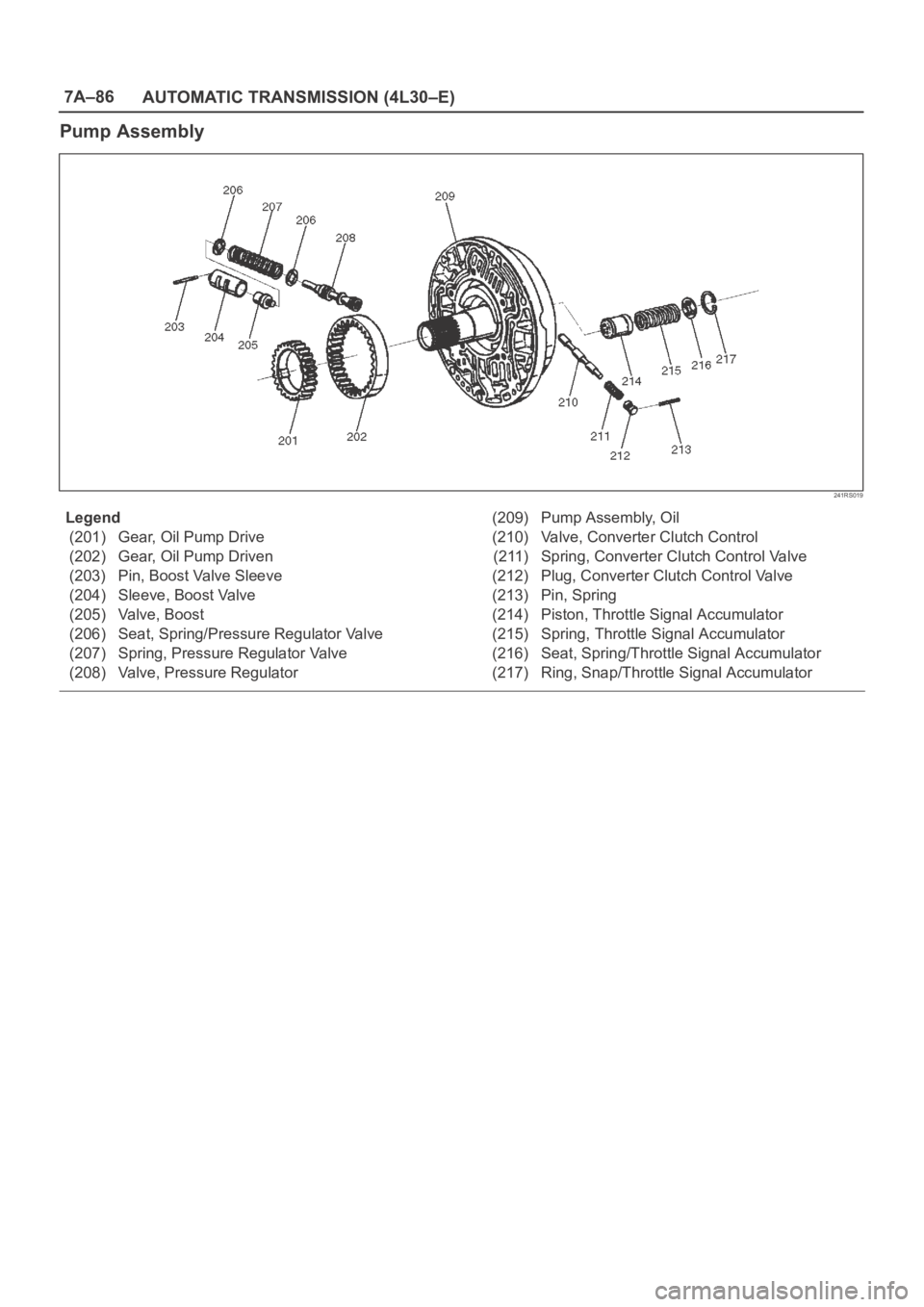

OPEL FRONTERA 1998 Workshop Manual 7A–86 AUTOMATIC TRANSMISSION (4L30–E) Pump Assembly 241RS019 Legend (201) Gear, Oil Pump Drive (202) Gear, Oil Pump Driven (203) Pin, Boost Valve Sleeve (204) Sleeve, Boost Valve (205) Valve, Boos
